A2 Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The A2 range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with a single seal on the cable outer sheath.

Features

High quality durable materials
Robust, heavy duty design
Displacement type seal
Deluge protected
-60˚C to +130˚C (standard), -20˚C to +200˚C (ThermIn option)

Additional Information

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request.

Certificates

Product Selector

Showing:

Refine by part number

Entry thread type
Entry thread size
Cable Diameter Minimum
Cable Diameter Maximum
Gland Material

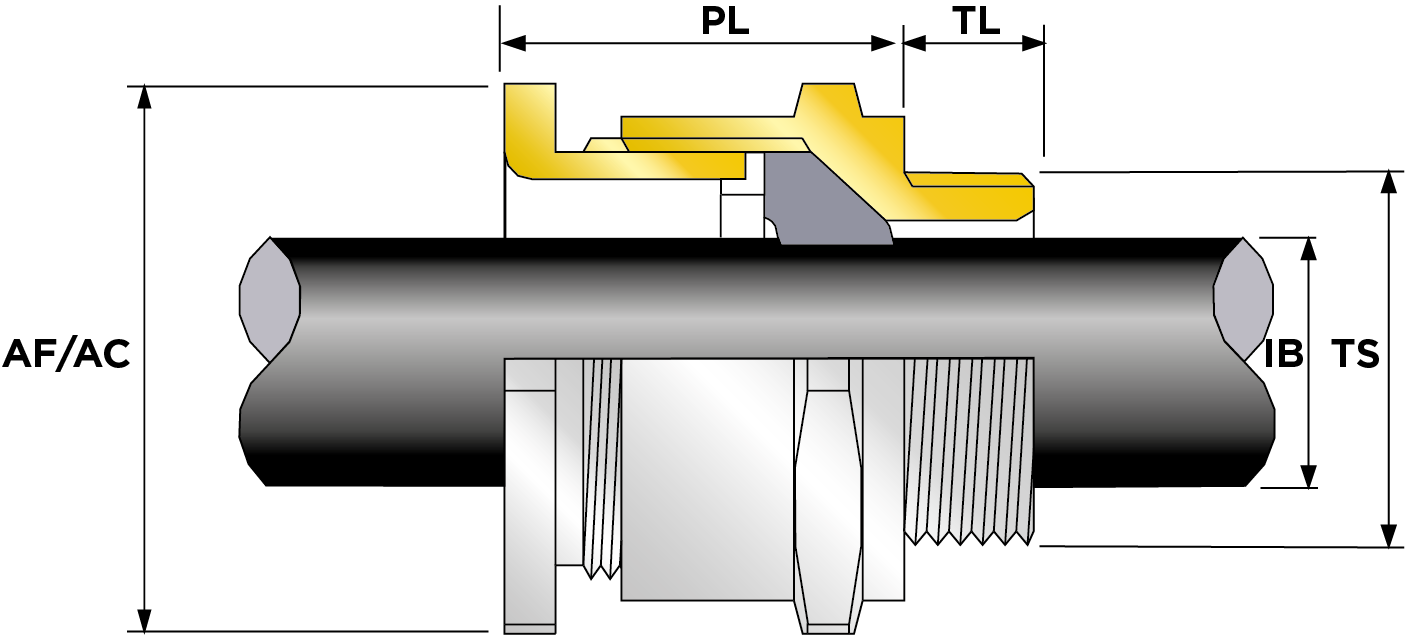

	Part Number	Size	Material	Entry Thread	Entry Thread Size TS	Entry Thread Pitch TP	Min Overall Cable Ø OS (mm)	Max Overall Cable Ø OS (mm)	Min Overall Cable Ø OS (Imp)	Max Overall Cable Ø OS (Imp)	Min Thread Length TL (mm)	Min Thread Length TL (Imp)	Max Across Flats AF (mm)	Max Across Corners AC (mm)	Max Across Flats AF (Imp)	Max Across Corners AC (Imp)	Max Protrusion Length PL (mm)	Shroud Size	Ass'y Weight
Select	20S16A2LSF2RA	20S16	Brass	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	LSF04
Select	20S16A21RA1	20S16	Aluminium	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.02
Select	20S16A21RA4	20S16	Stainless Steel	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.07
Select	20S16A21RA5	20S16	Nickel Plated Brass	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.07
Select	20S16A21RA032	20S16	Brass	NPT	3/4"		3.2	8.7	0.13	0.34	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20S16A21RA132	20S16	Aluminium	NPT	3/4"		3.2	8.7	0.13	0.34	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20S16A21RA432	20S16	Stainless Steel	NPT	3/4"		3.2	8.7	0.13	0.34	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20S16A21RA532	20S16	Nickel Plated Brass	NPT	3/4"		3.2	8.7	0.13	0.34	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20S16A22RZ	20S16	Brass	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	PVC04
Select	20SA21RA1	20S	Aluminium	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.02
Select	20SA21RA4	20S	Stainless Steel	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.06
Select	20SA21RA5	20S	Nickel Plated Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.06
Select	20S16A21RA031	20S16	Brass	NPT	1/2"		3.2	8.7	0.13	0.34	19.9	0.78	24	26.4	0.95	1.04	26
Select	20S16A21RA131	20S16	Aluminium	NPT	1/2"		3.2	8.7	0.13	0.34	19.9	0.78	24	26.4	0.95	1.04	26
Select	20S16A21RA431	20S16	Stainless Steel	NPT	1/2"		3.2	8.7	0.13	0.34	19.9	0.78	24	26.4	0.95	1.04	26
Select	20S16A21RA531	20S16	Nickel Plated Brass	NPT	1/2"		3.2	8.7	0.13	0.34	19.9	0.78	24	26.4	0.95	1.04	26
Select	20S16A21RA	20S16	Brass	Metric	M20	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.07
Select	20A21RA1	20	Aluminium	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	PVC05	0.02
Select	20A21RA4	20	Stainless Steel	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	PVC05	0.07
Select	20A21RA5	20	Nickel Plated Brass	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	PVC05	0.07
Select	20SA21RA032	20S	Brass	NPT	3/4"		6.1	11.7	0.24	0.46	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20SA21RA132	20S	Aluminium	NPT	3/4"		6.1	11.7	0.24	0.46	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20SA21RA432	20S	Stainless Steel	NPT	3/4"		6.1	11.7	0.24	0.46	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20SA21RA532	20S	Nickel Plated Brass	NPT	3/4"		6.1	11.7	0.24	0.46	20.2	0.8	31.5	34.7	1.24	1.37	26
Select	20SA22RN	20S	Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26
Select	20SA21RA031	20S	Brass	NPT	1/2"		6.1	11.7	0.24	0.46	19.9	0.78	24	26.4	0.95	1.04	26
Select	20SA21RA131	20S	Aluminium	NPT	1/2"		6.1	11.7	0.24	0.46	19.9	0.78	24	26.4	0.95	1.04	26
Select	20SA21RA431	20S	Stainless Steel	NPT	1/2"		6.1	11.7	0.24	0.46	19.9	0.78	24	26.4	0.95	1.04	26
Select	20SA21RA531	20S	Nickel Plated Brass	NPT	1/2"		6.1	11.7	0.24	0.46	19.9	0.78	24	26.4	0.95	1.04	26
Select	25A21RA1	25	Aluminium	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	PVC09	0.04
Select	25A21RA4	25	Stainless Steel	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	PVC09	0.12
Select	25A21RA5	25	Nickel Plated Brass	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	PVC09	0.13
Select	20SA22RA	20S	Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	LSF04
Select	20A21RA032	20	Brass	NPT	3/4"		6.5	14	0.26	0.55	20.2	0.8	31.5	34.7	1.24	1.37	27.7
Select	20A21RA132	20	Aluminium	NPT	3/4"		6.5	14	0.26	0.55	20.2	0.8	31.5	34.7	1.24	1.37	27.7
Select	20A21RA432	20	Stainless Steel	NPT	3/4"		6.5	14	0.26	0.55	20.2	0.8	31.5	34.7	1.24	1.37	27.7
Select	20A21RA532	20	Nickel Plated Brass	NPT	3/4"		6.5	14	0.26	0.55	20.2	0.8	31.5	34.7	1.24	1.37	27.7
Select	32A21RA1	32	Aluminium	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	PVC10	0.05
Select	32A21RA4	32	Stainless Steel	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	PVC10	0.14
Select	32A21RA5	32	Nickel Plated Brass	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	PVC10	0.15
Select	20SA2LSF2RA	20S	Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	LSF04
Select	20A21RA031	20	Brass	NPT	1/2"		6.5	14	0.26	0.55	19.9	0.78	27	29.7	1.06	1.17	27.7
Select	20A21RA131	20	Aluminium	NPT	1/2"		6.5	14	0.26	0.55	19.9	0.78	27	29.7	1.06	1.17	27.7
Select	20A21RA531	20	Nickel Plated Brass	NPT	1/2"		6.5	14	0.26	0.55	19.9	0.78	27	29.7	1.06	1.17	27.7
Select	20A21RA1431	20	Stainless Steel	NPT	1/2"		6.5	14	0.26	0.55	19.9	0.78	27	29.7	1.06	1.17	27.7
Select	40A21RA1	40	Aluminium	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	PVC13	0.06
Select	40A21RA4	40	Stainless Steel	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	PVC13	0.19
Select	40A21RA5	40	Nickel Plated Brass	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	PVC13	0.20
Select	20SA22RZ	20S	Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	PVC04
Select	25A21RA033	25	Brass	NPT	1"		11.1	20	0.44	0.79	25	0.98	37.6	41.4	1.48	1.63	35.5
Select	25A21RA133	25	Aluminium	NPT	1"		11.1	20	0.44	0.79	25	0.98	37.6	41.4	1.48	1.63	35.5
Select	25A21RA433	25	Stainless Steel	NPT	1"		11.1	20	0.44	0.79	25	0.98	37.6	41.4	1.48	1.63	35.5
Select	25A21RA533	25	Nickel Plated Brass	NPT	1"		11.1	20	0.44	0.79	25	0.98	37.6	41.4	1.48	1.63	35.5
Select	50SA21RA1	50S	Aluminium	Metric	M50	1.5	31	38.2	1.22	1.5	15	0.59	55	60.5	2.17	2.38	33	PVC15	0.08
Select	50SA21RA4	50S	Stainless Steel	Metric	M50	1.5	31	38.2	1.22	1.5	15	0.59	55	60.5	2.17	2.38	33	PVC15	0.25
Select	50SA21RA5	50S	Nickel Plated Brass	Metric	M50	1.5	31	38.2	1.22	1.5	15	0.59	55	60.5	2.17	2.38	33	PVC15	0.26
Select	20SA21RA	20S	Brass	Metric	M20	1.5	6.1	11.7	0.24	0.46	10	0.39	24	26.4	0.95	1.04	26	PVC04	0.06
Select	25A21RA032	25	Brass	NPT	3/4"		11.1	20	0.44	0.79	20.2	0.8	36	39.6	1.42	1.56	35.5
Select	25A21RA132	25	Aluminium	NPT	3/4"		11.1	20	0.44	0.79	20.2	0.8	36	39.6	1.42	1.56	35.5
Select	25A21RA432	25	Stainless Steel	NPT	3/4"		11.1	20	0.44	0.79	20.2	0.8	36	39.6	1.42	1.56	35.5
Select	25A21RA532	25	Nickel Plated Brass	NPT	3/4"		11.1	20	0.44	0.79	20.2	0.8	36	39.6	1.42	1.56	35.5
Select	50A21RA1	50	Aluminium	Metric	M50	1.5	35.6	44	1.4	1.73	15	0.59	60	66	2.36	2.6	37.3	PVC18	0.08
Select	50A21RA4	50	Stainless Steel	Metric	M50	1.5	35.6	44	1.4	1.73	15	0.59	60	66	2.36	2.6	37.3	PVC18	0.25
Select	50A21RA5	50	Nickel Plated Brass	Metric	M50	1.5	35.6	44	1.4	1.73	15	0.59	60	66	2.36	2.6	37.3	PVC18	0.27
Select	20A22RN	20	Brass	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7
Select	32A21RA034	32	Brass	NPT	1-1/4"		17	26.3	0.67	1.04	25.6	1.01	46	50.6	1.81	1.99	35.1
Select	32A21RA134	32	Aluminium	NPT	1-1/4"		17	26.3	0.67	1.04	25.6	1.01	46	50.6	1.81	1.99	35.1
Select	32A21RA434	32	Stainless Steel	NPT	1-1/4"		17	26.3	0.67	1.04	25.6	1.01	46	50.6	1.81	1.99	35.1
Select	32A21RA534	32	Nickel Plated Brass	NPT	1-1/4"		17	26.3	0.67	1.04	25.6	1.01	46	50.6	1.81	1.99	35.1
Select	63SA21RA1	63S	Aluminium	Metric	M63	1.5	41.5	49.9	1.63	1.96	15	0.59	70.5	77.6	2.78	3.06	33.5	PVC21	0.13
Select	63SA21RA4	63S	Stainless Steel	Metric	M63	1.5	41.5	49.9	1.63	1.96	15	0.59	70.5	77.6	2.78	3.06	33.5	PVC21	0.41
Select	63SA21RA5	63S	Nickel Plated Brass	Metric	M63	1.5	41.5	49.9	1.63	1.96	15	0.59	70.5	77.6	2.78	3.06	33.5	PVC21	0.43
Select	20A2LSF2RA	20	Brass	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	LSF05
Select	32A21RA033	32	Brass	NPT	1"		17	26.3	0.67	1.04	25	0.98	41	45.1	1.62	1.78	35.1
Select	32A21RA133	32	Aluminium	NPT	1"		17	26.3	0.67	1.04	25	0.98	41	45.1	1.62	1.78	35.1
Select	32A21RA433	32	Stainless Steel	NPT	1"		17	26.3	0.67	1.04	25	0.98	41	45.1	1.62	1.78	35.1
Select	32A21RA533	32	Nickel Plated Brass	NPT	1"		17	26.3	0.67	1.04	25	0.98	41	45.1	1.62	1.78	35.1
Select	63A21RA1	63	Aluminium	Metric	M63	1.5	47.2	55.9	1.86	2.2	15	0.59	75	82.5	2.96	3.25	36.2	PVC23	0.14
Select	63A21RA4	63	Stainless Steel	Metric	M63	1.5	47.2	55.9	1.86	2.2	15	0.59	75	82.5	2.96	3.25	36.2	PVC23	0.43
Select	63A21RA5	63	Nickel Plated Brass	Metric	M63	1.5	47.2	55.9	1.86	2.2	15	0.59	75	82.5	2.96	3.25	36.2	PVC23	0.46
Select	20A22RZ	20	Brass	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	PVC05
Select	40A21RA035	40	Brass	NPT	1-1/2"		23.5	32.2	0.93	1.27	26.1	1.03	54.8	60.3	2.16	2.38	35.1
Select	40A21RA135	40	Aluminium	NPT	1-1/2"		23.5	32.2	0.93	1.27	26.1	1.03	54.8	60.3	2.16	2.38	35.1
Select	40A21RA435	40	Stainless Steel	NPT	1-1/2"		23.5	32.2	0.93	1.27	26.1	1.03	54.8	60.3	2.16	2.38	35.1
Select	40A21RA535	40	Nickel Plated Brass	NPT	1-1/2"		23.5	32.2	0.93	1.27	26.1	1.03	54.8	60.3	2.16	2.38	35.1
Select	75SA21RA1	75S	Aluminium	Metric	M75	1.5	54	61.9	2.13	2.44	15	0.59	84	92.4	3.31	3.64	34.1	PVC26	0.16
Select	75SA21RA4	75S	Stainless Steel	Metric	M75	1.5	54	61.9	2.13	2.44	15	0.59	84	92.4	3.31	3.64	34.1	PVC26	0.49
Select	75SA21RA5	75S	Nickel Plated Brass	Metric	M75	1.5	54	61.9	2.13	2.44	15	0.59	84	92.4	3.31	3.64	34.1	PVC26	0.52
Select	20A21RA	20	Brass	Metric	M20	1.5	6.5	14	0.26	0.55	10	0.39	27	29.7	1.06	1.17	27.7	PVC05	0.07
Select	40A21RA034	40	Brass	NPT	1-1/4"		23.5	32.2	0.93	1.27	25.6	1.01	50	55	1.97	2.17	35.1
Select	40A21RA134	40	Aluminium	NPT	1-1/4"		23.5	32.2	0.93	1.27	25.6	1.01	50	55	1.97	2.17	35.1
Select	40A21RA434	40	Stainless Steel	NPT	1-1/4"		23.5	32.2	0.93	1.27	25.6	1.01	50	55	1.97	2.17	35.1
Select	40A21RA534	40	Nickel Plated Brass	NPT	1-1/4"		23.5	32.2	0.93	1.27	25.6	1.01	50	55	1.97	2.17	35.1
Select	75A21RA1	75	Aluminium	Metric	M75	1.5	61.1	67.9	2.41	2.67	15	0.59	84	92.4	3.31	3.64	40.9	PVC26	0.16
Select	75A21RA4	75	Stainless Steel	Metric	M75	1.5	61.1	67.9	2.41	2.67	15	0.59	84	92.4	3.31	3.64	40.9	PVC26	0.47
Select	75A21RA5	75	Nickel Plated Brass	Metric	M75	1.5	61.1	67.9	2.41	2.67	15	0.59	84	92.4	3.31	3.64	40.9	PVC26	0.50
Select	25A22RN	25	Brass	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5
Select	50SA21RA036	50S	Brass	NPT	2"		31	38.2	1.22	1.5	26.9	1.06	65	71.5	2.56	2.82	33
Select	50SA21RA136	50S	Aluminium	NPT	2"		31	38.2	1.22	1.5	26.9	1.06	65	71.5	2.56	2.82	33
Select	50SA21RA436	50S	Stainless Steel	NPT	2"		31	38.2	1.22	1.5	26.9	1.06	65	71.5	2.56	2.82	33
Select	50SA21RA536	50S	Nickel Plated Brass	NPT	2"		31	38.2	1.22	1.5	26.9	1.06	65	71.5	2.56	2.82	33
Select	90A21RA1	90	Aluminium	Metric	M90	2	66.6	79.9	2.62	3.15	24	0.94	108	118.8	4.26	4.68	60.3	PVC31	0.50
Select	90A21RA4	90	Stainless Steel	Metric	M90	2	66.6	79.9	2.62	3.15	24	0.94	108	118.8	4.26	4.68	60.3	PVC31	1.51
Select	90A21RA5	90	Nickel Plated Brass	Metric	M90	2	66.6	79.9	2.62	3.15	24	0.94	108	118.8	4.26	4.68	60.3	PVC31	1.60
Select	25A2LSF2RA	25	Brass	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	LSF09
Select	50SA21RA035	50S	Brass	NPT	1-1/2"		31	38.2	1.22	1.5	26.1	1.03	55	60.5	2.17	2.38	33
Select	50SA21RA135	50S	Aluminium	NPT	1-1/2"		31	38.2	1.22	1.5	26.1	1.03	55	60.5	2.17	2.38	33
Select	50SA21RA435	50S	Stainless Steel	NPT	1-1/2"		31	38.2	1.22	1.5	26.1	1.03	55	60.5	2.17	2.38	33
Select	50SA21RA535	50S	Nickel Plated Brass	NPT	1-1/2"		31	38.2	1.22	1.5	26.1	1.03	55	60.5	2.17	2.38	33
Select	100A21RA1	100	Aluminium	Metric	M100	2	76	91	2.99	3.58	24	0.94	123	135.3	4.85	5.33	57.2	LSF33	0.56
Select	100A21RA4	100	Stainless Steel	Metric	M100	2	76	91	2.99	3.58	24	0.94	123	135.3	4.85	5.33	57.2	LSF33	1.68
Select	100A21RA5	100	Nickel Plated Brass	Metric	M100	2	76	91	2.99	3.58	24	0.94	123	135.3	4.85	5.33	57.2	LSF33	1.78
Select	25A22RZ	25	Brass	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	PVC09
Select	50A21RA037	50	Brass	NPT	2-1/2"		35.6	44	1.4	1.73	39.9	1.57	80	88	3.15	3.47	37.3
Select	50A21RA137	50	Aluminium	NPT	2-1/2"		35.6	44	1.4	1.73	39.9	1.57	80	88	3.15	3.47	37.3
Select	50A21RA437	50	Stainless Steel	NPT	2-1/2"		35.6	44	1.4	1.73	39.9	1.57	80	88	3.15	3.47	37.3
Select	50A21RA537	50	Nickel Plated Brass	NPT	2-1/2"		35.6	44	1.4	1.73	39.9	1.57	80	88	3.15	3.47	37.3
Select	115A21RA1	115	Aluminium	Metric	M115	2	86	97.9	3.39	3.85	24	0.94	133.4	146.7	5.26	5.78	67.3	LSF34	0.83
Select	115A21RA4	115	Stainless Steel	Metric	M115	2	86	97.9	3.39	3.85	24	0.94	133.4	146.7	5.26	5.78	67.3	LSF34	2.52
Select	115A21RA5	115	Nickel Plated Brass	Metric	M115	2	86	97.9	3.39	3.85	24	0.94	133.4	146.7	5.26	5.78	67.3	LSF34	2.67
Select	25A21RA	25	Brass	Metric	M25	1.5	11.1	20	0.44	0.79	10	0.39	36	39.6	1.42	1.56	35.5	PVC09	0.13
Select	50A21RA036	50	Brass	NPT	2"		35.6	44	1.4	1.73	26.9	1.06	65	71.5	2.56	2.82	37.3
Select	50A21RA136	50	Aluminium	NPT	2"		35.6	44	1.4	1.73	26.9	1.06	65	71.5	2.56	2.82	37.3
Select	50A21RA436	50	Stainless Steel	NPT	2"		35.6	44	1.4	1.73	26.9	1.06	65	71.5	2.56	2.82	37.3
Select	50A21RA536	50	Nickel Plated Brass	NPT	2"		35.6	44	1.4	1.73	26.9	1.06	65	71.5	2.56	2.82	37.3
Select	130A21RA1	130	Aluminium	Metric	M130	2	97	114.9	3.82	4.52	24	0.94	152.4	167.6	6	6.6	74.7	LSF35	1.19
Select	130A21RA4	130	Stainless Steel	Metric	M130	2	97	114.9	3.82	4.52	24	0.94	152.4	167.6	6	6.6	74.7	LSF35	3.58
Select	130A21RA5	130	Nickel Plated Brass	Metric	M130	2	97	114.9	3.82	4.52	24	0.94	152.4	167.6	6	6.6	74.7	LSF35	3.80
Select	16A21RA1		Aluminium	Metric	M16	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	29.9	PVC04	0.02
Select	16A21RA4		Stainless Steel	Metric	M16	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	29.9	PVC04	0.06
Select	16A21RA5		Nickel Plated Brass	Metric	M16	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	29.9	PVC04	0.06
Select	32A2LSF2RA	32	Brass	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	LSF10
Select	63SA21RA037	63S	Brass	NPT	2-1/2"		41.5	49.9	1.63	1.96	39.9	1.57	80	88	3.15	3.47	33.5
Select	63SA21RA137	63S	Aluminium	NPT	2-1/2"		41.5	49.9	1.63	1.96	39.9	1.57	80	88	3.15	3.47	33.5
Select	63SA21RA437	63S	Stainless Steel	NPT	2-1/2"		41.5	49.9	1.63	1.96	39.9	1.57	80	88	3.15	3.47	33.5
Select	63SA21RA537	63S	Nickel Plated Brass	NPT	2-1/2"		41.5	49.9	1.63	1.96	39.9	1.57	80	88	3.15	3.47	33.5
Select	32A22RZ	32	Brass	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	PVC10
Select	63SA21RA036	63S	Brass	NPT	2"		41.5	49.9	1.63	1.96	26.9	1.06	70	77	2.76	3.03	33.5
Select	63SA21RA136	63S	Aluminium	NPT	2"		41.5	49.9	1.63	1.96	26.9	1.06	70	77	2.76	3.03	33.5
Select	63SA21RA436	63S	Stainless Steel	NPT	2"		41.5	49.9	1.63	1.96	26.9	1.06	70	77	2.76	3.03	33.5
Select	63SA21RA536	63S	Nickel Plated Brass	NPT	2"		41.5	49.9	1.63	1.96	26.9	1.06	70	77	2.76	3.03	33.5
Select	32A21RA	32	Brass	Metric	M32	1.5	17	26.3	0.67	1.04	10	0.39	41	45.1	1.62	1.78	35.1	PVC10	0.15
Select	63A21RA038	63	Brass	NPT	3"		47.2	55.9	1.86	2.2	41.5	1.63	100	110	3.94	4.33	36.2
Select	63A21RA138	63	Aluminium	NPT	3"		47.2	55.9	1.86	2.2	41.5	1.63	100	110	3.94	4.33	36.2
Select	63A21RA438	63	Stainless Steel	NPT	3"		47.2	55.9	1.86	2.2	41.5	1.63	100	110	3.94	4.33	36.2
Select	63A21RA538	63	Nickel Plated Brass	NPT	3"		47.2	55.9	1.86	2.2	41.5	1.63	100	110	3.94	4.33	36.2
Select	40A2LSF2RA	40	Brass	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	LSF13
Select	63A21RA037	63	Brass	NPT	2-1/2"		47.2	55.9	1.86	2.2	39.9	1.57	80	88	3.15	3.47	36.2
Select	63A21RA137	63	Aluminium	NPT	2-1/2"		47.2	55.9	1.86	2.2	39.9	1.57	80	88	3.15	3.47	36.2
Select	63A21RA437	63	Stainless Steel	NPT	2-1/2"		47.2	55.9	1.86	2.2	39.9	1.57	80	88	3.15	3.47	36.2
Select	63A21RA537	63	Nickel Plated Brass	NPT	2-1/2"		47.2	55.9	1.86	2.2	39.9	1.57	80	88	3.15	3.47	36.2
Select	40A22RZ	40	Brass	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	PVC13
Select	75SA21RA038	75S	Brass	NPT	3"		54	61.9	2.13	2.44	41.5	1.63	100	110	3.94	4.33	34.1
Select	75SA21RA138	75S	Aluminium	NPT	3"		54	61.9	2.13	2.44	41.5	1.63	100	110	3.94	4.33	34.1
Select	75SA21RA438	75S	Stainless Steel	NPT	3"		54	61.9	2.13	2.44	41.5	1.63	100	110	3.94	4.33	34.1
Select	75SA21RA538	75S	Nickel Plated Brass	NPT	3"		54	61.9	2.13	2.44	41.5	1.63	100	110	3.94	4.33	34.1
Select	40A21RA	40	Brass	Metric	M40	1.5	23.5	32.2	0.93	1.27	15	0.59	50	55	1.97	2.17	35.1	PVC13	0.20
Select	75SA21RA037	75S	Brass	NPT	2-1/2"		54	61.9	2.13	2.44	39.9	1.57	80	88	3.15	3.47	34.1
Select	75SA21RA137	75S	Aluminium	NPT	2-1/2"		54	61.9	2.13	2.44	39.9	1.57	80	88	3.15	3.47	34.1
Select	75SA21RA437	75S	Stainless Steel	NPT	2-1/2"		54	61.9	2.13	2.44	39.9	1.57	80	88	3.15	3.47	34.1
Select	75SA21RA537	75S	Nickel Plated Brass	NPT	2-1/2"		54	61.9	2.13	2.44	39.9	1.57	80	88	3.15	3.47	34.1
Select	50SA22RZ	50S	Brass	Metric	M50	1.5	31	38.2	1.22	1.5	15	0.59	55	60.5	2.17	2.38	33	PVC15
Select	75A21RA039	75	Brass	NPT	3-1/2"		61.1	67.9	2.41	2.67	42.8	1.69	108	118.8	4.26	4.68	40.9
Select	75A21RA138	75	Aluminium	NPT	3-1/2"		61.1	67.9	2.41	2.67	42.8	1.69	108	118.8	4.26	4.68	40.9
Select	75A21RA438	75	Stainless Steel	NPT	3-1/2"		61.1	67.9	2.41	2.67	42.8	1.69	108	118.8	4.26	4.68	40.9
Select	75A21RA538	75	Nickel Plated Brass	NPT	3-1/2"		61.1	67.9	2.41	2.67	42.8	1.69	108	118.8	4.26	4.68	40.9
Select	50SA21RA	50S	Brass	Metric	M50	1.5	31	38.2	1.22	1.5	15	0.59	55	60.5	2.17	2.38	33	PVC15	0.26
Select	75A21RA038	75	Brass	NPT	3"		61.1	67.9	2.41	2.67	41.5	1.63	100	110	3.94	4.33	40.9
Select	90A21RA1310	90	Aluminium	NPT	4"		66.6	79.9	2.62	3.15	44	1.73	123.2	135.5	4.85	5.34	60.3
Select	90A21RA4310	90	Stainless Steel	NPT	4"		66.6	79.9	2.62	3.15	44	1.73	123.2	135.5	4.85	5.34	60.3
Select	90A21RA5310	90	Nickel Plated Brass	NPT	4"		66.6	79.9	2.62	3.15	44	1.73	123.2	135.5	4.85	5.34	60.3
Select	50A22RZ	50	Brass	Metric	M50	1.5	35.6	44	1.4	1.73	15	0.59	60	66	2.36	2.6	37.3	PVC18
Select	90A21RA139	90	Aluminium	NPT	3-1/2"		66.6	79.9	2.62	3.15	42.8	1.69	108	118.8	4.26	4.68	60.3
Select	90A21RA0310	90	Brass	NPT	4"		66.6	79.9	2.62	3.15	44	1.73	123.2	135.5	4.85	5.34	60.3
Select	90A21RA439	90	Stainless Steel	NPT	3-1/2"		66.6	79.9	2.62	3.15	42.8	1.69	108	118.8	4.26	4.68	60.3
Select	90A21RA539	90	Nickel Plated Brass	NPT	3-1/2"		66.6	79.9	2.62	3.15	42.8	1.69	108	118.8	4.26	4.68	60.3
Select	50A21RA	50	Brass	Metric	M50	1.5	35.6	44	1.4	1.73	15	0.59	60	66	2.36	2.6	37.3	PVC18	0.27
Select	90A21RA039	90	Brass	NPT	3-1/2"		66.6	79.9	2.62	3.15	42.8	1.69	108	118.8	4.26	4.68	60.3
Select	100A21RA1310	100	Aluminium	NPT	4"		76	91	2.99	3.58	44	1.73	123.2	135.5	4.85	5.34	57.2
Select	100A21RA4310	100	Stainless Steel	NPT	4"		76	91	2.99	3.58	44	1.73	123.2	135.5	4.85	5.34	57.2
Select	100A21RA5310	100	Nickel Plated Brass	NPT	4"		76	91	2.99	3.58	44	1.73	123.2	135.5	4.85	5.34	57.2
Select	63SA22RZ	63S	Brass	Metric	M63	1.5	41.5	49.9	1.63	1.96	15	0.59	70.5	77.6	2.78	3.06	33.5	PVC21
Select	100A21RA139	100	Aluminium	NPT	3-1/2"		76	91	2.99	3.58	42.8	1.69	123.2	135.5	4.85	5.34	57.2
Select	100A21RA0310	100	Brass	NPT	4"		76	91	2.99	3.58	44	1.73	123.2	135.5	4.85	5.34	57.2
Select	100A21RA439	100	Stainless Steel	NPT	3-1/2"		76	91	2.99	3.58	42.8	1.69	123.2	135.5	4.85	5.34	57.2
Select	100A21RA539	100	Nickel Plated Brass	NPT	3-1/2"		76	91	2.99	3.58	42.8	1.69	123.2	135.5	4.85	5.34	57.2
Select	63SA21RA	63S	Brass	Metric	M63	1.5	41.5	49.9	1.63	1.96	15	0.59	70.5	77.6	2.78	3.06	33.5	PVC21	0.43
Select	100A21RA039	100	Brass	NPT	3-1/2"		76	91	2.99	3.58	42.8	1.69	123.2	135.5	4.85	5.34	57.2
Select	115A21RA1312	115	Aluminium	NPT	5"		86	97.9	3.39	3.85	46.8	1.84	152.4	167.6	6	6.6	67.3
Select	115A21RA4312	115	Stainless Steel	NPT	5"		86	97.9	3.39	3.85	46.8	1.84	152.4	167.6	6	6.6	67.3
Select	115A21RA5312	115	Nickel Plated Brass	NPT	5"		86	97.9	3.39	3.85	46.8	1.84	152.4	167.6	6	6.6	67.3
Select	63A22RZ	63	Brass	Metric	M63	1.5	47.2	55.9	1.86	2.2	15	0.59	75	82.5	2.96	3.25	36.2	PVC23
Select	115A21RA0312	115	Brass	NPT	5"		86	97.9	3.39	3.85	46.8	1.84	152.4	167.6	6	6.6	67.3
Select	115A21RA1310	115	Aluminium	NPT	4"		86	97.9	3.39	3.85	44	1.73	133.4	146.7	5.26	5.78	67.3
Select	115A21RA4310	115	Stainless Steel	NPT	4"		86	97.9	3.39	3.85	44	1.73	133.4	146.7	5.26	5.78	67.3
Select	115A21RA5310	115	Nickel Plated Brass	NPT	4"		86	97.9	3.39	3.85	44	1.73	133.4	146.7	5.26	5.78	67.3
Select	63A21RA	63	Brass	Metric	M63	1.5	47.2	55.9	1.86	2.2	15	0.59	75	82.5	2.96	3.25	36.2	PVC23	0.46
Select	115A21RA0310	115	Brass	NPT	4"		86	97.9	3.39	3.85	44	1.73	133.4	146.7	5.26	5.78	67.3
Select	130A21RA1312	130	Aluminium	NPT	5"		97	114.9	3.82	4.52	46.8	1.84	152.4	167.6	6	6.6	74.7
Select	130A21RA4312	130	Stainless Steel	NPT	5"		97	114.9	3.82	4.52	46.8	1.84	152.4	167.6	6	6.6	74.7
Select	130A21RA5312	130	Nickel Plated Brass	NPT	5"		97	114.9	3.82	4.52	46.8	1.84	152.4	167.6	6	6.6	74.7
Select	75SA22RZ	75S	Brass	Metric	M75	1.5	54	61.9	2.13	2.44	15	0.59	84	92.4	3.31	3.64	34.1	PVC26
Select	130A21RA0312	130	Brass	NPT	5"		97	114.9	3.82	4.52	46.8	1.84	152.4	167.6	6	6.6	74.7
Select	75SA21RA	75S	Brass	Metric	M75	1.5	54	61.9	2.13	2.44	15	0.59	84	92.4	3.31	3.64	34.1	PVC26	0.52
Select	75A22RZ	75	Brass	Metric	M75	1.5	61.1	67.9	2.41	2.67	15	0.59	84	92.4	3.31	3.64	40.9	PVC26
Select	75A21RA	75	Brass	Metric	M75	1.5	61.1	67.9	2.41	2.67	15	0.59	84	92.4	3.31	3.64	40.9	PVC26	0.50
Select	90A21RA	90	Brass	Metric	M90	2	66.6	79.9	2.62	3.15	24	0.94	108	118.8	4.26	4.68	60.3	PVC31	1.60
Select	100A21RA	100	Brass	Metric	M100	2	76	91	2.99	3.58	24	0.94	123	135.3	4.85	5.33	57.2	LSF33	1.78
Select	115A21RA	115	Brass	Metric	M115	2	86	97.9	3.39	3.85	24	0.94	133.4	146.7	5.26	5.78	67.3	LSF34	2.67
Select	130A21RA	130	Brass	Metric	M130	2	97	114.9	3.82	4.52	24	0.94	152.4	167.6	6	6.6	74.7	LSF35	3.80
Select	16A21RA		Brass	Metric	M16	1.5	3.2	8.7	0.13	0.34	10	0.39	24	26.4	0.95	1.04	29.9	PVC04	0.06

No results

0 of 211 Selected

Showing:

"*" indicates required fields

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Email Address*

Country*

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Registered office

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Your Shortlist

Your Selection

We'd like to keep in touch

Registered office
