A2-FL Cable Gland

ETIM Classification

EC000441

For all types of Unarmoured cables with pre-installed lugs.

Description

The A2-FL range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed for cables with pre-installed lugs, allowing the lug to be passed through the gland without any disassembly.

Features

  • Designed for cables with pre-installed lugs
  • Allows cable to pass through the gland without any disassembly
  • Approved to EN 45545-2:2013+A1:2015 R22, R23 (HL1, 2 & 3)
  • For use on rail / rolling stock applications
  • High quality durable materials
  • Robust, heavy duty design
  • Displacement type sealing system
  • -60˚C to +130˚C
  • Supplied in nickel plated brass with metric threads, PG threads available

Additional Information

Certification
Technical Specification
Application IND
Seal Material CMP LSF0H Thermoset Rubber
Seal Technique CMP Unique Displacement Seal Concept
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 test durations can be provided upon request

Downloads

Certificates

Product Selector

1

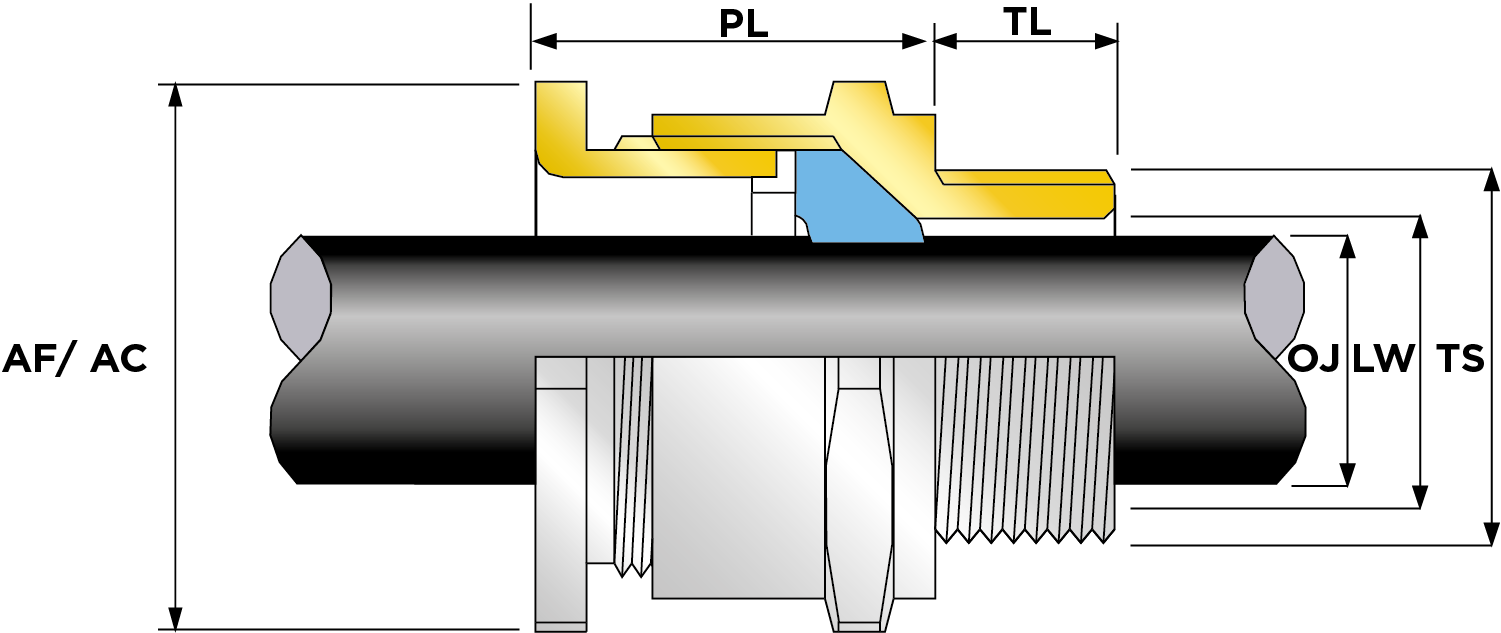

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Ass'y Weight
2520A2-FL1RA101A 2520 Aluminium Metric M12 1.5 5 8 0.2 0.31 15 0.59 36 39.6 1.42 1.56 37 0.053125
2520A2-FL1RA 2520 Brass Metric M25 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.15
2520A2-FL1RA401A 2520 Stainless Steel Metric M12 1.5 5 8 0.2 0.31 15 0.59 36 39.6 1.42 1.56 37 0.16037735849056603
2520A2-FL1RA001A 2520 Brass Metric M12 1.5 5 8 0.2 0.31 15 0.59 36 39.6 1.42 1.56 37 0.17
2520A2-FL1RA501A 2520 Nickel Plated Brass Metric M12 1.5 5 8 0.2 0.31 15 0.59 36 39.6 1.42 1.56 37 0.17
2520A2-FL1RA1 2520 Aluminium Metric M25 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.04687499999999999
2520A2-FL1RA001 2520 Brass Metric M16 1.5 5 9.5 0.2 0.37 15 0.59 36 39.6 1.42 1.56 37 0.16
2520A2-FL1RA002 2520 Brass Metric M20 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.15
2520A2-FL1RA4 2520 Stainless Steel Metric M25 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.14150943396226415
2520A2-FL1RA5 2520 Nickel Plated Brass Metric M25 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.15
2520A2-FL1RA101 2520 Aluminium Metric M16 1.5 5 9.5 0.2 0.37 15 0.59 36 39.6 1.42 1.56 37 0.049999999999999996
2520A2-FL1RA102 2520 Aluminium Metric M20 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.04687499999999999
2520A2-FL1RA401 2520 Stainless Steel Metric M16 1.5 5 9.5 0.2 0.37 15 0.59 36 39.6 1.42 1.56 37 0.1509433962264151
2520A2-FL1RA402 2520 Stainless Steel Metric M20 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.14150943396226415
2520A2-FL1RA501 2520 Nickel Plated Brass Metric M16 1.5 5 9.5 0.2 0.37 15 0.59 36 39.6 1.42 1.56 37 0.16
2520A2-FL1RA502 2520 Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 15 0.59 36 39.6 1.42 1.56 37 0.15
3225A2-FL1RA 3225 Brass Metric M32 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.17
3225A2-FL1RA1 3225 Aluminium Metric M32 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.053125
3225A2-FL1RA003 3225 Brass Metric M25 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.18
3225A2-FL1RA4 3225 Stainless Steel Metric M32 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.16037735849056603
3225A2-FL1RA5 3225 Nickel Plated Brass Metric M32 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.17
3225A2-FL1RA103 3225 Aluminium Metric M25 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.056249999999999994
3225A2-FL1RA403 3225 Stainless Steel Metric M25 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.16981132075471697
3225A2-FL1RA503 3225 Nickel Plated Brass Metric M25 1.5 12 20 0.47 0.79 15 0.59 41 45.1 1.62 1.78 37 0.18
4032A2-FL1RA 4032 Brass Metric M40 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.22
4032SA2-FL1RA 4032S Brass Metric M40 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.22
4032A2-FL1RA1 4032 Aluminium Metric M40 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.06874999999999999
4032SA2-FL1RA1 4032S Aluminium Metric M40 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.06874999999999999
4032A2-FL1RA004 4032 Brass Metric M32 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.23
4032SA2-FL1RA004 4032S Brass Metric M32 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.23
4032A2-FL1RA4 4032 Stainless Steel Metric M40 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.20754716981132074
4032SA2-FL1RA4 4032S Stainless Steel Metric M40 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.20754716981132074
4032A2-FL1RA5 4032 Nickel Plated Brass Metric M40 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.22
4032SA2-FL1RA5 4032S Nickel Plated Brass Metric M40 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.22
4032A2-FL1RA104 4032 Aluminium Metric M32 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.071875
4032SA2-FL1RA104 4032S Aluminium Metric M32 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.071875
4032SA2-FL1RA404 4032S Stainless Steel Metric M32 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.2169811320754717
4032A2-FL1RA404 4032 Stainless Steel Metric M32 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.2169811320754717
4032A2-FL1RA504 4032 Nickel Plated Brass Metric M32 1.5 18 26.3 0.71 1.04 15 0.59 50 55 1.97 2.17 37 0.23
4032SA2-FL1RA504 4032S Nickel Plated Brass Metric M32 1.5 15 23.8 0.59 0.94 15 0.59 50 55 1.97 2.17 37 0.23
5040XLA2-FL1RA 5040XL Brass Metric M50 1.5 32.5 40 1.28 1.57 15 0.59 60 66 2.36 2.6 37.5 0.32
5040LA2-FL1RA 5040L Brass Metric M50 1.5 26 35 1.02 1.38 15 0.59 60 66 2.36 2.6 37.5 0.32
5040A2-FL1RA 5040 Brass Metric M50 1.5 23 32 0.91 1.26 15 0.59 60 66 2.36 2.6 37.5 0.32
5040SA2-FL1RA 5040S Brass Metric M50 1.5 19.8 29 0.78 1.14 15 0.59 60 66 2.36 2.6 37.5 0.33
5040A2-FL1RA1 5040 Aluminium Metric M50 1.5 23 32 0.91 1.26 15 0.59 60 66 2.36 2.6 37.5 0.09999999999999999
5040SA2-FL1RA1 5040S Aluminium Metric M50 1.5 19.8 29 0.78 1.14 15 0.59 60 66 2.36 2.6 37.5 0.103125
5040XLA2-FL1RA1 5040XL Aluminium Metric M50 1.5 32.5 40 1.28 1.57 15 0.59 60 66 2.36 2.6 37.5 0.09999999999999999
5040LA2-FL1RA1 5040L Aluminium Metric M50 1.5 26 35 1.02 1.38 15 0.59 60 66 2.36 2.6 37.5 0.09999999999999999
5040A2-FL1RA4 5040 Stainless Steel Metric M50 1.5 23 32 0.91 1.26 15 0.59 60 66 2.36 2.6 37.5 0.3018867924528302
5040SA2-FL1RA4 5040S Stainless Steel Metric M50 1.5 19.8 29 0.78 1.14 15 0.59 60 66 2.36 2.6 37.5 0.3113207547169811
5040XLA2-FL1RA4 5040XL Stainless Steel Metric M50 1.5 32.5 40 1.28 1.57 15 0.59 60 66 2.36 2.6 37.5 0.3018867924528302
5040LA2-FL1RA4 5040L Stainless Steel Metric M50 1.5 26 35 1.02 1.38 15 0.59 60 66 2.36 2.6 37.5 0.3018867924528302
5040SA2-FL1RA5 5040S Nickel Plated Brass Metric M50 1.5 19.8 29 0.78 1.14 15 0.59 60 66 2.36 2.6 37.5 0.33
5040XLA2-FL1RA5 5040XL Nickel Plated Brass Metric M50 1.5 32.5 40 1.28 1.57 15 0.59 60 66 2.36 2.6 37.5 0.32
5040LA2-FL1RA5 5040L Nickel Plated Brass Metric M50 1.5 26 35 1.02 1.38 15 0.59 60 66 2.36 2.6 37.5 0.32
5040A2-FL1RA5 5040 Nickel Plated Brass Metric M50 1.5 23 32 0.91 1.26 15 0.59 60 66 2.36 2.6 37.5 0.32
5040A2-FL1RA007 5040 Brass Metric M63 1.5 23 32 0.91 1.26 15 0.59 70 77 2.76 3.03 37.5 0.31
5040A2-FL1RA107 5040 Aluminium Metric M63 1.5 23 32 0.91 1.26 15 0.59 70 77 2.76 3.03 37.5 0.09687499999999999
5040A2-FL1RA407 5040 Stainless Steel Metric M63 1.5 23 32 0.91 1.26 15 0.59 70 77 2.76 3.03 37.5 0.29245283018867924
5040A2-FL1RA507 5040 Nickel Plated Brass Metric M63 1.5 23 32 0.91 1.26 15 0.59 70 77 2.76 3.03 37.5 0.31
