A2F100 Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The A2F100 range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed to comply 100% with the requirements of IEC 60079-0. For use in Ex applications where external clamping of the cable is not practical or desireable.

Features

  • Complies 100% with IEC 60079-0 cable retention requirements
  • No ‘special conditions’ for safe use
  • No external cable clamping required by certification
  • Displacement type flameproof seal
  • Deluge protected
  • -60˚C to +130˚C
  • Globally marked, UKEX, IECEx and ATEX
  • Ingress protection disc available on request

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1307
ATEX Certificate Number 2 CML 18ATEX4311
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0172, IECEx SIM 17.0010
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1247, CML 21UKEX4248
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02496/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003430
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772/14, P548696/8
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64826/E23-02-065422/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0002
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXMIN
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Displacement Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request.

Downloads

Certificates

Product Selector

1

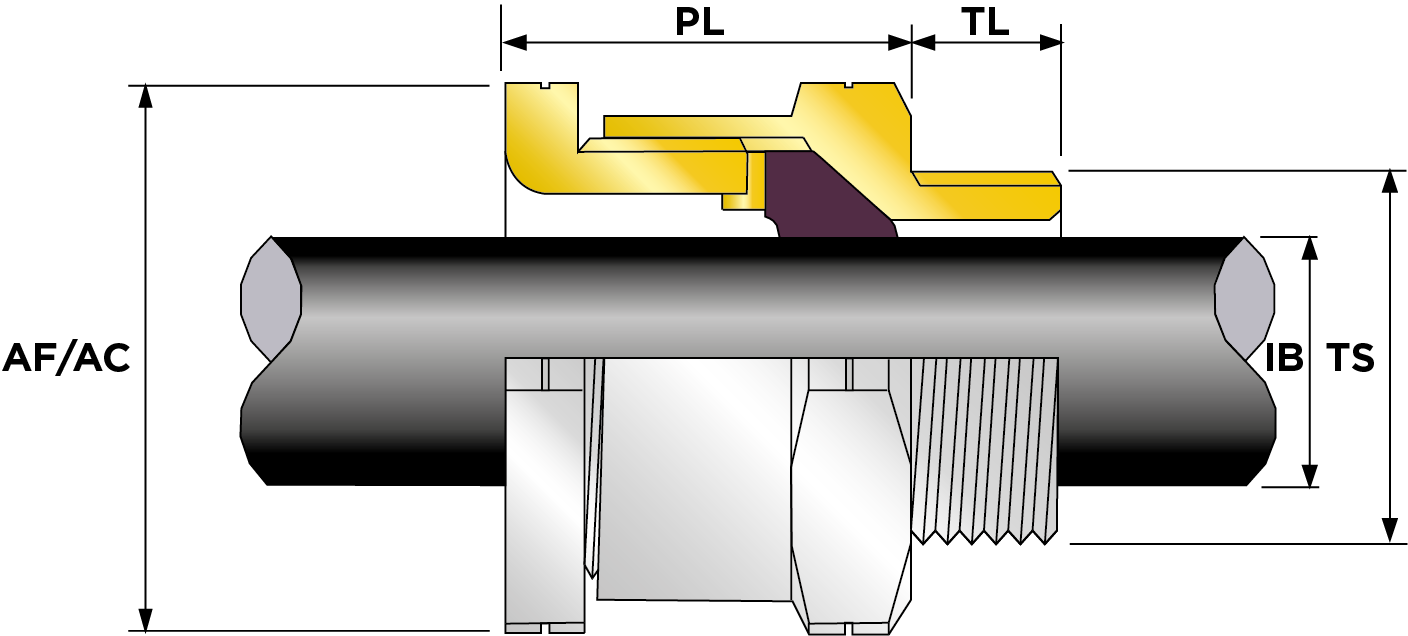

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Shroud Size Ass'y Weight
16A2F1001RA 16 Brass Metric M16 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 34.9 PVC04 0.07
16A2F1001RA1 16 Aluminium Metric M16 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 34.9 PVC04 0.021875000000000002
16A2F1001RA4 16 Stainless Steel Metric M16 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 34.9 PVC04 0.0660377358490566
16A2F1001RA5 16 Nickel Plated Brass Metric M16 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 34.9 PVC04 0.07
20S16A2F1001RA031 20S16 Brass NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 30.4
20S16A2F1001RA131 20S16 Aluminium NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 30.4
20S16A2F1001RA431 20S16 Stainless Steel NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 30.4
20S16A2F1001RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 30.4
20S16A2F1001RA 20S16 Brass Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 30.4 PVC04 0.08
20S16A2F1001RA1 20S16 Aluminium Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 30.4 PVC04 0.024999999999999998
20S16A2F1001RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 30.4 PVC04 0.07547169811320754
20S16A2F1001RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 30.4 PVC04 0.08
20S16A2F1001RA032 20S16 Brass NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 30.4
20S16A2F1001RA132 20S16 Aluminium NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 30.4
20S16A2F1001RA432 20S16 Stainless Steel NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 30.4
20S16A2F1001RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 30.4
20SA2F1001RA 20S Brass Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 31.9 PVC04 0.07
20SA2F1001RA1 20S Aluminium Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 31.9 PVC04 0.021875000000000002
20SA2F1001RA4 20S Stainless Steel Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 31.9 PVC04 0.0660377358490566
20SA2F1001RA5 20S Nickel Plated Brass Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 31.9 PVC04 0.07
20SA2F1001RA031 20S Brass NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 31.9
20SA2F1001RA131 20S Aluminium NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 31.9
20SA2F1001RA431 20S Stainless Steel NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 31.9
20SA2F1001RA531 20S Nickel Plated Brass NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 31.9
20A2F1001RA 20 Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 35.8 PVC05 0.08
20A2F1001RA1 20 Aluminium Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 28 30.8 1.1 1.21 35.8 PVC05 0.024999999999999998
20A2F1001RA4 20 Stainless Steel Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 35.8 PVC05 0.07547169811320754
20A2F1001RA5 20 Nickel Plated Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 35.8 PVC05 0.08
20SA2F1001RA032 20S Brass NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 31.9
20SA2F1001RA132 20S Aluminium NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 31.9
20SA2F1001RA432 20S Stainless Steel NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 31.9
20SA2F1001RA532 20S Nickel Plated Brass NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 31.9
20LA2F1001RA 20L Brass Metric M20 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 34.3 PVC05 0.08
20LA2F1001RA1 20L Aluminium Metric M20 1.5 8.7 14 0.34 0.55 15 0.59 28 30.8 1.1 1.21 34.3 PVC05 0.024999999999999998
20LA2F1001RA4 20L Stainless Steel Metric M20 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 34.3 PVC05 0.07547169811320754
20LA2F1001RA5 20L Nickel Plated Brass Metric M20 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 34.3 PVC05 0.08
20A2F1001RA031 20 Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 35.8
20A2F1001RA131 20 Aluminium NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 28 30.8 1.1 1.21 35.8
20A2F1001RA431 20 Stainless Steel NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 35.8
20A2F1001RA531 20 Nickel Plated Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 35.8
20A2F1001RA032 20 Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 35.8
20A2F1001RA132 20 Aluminium NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 35.8
20A2F1001RA432 20 Stainless Steel NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 35.8
20A2F1001RA532 20 Nickel Plated Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 35.8
25A2F1001RA 25 Brass Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 40.4 PVC09 0.16
25A2F1001RA1 25 Aluminium Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 40.4 PVC09 0.049999999999999996
25A2F1001RA4 25 Stainless Steel Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 40.4 PVC09 0.1509433962264151
25A2F1001RA5 25 Nickel Plated Brass Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 40.4 PVC09 0.16
20LA2F1001RA031 20L Brass NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 34.3
20LA2F1001RA131 20L Aluminium NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 28 30.8 1.1 1.21 34.3
20LA2F1001RA431 20L Stainless Steel NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 34.3
20LA2F1001RA531 20L Nickel Plated Brass NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 34.3
25LA2F1001RA 25L Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 39.9 PVC09 0.16
25LA2F1001RA1 25L Aluminium Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 39.9 PVC09 0.049999999999999996
25LA2F1001RA4 25L Stainless Steel Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 39.9 PVC09 0.1509433962264151
25LA2F1001RA5 25L Nickel Plated Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 39.9 PVC09 0.16
20LA2F1001RA032 20L Brass NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 34.3
20LA2F1001RA132 20L Aluminium NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 34.3
20LA2F1001RA432 20L Stainless Steel NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 34.3
20LA2F1001RA532 20L Nickel Plated Brass NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 34.3
32A2F1001RA 32 Brass Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 38.5 PVC10 0.19
32A2F1001RA1 32 Aluminium Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 38.5 PVC10 0.059375
32A2F1001RA4 32 Stainless Steel Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 38.5 PVC10 0.1792452830188679
32A2F1001RA5 32 Nickel Plated Brass Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 38.5 PVC10 0.19
25A2F1001RA032 25 Brass NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 40.4
25A2F1001RA132 25 Aluminium NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 40.4
25A2F1001RA432 25 Stainless Steel NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 40.4
25A2F1001RA532 25 Nickel Plated Brass NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 40.4
32LA2F1001RA 32L Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 35.5 PVC10 0.19
32LA2F1001RA1 32L Aluminium Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 35.5 PVC10 0.059375
32LA2F1001RA4 32L Stainless Steel Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 35.5 PVC10 0.1792452830188679
32LA2F1001RA5 32L Nickel Plated Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 35.5 PVC10 0.19
25A2F1001RA033 25 Brass NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 40.4
25A2F1001RA133 25 Aluminium NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 40.4
25A2F1001RA433 25 Stainless Steel NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 40.4
25A2F1001RA533 25 Nickel Plated Brass NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 40.4
40A2F1001RA 40 Brass Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 38.8 PVC13 0.25
40A2F1001RA1 40 Aluminium Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 38.8 PVC13 0.078125
40A2F1001RA4 40 Stainless Steel Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 38.8 PVC13 0.23584905660377356
40A2F1001RA5 40 Nickel Plated Brass Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 38.8 PVC13 0.25
25LA2F1001RA032 25L Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 39.9
25LA2F1001RA132 25L Aluminium NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 39.9
25LA2F1001RA432 25L Stainless Steel NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 39.9
25LA2F1001RA532 25L Nickel Plated Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 39.9
50SA2F1001RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 41.4 PVC15 0.33
50SA2F1001RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 41.4 PVC15 0.103125
50SA2F1001RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 41.4 PVC15 0.3113207547169811
50SA2F1001RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 41.4 PVC15 0.33
25LA2F1001RA033 25L Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 39.9
25LA2F1001RA133 25L Aluminium NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 39.9
25LA2F1001RA433 25L Stainless Steel NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 39.9
25LA2F1001RA533 25L Nickel Plated Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 39.9
50A2F1001RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 45.8 PVC18 0.35
50A2F1001RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 45.8 PVC18 0.10937499999999999
50A2F1001RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 45.8 PVC18 0.330188679245283
50A2F1001RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 45.8 PVC18 0.35
32A2F1001RA033 32 Brass NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 38.5
32A2F1001RA133 32 Aluminium NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 38.5
32A2F1001RA433 32 Stainless Steel NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 38.5
32A2F1001RA533 32 Nickel Plated Brass NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 38.5
63SA2F1001RA 63S Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 43.3 PVC21 0.56
63SA2F1001RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 43.3 PVC21 0.17500000000000002
63SA2F1001RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 43.3 PVC21 0.5283018867924528
63SA2F1001RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 43.3 PVC21 0.56
32A2F1001RA034 32 Brass NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 38.5
32A2F1001RA134 32 Aluminium NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 38.5
32A2F1001RA434 32 Stainless Steel NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 38.5
32A2F1001RA534 32 Nickel Plated Brass NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 38.5
63A2F1001RA 63 Brass Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 43.6 PVC23 0.55
63A2F1001RA1 63 Aluminium Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 43.6 PVC23 0.171875
63A2F1001RA4 63 Stainless Steel Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 43.6 PVC23 0.5188679245283019
63A2F1001RA5 63 Nickel Plated Brass Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 43.6 PVC23 0.55
32LA2F1001RA033 32L Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 35.5
32LA2F1001RA133 32L Aluminium NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 35.5
32LA2F1001RA433 32L Stainless Steel NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 35.5
32LA2F1001RA533 32L Nickel Plated Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 35.5
75SA2F1001RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 45.4 PVC26 0.73
75SA2F1001RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 45.4 PVC26 0.228125
75SA2F1001RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 45.4 PVC26 0.6886792452830188
75SA2F1001RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 45.4 PVC26 0.73
32LA2F1001RA034 32L Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 35.5
32LA2F1001RA134 32L Aluminium NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 35.5
32LA2F1001RA434 32L Stainless Steel NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 35.5
32LA2F1001RA534 32L Nickel Plated Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 35.5
75A2F1001RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 49 PVC26 0.58
75A2F1001RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 49 PVC26 0.18124999999999997
75A2F1001RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 49 PVC26 0.5471698113207547
75A2F1001RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 49 PVC26 0.58
40A2F1001RA034 40 Brass NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 38.8
40A2F1001RA134 40 Aluminium NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 38.8
40A2F1001RA434 40 Stainless Steel NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 38.8
40A2F1001RA534 40 Nickel Plated Brass NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 38.8
90A2F1001RA 90 Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 66 PVC31 1.71
90A2F1001RA1 90 Aluminium Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 66 PVC31 0.5343749999999999
90A2F1001RA4 90 Stainless Steel Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 66 PVC31 1.6132075471698113
90A2F1001RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 66 PVC31 1.71
40A2F1001RA035 40 Brass NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 38.8
40A2F1001RA135 40 Aluminium NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 38.8
40A2F1001RA435 40 Stainless Steel NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 38.8
40A2F1001RA535 40 Nickel Plated Brass NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 38.8
100A2F1001RA 100 Brass Metric M100 2 76 89 2.99 3.5 24 0.94 123 135.3 4.85 5.33 72.2 LSF33 2.26
100A2F1001RA1 100 Aluminium Metric M100 2 76 89 2.99 3.5 24 0.94 123 135.3 4.85 5.33 72.2 LSF33 0.7062499999999999
100A2F1001RA4 100 Stainless Steel Metric M100 2 76 89 2.99 3.5 24 0.94 123 135.3 4.85 5.33 72.2 LSF33 2.132075471698113
100A2F1001RA5 100 Nickel Plated Brass Metric M100 2 76 89 2.99 3.5 24 0.94 123 135.3 4.85 5.33 72.2 LSF33 2.26
50SA2F1001RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 41.4
50SA2F1001RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 41.4
50SA2F1001RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 41.4
50SA2F1001RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 41.4
115A2F1001RA 115 Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.9 LSF34 2.74
115A2F1001RA1 115 Aluminium Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.9 LSF34 0.8562500000000001
115A2F1001RA4 115 Stainless Steel Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.9 LSF34 2.5849056603773586
115A2F1001RA5 115 Nickel Plated Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.9 LSF34 2.74
50SA2F1001RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 41.4
50SA2F1001RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 41.4
50SA2F1001RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 41.4
50SA2F1001RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 41.4
130A2F1001RA 130 Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 81.1 LSF35 4.07
130A2F1001RA1 130 Aluminium Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 81.1 LSF35 1.271875
130A2F1001RA4 130 Stainless Steel Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 81.1 LSF35 3.839622641509434
130A2F1001RA5 130 Nickel Plated Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 81.1 LSF35 4.07
50A2F1001RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 45.8
50A2F1001RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 45.8
50A2F1001RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 45.8
50A2F1001RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 45.8
50A2F1001RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 45.8
50A2F1001RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 45.8
50A2F1001RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 45.8
50A2F1001RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 45.8
63SA2F1001RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 43.3
63SA2F1001RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 43.3
63SA2F1001RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 43.3
63SA2F1001RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 43.3
63SA2F1001RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 43.3
63SA2F1001RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 43.3
63SA2F1001RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 43.3
63SA2F1001RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 43.3
63A2F1001RA037 63 Brass NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 43.6
63A2F1001RA137 63 Aluminium NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 43.6
63A2F1001RA437 63 Stainless Steel NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 43.6
63A2F1001RA537 63 Nickel Plated Brass NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 43.6
63A2F1001RA038 63 Brass NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 43.6
63A2F1001RA138 63 Aluminium NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 43.6
63A2F1001RA438 63 Stainless Steel NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 43.6
63A2F1001RA538 63 Nickel Plated Brass NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 43.6
75SA2F1001RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 45.4
75SA2F1001RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 45.4
75SA2F1001RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 45.4
75SA2F1001RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 45.4
75SA2F1001RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 45.4
75SA2F1001RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 45.4
75SA2F1001RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 45.4
75SA2F1001RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 45.4
75A2F1001RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 49
75A2F1001RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 49
75A2F1001RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 49
75A2F1001RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 49
75A2F1001RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 49
75A2F1001RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 49
75A2F1001RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 49
75A2F1001RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 49
90A2F1001RA039 90 Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 66
90A2F1001RA139 90 Aluminium NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 66
90A2F1001RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 66
90A2F1001RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 66
90A2F1001RA0310 90 Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 66
90A2F1001RA1310 90 Aluminium NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 66
90A2F1001RA4310 90 Stainless Steel NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 66
90A2F1001RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 66
100A2F1001RA039 100 Brass NPT 3-1/2" 76 89 2.99 3.5 42.8 1.69 123.2 135.5 4.85 5.34 72.2
100A2F1001RA139 100 Aluminium NPT 3-1/2" 76 89 2.99 3.5 42.8 1.69 123.2 135.5 4.85 5.34 72.2
100A2F1001RA439 100 Stainless Steel NPT 3-1/2" 76 89 2.99 3.5 42.8 1.69 123.2 135.5 4.85 5.34 72.2
100A2F1001RA539 100 Nickel Plated Brass NPT 3-1/2" 76 89 2.99 3.5 42.8 1.69 123.2 135.5 4.85 5.34 72.2
100A2F1001RA0310 100 Brass NPT 4" 76 89 2.99 3.5 44 1.73 123.2 135.5 4.85 5.34 72.2
100A2F1001RA1310 100 Aluminium NPT 4" 76 89 2.99 3.5 44 1.73 123.2 135.5 4.85 5.34 72.2
100A2F1001RA4310 100 Stainless Steel NPT 4" 76 89 2.99 3.5 44 1.73 123.2 135.5 4.85 5.34 72.2
100A2F1001RA5310 100 Nickel Plated Brass NPT 4" 76 89 2.99 3.5 44 1.73 123.2 135.5 4.85 5.34 72.2
115A2F1001RA0310 115 Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.9
115A2F1001RA1310 115 Aluminium NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.9
115A2F1001RA4310 115 Stainless Steel NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.9
115A2F1001RA5310 115 Nickel Plated Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.9
115A2F1001RA0312 115 Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.9
115A2F1001RA1312 115 Aluminium NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.9
115A2F1001RA4312 115 Stainless Steel NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.9
115A2F1001RA5312 115 Nickel Plated Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.9
130A2F1001RA0312 130 Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 81.1
130A2F1001RA1312 130 Aluminium NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 81.1
130A2F1001RA4312 130 Stainless Steel NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 81.1
130A2F1001RA5312 130 Nickel Plated Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 81.1
1
No results

0 of 228 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
