A2F100HC Cable Gland

ETIM Classification

EC000441

For all types of Unarmoured cables housed in flexible hose.

Description

The A2F100HC range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed to provide superior cable retention and strain relief, this range includes a hose connection for cable housed in protective hose.

Features

  • Complies 100% with IEC 60079-0 cable retention requirements
  • No ‘special conditions’ for safe use
  • Suitable for QLD & NSW coal mining applications
  • External hose connection facility
  • Approved for Group I & Group II
  • High quality durable materials
  • Wide sealing range for each cable gland size
  • Displacement type flameproof seal
  • -60˚C to +130˚C
  • Internationally marked, UKEX, IECEx & ATEX
  • Hose connection not liquid tight

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1307
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
IECEx Certificate Number IECEx CML 18.0172, IECEx SIM 17.0010
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1247, CML 21UKEX4248
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02496/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003430
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772/14, P548696/8
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64826/E23-02-065422/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0002
Technical Specification
Application EXAT; EXMIN
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Displacement Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. ***IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request.

Downloads

Certificates

Product Selector

1

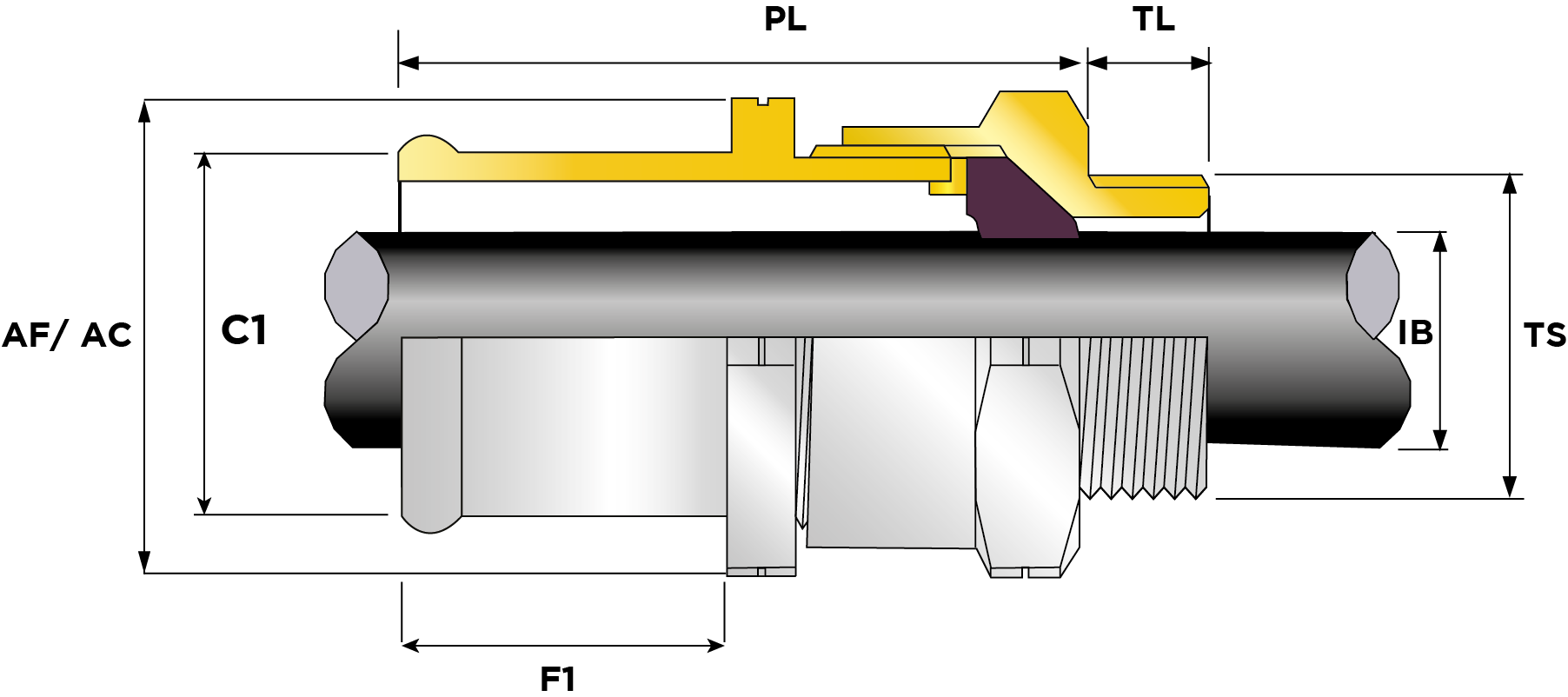

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Hose Connection Length H3 (mm) Max Protrusion Length PL (mm) Nom Hose Bore Dia H4 (mm) Shroud Size Ass'y Weight
20A2F100HC161RA 20 Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 16 51.8 16 PVC05 0.14
20SA2F100HC161RA 20S Brass Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 16 47.9 16 PVC04 0.113
20S16A2F100HC161RA 20S16 Brass Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 16 46.4 16 PVC04 0.131
20LA2F100HC191RA 20L Brass Metric M25 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 20 54.3 19 PVC05 0.138
20A2F100HC191RA 20 Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 20 55.8 19 PVC05 0.14
20A2F100HC191RA1 20 Aluminium Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 28 30.8 1.1 1.21 20 55.8 19 PVC05 0.043750000000000004
20A2F100HC161RA1 20 Aluminium Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 28 30.8 1.1 1.21 16 51.8 16 PVC05 0.043750000000000004
20SA2F100HC161RA1 20S Aluminium Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 16 47.9 16 PVC04 0.0353125
20S16A2F100HC161RA1 20S16 Aluminium Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 16 46.4 16 PVC04 0.0409375
20LA2F100HC191RA1 20L Aluminium Metric M25 1.5 8.7 14 0.34 0.55 15 0.59 28 30.8 1.1 1.21 20 54.3 19 PVC05 0.043125000000000004
20SA2F100HC161RA4 20S Stainless Steel Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 16 47.9 16 PVC04 0.10660377358490566
20S16A2F100HC161RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 16 46.4 16 PVC04 0.12358490566037736
20LA2F100HC191RA4 20L Stainless Steel Metric M25 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 20 54.3 19 PVC05 0.13018867924528302
20A2F100HC191RA4 20 Stainless Steel Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 20 55.8 19 PVC05 0.1320754716981132
20A2F100HC161RA4 20 Stainless Steel Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 16 51.8 16 PVC05 0.1320754716981132
20S16A2F100HC161RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 16 46.4 16 PVC04 0.131
20LA2F100HC191RA5 20L Nickel Plated Brass Metric M25 1.5 8.7 14 0.34 0.55 15 0.59 27 29.7 1.06 1.17 20 54.3 19 PVC05 0.138
20A2F100HC191RA5 20 Nickel Plated Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 20 55.8 19 PVC05 0.14
20A2F100HC161RA5 20 Nickel Plated Brass Metric M20 1.5 7 13.5 0.28 0.53 15 0.59 27 29.7 1.06 1.17 16 51.8 16 PVC05 0.14
20SA2F100HC161RA5 20S Nickel Plated Brass Metric M20 1.5 6.5 11.2 0.26 0.44 15 0.59 24 26.4 0.95 1.04 16 47.9 16 PVC04 0.113
20A2F100HC191RA031 20 Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 20 55.8 19
20LA2F100HC191RA031 20L Brass NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 20 54.3 19
20A2F100HC161RA031 20 Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 16 51.8 16
20SA2F100HC161RA031 20S Brass NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 16 47.9 16
20S16A2F100HC161RA031 20S16 Brass NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 16 46.4 16
20A2F100HC191RA032 20 Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 20 55.8 19
20A2F100HC161RA032 20 Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 16 51.8 16
20SA2F100HC161RA032 20S Brass NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 16 47.9 16
20S16A2F100HC161RA032 20S16 Brass NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 16 46.4 16
20LA2F100HC191RA032 20L Brass NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 20 54.3 19
20A2F100HC161RA131 20 Aluminium NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 28 30.8 1.1 1.21 16 51.8 16
20SA2F100HC161RA131 20S Aluminium NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 16 47.9 16
20S16A2F100HC161RA131 20S16 Aluminium NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 16 46.4 16
20LA2F100HC191RA131 20L Aluminium NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 28 30.8 1.1 1.21 20 54.3 19
20A2F100HC191RA131 20 Aluminium NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 28 30.8 1.1 1.21 20 55.8 19
20S16A2F100HC161RA132 20S16 Aluminium NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 16 46.4 16
20LA2F100HC191RA132 20L Aluminium NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 20 54.3 19
20A2F100HC191RA132 20 Aluminium NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 20 55.8 19
20A2F100HC161RA132 20 Aluminium NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 16 51.8 16
20SA2F100HC161RA132 20S Aluminium NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 16 47.9 16
20S16A2F100HC161RA431 20S16 Stainless Steel NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 16 46.4 16
20LA2F100HC191RA431 20L Stainless Steel NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 20 54.3 19
20A2F100HC191RA431 20 Stainless Steel NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 20 55.8 19
20A2F100HC161RA431 20 Stainless Steel NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 16 51.8 16
20SA2F100HC161RA431 20S Stainless Steel NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 16 47.9 16
20LA2F100HC191RA432 20L Stainless Steel NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 20 54.3 19
20A2F100HC191RA432 20 Stainless Steel NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 20 55.8 19
20A2F100HC161RA432 20 Stainless Steel NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 16 51.8 16
20SA2F100HC161RA432 20S Stainless Steel NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 16 47.9 16
20S16A2F100HC161RA432 20S16 Stainless Steel NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 16 46.4 16
20LA2F100HC191RA531 20L Nickel Plated Brass NPT 1/2" 8.7 14 0.34 0.55 19.9 0.78 27 29.7 1.06 1.17 20 54.3 19
20A2F100HC191RA531 20 Nickel Plated Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 20 55.8 19
20A2F100HC161RA531 20 Nickel Plated Brass NPT 1/2" 7 13.5 0.28 0.53 19.9 0.78 27 29.7 1.06 1.17 16 51.8 16
20SA2F100HC161RA531 20S Nickel Plated Brass NPT 1/2" 6.5 11.2 0.26 0.44 19.9 0.78 24 26.4 0.95 1.04 16 47.9 16
20S16A2F100HC161RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 16 46.4 16
20A2F100HC161RA532 20 Nickel Plated Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 16 51.8 16
20SA2F100HC161RA532 20S Nickel Plated Brass NPT 3/4" 6.5 11.2 0.26 0.44 20.2 0.8 31.5 34.7 1.24 1.37 16 47.9 16
20S16A2F100HC161RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8 0.13 0.31 20.2 0.8 31.5 34.7 1.24 1.37 16 46.4 16
20LA2F100HC191RA532 20L Nickel Plated Brass NPT 3/4" 8.7 14 0.34 0.55 20.2 0.8 31.5 34.7 1.24 1.37 20 54.3 19
20A2F100HC191RA532 20 Nickel Plated Brass NPT 3/4" 7 13.5 0.28 0.53 20.2 0.8 31.5 34.7 1.24 1.37 20 55.8 19
25LA2F100HC251RA 25L Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 27 66.9 25 PVC09 0.238
25LA2F100HC191RA 25L Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 20 59.9 19 PVC09 0.236
25A2F100HC251RA 25 Brass Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 27 67.4 25 PVC09 0.24
25LA2F100HC251RA1 25L Aluminium Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 27 66.9 25 PVC09 0.074375
25LA2F100HC191RA1 25L Aluminium Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 20 59.9 19 PVC09 0.07375
25A2F100HC251RA1 25 Aluminium Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 27 67.4 25 PVC09 0.075
25LA2F100HC191RA4 25L Stainless Steel Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 20 59.9 19 PVC09 0.22264150943396224
25A2F100HC251RA4 25 Stainless Steel Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 27 67.4 25 PVC09 0.22641509433962262
25LA2F100HC251RA4 25L Stainless Steel Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 27 66.9 25 PVC09 0.22452830188679243
25A2F100HC251RA5 25 Nickel Plated Brass Metric M25 1.5 11.5 19.5 0.45 0.77 15 0.59 36 39.6 1.42 1.56 27 67.4 25 PVC09 0.24
25LA2F100HC251RA5 25L Nickel Plated Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 27 66.9 25 PVC09 0.238
25LA2F100HC191RA5 25L Nickel Plated Brass Metric M25 1.5 14 20 0.55 0.79 15 0.59 36 39.6 1.42 1.56 20 59.9 19 PVC09 0.236
25LA2F100HC191RA032 25L Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 20 59.9 19
25A2F100HC251RA032 25 Brass NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 27 67.4 25
25LA2F100HC251RA032 25L Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 27 66.9 25
25LA2F100HC251RA033 25L Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 27 66.9 25
25LA2F100HC191RA033 25L Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 20 59.9 19
25A2F100HC251RA033 25 Brass NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 27 67.4 25
25LA2F100HC251RA132 25L Aluminium NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 27 66.9 25
25LA2F100HC191RA132 25L Aluminium NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 20 59.9 19
25A2F100HC251RA132 25 Aluminium NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 27 67.4 25
25LA2F100HC191RA133 25L Aluminium NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 20 59.9 19
25A2F100HC251RA133 25 Aluminium NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 27 67.4 25
25LA2F100HC251RA133 25L Aluminium NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 27 66.9 25
25A2F100HC251RA432 25 Stainless Steel NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 27 67.4 25
25LA2F100HC251RA432 25L Stainless Steel NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 27 66.9 25
25LA2F100HC191RA432 25L Stainless Steel NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 20 59.9 19
25LA2F100HC251RA433 25L Stainless Steel NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 27 66.9 25
25LA2F100HC191RA433 25L Stainless Steel NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 20 59.9 19
25A2F100HC251RA433 25 Stainless Steel NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 27 67.4 25
25LA2F100HC251RA532 25L Nickel Plated Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 27 66.9 25
25LA2F100HC191RA532 25L Nickel Plated Brass NPT 3/4" 14 20 0.55 0.79 20.2 0.8 36 39.6 1.42 1.56 20 59.9 19
25A2F100HC251RA532 25 Nickel Plated Brass NPT 3/4" 11.5 19.5 0.45 0.77 20.2 0.8 36 39.6 1.42 1.56 27 67.4 25
25LA2F100HC251RA533 25L Nickel Plated Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 27 66.9 25
25LA2F100HC191RA533 25L Nickel Plated Brass NPT 1" 14 20 0.55 0.79 25 0.98 37.6 41.4 1.48 1.63 20 59.9 19
25A2F100HC251RA533 25 Nickel Plated Brass NPT 1" 11.5 19.5 0.45 0.77 25 0.98 37.6 41.4 1.48 1.63 27 67.4 25
32LA2F100HC321RA 32L Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 33 68.5 32 PVC10 0.295
32LA2F100HC251RA 32L Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 27 62.5 25 PVC10 0.297
32A2F100HC321RA 32 Brass Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 33 71.5 32 PVC10 0.299
32A2F100HC321RA1 32 Aluminium Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 33 71.5 32 PVC10 0.09343749999999999
32LA2F100HC321RA1 32L Aluminium Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 33 68.5 32 PVC10 0.09218749999999999
32LA2F100HC251RA1 32L Aluminium Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 27 62.5 25 PVC10 0.09281249999999999
32LA2F100HC321RA4 32L Stainless Steel Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 33 68.5 32 PVC10 0.2783018867924528
32LA2F100HC251RA4 32L Stainless Steel Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 27 62.5 25 PVC10 0.280188679245283
32A2F100HC321RA4 32 Stainless Steel Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 33 71.5 32 PVC10 0.2820754716981132
32LA2F100HC321RA5 32L Nickel Plated Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 33 68.5 32 PVC10 0.295
32LA2F100HC251RA5 32L Nickel Plated Brass Metric M32 1.5 20.2 26.3 0.8 1.04 15 0.59 41 45.1 1.62 1.78 27 62.5 25 PVC10 0.297
32A2F100HC321RA5 32 Nickel Plated Brass Metric M32 1.5 19 25.5 0.75 1 15 0.59 41 45.1 1.62 1.78 33 71.5 32 PVC10 0.299
32LA2F100HC321RA033 32L Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 33 68.5 32
32LA2F100HC251RA033 32L Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 27 62.5 25
32A2F100HC321RA033 32 Brass NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 33 71.5 32
32LA2F100HC321RA034 32L Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 33 68.5 32
32LA2F100HC251RA034 32L Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 27 62.5 25
32A2F100HC321RA034 32 Brass NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 33 71.5 32
32LA2F100HC321RA133 32L Aluminium NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 33 68.5 32
32LA2F100HC251RA133 32L Aluminium NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 27 62.5 25
32A2F100HC321RA133 32 Aluminium NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 33 71.5 32
32LA2F100HC321RA134 32L Aluminium NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 33 68.5 32
32LA2F100HC251RA134 32L Aluminium NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 27 62.5 25
32A2F100HC321RA134 32 Aluminium NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 33 71.5 32
32LA2F100HC321RA433 32L Stainless Steel NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 33 68.5 32
32LA2F100HC251RA433 32L Stainless Steel NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 27 62.5 25
32A2F100HC321RA433 32 Stainless Steel NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 33 71.5 32
32LA2F100HC251RA434 32L Stainless Steel NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 27 62.5 25
32A2F100HC321RA434 32 Stainless Steel NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 33 71.5 32
32LA2F100HC321RA434 32L Stainless Steel NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 33 68.5 32
32LA2F100HC251RA533 32L Nickel Plated Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 27 62.5 25
32A2F100HC321RA533 32 Nickel Plated Brass NPT 1" 19 25.5 0.75 1 25 0.98 41 45.1 1.62 1.78 33 71.5 32
32LA2F100HC321RA533 32L Nickel Plated Brass NPT 1" 20.2 26.3 0.8 1.04 25 0.98 41 45.1 1.62 1.78 33 68.5 32
32A2F100HC321RA534 32 Nickel Plated Brass NPT 1-1/4" 19 25.5 0.75 1 25.6 1.01 46 50.6 1.81 1.99 33 71.5 32
32LA2F100HC321RA534 32L Nickel Plated Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 33 68.5 32
32LA2F100HC251RA534 32L Nickel Plated Brass NPT 1-1/4" 20.2 26.3 0.8 1.04 25.6 1.01 46 50.6 1.81 1.99 27 62.5 25
40A2F100HC381RA 40 Brass Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 41 79.8 38 PVC13 0.43
40A2F100HC381RA1 40 Aluminium Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 41 79.8 38 PVC13 0.134375
40A2F100HC381RA4 40 Stainless Steel Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 41 79.8 38 PVC13 0.40566037735849053
40A2F100HC381RA5 40 Nickel Plated Brass Metric M40 1.5 25 32.2 0.98 1.27 15 0.59 50 55 1.97 2.17 41 79.8 38 PVC13 0.43
40A2F100HC381RA034 40 Brass NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 41 79.8 38
40A2F100HC381RA035 40 Brass NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 41 79.8 38
40A2F100HC381RA134 40 Aluminium NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 41 79.8 38
40A2F100HC381RA135 40 Aluminium NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 41 79.8 38
40A2F100HC381RA434 40 Stainless Steel NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 41 79.8 38
40A2F100HC381RA435 40 Stainless Steel NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 41 79.8 38
40A2F100HC381RA534 40 Nickel Plated Brass NPT 1-1/4" 25 32.2 0.98 1.27 25.6 1.01 50 55 1.97 2.17 41 79.8 38
40A2F100HC381RA535 40 Nickel Plated Brass NPT 1-1/2" 25 32.2 0.98 1.27 26.1 1.03 54.8 60.3 2.16 2.38 41 79.8 38
50SA2F100HC511RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 54 95.4 51 PVC15 0.838
50A2F100HC511RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 54 99.8 51 PVC18 0.674
50A2F100HC511RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 54 99.8 51 PVC18 0.210625
50SA2F100HC511RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 54 95.4 51 PVC15 0.26187499999999997
50SA2F100HC511RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 54 95.4 51 PVC15 0.790566037735849
50A2F100HC511RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 54 99.8 51 PVC18 0.6358490566037736
50A2F100HC511RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 54 99.8 51 PVC18 0.674
50SA2F100HC511RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 54 95.4 51 PVC15 0.838
50SA2F100HC511RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 54 95.4 51
50SA2F100HC511RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 54 95.4 51
50A2F100HC511RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 54 99.8 51
50A2F100HC511RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 54 99.8 51
50SA2F100HC511RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 54 95.4 51
50SA2F100HC511RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 54 95.4 51
50A2F100HC511RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 54 99.8 51
50A2F100HC511RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 54 99.8 51
50SA2F100HC511RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 54 95.4 51
50SA2F100HC511RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 54 95.4 51
50A2F100HC511RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 54 99.8 51
50A2F100HC511RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 54 99.8 51
50SA2F100HC511RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 54 95.4 51
50SA2F100HC511RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 54 95.4 51
50A2F100HC511RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 54 99.8 51
50A2F100HC511RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 54 99.8 51
63A2F100HC631RA 63 Brass Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 70 113.6 63 PVC23 1.032
63SA2F100HC631RA 63S Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 113.3 63 PVC21 1.352
63SA2F100HC631RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 113.3 63 PVC21 0.4225
63A2F100HC631RA1 63 Aluminium Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 70 113.6 63 PVC23 0.3225
63A2F100HC631RA4 63 Stainless Steel Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 70 113.6 63 PVC23 0.9735849056603774
63SA2F100HC631RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 113.3 63 PVC21 1.2754716981132075
63A2F100HC631RA5 63 Nickel Plated Brass Metric M63 1.5 48.2 54.9 1.9 2.16 15 0.59 75 82.5 2.96 3.25 70 113.6 63 PVC23 1.032
63SA2F100HC631RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 113.3 63 PVC21 1.352
63SA2F100HC631RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 113.3 63
63SA2F100HC631RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 113.3 63
63A2F100HC631RA037 63 Brass NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 70 113.6 63
63A2F100HC631RA038 63 Brass NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 70 113.6 63
63SA2F100HC631RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 113.3 63
63SA2F100HC631RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 113.3 63
63A2F100HC631RA137 63 Aluminium NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 70 113.6 63
63A2F100HC631RA138 63 Aluminium NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 70 113.6 63
63SA2F100HC631RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 113.3 63
63SA2F100HC631RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 113.3 63
63A2F100HC631RA437 63 Stainless Steel NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 70 113.6 63
63A2F100HC631RA438 63 Stainless Steel NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 70 113.6 63
63SA2F100HC631RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 113.3 63
63SA2F100HC631RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 113.3 63
63A2F100HC631RA537 63 Nickel Plated Brass NPT 2-1/2" 48.2 54.9 1.9 2.16 39.9 1.57 79 86.9 3.11 3.42 70 113.6 63
63A2F100HC631RA538 63 Nickel Plated Brass NPT 3" 48.2 54.9 1.9 2.16 41.5 1.63 100 110 3.94 4.33 70 113.6 63
75A2F100HC761RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 91.5 140.5 76 PVC24 1.492
75SA2F100HC761RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 91.5 136.9 76 PVC24 2.101
75A2F100HC761RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 91.5 140.5 76 PVC24 0.46625
75SA2F100HC761RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 91.5 136.9 76 PVC24 0.6565624999999999
75A2F100HC761RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 91.5 140.5 76 PVC24 1.4075471698113207
75SA2F100HC761RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 91.5 136.9 76 PVC24 1.982075471698113
75SA2F100HC761RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 91.5 136.9 76 PVC24 2.101
75A2F100HC761RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 91.5 140.5 76 PVC24 1.492
75SA2F100HC761RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 91.5 136.9 76
75SA2F100HC761RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 91.5 136.9 76
75A2F100HC761RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 91.5 140.5 76
75A2F100HC761RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 91.5 140.5 76
75SA2F100HC761RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 91.5 136.9 76
75SA2F100HC761RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 91.5 136.9 76
75A2F100HC761RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 91.5 140.5 76
75A2F100HC761RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 91.5 140.5 76
75SA2F100HC761RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 91.5 136.9 76
75SA2F100HC761RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 91.5 136.9 76
75A2F100HC761RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 91.5 140.5 76
75A2F100HC761RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 91.5 140.5 76
75SA2F100HC761RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 84 92.4 3.31 3.64 91.5 136.9 76
75SA2F100HC761RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 91.5 136.9 76
75A2F100HC761RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 91.5 140.5 76
75A2F100HC761RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 91.5 140.5 76
1
No results

0 of 216 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
