A2FFC Cable Gland

ETIM Classification

EC000441

For all types of Unarmoured cables when housed in flexible conduit.

Description

The A2FFC range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a single seal on the cable outer sheath.

Features

  • Designed for flexible and rigid conduits
  • Rigid conduits require thread adaptor from conduit supplier
  • Suitable for conduit with rubber sheath / coating
  • Displacement type flameproof seal
  • -60°C to +130°C
  • Globally marked, UKEX, IECEx, ATEX and CSA

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1321X
ATEX Certificate Number 2 CML 18ATEX4313X
ATEX Code of Protection ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0179X
IECEx Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1245X, CML 21UKEX4246X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02519/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0251X, 13-GA4BO-0748X, 13-GA4BO-0749X, 13-GA4BO-0750X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002951
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/2, P548696/9
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64837/E23-02-065446/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number S-XPL21804 21.0008X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 1211841
CSA Code of Protection Ex e II, Ex nR II, Enclosure Type 4X
CSA Compliance Standards CSA C22.2 No 60079-0, -7, -15, No 94, 174
CSA Logo Filename csalogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000012/csalogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
INMETRO Certificate Number TÜV 21.1075X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Displacement Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. Alternative conduit sizes available upon request. Ordering Suffix - e.g. C (conduit) 050 (CMP sizing reference)

Downloads

Certificates

Product Selector

1

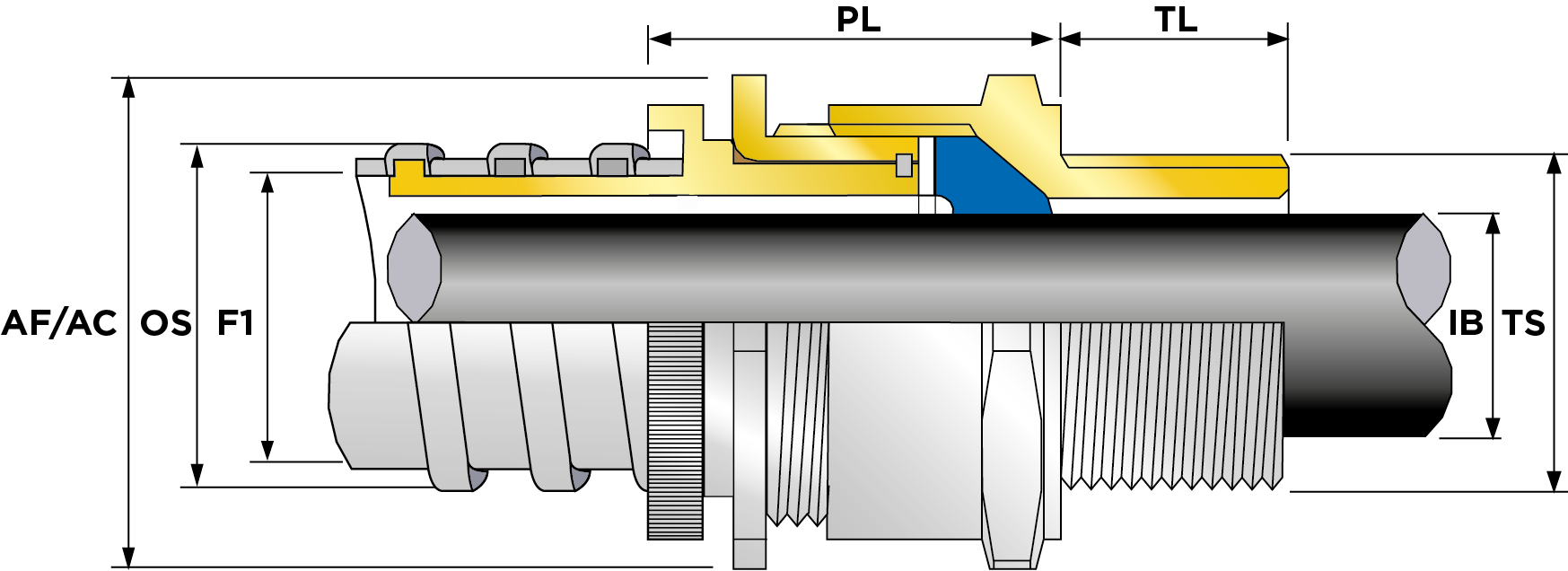

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Max Envelope Dia EØ (mm) Max External Conduit Dia C2 (mm) Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Nom Internal Conduit Ø C1 (mm) Ass'y Weight
20S16A2FFC1RA1C000 20S16 Aluminium Metric M20 1.5 26.4 12 3.2 4.1 0.13 0.16 15 0.59 24 26.4 0.95 1.04 33.2 5.1 0.03
20S16A2FFC1RA531C000 20S16 Nickel Plated Brass NPT 1/2" 26.4 12 3.2 4.1 0.13 0.16 19.9 0.78 24 26.4 0.95 1.04 33.2 5.1
20S16A2FFC1RA131C000 20S16 Aluminium NPT 1/2" 26.4 12 3.2 4.1 0.13 0.16 19.9 0.78 24 26.4 0.95 1.04 33.2 5.1
20S16A2FFC1RA4C000 20S16 Stainless Steel Metric M20 1.5 26.4 12 3.2 4.1 0.13 0.16 15 0.59 24 26.4 0.95 1.04 33.2 5.1 0.08
20S16A2FFC1RA431C000 20S16 Stainless Steel NPT 1/2" 26.4 12 3.2 4.1 0.13 0.16 19.9 0.78 24 26.4 0.95 1.04 33.2 5.1
20S16A2FFC1RAC000 20S16 Brass Metric M20 1.5 26.4 12 3.2 4.1 0.13 0.16 15 0.59 24 26.4 0.95 1.04 33.2 5.1 0.09
20S16A2FFC1RA031C000 20S16 Brass NPT 1/2" 26.4 12 3.2 4.1 0.13 0.16 19.9 0.78 24 26.4 0.95 1.04 33.2 5.1
20S16A2FFC1RA5C000 20S16 Nickel Plated Brass Metric M20 1.5 26.4 12 3.2 4.1 0.13 0.16 15 0.59 24 26.4 0.95 1.04 33.2 5.1 0.09
20S16A2FFC1RA131C001 20S16 Aluminium NPT 1/2" 26.4 13 3.2 5.2 0.13 0.2 19.9 0.78 24 26.4 0.95 1.04 33.2 6.8
20S16A2FFC1RA4C001 20S16 Stainless Steel Metric M20 1.5 26.4 13 3.2 5.2 0.13 0.2 15 0.59 24 26.4 0.95 1.04 33.2 6.8 0.08
20S16A2FFC1RA431C001 20S16 Stainless Steel NPT 1/2" 26.4 13 3.2 5.2 0.13 0.2 19.9 0.78 24 26.4 0.95 1.04 33.2 6.8
20S16A2FFC1RAC001 20S16 Brass Metric M20 1.5 26.4 13 3.2 5.2 0.13 0.2 15 0.59 24 26.4 0.95 1.04 33.2 6.8 0.09
20S16A2FFC1RA031C001 20S16 Brass NPT 1/2" 26.4 13 3.2 5.2 0.13 0.2 19.9 0.78 24 26.4 0.95 1.04 33.2 6.8
20S16A2FFC1RA5C001 20S16 Nickel Plated Brass Metric M20 1.5 26.4 13 3.2 5.2 0.13 0.2 15 0.59 24 26.4 0.95 1.04 33.2 6.8 0.09
20S16A2FFC1RA1C001 20S16 Aluminium Metric M20 1.5 26.4 13 3.2 5.2 0.13 0.2 15 0.59 24 26.4 0.95 1.04 33.2 6.8 0.03
20S16A2FFC1RA531C001 20S16 Nickel Plated Brass NPT 1/2" 26.4 13 3.2 5.2 0.13 0.2 19.9 0.78 24 26.4 0.95 1.04 33.2 6.8
20S16A2FFC1RA4C004 20S16 Stainless Steel Metric M20 1.5 26.4 13 3.2 5.5 0.13 0.22 15 0.59 24 26.4 0.95 1.04 33.2 7.8 0.08
20S16A2FFC1RA431C004 20S16 Stainless Steel NPT 1/2" 26.4 13 3.2 5.5 0.13 0.22 19.9 0.78 24 26.4 0.95 1.04 33.2 7.8
20S16A2FFC1RAC004 20S16 Brass Metric M20 1.5 26.4 13 3.2 5.5 0.13 0.22 15 0.59 24 26.4 0.95 1.04 33.2 7.8 0.09
20S16A2FFC1RA031C004 20S16 Brass NPT 1/2" 26.4 13 3.2 5.5 0.13 0.22 19.9 0.78 24 26.4 0.95 1.04 33.2 7.8
20S16A2FFC1RA5C004 20S16 Nickel Plated Brass Metric M20 1.5 26.4 13 3.2 5.5 0.13 0.22 15 0.59 24 26.4 0.95 1.04 33.2 7.8 0.09
20S16A2FFC1RA1C004 20S16 Aluminium Metric M20 1.5 26.4 13 3.2 5.5 0.13 0.22 15 0.59 24 26.4 0.95 1.04 33.2 7.8 0.03
20S16A2FFC1RA531C004 20S16 Nickel Plated Brass NPT 1/2" 26.4 13 3.2 5.5 0.13 0.22 19.9 0.78 24 26.4 0.95 1.04 33.2 7.8
20S16A2FFC1RA131C004 20S16 Aluminium NPT 1/2" 26.4 13 3.2 5.5 0.13 0.22 19.9 0.78 24 26.4 0.95 1.04 33.2 7.8
20S16A2FFC1RAC009 20S16 Brass Metric M20 1.5 26.4 15 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 33.2 9.1 0.08
20S16A2FFC1RA031C009 20S16 Brass NPT 1/2" 26.4 15 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 33.2 9.1
20S16A2FFC1RA5C009 20S16 Nickel Plated Brass Metric M20 1.5 26.4 15 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 33.2 9.1 0.08
20S16A2FFC1RA1C009 20S16 Aluminium Metric M20 1.5 26.4 15 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 33.2 9.1 0.02
20S16A2FFC1RA531C009 20S16 Nickel Plated Brass NPT 1/2" 26.4 15 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 33.2 9.1
20S16A2FFC1RA131C009 20S16 Aluminium NPT 1/2" 26.4 15 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 33.2 9.1
20S16A2FFC1RA4C009 20S16 Stainless Steel Metric M20 1.5 26.4 15 3.2 8 0.13 0.31 15 0.59 24 26.4 0.95 1.04 33.2 9.1 0.08
20S16A2FFC1RA431C009 20S16 Stainless Steel NPT 1/2" 26.4 15 3.2 8 0.13 0.31 19.9 0.78 24 26.4 0.95 1.04 33.2 9.1
20S16A2FFC1RA5C010 20S16 Nickel Plated Brass Metric M20 1.5 26.4 15 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 9.5 0.09
20S16A2FFC1RA1C010 20S16 Aluminium Metric M20 1.5 26.4 15 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 9.5 0.03
20S16A2FFC1RA531C010 20S16 Nickel Plated Brass NPT 1/2" 26.4 15 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 9.5
20S16A2FFC1RA131C010 20S16 Aluminium NPT 1/2" 26.4 15 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 9.5
20S16A2FFC1RA4C010 20S16 Stainless Steel Metric M20 1.5 26.4 15 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 9.5 0.08
20S16A2FFC1RA431C010 20S16 Stainless Steel NPT 1/2" 26.4 15 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 9.5
20S16A2FFC1RAC010 20S16 Brass Metric M20 1.5 26.4 15 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 9.5 0.09
20S16A2FFC1RA031C010 20S16 Brass NPT 1/2" 26.4 15 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 9.5
20S16A2FFC1RA1C020 20S16 Aluminium Metric M20 1.5 26.4 16 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.2 0.03
20S16A2FFC1RA531C020 20S16 Nickel Plated Brass NPT 1/2" 26.4 16 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.2
20S16A2FFC1RA131C020 20S16 Aluminium NPT 1/2" 26.4 16 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.2
20S16A2FFC1RA4C020 20S16 Stainless Steel Metric M20 1.5 26.4 16 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.2 0.08
20S16A2FFC1RA431C020 20S16 Stainless Steel NPT 1/2" 26.4 16 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.2
20S16A2FFC1RAC020 20S16 Brass Metric M20 1.5 26.4 16 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.2 0.09
20S16A2FFC1RA031C020 20S16 Brass NPT 1/2" 26.4 16 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.2
20S16A2FFC1RA5C020 20S16 Nickel Plated Brass Metric M20 1.5 26.4 16 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.2 0.09
20S16A2FFC1RA531C025 20S16 Nickel Plated Brass NPT 1/2" 26.4 17 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.9
20S16A2FFC1RA131C025 20S16 Aluminium NPT 1/2" 26.4 17 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.9
20S16A2FFC1RA4C025 20S16 Stainless Steel Metric M20 1.5 26.4 17 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.9 0.08
20S16A2FFC1RA431C025 20S16 Stainless Steel NPT 1/2" 26.4 17 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.9
20S16A2FFC1RAC025 20S16 Brass Metric M20 1.5 26.4 17 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.9 0.09
20S16A2FFC1RA031C025 20S16 Brass NPT 1/2" 26.4 17 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 10.9
20S16A2FFC1RA5C025 20S16 Nickel Plated Brass Metric M20 1.5 26.4 17 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.9 0.09
20S16A2FFC1RA1C025 20S16 Aluminium Metric M20 1.5 26.4 17 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 10.9 0.03
20S16A2FFC1RA131C030 20S16 Aluminium NPT 1/2" 26.4 17.4 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 11.7
20S16A2FFC1RA4C030 20S16 Stainless Steel Metric M20 1.5 26.4 17.4 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 11.7 0.08
20S16A2FFC1RA431C030 20S16 Stainless Steel NPT 1/2" 26.4 17.4 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 11.7
20S16A2FFC1RAC030 20S16 Brass Metric M20 1.5 26.4 17.4 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 11.7 0.09
20S16A2FFC1RA031C030 20S16 Brass NPT 1/2" 26.4 17.4 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 11.7
20S16A2FFC1RA5C030 20S16 Nickel Plated Brass Metric M20 1.5 26.4 17.4 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 11.7 0.09
20S16A2FFC1RA1C030 20S16 Aluminium Metric M20 1.5 26.4 17.4 3.2 8.1 0.13 0.32 15 0.59 24 26.4 0.95 1.04 33.2 11.7 0.03
20S16A2FFC1RA531C030 20S16 Nickel Plated Brass NPT 1/2" 26.4 17.4 3.2 8.1 0.13 0.32 19.9 0.78 24 26.4 0.95 1.04 33.2 11.7
20S16A2FFC1RA032C000 20S16 Brass NPT 3/4" 26.4 12 3.2 4.1 0.13 0.16 20.2 0.8 31.5 34.7 1.24 1.37 33.2 5.1
20SA2FFC1RA4C040 20S Stainless Steel Metric M20 1.5 26.4 20 6.1 11.4 0.24 0.45 15 0.59 24 26.4 0.95 1.04 33.1 13 0.08
20SA2FFC1RAC040 20S Brass Metric M20 1.5 26.4 20 6.1 11.4 0.24 0.45 15 0.59 24 26.4 0.95 1.04 33.1 13 0.09
20SA2FFC1RA5C040 20S Nickel Plated Brass Metric M20 1.5 26.4 20 6.1 11.4 0.24 0.45 15 0.59 24 26.4 0.95 1.04 33.1 13 0.09
20SA2FFC1RA1C040 20S Aluminium Metric M20 1.5 26.4 20 6.1 11.4 0.24 0.45 15 0.59 24 26.4 0.95 1.04 33.1 13 0.03
20S16A2FFC1RA032C001 20S16 Brass NPT 3/4" 26.4 13 3.2 5.2 0.13 0.2 20.2 0.8 31.5 34.7 1.24 1.37 33.2 6.8
20SA2FFC1RAC045 20S Brass Metric M20 1.5 26.4 20 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 13.9 0.09
20SA2FFC1RA5C045 20S Nickel Plated Brass Metric M20 1.5 26.4 20 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 13.9 0.09
20SA2FFC1RA1C045 20S Aluminium Metric M20 1.5 26.4 20 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 13.9 0.03
20SA2FFC1RA4C045 20S Stainless Steel Metric M20 1.5 26.4 20 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 13.9 0.08
20SA2FFC1RA5C060 20S Nickel Plated Brass Metric M20 1.5 26.4 21.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 14.7 0.09
20SA2FFC1RA1C060 20S Aluminium Metric M20 1.5 26.4 21.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 14.7 0.03
20SA2FFC1RA4C060 20S Stainless Steel Metric M20 1.5 26.4 21.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 14.7 0.08
20SA2FFC1RAC060 20S Brass Metric M20 1.5 26.4 21.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 33.1 14.7 0.09
20A2FFC1RA1C050 20 Aluminium Metric M20 1.5 29.7 21.6 6.5 13.1 0.26 0.52 15 0.59 27 29.7 1.06 1.17 35.4 15.6 0.03
20A2FFC1RA4C050 20 Stainless Steel Metric M20 1.5 29.7 21.6 6.5 13.1 0.26 0.52 15 0.59 27 29.7 1.06 1.17 35.4 15.6 0.09
20A2FFC1RAC050 20 Brass Metric M20 1.5 29.7 21.6 6.5 13.1 0.26 0.52 15 0.59 27 29.7 1.06 1.17 35.4 15.6 0.10
20A2FFC1RA5C050 20 Nickel Plated Brass Metric M20 1.5 29.7 21.6 6.5 13.1 0.26 0.52 15 0.59 27 29.7 1.06 1.17 35.4 15.6 0.10
20A2FFC1RA4C066 20 Stainless Steel Metric M20 1.5 29.7 23.4 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 16.9 0.09
20A2FFC1RAC066 20 Brass Metric M20 1.5 29.7 23.4 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 16.9 0.10
20A2FFC1RA5C066 20 Nickel Plated Brass Metric M20 1.5 29.7 23.4 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 16.9 0.10
20A2FFC1RA1C066 20 Aluminium Metric M20 1.5 29.7 23.4 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 16.9 0.03
20A2FFC1RA4C070 20 Stainless Steel Metric M20 1.5 29.7 24 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18 0.09
20A2FFC1RAC070 20 Brass Metric M20 1.5 29.7 24 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18 0.10
20A2FFC1RA5C070 20 Nickel Plated Brass Metric M20 1.5 29.7 24 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18 0.10
20A2FFC1RA1C070 20 Aluminium Metric M20 1.5 29.7 24 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18 0.03
20A2FFC1RAC075 20 Brass Metric M20 1.5 29.7 25 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18.7 0.10
20A2FFC1RA5C075 20 Nickel Plated Brass Metric M20 1.5 29.7 25 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18.7 0.10
20A2FFC1RA1C075 20 Aluminium Metric M20 1.5 29.7 25 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18.7 0.03
20A2FFC1RA4C075 20 Stainless Steel Metric M20 1.5 29.7 25 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 18.7 0.09
20A2FFC1RA5C080 20 Nickel Plated Brass Metric M20 1.5 29.7 26.3 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20 0.12
20A2FFC1RA1C080 20 Aluminium Metric M20 1.5 29.7 26.3 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20 0.04
20A2FFC1RA4C080 20 Stainless Steel Metric M20 1.5 29.7 26.3 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20 0.11
20A2FFC1RAC080 20 Brass Metric M20 1.5 29.7 26.3 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20 0.12
20SA2FFC1RA431C040 20S Stainless Steel NPT 1/2" 26.4 20 6.1 11.4 0.24 0.45 19.9 0.78 24 26.4 0.95 1.04 33.1 13
20SA2FFC1RA031C040 20S Brass NPT 1/2" 26.4 20 6.1 11.4 0.24 0.45 19.9 0.78 24 26.4 0.95 1.04 33.1 13
20SA2FFC1RA531C040 20S Nickel Plated Brass NPT 1/2" 26.4 20 6.1 11.4 0.24 0.45 19.9 0.78 24 26.4 0.95 1.04 33.1 13
20SA2FFC1RA131C040 20S Aluminium NPT 1/2" 26.4 20 6.1 11.4 0.24 0.45 19.9 0.78 24 26.4 0.95 1.04 33.1 13
20A2FFC1RA1C085 20 Aluminium Metric M20 1.5 31 28 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20.5 0.03
20A2FFC1RA4C085 20 Stainless Steel Metric M20 1.5 31 28 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20.5 0.10
20A2FFC1RAC085 20 Brass Metric M20 1.5 31 28 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20.5 0.11
20A2FFC1RA5C085 20 Nickel Plated Brass Metric M20 1.5 31 28 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 35.4 20.5 0.11
20SA2FFC1RA031C045 20S Brass NPT 1/2" 26.4 20 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 13.9
20SA2FFC1RA531C045 20S Nickel Plated Brass NPT 1/2" 26.4 20 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 13.9
20SA2FFC1RA131C045 20S Aluminium NPT 1/2" 26.4 20 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 13.9
20SA2FFC1RA431C045 20S Stainless Steel NPT 1/2" 26.4 20 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 13.9
25A2FFC1RA1C100 25 Aluminium Metric M25 1.5 39.6 25 11.1 15.3 0.44 0.6 15 0.59 36 39.6 1.42 1.56 43.1 17.6 0.05
25A2FFC1RA4C100 25 Stainless Steel Metric M25 1.5 39.6 25 11.1 15.3 0.44 0.6 15 0.59 36 39.6 1.42 1.56 43.1 17.6 0.15
25A2FFC1RAC100 25 Brass Metric M25 1.5 39.6 25 11.1 15.3 0.44 0.6 15 0.59 36 39.6 1.42 1.56 43.1 17.6 0.16
25A2FFC1RA5C100 25 Nickel Plated Brass Metric M25 1.5 39.6 25 11.1 15.3 0.44 0.6 15 0.59 36 39.6 1.42 1.56 43.1 17.6 0.16
20SA2FFC1RA531C060 20S Nickel Plated Brass NPT 1/2" 26.4 21.5 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 14.7
20SA2FFC1RA131C060 20S Aluminium NPT 1/2" 26.4 21.5 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 14.7
20SA2FFC1RA431C060 20S Stainless Steel NPT 1/2" 26.4 21.5 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 14.7
20SA2FFC1RA031C060 20S Brass NPT 1/2" 26.4 21.5 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 33.1 14.7
25A2FFC1RA4C105 25 Stainless Steel Metric M25 1.5 39.6 27 11.1 18.4 0.44 0.72 15 0.59 36 39.6 1.42 1.56 43.1 20.7 0.15
25A2FFC1RAC105 25 Brass Metric M25 1.5 39.6 27 11.1 18.4 0.44 0.72 15 0.59 36 39.6 1.42 1.56 43.1 20.7 0.16
25A2FFC1RA5C105 25 Nickel Plated Brass Metric M25 1.5 39.6 27 11.1 18.4 0.44 0.72 15 0.59 36 39.6 1.42 1.56 43.1 20.7 0.16
25A2FFC1RA1C105 25 Aluminium Metric M25 1.5 39.6 27 11.1 18.4 0.44 0.72 15 0.59 36 39.6 1.42 1.56 43.1 20.7 0.05
20A2FFC1RA531C050 20 Nickel Plated Brass NPT 1/2" 29.7 21.6 6.5 13.1 0.26 0.52 19.9 0.78 27 29.7 1.06 1.17 35.4 15.6
20A2FFC1RA131C050 20 Aluminium NPT 1/2" 29.7 21.6 6.5 13.1 0.26 0.52 19.9 0.78 27 29.7 1.06 1.17 35.4 15.6
20A2FFC1RA031C050 20 Brass NPT 1/2" 29.7 21.6 6.5 13.1 0.26 0.52 19.9 0.78 27 29.7 1.06 1.17 35.4 15.6
20A2FFC1RA431C050 20 Stainless Steel NPT 1/2" 29.7 21.6 6.5 13.1 0.26 0.52 19.9 0.78 27 29.7 1.06 1.17 35.4 15.6
25A2FFC1RAC110 25 Brass Metric M25 1.5 39.6 28.5 11.1 19 0.44 0.75 15 0.59 36 39.6 1.42 1.56 43.1 22.3 0.17
25A2FFC1RA5C110 25 Nickel Plated Brass Metric M25 1.5 39.6 28.5 11.1 19 0.44 0.75 15 0.59 36 39.6 1.42 1.56 43.1 22.3 0.17
25A2FFC1RA1C110 25 Aluminium Metric M25 1.5 39.6 28.5 11.1 19 0.44 0.75 15 0.59 36 39.6 1.42 1.56 43.1 22.3 0.05
25A2FFC1RA4C110 25 Stainless Steel Metric M25 1.5 39.6 28.5 11.1 19 0.44 0.75 15 0.59 36 39.6 1.42 1.56 43.1 22.3 0.16
20A2FFC1RA131C066 20 Aluminium NPT 1/2" 29.7 23.4 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 16.9
20A2FFC1RA031C066 20 Brass NPT 1/2" 29.7 23.4 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 16.9
20A2FFC1RA431C066 20 Stainless Steel NPT 1/2" 29.7 23.4 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 16.9
20A2FFC1RA531C066 20 Nickel Plated Brass NPT 1/2" 29.7 23.4 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 16.9
25A2FFC1RA5C115 25 Nickel Plated Brass Metric M25 1.5 39.6 32 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 23.7 0.18
25A2FFC1RA1C115 25 Aluminium Metric M25 1.5 39.6 32 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 23.7 0.06
25A2FFC1RA4C115 25 Stainless Steel Metric M25 1.5 39.6 32 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 23.7 0.17
25A2FFC1RAC115 25 Brass Metric M25 1.5 39.6 32 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 23.7 0.18
20A2FFC1RA031C070 20 Brass NPT 1/2" 29.7 24 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18
20A2FFC1RA431C070 20 Stainless Steel NPT 1/2" 29.7 24 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18
20A2FFC1RA531C070 20 Nickel Plated Brass NPT 1/2" 29.7 24 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18
20A2FFC1RA131C070 20 Aluminium NPT 1/2" 29.7 24 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18
25A2FFC1RA1C120 25 Aluminium Metric M25 1.5 39.6 31 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 25.1 0.05
25A2FFC1RA4C120 25 Stainless Steel Metric M25 1.5 39.6 31 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 25.1 0.16
25A2FFC1RAC120 25 Brass Metric M25 1.5 39.6 31 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 25.1 0.17
25A2FFC1RA5C120 25 Nickel Plated Brass Metric M25 1.5 39.6 31 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 25.1 0.17
20A2FFC1RA031C075 20 Brass NPT 1/2" 29.7 25 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18.7
20A2FFC1RA431C075 20 Stainless Steel NPT 1/2" 29.7 25 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18.7
20A2FFC1RA531C075 20 Nickel Plated Brass NPT 1/2" 29.7 25 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18.7
20A2FFC1RA131C075 20 Aluminium NPT 1/2" 29.7 25 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 18.7
25A2FFC1RA1C180 25 Aluminium Metric M25 1.5 39.6 35 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 26.5 0.06
25A2FFC1RA4C180 25 Stainless Steel Metric M25 1.5 39.6 35 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 26.5 0.17
25A2FFC1RAC180 25 Brass Metric M25 1.5 39.6 35 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 26.5 0.18
25A2FFC1RA5C180 25 Nickel Plated Brass Metric M25 1.5 39.6 35 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 43.1 26.5 0.18
20A2FFC1RA531C080 20 Nickel Plated Brass NPT 1/2" 29.7 26.3 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20
20A2FFC1RA131C080 20 Aluminium NPT 1/2" 29.7 26.3 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20
20A2FFC1RA031C080 20 Brass NPT 1/2" 29.7 26.3 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20
20A2FFC1RA431C080 20 Stainless Steel NPT 1/2" 29.7 26.3 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20
32A2FFC1RA1C250 32 Aluminium Metric M32 1.5 45.1 35.8 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 28.1 0.07
32A2FFC1RA4C250 32 Stainless Steel Metric M32 1.5 45.1 35.8 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 28.1 0.20
32A2FFC1RAC250 32 Brass Metric M32 1.5 45.1 35.8 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 28.1 0.21
32A2FFC1RA5C250 32 Nickel Plated Brass Metric M32 1.5 45.1 35.8 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 28.1 0.21
20A2FFC1RA531C085 20 Nickel Plated Brass NPT 1/2" 31 28 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20.5
20A2FFC1RA131C085 20 Aluminium NPT 1/2" 31 28 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20.5
20A2FFC1RA031C085 20 Brass NPT 1/2" 31 28 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20.5
20A2FFC1RA431C085 20 Stainless Steel NPT 1/2" 31 28 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 35.4 20.5
32A2FFC1RA4C280 32 Stainless Steel Metric M32 1.5 45.1 38 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 30.4 0.20
32A2FFC1RAC280 32 Brass Metric M32 1.5 45.1 38 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 30.4 0.21
32A2FFC1RA5C280 32 Nickel Plated Brass Metric M32 1.5 45.1 38 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 30.4 0.21
32A2FFC1RA1C280 32 Aluminium Metric M32 1.5 45.1 38 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.1 30.4 0.07
32A2FFC1RAC290 32 Brass Metric M32 1.5 48 45 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.6 34.6 0.25
32A2FFC1RA5C290 32 Nickel Plated Brass Metric M32 1.5 48 45 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.6 34.6 0.25
32A2FFC1RA1C290 32 Aluminium Metric M32 1.5 48 45 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.6 34.6 0.08
32A2FFC1RA4C290 32 Stainless Steel Metric M32 1.5 48 45 17 26 0.67 1.02 15 0.59 41 45.1 1.62 1.78 43.6 34.6 0.24
40A2FFC1RA5C300 40 Nickel Plated Brass Metric M40 1.5 55 45 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 36.4 0.28
40A2FFC1RA1C300 40 Aluminium Metric M40 1.5 55 45 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 36.4 0.09
40A2FFC1RA4C300 40 Stainless Steel Metric M40 1.5 55 45 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 36.4 0.26
40A2FFC1RAC300 40 Brass Metric M40 1.5 55 45 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 36.4 0.28
40A2FFC1RA1C380 40 Aluminium Metric M40 1.5 55 49 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 40 0.09
40A2FFC1RA4C380 40 Stainless Steel Metric M40 1.5 55 49 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 40 0.28
40A2FFC1RAC380 40 Brass Metric M40 1.5 55 49 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 40 0.30
40A2FFC1RA5C380 40 Nickel Plated Brass Metric M40 1.5 55 49 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 45.1 40 0.30
50SA2FFC1RA1C450 50S Aluminium Metric M50 1.5 63.7 58.7 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 46.5 0.15
50SA2FFC1RA4C450 50S Stainless Steel Metric M50 1.5 63.7 58.7 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 46.5 0.45
50SA2FFC1RAC450 50S Brass Metric M50 1.5 63.7 58.7 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 46.5 0.48
50SA2FFC1RA5C450 50S Nickel Plated Brass Metric M50 1.5 63.7 58.7 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 46.5 0.48
50SA2FFC1RA4C500 50S Stainless Steel Metric M50 1.5 65 61 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 51.2 0.46
50SA2FFC1RAC500 50S Brass Metric M50 1.5 65 61 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 51.2 0.49
50SA2FFC1RA5C500 50S Nickel Plated Brass Metric M50 1.5 65 61 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 51.2 0.49
50SA2FFC1RA1C500 50S Aluminium Metric M50 1.5 65 61 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 43.8 51.2 0.15
50A2FFC1RAC550 50 Brass Metric M50 1.5 66 61 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 48 51.2 0.49
50A2FFC1RA5C550 50 Nickel Plated Brass Metric M50 1.5 66 61 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 48 51.2 0.49
50A2FFC1RA1C550 50 Aluminium Metric M50 1.5 66 61 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 48 51.2 0.15
50A2FFC1RA4C550 50 Stainless Steel Metric M50 1.5 66 61 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 48 51.2 0.46
25A2FFC1RA132C100 25 Aluminium NPT 3/4" 39.6 25 11.1 15.3 0.44 0.6 20.2 0.8 36 39.6 1.42 1.56 43.1 17.6
25A2FFC1RA032C100 25 Brass NPT 3/4" 39.6 25 11.1 15.3 0.44 0.6 20.2 0.8 36 39.6 1.42 1.56 43.1 17.6
25A2FFC1RA432C100 25 Stainless Steel NPT 3/4" 39.6 25 11.1 15.3 0.44 0.6 20.2 0.8 36 39.6 1.42 1.56 43.1 17.6
25A2FFC1RA532C100 25 Nickel Plated Brass NPT 3/4" 39.6 25 11.1 15.3 0.44 0.6 20.2 0.8 36 39.6 1.42 1.56 43.1 17.6
25A2FFC1RA032C105 25 Brass NPT 3/4" 39.6 27 11.1 18.4 0.44 0.72 20.2 0.8 36 39.6 1.42 1.56 43.1 20.7
25A2FFC1RA432C105 25 Stainless Steel NPT 3/4" 39.6 27 11.1 18.4 0.44 0.72 20.2 0.8 36 39.6 1.42 1.56 43.1 20.7
25A2FFC1RA532C105 25 Nickel Plated Brass NPT 3/4" 39.6 27 11.1 18.4 0.44 0.72 20.2 0.8 36 39.6 1.42 1.56 43.1 20.7
25A2FFC1RA132C105 25 Aluminium NPT 3/4" 39.6 27 11.1 18.4 0.44 0.72 20.2 0.8 36 39.6 1.42 1.56 43.1 20.7
25A2FFC1RA032C110 25 Brass NPT 3/4" 39.6 28.5 11.1 19 0.44 0.75 20.2 0.8 36 39.6 1.42 1.56 43.1 22.3
25A2FFC1RA432C110 25 Stainless Steel NPT 3/4" 39.6 28.5 11.1 19 0.44 0.75 20.2 0.8 36 39.6 1.42 1.56 43.1 22.3
25A2FFC1RA532C110 25 Nickel Plated Brass NPT 3/4" 39.6 28.5 11.1 19 0.44 0.75 20.2 0.8 36 39.6 1.42 1.56 43.1 22.3
25A2FFC1RA132C110 25 Aluminium NPT 3/4" 39.6 28.5 11.1 19 0.44 0.75 20.2 0.8 36 39.6 1.42 1.56 43.1 22.3
25A2FFC1RA432C115 25 Stainless Steel NPT 3/4" 39.6 32 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 23.7
25A2FFC1RA532C115 25 Nickel Plated Brass NPT 3/4" 39.6 32 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 23.7
25A2FFC1RA132C115 25 Aluminium NPT 3/4" 39.6 32 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 23.7
25A2FFC1RA032C115 25 Brass NPT 3/4" 39.6 32 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 23.7
25A2FFC1RA532C120 25 Nickel Plated Brass NPT 3/4" 39.6 31 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 25.1
25A2FFC1RA132C120 25 Aluminium NPT 3/4" 39.6 31 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 25.1
25A2FFC1RA032C120 25 Brass NPT 3/4" 39.6 31 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 25.1
25A2FFC1RA432C120 25 Stainless Steel NPT 3/4" 39.6 31 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 25.1
25A2FFC1RA532C180 25 Nickel Plated Brass NPT 3/4" 39.6 35 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 26.5
25A2FFC1RA132C180 25 Aluminium NPT 3/4" 39.6 35 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 26.5
25A2FFC1RA032C180 25 Brass NPT 3/4" 39.6 35 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 26.5
25A2FFC1RA432C180 25 Stainless Steel NPT 3/4" 39.6 35 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 43.1 26.5
32A2FFC1RA133C250 32 Aluminium NPT 1" 45.1 35.8 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 28.1
32A2FFC1RA033C250 32 Brass NPT 1" 45.1 35.8 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 28.1
32A2FFC1RA433C250 32 Stainless Steel NPT 1" 45.1 35.8 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 28.1
32A2FFC1RA533C250 32 Nickel Plated Brass NPT 1" 45.1 35.8 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 28.1
32A2FFC1RA033C280 32 Brass NPT 1" 45.1 38 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 30.4
32A2FFC1RA433C280 32 Stainless Steel NPT 1" 45.1 38 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 30.4
32A2FFC1RA533C280 32 Nickel Plated Brass NPT 1" 45.1 38 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 30.4
32A2FFC1RA133C280 32 Aluminium NPT 1" 45.1 38 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.1 30.4
32A2FFC1RA033C290 32 Brass NPT 1" 48 45 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.6 34.6
32A2FFC1RA433C290 32 Stainless Steel NPT 1" 48 45 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.6 34.6
32A2FFC1RA533C290 32 Nickel Plated Brass NPT 1" 48 45 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.6 34.6
32A2FFC1RA133C290 32 Aluminium NPT 1" 48 45 17 26 0.67 1.02 25 0.98 41 45.1 1.62 1.78 43.6 34.6
40A2FFC1RA534C300 40 Nickel Plated Brass NPT 1-1/4" 55 45 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 36.4
40A2FFC1RA134C300 40 Aluminium NPT 1-1/4" 55 45 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 36.4
40A2FFC1RA034C300 40 Brass NPT 1-1/4" 55 45 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 36.4
40A2FFC1RA434C300 40 Stainless Steel NPT 1-1/4" 55 45 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 36.4
40A2FFC1RA534C380 40 Nickel Plated Brass NPT 1-1/4" 55 49 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 40
40A2FFC1RA134C380 40 Aluminium NPT 1-1/4" 55 49 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 40
40A2FFC1RA034C380 40 Brass NPT 1-1/4" 55 49 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 40
40A2FFC1RA434C380 40 Stainless Steel NPT 1-1/4" 55 49 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 45.1 40
50SA2FFC1RA135C450 50S Aluminium NPT 1-1/2" 63.7 58.7 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 46.5
50SA2FFC1RA435C450 50S Stainless Steel NPT 1-1/2" 63.7 58.7 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 46.5
50SA2FFC1RA035C450 50S Brass NPT 1-1/2" 63.7 58.7 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 46.5
50SA2FFC1RA535C450 50S Nickel Plated Brass NPT 1-1/2" 63.7 58.7 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 46.5
50SA2FFC1RA435C500 50S Stainless Steel NPT 1-1/2" 65 61 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 51.2
50SA2FFC1RA035C500 50S Brass NPT 1-1/2" 65 61 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 51.2
50SA2FFC1RA535C500 50S Nickel Plated Brass NPT 1-1/2" 65 61 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 51.2
50SA2FFC1RA135C500 50S Aluminium NPT 1-1/2" 65 61 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 43.8 51.2
50A2FFC1RA436C550 50 Stainless Steel NPT 2" 66 61 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 48 51.2
50A2FFC1RA036C550 50 Brass NPT 2" 66 61 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 48 51.2
50A2FFC1RA536C550 50 Nickel Plated Brass NPT 2" 66 61 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 48 51.2
50A2FFC1RA136C550 50 Aluminium NPT 2" 66 61 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 48 51.2
1
No results

0 of 250 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
