A2FFF Cable Gland

ETIM Classification

EC000441

For all types of Flat-Form Unarmoured & Braid Armoured Cables (when the braid is terminated inside the enclosure).

Description

The A2F-FF range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a single seal on the cable outer sheath.

Features

  • Designed for flat-form / heat trace cables
  • Displacement type flameproof seal
  • Deluge protected
  • -60˚C to +130˚C (standard)
  • Internationally marked, UKEX, IECEx and ATEX

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1321X
ATEX Certificate Number 2 CML 18ATEX4313X
ATEX Code of Protection ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0179X
IECEx Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1245X, CML 21UKEX4246X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02519/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313002951
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772/2, P548696/9
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64837/E23-02-065446/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number S-XPL21804 21.0008X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
INMETRO Certificate Number TÜV 21.1075X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request Flat-form seals available for alternative Cable Glands upon request

Downloads

Certificates

Product Selector

1

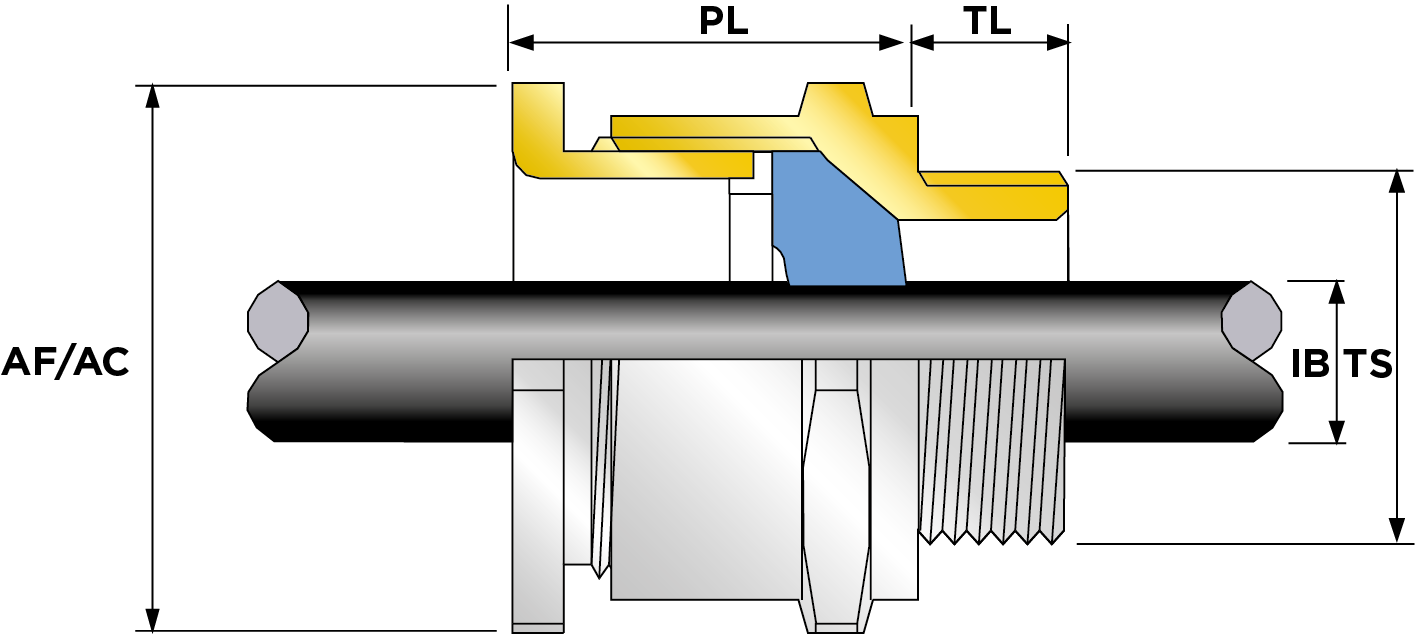

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Shroud Size Ass'y Weight
20SA2FFF1RA 20S Brass Metric M20 1.5 4.0 x 6.2 6.8 x 11.7 15 15 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.05
20SA2FFF1RA1 20S Aluminium Metric M20 1.5 4.0 x 6.2 6.8 x 11.7 15 15 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.02
20SA2FFF1RA4 20S Stainless Steel Metric M20 1.5 4.0 x 6.2 6.8 x 11.7 15 15 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.05
20SA2FFF1RA5 20S Nickel Plated Brass Metric M20 1.5 4.0 x 6.2 6.8 x 11.7 15 15 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.05
20SA2FFF1RA031 20S Brass NPT 1/2" 4.0 x 6.2 6.8 x 11.7 15 15 19.9 0.78 24 26.4 0.95 1.04 26
20SA2FFF1RA131 20S Aluminium NPT 1/2" 4.0 x 6.2 6.8 x 11.7 15 15 19.9 0.78 24 26.4 0.95 1.04 26
20SA2FFF1RA431 20S Stainless Steel NPT 1/2" 4.0 x 6.2 6.8 x 11.7 15 15 19.9 0.78 24 26.4 0.95 1.04 26
20SA2FFF1RA531 20S Nickel Plated Brass NPT 1/2" 4.0 x 6.2 6.8 x 11.7 15 15 19.9 0.78 24 26.4 0.95 1.04 26
20A2FFF1RA 20 Brass Metric M20 1.5 5.7 x 8.0 8.7 x 13.5 15 15 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.06
20A2FFF1RA1 20 Aluminium Metric M20 1.5 5.7 x 8.0 8.7 x 13.5 15 15 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.02
20A2FFF1RA4 20 Stainless Steel Metric M20 1.5 5.7 x 8.0 8.7 x 13.5 15 15 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.06
20A2FFF1RA5 20 Nickel Plated Brass Metric M20 1.5 5.7 x 8.0 8.7 x 13.5 15 15 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.06
20SA2FFF1RA032 20S Brass NPT 3/4" 4.0 x 6.2 6.8 x 11.7 15 15 20.2 0.8 31.5 34.7 1.24 1.37 26
20SA2FFF1RA132 20S Aluminium NPT 3/4" 4.0 x 6.2 6.8 x 11.7 15 15 20.2 0.8 31.5 34.7 1.24 1.37 26
20SA2FFF1RA432 20S Stainless Steel NPT 3/4" 4.0 x 6.2 6.8 x 11.7 15 15 20.2 0.8 31.5 34.7 1.24 1.37 26
20SA2FFF1RA532 20S Nickel Plated Brass NPT 3/4" 4.0 x 6.2 6.8 x 11.7 15 15 20.2 0.8 31.5 34.7 1.24 1.37 26
20A2FFF1RA031 20 Brass NPT 1/2" 5.7 x 8.0 8.7 x 13.5 15 15 19.9 0.78 27 29.7 1.06 1.17 27.7
20A2FFF1RA131 20 Aluminium NPT 1/2" 5.7 x 8.0 8.7 x 13.5 15 15 19.9 0.78 27 29.7 1.06 1.17 27.7
20A2FFF1RA431 20 Stainless Steel NPT 1/2" 5.7 x 8.0 8.7 x 13.5 15 15 19.9 0.78 27 29.7 1.06 1.17 27.7
20A2FFF1RA531 20 Nickel Plated Brass NPT 1/2" 5.7 x 8.0 8.7 x 13.5 15 15 19.9 0.78 27 29.7 1.06 1.17 27.7
20A2FFF1RA032 20 Brass NPT 3/4" 5.7 x 8.0 8.7 x 13.5 15 15 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20A2FFF1RA132 20 Aluminium NPT 3/4" 5.7 x 8.0 8.7 x 13.5 15 15 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20A2FFF1RA432 20 Stainless Steel NPT 3/4" 5.7 x 8.0 8.7 x 13.5 15 15 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20A2FFF1RA532 20 Nickel Plated Brass NPT 3/4" 5.7 x 8.0 8.7 x 13.5 15 15 20.2 0.8 31.5 34.7 1.24 1.37 27.7
1
No results

0 of 24 Selected
