A2HT Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The A2HT range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed for high temperature applications.

Features

  • -60˚C to 180˚C high temperature ThermIn seals
  • High quality durable materials
  • Robust, heavy duty design
  • Displacement type seal
  • Deluge protected

Additional Information

Certification
CSA Certificate Number CSA Certificate
CSA Code of Protection Enclosure Type 4X
CSA Logo Filename csalogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000012/csalogo.jpg
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Seal Material CMP Thermoset Rubbe
Seal Technique CMP Unique Displacement Seal Concept
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

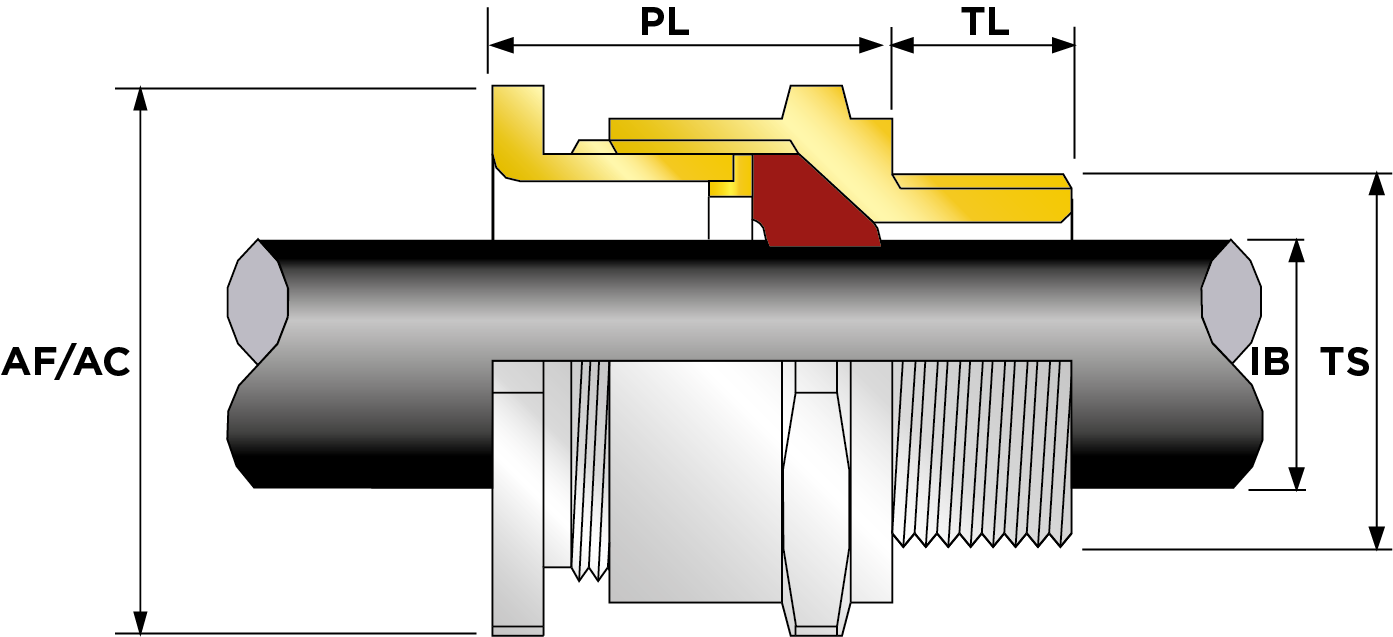

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Shroud Size Ass'y Weight
16A2HT1RA 16 Brass Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 29.9 PVC04 0.06
16A2HT1RA1 16 Aluminium Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 29.9 PVC04 0.01875
16A2HT1RA4 16 Stainless Steel Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 29.9 PVC04 0.056603773584905655
16A2HT1RA5 16 Nickel Plated Brass Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 29.9 PVC04 0.06
20A2HT1RA 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SA2HT1RA 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.06
20S16A2HT1RA 20S16 Brass Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.07
20S16A2HT1RA1 20S16 Aluminium Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.021875000000000002
20A2HT1RA1 20 Aluminium Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.021875000000000002
20SA2HT1RA1 20S Aluminium Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.01875
20A2HT1RA4 20 Stainless Steel Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.0660377358490566
20SA2HT1RA4 20S Stainless Steel Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.056603773584905655
20S16A2HT1RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.0660377358490566
20SA2HT1RA5 20S Nickel Plated Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.06
20S16A2HT1RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 24 26.4 0.95 1.04 26 PVC04 0.07
20A2HT1RA5 20 Nickel Plated Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.07
20A2HT1RA031 20 Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SA2HT1RA031 20S Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26
20S16A2HT1RA031 20S16 Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26
20S16A2HT1RA032 20S16 Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26
20A2HT1RA032 20 Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20SA2HT1RA032 20S Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA131 20S16 Aluminium NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26
20A2HT1RA131 20 Aluminium NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SA2HT1RA131 20S Aluminium NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26
20A2HT1RA132 20 Aluminium NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20SA2HT1RA132 20S Aluminium NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA132 20S16 Aluminium NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA431 20S16 Stainless Steel NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26
20A2HT1RA431 20 Stainless Steel NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SA2HT1RA431 20S Stainless Steel NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26
20A2HT1RA432 20 Stainless Steel NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7
20SA2HT1RA432 20S Stainless Steel NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA432 20S16 Stainless Steel NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26
20A2HT1RA531 20 Nickel Plated Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SA2HT1RA531 20S Nickel Plated Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26
20SA2HT1RA532 20S Nickel Plated Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26
20S16A2HT1RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26
20A2HT1RA532 20 Nickel Plated Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7
25A2HT1RA 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.13
25A2HT1RA1 25 Aluminium Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.040625
25A2HT1RA4 25 Stainless Steel Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.12264150943396226
25A2HT1RA5 25 Nickel Plated Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.13
25A2HT1RA032 25 Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25A2HT1RA033 25 Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5
25A2HT1RA132 25 Aluminium NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25A2HT1RA133 25 Aluminium NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5
25A2HT1RA432 25 Stainless Steel NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25A2HT1RA433 25 Stainless Steel NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5
25A2HT1RA532 25 Nickel Plated Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25A2HT1RA533 25 Nickel Plated Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5
32A2HT1RA 32 Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 35.1 PVC10 0.15
32A2HT1RA1 32 Aluminium Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 35.1 PVC10 0.04687499999999999
32A2HT1RA4 32 Stainless Steel Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 35.1 PVC10 0.14150943396226415
32A2HT1RA5 32 Nickel Plated Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 35.1 PVC10 0.15
32A2HT1RA033 32 Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32A2HT1RA034 32 Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1
32A2HT1RA133 32 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32A2HT1RA134 32 Aluminium NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1
32A2HT1RA433 32 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32A2HT1RA434 32 Stainless Steel NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1
32A2HT1RA533 32 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32A2HT1RA534 32 Nickel Plated Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1
40A2HT1RA 40 Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40A2HT1RA1 40 Aluminium Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.0625
40A2HT1RA4 40 Stainless Steel Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.18867924528301888
40A2HT1RA5 40 Nickel Plated Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40A2HT1RA034 40 Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1
40A2HT1RA035 40 Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1
40A2HT1RA134 40 Aluminium NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1
40A2HT1RA135 40 Aluminium NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1
40A2HT1RA434 40 Stainless Steel NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1
40A2HT1RA435 40 Stainless Steel NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1
40A2HT1RA534 40 Nickel Plated Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1
40A2HT1RA535 40 Nickel Plated Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1
50A2HT1RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50SA2HT1RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.26
50A2HT1RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.084375
50SA2HT1RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.08125
50A2HT1RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.25471698113207547
50SA2HT1RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.24528301886792453
50SA2HT1RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.26
50A2HT1RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50SA2HT1RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33
50A2HT1RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3
50SA2HT1RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33
50A2HT1RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3
50SA2HT1RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33
50SA2HT1RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33
50A2HT1RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3
50A2HT1RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3
50SA2HT1RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33
50A2HT1RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3
50SA2HT1RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33
50A2HT1RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3
50SA2HT1RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33
50SA2HT1RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33
50A2HT1RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3
50A2HT1RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3
63A2HT1RA 63 Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.46
63SA2HT1RA 63S Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.43
63A2HT1RA1 63 Aluminium Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.14375
63SA2HT1RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.134375
63A2HT1RA4 63 Stainless Steel Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.4339622641509434
63SA2HT1RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.40566037735849053
63A2HT1RA5 63 Nickel Plated Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.46
63SA2HT1RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.43
63SA2HT1RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5
63A2HT1RA037 63 Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 36.2
63SA2HT1RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5
63A2HT1RA038 63 Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SA2HT1RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5
63SA2HT1RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5
63A2HT1RA137 63 Aluminium NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 36.2
63A2HT1RA138 63 Aluminium NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SA2HT1RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5
63SA2HT1RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5
63A2HT1RA437 63 Stainless Steel NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 36.2
63A2HT1RA438 63 Stainless Steel NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SA2HT1RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5
63SA2HT1RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5
63A2HT1RA537 63 Nickel Plated Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 36.2
63A2HT1RA538 63 Nickel Plated Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
75A2HT1RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.5
75SA2HT1RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.9090624999999999
75SA2HT1RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.1625
75A2HT1RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.15625
75A2HT1RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.4716981132075471
75SA2HT1RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.49056603773584906
75A2HT1RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.5
75SA2HT1RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.52
75SA2HT1RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1
75A2HT1RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SA2HT1RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75A2HT1RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9
75SA2HT1RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1
75A2HT1RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SA2HT1RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75A2HT1RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9
75SA2HT1RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1
75SA2HT1RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75A2HT1RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75A2HT1RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9
75SA2HT1RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1
75A2HT1RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SA2HT1RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75A2HT1RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9
90A2HT1RA 90 Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90A2HT1RA1 90 Aluminium Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 0.5
90A2HT1RA4 90 Stainless Steel Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.509433962264151
90A2HT1RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90A2HT1RA039 90 Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3
90A2HT1RA139 90 Aluminium NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3
90A2HT1RA0310 90 Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3
90A2HT1RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3
90A2HT1RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3
90A2HT1RA1310 90 Aluminium NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3
90A2HT1RA4310 90 Stainless Steel NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3
90A2HT1RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3
100A2HT1RA 100 Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100A2HT1RA1 100 Aluminium Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 0.55625
100A2HT1RA4 100 Stainless Steel Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.6792452830188678
100A2HT1RA5 100 Nickel Plated Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100A2HT1RA039 100 Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2
100A2HT1RA139 100 Aluminium NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2
100A2HT1RA0310 100 Brass NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2
100A2HT1RA439 100 Stainless Steel NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2
100A2HT1RA539 100 Nickel Plated Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2
100A2HT1RA1310 100 Aluminium NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2
100A2HT1RA4310 100 Stainless Steel NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2
100A2HT1RA5310 100 Nickel Plated Brass NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2
115A2HT1RA 115 Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.67
115A2HT1RA1 115 Aluminium Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 0.834375
115A2HT1RA4 115 Stainless Steel Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.5188679245283017
115A2HT1RA5 115 Nickel Plated Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.67
115A2HT1RA0310 115 Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3
115A2HT1RA0312 115 Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3
115A2HT1RA1310 115 Aluminium NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3
115A2HT1RA1312 115 Aluminium NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3
115A2HT1RA4310 115 Stainless Steel NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3
115A2HT1RA4312 115 Stainless Steel NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3
115A2HT1RA5310 115 Nickel Plated Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3
115A2HT1RA5312 115 Nickel Plated Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3
130A2HT1RA 130 Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.8
130A2HT1RA1 130 Aluminium Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 1.1874999999999998
130A2HT1RA4 130 Stainless Steel Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.584905660377358
130A2HT1RA5 130 Nickel Plated Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.8
130A2HT1RA0312 130 Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7
130A2HT1RA1312 130 Aluminium NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7
130A2HT1RA4312 130 Stainless Steel NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7
130A2HT1RA5312 130 Nickel Plated Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7
1
No results

0 of 192 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
