B323 Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The B323 range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed to be insulated from the equipment to enable zoning of earthed neutral systems and eliminate circulating currents. Includes external high current capacity earth connection.

Features

  • High quality durable materials
  • Robust, heavy duty insulated design
  • Metal-to-metal armour clamping
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Direct & remote installation
  • Enables zoning of earthed neutral systems
  • Eliminates circulating currents
  • High capacity external earth connection
  • Third party short circuit tested
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Three Part Armour Lock With AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ TM Outer Seal (Load Retention Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

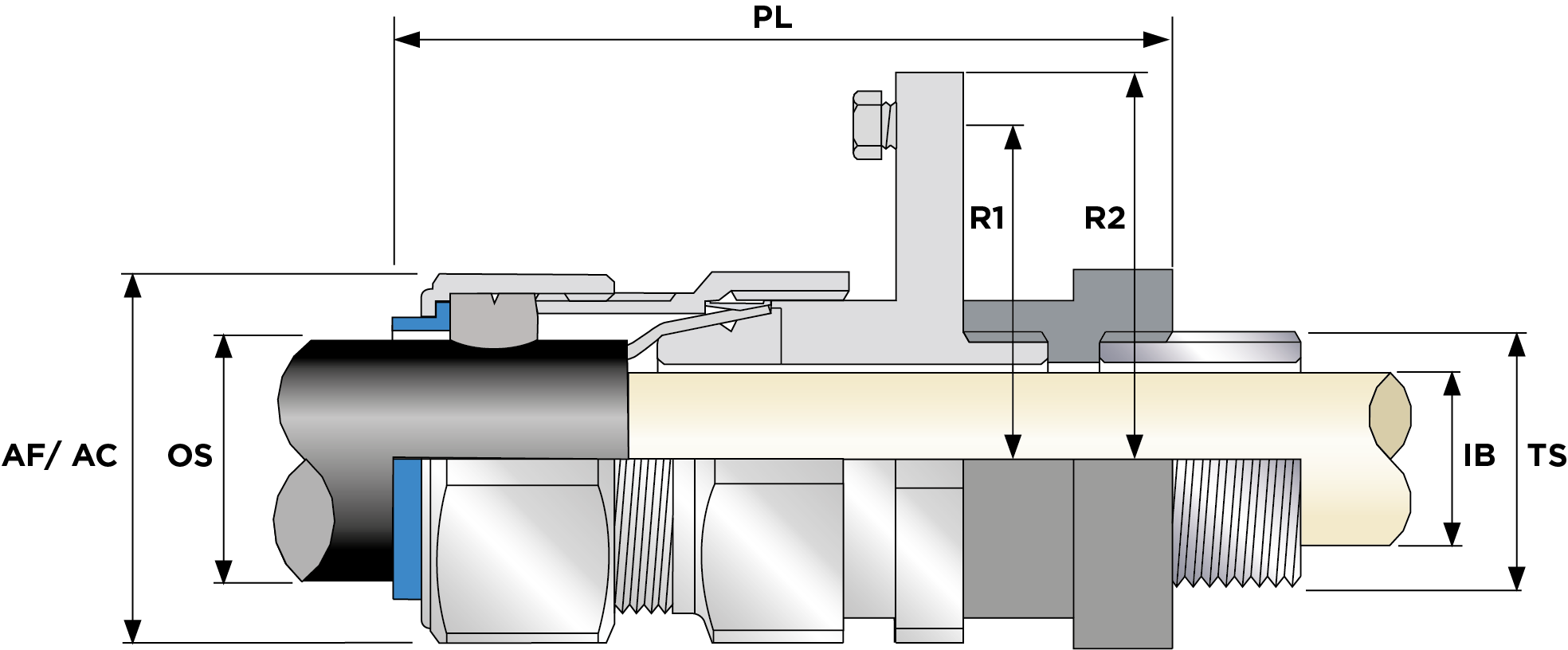

Part Number Size Material CIEL Earth Bolt Size EB Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Symmetrical Fault Current (kA) rating for 1 second Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Ass'y Weight
20SB3231RA 20S Brass M8 x 16 Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 26 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 0.19
20B3231RA 20 Brass M8 x 16 Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 26 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 0.24
20B3231RA1 20 Aluminium M8 x 16 Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 26 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 0.075
20SB3231RA1 20S Aluminium M8 x 16 Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 26 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 0.059375
20B3231RA4 20 Stainless Steel M8 x 16 Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 26 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 0.22641509433962262
20SB3231RA4 20S Stainless Steel M8 x 16 Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 26 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 0.1792452830188679
20B3231RA5 20 Nickel Plated Brass M8 x 16 Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 26 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 0.24
20SB3231RA5 20S Nickel Plated Brass M8 x 16 Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 26 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 0.19
25B3231RA 25 Brass M8 x 16 Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.35
25SB3231RA 25S Brass M8 x 16 Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.35
25B3231RA1 25 Aluminium M8 x 16 Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.10937499999999999
25SB3231RA1 25S Aluminium M8 x 16 Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.10937499999999999
25B3231RA4 25 Stainless Steel M8 x 16 Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.330188679245283
25SB3231RA4 25S Stainless Steel M8 x 16 Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.330188679245283
25B3231RA5 25 Nickel Plated Brass M8 x 16 Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.35
25SB3231RA5 25S Nickel Plated Brass M8 x 16 Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 26 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 0.35
32B3231RA 32 Brass M8 x 16 Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 26 82.5 26.2 0 1.03 1.6 2 0.063 0.079 0.47
32B3231RA1 32 Aluminium M8 x 16 Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 26 82.5 26.2 0 1.03 1.6 2 0.063 0.079 0.14687499999999998
32B3231RA4 32 Stainless Steel M8 x 16 Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 26 82.5 26.2 0 1.03 1.6 2 0.063 0.079 0.4433962264150943
32B3231RA5 32 Nickel Plated Brass M8 x 16 Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 26 82.5 26.2 0 1.03 1.6 2 0.063 0.079 0.47
