B347 Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The B347 range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed to be insulated from the equipment to enable zoning of earthed neutral systems and eliminate circulating currents.

Features

  • High quality durable materials
  • Robust, heavy duty insulated design
  • Metal-to-metal armour clamping
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Direct remote installation
  • Enables zoning of earthed neutral systems
  • Eliminates circulating currents
  • High capacity external earth connection
  • Third party short circuit tested
  • Controlled outer load retention seal
  • Unique OSTG prevents overtightening
  • -60°C to +130°C
  • EMC tested

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Three Part Armour Lock With AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ TM Outer Seal (Load Retention Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

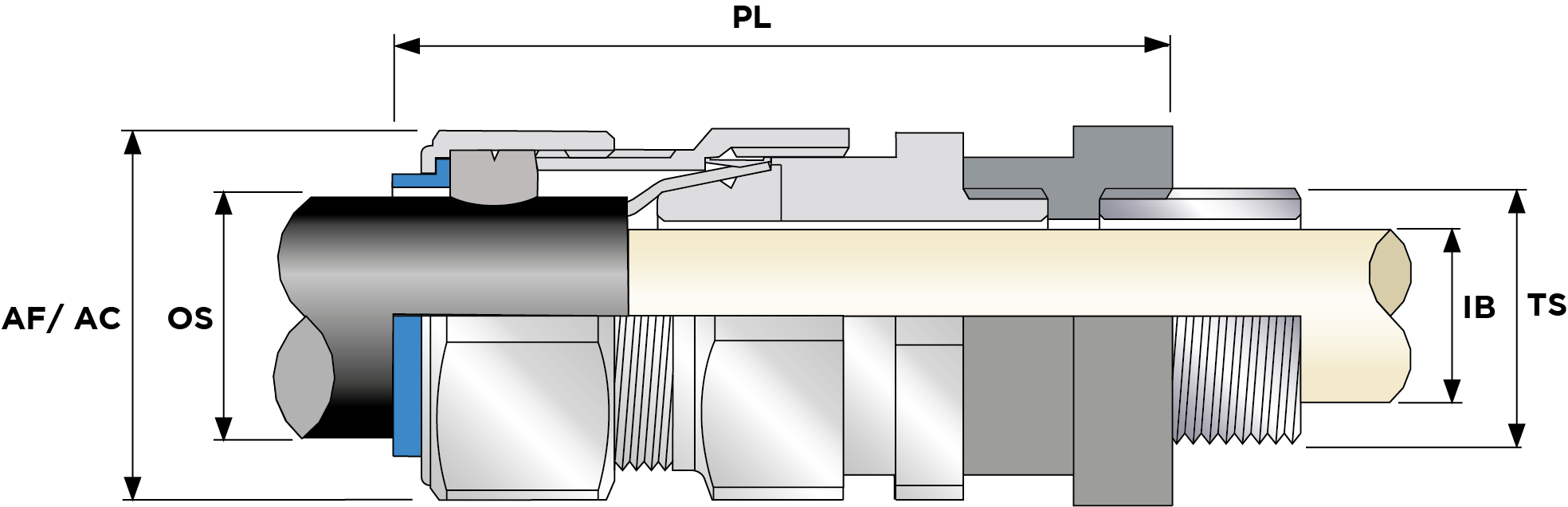

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20B3471RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.24
20SB3471RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.19
20B3471RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.075
20SB3471RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.059375
20B3471RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.22641509433962262
20SB3471RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.1792452830188679
20B3471RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 74.9 13.9 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.24
20SB3471RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 73.6 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.19
25B3471RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.35
25SB3471RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.35
25B3471RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.10937499999999999
25SB3471RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.10937499999999999
25B3471RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.330188679245283
25SB3471RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.330188679245283
25B3471RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.35
25SB3471RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 37.5 41.3 1.48 1.63 84.1 19.9 0 0.78 1.25 1.6 0.049 0.063 PVC09 0.35
32B3471RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 82.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC11 0.47
32B3471RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 82.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC11 0.14687499999999998
32B3471RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 82.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC11 0.4433962264150943
32B3471RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 82.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC11 0.47
