B348 Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The B348 range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed to be insulated from the equipment to enable zoning of earthed neutral systems and eliminate circulating currents.

Features

  • High quality durable materials
  • Robust, heavy duty insulated design
  • Metal-to-metal armour clamping
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Direct & remote installation
  • Enables zoning of earthed neutral systems
  • Eliminates circulating currents
  • Third party short circuit tested
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Three Part Armour Lock With AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

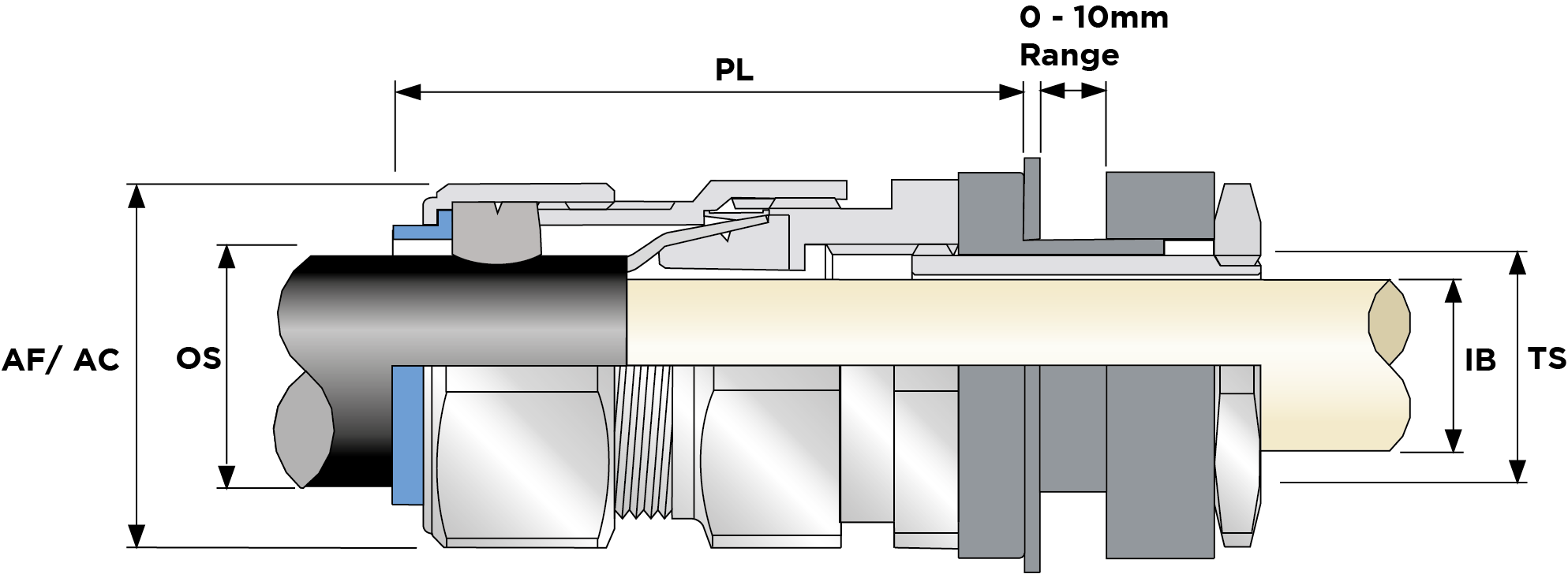

Part Number Size Material Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Clearance Hole Diameter (mm) Clearance Hole Diameter (Imp) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20B3481RA 20 Brass 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.8 1.25 0.031 0.049 PVC06 0.22
20SB3481RA 20S Brass 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.16
20SB3481RA1 20S Aluminium 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.049999999999999996
20B3481RA1 20 Aluminium 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.8 1.25 0.031 0.049 PVC06 0.06874999999999999
20B3481RA4 20 Stainless Steel 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.8 1.25 0.031 0.049 PVC06 0.20754716981132074
20SB3481RA4 20S Stainless Steel 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.1509433962264151
20B3481RA5 20 Nickel Plated Brass 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.8 1.25 0.031 0.049 PVC06 0.22
20SB3481RA5 20S Nickel Plated Brass 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.16
25B3481RA 25 Brass 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.34
25SB3481RA 25S Brass 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.34
25B3481RA1 25 Aluminium 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.10625
25SB3481RA1 25S Aluminium 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.10625
25B3481RA4 25 Stainless Steel 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.32075471698113206
25SB3481RA4 25S Stainless Steel 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.32075471698113206
25SB3481RA5 25S Nickel Plated Brass 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.34
25B3481RA5 25 Nickel Plated Brass 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 1.25 1.6 0.049 0.063 PVC09 0.34
32B3481RA1 32 Aluminium 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 1.6 2 0.063 0.079 PVC11 0.13749999999999998
32B3481RA4 32 Stainless Steel 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 1.6 2 0.063 0.079 PVC11 0.4150943396226415
32B3481RA5 32 Nickel Plated Brass 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 1.6 2 0.063 0.079 PVC11 0.44
40B3481RA 40 Brass 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 1.6 2 0.063 0.079 PVC15 0.71
40B3481RA1 40 Aluminium 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 1.6 2 0.063 0.079 PVC15 0.221875
40B3481RA4 40 Stainless Steel 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 1.6 2 0.063 0.079 PVC15 0.6698113207547169
40B3481RA5 40 Nickel Plated Brass 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 1.6 2 0.063 0.079 PVC15 0.71
50B3481RA 50 Brass 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 2 2.5 0.079 0.098 PVC21 1.06
50SB3481RA 50S Brass 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 2 2.5 0.079 0.098 PVC18 0.82
50B3481RA1 50 Aluminium 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 2 2.5 0.079 0.098 PVC21 0.33125
50SB3481RA1 50S Aluminium 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 2 2.5 0.079 0.098 PVC18 0.25625
50B3481RA4 50 Stainless Steel 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 2 2.5 0.079 0.098 PVC21 1
50SB3481RA4 50S Stainless Steel 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 2 2.5 0.079 0.098 PVC18 0.7735849056603773
50B3481RA5 50 Nickel Plated Brass 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 2 2.5 0.079 0.098 PVC21 1.06
50SB3481RA5 50S Nickel Plated Brass 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 2 2.5 0.079 0.098 PVC18 0.82
63B3481RA 63 Brass 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 2 2.5 0.079 0.098 PVC25 1.53
63SB3481RA 63S Brass 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 2 2.5 0.079 0.098 PVC23 1.51
63B3481RA1 63 Aluminium 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 2 2.5 0.079 0.098 PVC25 0.47812499999999997
63SB3481RA1 63S Aluminium 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 2 2.5 0.079 0.098 PVC23 0.471875
63SB3481RA4 63S Stainless Steel 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 2 2.5 0.079 0.098 PVC23 1.4245283018867925
63B3481RA4 63 Stainless Steel 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 2 2.5 0.079 0.098 PVC25 1.4433962264150944
63B3481RA5 63 Nickel Plated Brass 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 2 2.5 0.079 0.098 PVC25 1.53
63SB3481RA5 63S Nickel Plated Brass 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 2 2.5 0.079 0.098 PVC23 1.51
75SB3481RA 75S Brass 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 2 2.5 0.079 0.098 PVC28 2.1
75B3481RA 75 Brass 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 2.5 3 0.098 0.118 PVC30 2.62
75SB3481RA1 75S Aluminium 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 2 2.5 0.079 0.098 PVC28 0.65625
75B3481RA1 75 Aluminium 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 2.5 3 0.098 0.118 PVC30 0.81875
75B3481RA4 75 Stainless Steel 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 2.5 3 0.098 0.118 PVC30 2.4716981132075473
75SB3481RA4 75S Stainless Steel 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 2 2.5 0.079 0.098 PVC28 1.9811320754716981
75B3481RA5 75 Nickel Plated Brass 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 2.5 3 0.098 0.118 PVC30 2.62
75SB3481RA5 75S Nickel Plated Brass 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 2 2.5 0.079 0.098 PVC28 2.1
90B3481RA 90 Brass 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 3.15 4 0.124 0.157 PVC32 3.74
90B3481RA1 90 Aluminium 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 3.15 4 0.124 0.157 PVC32 1.16875
90B3481RA4 90 Stainless Steel 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 3.15 4 0.124 0.157 PVC32 3.5283018867924527
90B3481RA5 90 Nickel Plated Brass 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 3.15 4 0.124 0.157 PVC32 3.74
