B368 Cable Gland

ETIM Classification

EC000441

For Braid, Pliable Wire and Steel Tape Armoured cables.

Description

The B368 range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed to be insulated from the equipment to enable zoning of earthed neutral systems and eliminate circulating currents.

Features

  • Metal-to-metal armour clamping
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Direct & remote installation
  • Enables zoning of earthed neutral systems
  • Eliminates circulating currents
  • Third party short circuit tested
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents
  • overtightening
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Three Part Armour Lock With AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

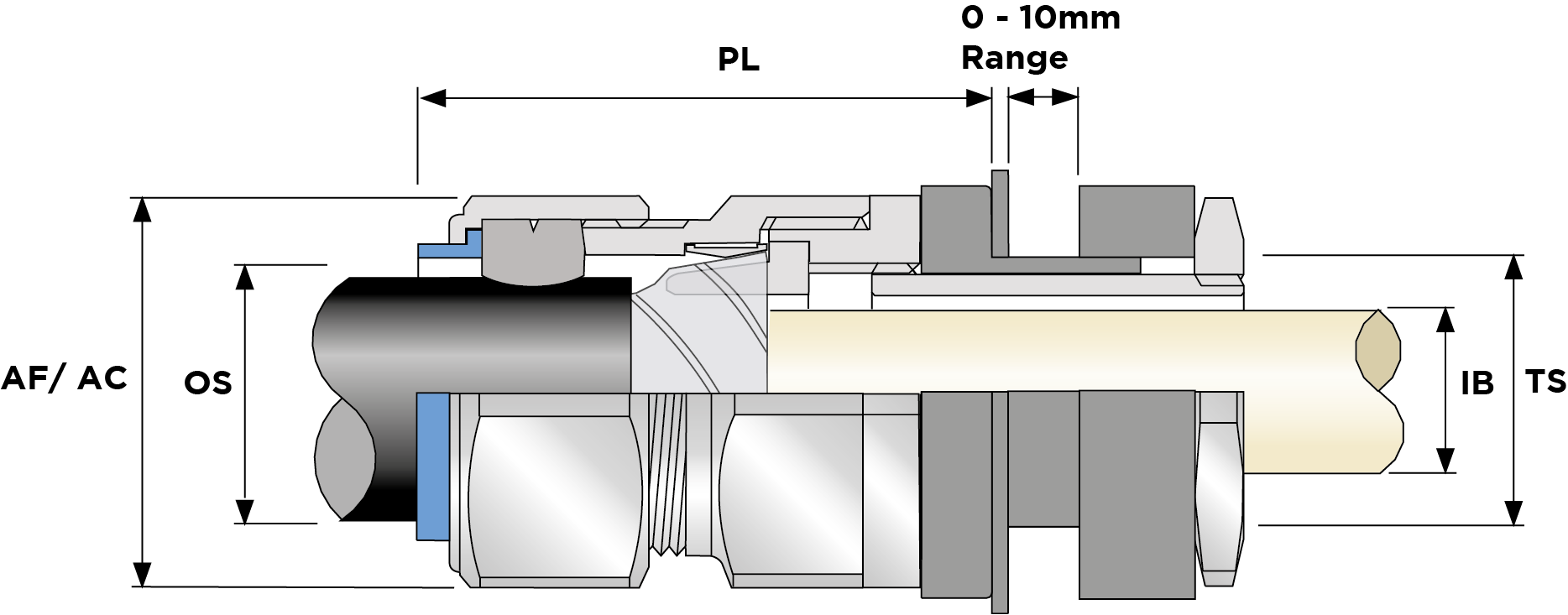

Part Number Size Material Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Clearance Hole Diameter (mm) Clearance Hole Diameter (Imp) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20B3681RA 20 Brass 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.4 0.04 0.02 PVC06 0.22
20SB3681RA 20S Brass 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.3 0.04 0.01 PVC04 0.16
20B3681RA1 20 Aluminium 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.4 0.04 0.02 PVC06 0.06874999999999999
20SB3681RA1 20S Aluminium 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.3 0.04 0.01 PVC04 0.049999999999999996
20B3681RA4 20 Stainless Steel 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.4 0.04 0.02 PVC06 0.20754716981132074
20SB3681RA4 20S Stainless Steel 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.3 0.04 0.01 PVC04 0.1509433962264151
20B3681RA5 20 Nickel Plated Brass 12.5 20.9 0.49 0.82 30.5 33.6 1.2 1.32 59.9 20.5 0.8070866141732284 13.4 0 0.53 0.4 0.04 0.02 PVC06 0.22
20SB3681RA5 20S Nickel Plated Brass 9.5 15.9 0.37 0.63 24 26.4 0.95 1.04 58.6 20.5 0.8070866141732284 11.6 0 0.46 0.3 0.04 0.01 PVC04 0.16
25B3681RA 25 Brass 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.34
25SB3681RA 25S Brass 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.34
25B3681RA1 25 Aluminium 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.10625
25SB3681RA1 25S Aluminium 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.10625
25SB3681RA4 25S Stainless Steel 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.32075471698113206
25B3681RA4 25 Stainless Steel 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.32075471698113206
25B3681RA5 25 Nickel Plated Brass 18.2 26.2 0.72 1.03 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.34
25SB3681RA5 25S Nickel Plated Brass 14 22 0.55 0.87 37.5 41.3 1.48 1.63 69.1 25.5 1.0039370078740157 18.9 0 0.74 0.4 0.05 0.02 PVC09 0.34
32B3681RA 32 Brass 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 0.4 0.05 0.02 PVC11 0.44
32B3681RA1 32 Aluminium 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 0.4 0.05 0.02 PVC11 0.13749999999999998
32B3681RA4 32 Stainless Steel 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 0.4 0.05 0.02 PVC11 0.4150943396226415
32B3681RA5 32 Nickel Plated Brass 23.7 33.9 0.93 1.33 46 50.6 1.81 1.99 67.6 32.5 1.2795275590551183 24.9 0 0.98 0.4 0.05 0.02 PVC11 0.44
40B3681RA 40 Brass 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 0.4 0.06 0.02 PVC15 0.71
40B3681RA1 40 Aluminium 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 0.4 0.06 0.02 PVC15 0.221875
40B3681RA4 40 Stainless Steel 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 0.4 0.06 0.02 PVC15 0.6698113207547169
40B3681RA5 40 Nickel Plated Brass 27.9 40.4 1.1 1.59 55 60.5 2.17 2.38 73.1 40.5 1.594488188976378 31.9 0 1.26 0.4 0.06 0.02 PVC15 0.71
50B3681RA 50 Brass 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 0.6 0.06 0.02 PVC21 1.06
50SB3681RA 50S Brass 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 0.4 0.06 0.02 PVC18 0.82
50B3681RA1 50 Aluminium 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 0.6 0.06 0.02 PVC21 0.33125
50SB3681RA1 50S Aluminium 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 0.4 0.06 0.02 PVC18 0.25625
50B3681RA4 50 Stainless Steel 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 0.6 0.06 0.02 PVC21 1
50SB3681RA4 50S Stainless Steel 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 0.4 0.06 0.02 PVC18 0.7735849056603773
50SB3681RA5 50S Nickel Plated Brass 35.2 46.7 1.39 1.84 60 66 2.36 2.6 72.1 50.5 1.9881889763779528 37.9 0 1.49 0.4 0.06 0.02 PVC18 0.82
50B3681RA5 50 Nickel Plated Brass 40.4 53 1.59 2.09 70.1 77.1 2.76 3.04 74.2 50.5 1.9881889763779528 42.9 0 1.69 0.6 0.06 0.02 PVC21 1.06
63B3681RA 63 Brass 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 0.6 0.06 0.02 PVC25 1.53
63SB3681RA 63S Brass 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 0.6 0.06 0.02 PVC23 1.51
63B3681RA1 63 Aluminium 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 0.6 0.06 0.02 PVC25 0.47812499999999997
63SB3681RA1 63S Aluminium 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 0.6 0.06 0.02 PVC23 0.471875
63B3681RA4 63 Stainless Steel 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 0.6 0.06 0.02 PVC25 1.4433962264150944
63SB3681RA4 63S Stainless Steel 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 0.6 0.06 0.02 PVC23 1.4245283018867925
63B3681RA5 63 Nickel Plated Brass 54.6 65.8 2.15 2.59 80 88 3.15 3.47 86.1 63.5 2.5 55.4 0 2.18 0.6 0.06 0.02 PVC25 1.53
63SB3681RA5 63S Nickel Plated Brass 45.6 59.4 1.8 2.34 75 82.5 2.96 3.25 86.2 63.5 2.5 50.1 0 1.97 0.6 0.06 0.02 PVC23 1.51
75B3681RA 75 Brass 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 0.6 0.06 0.02 PVC30 2.62
75SB3681RA 75S Brass 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 0.6 0.06 0.02 PVC28 2.1
75B3681RA1 75 Aluminium 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 0.6 0.06 0.02 PVC30 0.81875
75SB3681RA1 75S Aluminium 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 0.6 0.06 0.02 PVC28 0.65625
75B3681RA4 75 Stainless Steel 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 0.6 0.06 0.02 PVC30 2.4716981132075473
75SB3681RA4 75S Stainless Steel 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 0.6 0.06 0.02 PVC28 1.9811320754716981
75B3681RA5 75 Nickel Plated Brass 66.7 78.4 2.63 3.09 100 110 3.94 4.33 95.3 75.5 2.97244094488189 67.4 0 2.65 0.6 0.06 0.02 PVC30 2.62
75SB3681RA5 75S Nickel Plated Brass 59 72 2.32 2.83 90 99 3.55 3.9 96.5 75.5 2.97244094488189 61.9 0 2.44 0.6 0.06 0.02 PVC28 2.1
90B3681RA 90 Brass 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 0.8 0.06 0.03 PVC32 3.74
90B3681RA1 90 Aluminium 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 0.8 0.06 0.03 PVC32 1.16875
90B3681RA4 90 Stainless Steel 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 0.8 0.06 0.03 PVC32 3.5283018867924527
90B3681RA5 90 Nickel Plated Brass 76.2 90.3 3 3.56 114.3 125.7 4.5 4.95 107.6 90.5 3.5629921259842523 74.9 0 2.95 0.8 0.06 0.03 PVC32 3.74
