BW Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The BW range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed generally for indoor areas as no sealing protection is provided for the cable.

Features

  • High quality durable materials
  • Simple, effective two part arrangement
  • Direct and remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • -60˚C to +200˚C
  • Superior EMC performance

Additional Information

Certification
LR Certificate Number LR22320255TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
ABS Certificate Number 21-2090848-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
GOSTR Certificate Number 04ИДЮ101.GB.C02492
GOSTR Logo Filename GOSTRLogo.jpg
GOSTR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000004/GOSTRLogo.jpg
Technical Specification
Application IND
Armour Clamping Two Part Armour Lock
Cable Gland Kits Available Cable Gland Kit for use with all types of SWA cable, including 2 Brass Cable Glands, 2 Steel Locknuts, 2 Brass Earth Tags and 2 PVC Shrouds for sizes up to and including 32mm. For sizes 40mm and above each kit includes 1 of each component
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444. As IEC 62444 and EN 62444 do not cover cable glands which are supplied without cable sealing rings, the information provided here is for information only. ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information

Downloads

Certificates

Product Selector

1

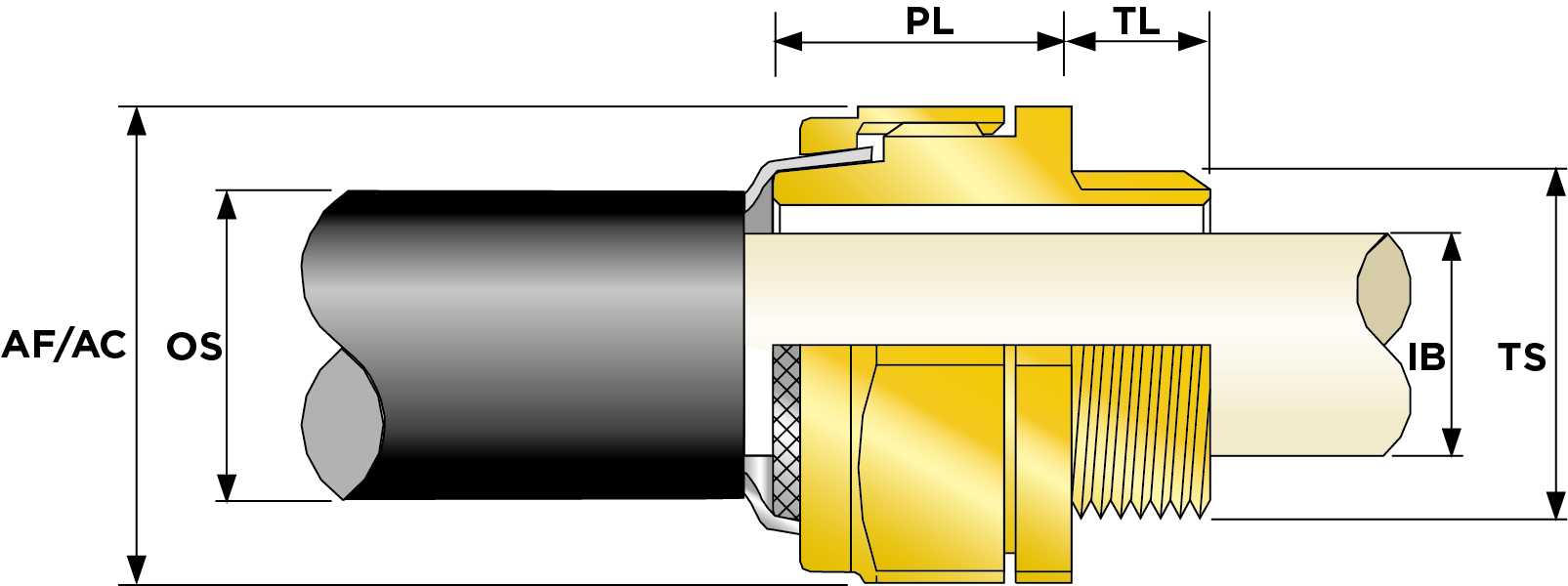

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20SBW1AA 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC02 0.05
20SBW1AA5 20S Nickel Plated Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC02 0.05
20SBWLSF2RA 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0
20BW1AA5 20 Nickel Plated Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 PVC05 0.09
20SBW2RA 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0
25BW1AA5 25 Nickel Plated Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 PVC07 0.11
20SBWLSF2RN 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0
32BW1AA5 32 Nickel Plated Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC10 0.15
20SBW2RN 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0
40BW1AA5 40 Nickel Plated Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 PVC13 0.32
20BW1AA 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 PVC05 0.09
50SBW1AA5 50S Nickel Plated Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 PVC16 0.47
20BWLSF2RA 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0
50BW1AA5 50 Nickel Plated Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 PVC19 0.48
20BW2RA 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0
63SBW1AA5 63S Nickel Plated Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 PVC23 0.63
20BWLSF2RN 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0
63BW1AA5 63 Nickel Plated Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 PVC24 0.89
20BW2RN 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0
75SBW1AA5 75S Nickel Plated Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 PVC27 1.27
25BW1AA 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 PVC07 0.11
75BW1AA5 75 Nickel Plated Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 PVC29 1.4
25BWLSF2RA 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0
25BW2RA 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0
25BWLSF2RN 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0
25BW2RN 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0
32BW1AA 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 PVC10 0.15
32BWLSF2RA 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0
32BW2RA 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0
32BWLSF2RN 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0
32BW2RN 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0
40BW1AA 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 PVC13 0.32
40BWLSF2RA 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0
40BW2RA 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0
40BWLSF2RN 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0
40BW2RN 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0
50SBW1AA 50S Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 PVC16 0.47
50SBWLSF2RA 50S Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 LSF16 0
50SBW2RA 50S Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 LSF16 0
50BW1AA 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 PVC19 0.48
50BWLSF2RA 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0
50BW2RA 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0
50BWLSF2RN 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0
50BW2RN 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0
63SBW1AA 63S Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 PVC23 0.63
63SBWLSF2RA 63S Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 LSF23 0
63SBW2RA 63S Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 LSF23 0
63BW1AA 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 PVC24 0.89
63BWLSF2RA 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0
63BW2RA 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0
63BWLSF2RN 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0
63BW2RN 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0
75SBW1AA 75S Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 PVC27 1.27
75SBWLSF2RA 75S Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 LSF27 0
75SBW2RA 75S Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 LSF27 0
75BW1AA 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 PVC29 1.4
75BWLSF2RA 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 0
75BW2RA 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 0
75BWLSF2RN 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 0
75BW2RN 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 0
