BWLCIEL Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The BW CIEL range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with an external high current capacity earth connection.

Features

  • External earth connection
  • Third party short circuit tested
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Robust, heavy duty design
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Longer body protects armour wires from impact
  • -60˚C to +200˚C
  • Superior EMC performance

Additional Information

Certification
Technical Specification
Application IND
Armour Clamping Armour Cone & AnyWay Universal Clamping Ring
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444. As IEC 62444 and EN 62444 do not cover cable glands which are supplied without cable sealing rings, the information provided here is for information only, since this product does not fully conform to these standards. ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

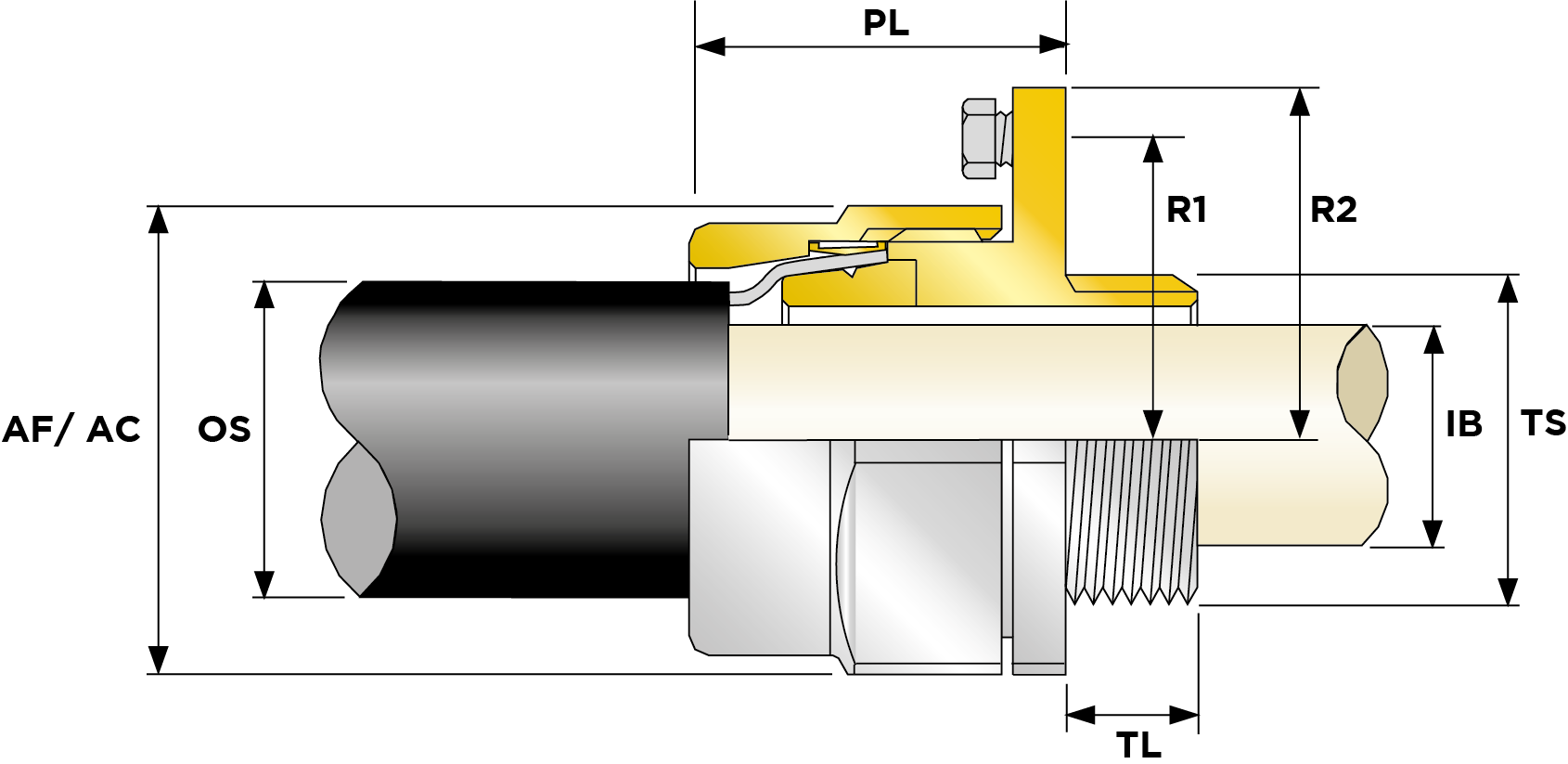

Part Number Size Material CIEL Earth Bolt Size EB Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Symmetrical Fault Current (kA) rating for 1 second Max Protrusion Length PL (mm) Nom C-to-C Radius R1 (mm) Nom C-to-Extremity Radius R2 (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Ass'y Weight
20BWLC1RA 20 Brass M8 Metric M20 1.5 - 20.9 15 0.82 10 0.39 30.5 33.6 1.2 1.32 26 30.6 31.8 41.8 14 0 0.55 0.8 1.25 0.031 0.049 0.158
20SBWLC1RA 20S Brass M8 Metric M20 1.5 - 15.9 15 0.63 10 0.39 24 26.4 0.95 1.04 26 32.2 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.112
20BWLC1RA5 20 Nickel Plated Brass M8 Metric M20 1.5 - 20.9 15 0.82 10 0.39 30.5 33.6 1.2 1.32 26 30.6 31.8 41.8 14 0 0.55 0.8 1.25 0.031 0.049 0.158
20SBWLC1RA5 20S Nickel Plated Brass M8 Metric M20 1.5 - 15.9 15 0.63 10 0.39 24 26.4 0.95 1.04 26 32.2 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.112
25BWLC1RA 25 Brass M8 Metric M25 1.5 - 26.2 15 1.03 10 0.39 36 39.6 1.42 1.56 26 36.4 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.224
25BWLC1RA5 25 Nickel Plated Brass M8 Metric M25 1.5 - 26.2 15 1.03 10 0.39 36 39.6 1.42 1.56 26 36.4 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.224
32BWLC1RA 32 Brass M10 Metric M32 1.5 - 33.9 15 1.33 10 0.39 46 50.6 1.81 1.99 26 32.6 41.3 54 26.2 0 1.03 1.6 2 0.063 0.079 0.244
32BWLC1RA5 32 Nickel Plated Brass M10 Metric M32 1.5 - 33.9 15 1.33 10 0.39 46 50.6 1.81 1.99 26 32.6 41.3 54 26.2 0 1.03 1.6 2 0.063 0.079 0.244
40BWLC1RA 40 Brass M12 Metric M40 1.5 - 40.4 15 1.59 15 0.59 55 60.5 2.17 2.38 26 36.6 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.538
40BWLC1RA5 40 Nickel Plated Brass M12 Metric M40 1.5 - 40.4 15 1.59 15 0.59 55 60.5 2.17 2.38 26 36.6 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.538
50BWLC1RA 50 Brass M12 Metric M50 1.5 - 53.1 15 2.09 15 0.59 70.1 77.1 2.76 3.04 43 39.1 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 0.718
50SBWLC1RA 50S Brass M12 Metric M50 1.5 - 46.7 15 1.84 15 0.59 60 66 2.36 2.6 43 39.6 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.67
50BWLC1RA5 50 Nickel Plated Brass M12 Metric M50 1.5 - 53.1 15 2.09 15 0.59 70.1 77.1 2.76 3.04 43 39.1 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 0.718
50SBWLC1RA5 50S Nickel Plated Brass M12 Metric M50 1.5 - 46.7 15 1.84 15 0.59 60 66 2.36 2.6 43 39.6 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.67
63SBWLC1RA 63S Brass M12 Metric M63 1.5 - 59.4 15 2.34 15 0.59 75 82.5 2.96 3.25 43 52 70 90.5 50 0 1.97 2 2.5 0.079 0.098 1.226
63BWLC1RA 63 Brass M12 Metric M63 1.5 - 65.9 15 2.59 15 0.59 80 88 3.15 3.47 43 49.8 70 90.5 56 0 2.2 2 2.5 0.079 0.098 1.178
63BWLC1RA5 63 Nickel Plated Brass M12 Metric M63 1.5 - 65.9 15 2.59 15 0.59 80 88 3.15 3.47 43 49.8 70 90.5 56 0 2.2 2 2.5 0.079 0.098 1.178
63SBWLC1RA5 63S Nickel Plated Brass M12 Metric M63 1.5 - 59.4 15 2.34 15 0.59 75 82.5 2.96 3.25 43 52 70 90.5 50 0 1.97 2 2.5 0.079 0.098 1.226
75BWLC1RA 75 Brass M12 Metric M75 1.5 - 78.5 15 3.09 15 0.59 100 110 3.94 4.33 43 57.3 82.6 108 68 0 2.68 2.5 3 0.098 0.118 2.054
75SBWLC1RA 75S Brass M12 Metric M75 1.5 - 72.1 15 2.84 15 0.59 90 99 3.55 3.9 43 63.7 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 1.859
75BWLC1RA5 75 Nickel Plated Brass M12 Metric M75 1.5 - 78.5 15 3.09 15 0.59 100 110 3.94 4.33 43 57.3 82.6 108 68 0 2.68 2.5 3 0.098 0.118 2.054
75SBWLC1RA5 75S Nickel Plated Brass M12 Metric M75 1.5 - 72.1 15 2.84 15 0.59 90 99 3.55 3.9 43 63.7 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 1.859
90BWLC1RA 90 Brass M12 Metric M90 2 - 90.4 15 3.56 24 0.94 114.3 125.7 4.5 4.95 43 66 95.3 108 79 0 3.11 3.15 4 0.124 0.157 2.926
90BWLC1RA5 90 Nickel Plated Brass M12 Metric M90 2 - 90.4 15 3.56 24 0.94 114.3 125.7 4.5 4.95 43 66 95.3 108 79 0 3.11 3.15 4 0.124 0.157 2.926
100BWLC1RA 100 Brass M12 Metric M100 2 - 101.5 15 4 24 0.94 123 135.3 4.85 5.33 43 80 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 3.032
100BWLC1RA5 100 Nickel Plated Brass M12 Metric M100 2 - 101.5 15 4 24 0.94 123 135.3 4.85 5.33 43 80 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 3.032
115BWLC1RA 115 Brass M12 Metric M115 2 - 110.3 15 4.34 24 0.94 133.4 146.7 5.26 5.78 43 98 112 138.5 98 0 3.86 3.15 4 0.124 0.157 4.066
115BWLC1RA5 115 Nickel Plated Brass M12 Metric M115 2 - 110.3 15 4.34 24 0.94 133.4 146.7 5.26 5.78 43 98 112 138.5 98 0 3.86 3.15 4 0.124 0.157 4.066
130BWLC1RA 130 Brass M12 Metric M130 2 - 123.3 15 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 5.245
130BWLC1RA5 130 Nickel Plated Brass M12 Metric M130 2 - 123.3 15 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 5.245
