BWSOLO Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The BW SOLO range of LSF cable cable gland kits are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed for low smoke and fume applications. LUL (London Underground) Approved.

Features

  • Direct & remote installation
  • -60˚C to +200˚C
  • Superior EMC performance
  • LUL (London Underground) approved

Additional Information

Certification
London Underground Certificate Number 2707
Technical Specification
Application IND
Armour Clamping Two Part Armour Lock
Cable Gland Kits Available Up to & including size 25 - 2 glands, 2 locknuts, 2 earth tags & 2 LSF shrouds Size 32 & above - 1 gland, 1 locknut, 1 earth tag & 1 LSF shroud
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444. As IEC 62444 and EN 62444 do not cover cable glands which are supplied without cable sealing rings, the information provided here is for information only. ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. Ordering suffix ‘2RA’ includes locknut, earth tag & shroud Other kit options available

Downloads

Certificates

Product Selector

1

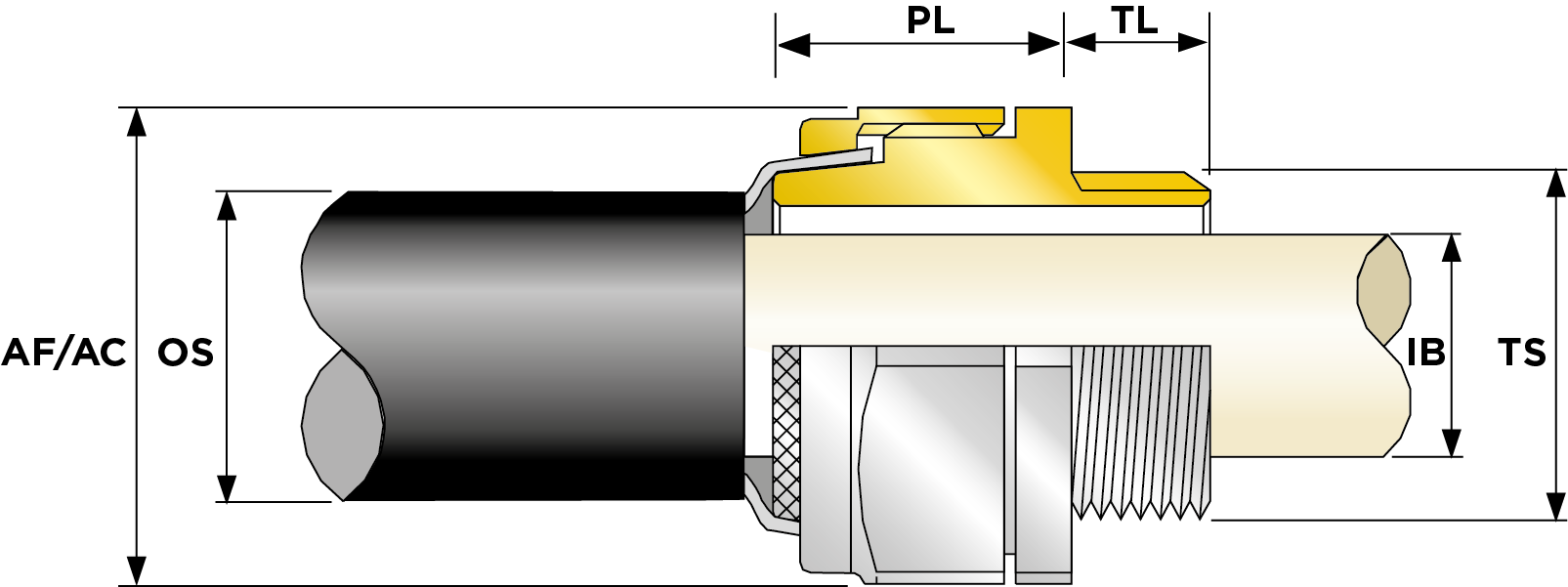

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20BWSL1AA 20 Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0.09
20SBWSL1AA 20S Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0.05
20BWSL1AA5 20 Nickel Plated Brass Metric M20 1.5 - 21.1 15 0.83 10 0.39 28 30.8 1.1 1.21 22.5 14 0 0.55 0.8 1.25 0.031 0.049 LSF05 0.09
20SBWSL1AA5 20S Nickel Plated Brass Metric M20 1.5 - 15.8 15 0.62 10 0.39 22 24.2 0.87 0.95 18.5 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF02 0.05
25BWSL1AA 25 Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0.11
25BWSL1AA5 25 Nickel Plated Brass Metric M25 1.5 - 27.2 15 1.07 10 0.39 33 36.3 1.3 1.43 21.5 20 0 0.79 1.25 1.6 0.049 0.063 LSF07 0.11
32BWSL1AA 32 Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0.15
32BWSL1AA5 32 Nickel Plated Brass Metric M32 1.5 - 34.1 15 1.34 10 0.39 41 45.1 1.62 1.78 22.5 26.2 0 1.03 1.6 2 0.063 0.079 LSF10 0.15
40BWSL1AA 40 Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0.32
40BWSL1AA5 40 Nickel Plated Brass Metric M40 1.5 - 42.4 15 1.67 15 0.59 50 55 1.97 2.1 30 32.2 0 1.27 1.6 2 0.063 0.079 LSF13 0.32
50BWSL1AA 50 Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0.48
50SBWSL1AA 50S Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 LSF16 0.47
50BWSL1AA5 50 Nickel Plated Brass Metric M50 1.5 - 55.7 15 2.19 15 0.59 65 71.5 2.56 2.82 32 44.1 0 1.74 2 2.5 0.079 0.098 LSF19 0.48
50SBWSL1AA5 50S Nickel Plated Brass Metric M50 1.5 - 50.1 15 1.97 15 0.59 57.1 62.8 2.25 2.47 30 38.2 0 1.5 2 2.5 0.079 0.098 LSF16 0.47
63BWSL1AA 63 Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0.89
63SBWSL1AA 63S Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 LSF23 0.63
63BWSL1AA5 63 Nickel Plated Brass Metric M63 1.5 - 68.2 15 2.69 15 0.59 79 86.9 3.11 3.42 41.3 56 0 2.2 2 2.5 0.079 0.098 LSF24 0.89
63SBWSL1AA5 63S Nickel Plated Brass Metric M63 1.5 - 62.4 15 2.46 15 0.59 75 82.5 2.96 3.25 41.3 50 0 1.97 2 2.5 0.079 0.098 LSF23 0.63
75SBWSL1AA 75S Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 LSF27 1.27
75BWSL1AA 75 Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 1.4
75BWSL1AA5 75 Nickel Plated Brass Metric M75 1.5 - 82.9 15 3.26 15 0.59 95 104.5 3.74 4.12 49.6 68 0 2.68 2.5 3 0.098 0.118 LSF29 1.4
75SBWSL1AA5 75S Nickel Plated Brass Metric M75 1.5 - 76.8 15 3.02 15 0.59 89 97.9 3.51 3.86 47.6 62 0 2.44 2 2.5 0.079 0.098 LSF27 1.27
