C2KHT Cable Gland

ETIM Classification

EC000441

For all types of Armoured or Braided / Screened cables.

Description

The C2KHT range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed for high temperature applications with a single seal on the cable outer sheath and an integral protected deluge seal.

Features

  • -20˚C to 200˚C high temperature ThermEx seals
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Integral protected deluge seal
  • Displacement type flameproof seal
  • Controlled outer ‘load retention’ seal
  • Internationally marked, UKEX, IECEx & ATEX
  • Superior EMC performance

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1323X
ATEX Code of Protection ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -15, -31
IECEx Certificate Number IECEx CML 18.0180X
IECEx Code of Protection Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1251X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04594/22
EAC Code of Protection { 1Ex e IIC Gb X; { 2Ex nR IIC Gc X; { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003285
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/5
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64839/E23-02-065457/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number S-XPL21804 21.0009X
Technical Specification
Application EXAT; EXNEC
Armour Clamping Reversible Armour Cone & AnyWay Universal Clamping Ring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. ***IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

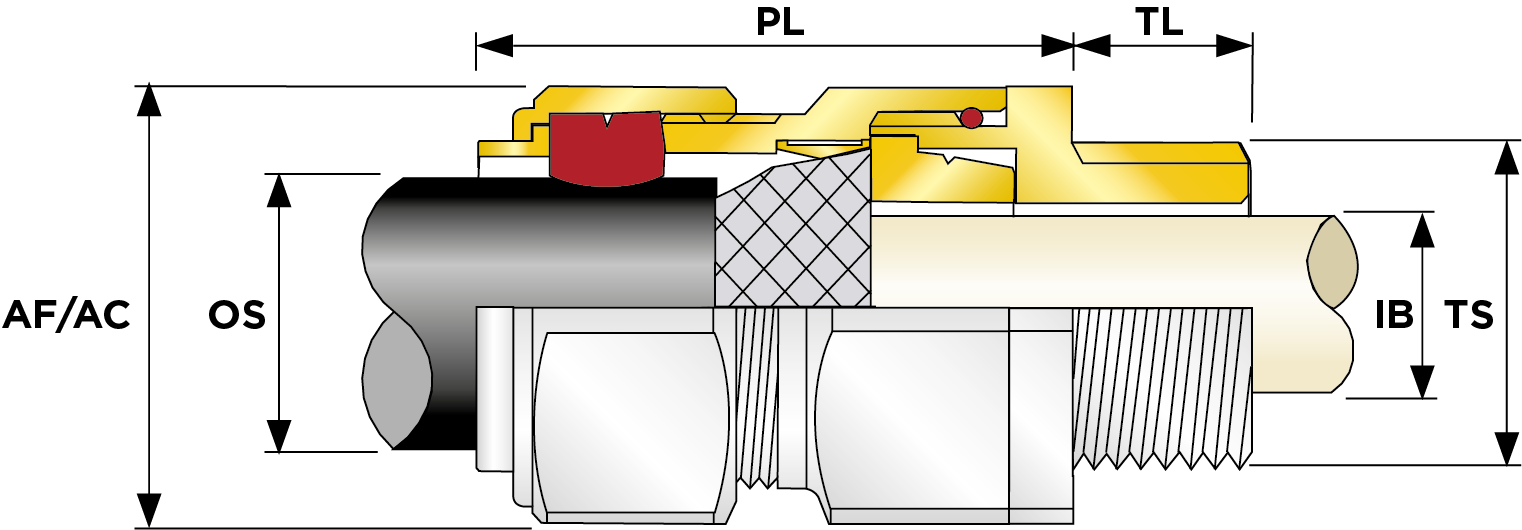

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20S16C2KHT1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.23
20C2KHT1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.23
20SC2KHT1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.24
20C2KHT1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.071875
20SC2KHT1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.075
20S16C2KHT1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.071875
20C2KHT1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.2169811320754717
20SC2KHT1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.22641509433962262
20S16C2KHT1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.2169811320754717
20C2KHT1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.23
20SC2KHT1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.24
20S16C2KHT1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.23
20SC2KHT1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20C2KHT1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30.5 33.6 1.2 1.32 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30.5 33.6 1.2 1.32 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30.5 33.6 1.2 1.32 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20C2KHT1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 63 14 0 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20SC2KHT1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16C2KHT1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30.5 33.6 1.2 1.32 65 8.7 0 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
25C2KHT1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.35
25SC2KHT1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.35
25SC2KHT1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.10937499999999999
25C2KHT1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.10937499999999999
25C2KHT1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.330188679245283
25SC2KHT1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.330188679245283
25C2KHT1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.35
25SC2KHT1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.35
25C2KHT1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25C2KHT1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SC2KHT1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 69.5 20 0 0.79 0.4 0.05 0.02 1.25 1.6 0.049 0.063
32C2KHT1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.55
32C2KHT1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.171875
32C2KHT1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.5188679245283019
32C2KHT1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.55
32C2KHT1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
32C2KHT1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 75 26 0 1.02 0.4 0.05 0.02 1.6 2 0.063 0.079
40C2KHT1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.75
40C2KHT1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.234375
40C2KHT1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.7075471698113207
40C2KHT1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.75
40C2KHT1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
40C2KHT1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 75 32.2 0 1.27 0.4 0.06 0.02 1.6 2 0.063 0.079
50C2KHT1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 1.13
50SC2KHT1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.86
50C2KHT1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 0.35312499999999997
50SC2KHT1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.26875
50C2KHT1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 1.0660377358490565
50SC2KHT1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.8113207547169811
50C2KHT1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 1.13
50SC2KHT1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.86
50SC2KHT1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SC2KHT1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 77 38.2 0 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
50C2KHT1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 77 44.1 0 1.74 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.34
63SC2KHT1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.13
63SC2KHT1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 0.35312499999999997
63C2KHT1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 0.41875
63C2KHT1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.2641509433962264
63SC2KHT1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.0660377358490565
63C2KHT1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.34
63SC2KHT1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.13
63SC2KHT1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 79 86.9 3.11 3.42 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 79 86.9 3.11 3.42 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 79 86.9 3.11 3.42 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63SC2KHT1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 79 86.9 3.11 3.42 80 50 0 1.97 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63C2KHT1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 80 56 0 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
75SC2KHT1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 2.02
75C2KHT1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.48
75C2KHT1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 0.7749999999999999
75SC2KHT1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 0.63125
75C2KHT1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.339622641509434
75SC2KHT1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 1.9056603773584906
75C2KHT1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.48
75SC2KHT1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 2.02
75SC2KHT1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 98.8 108.7 3.89 4.28 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 114.3 125.7 4.5 4.95 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 98.8 108.7 3.89 4.28 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 114.3 125.7 4.5 4.95 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 98.8 108.7 3.89 4.28 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 114.3 125.7 4.5 4.95 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75SC2KHT1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SC2KHT1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 98.8 108.7 3.89 4.28 87 62 0 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75C2KHT1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
75C2KHT1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 114.3 125.7 4.5 4.95 88 64.2 0 2.53 0.6 0.06 0.02 2.5 3 0.098 0.118
90C2KHT1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 3.52
90C2KHT1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 1.0999999999999999
90C2KHT1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 3.320754716981132
90C2KHT1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 3.52
90C2KHT1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 133 146.3 5.24 5.76 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 133 146.3 5.24 5.76 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 133 146.3 5.24 5.76 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
90C2KHT1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 133 146.3 5.24 5.76 102 79.7 0 3.14 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 127 139.7 5 5.5 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.58
100C2KHT1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 127 139.7 5 5.5 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 1.43125
100C2KHT1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 127 139.7 5 5.5 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.320754716981132
100C2KHT1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 127 139.7 5 5.5 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.58
100C2KHT1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100C2KHT1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 133 146.3 5.24 5.76 114 91 0 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 6.5
115C2KHT1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 2.03125
115C2KHT1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 6.132075471698113
115C2KHT1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 6.5
115C2KHT1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
115C2KHT1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 133.4 146.7 5.26 5.78 114 98 0 3.86 0.8 0.06 0.03 3.15 4 0.124 0.157
130C2KHT1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.5
130C2KHT1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 2.65625
130C2KHT1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.018867924528301
130C2KHT1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.5
130C2KHT1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157
130C2KHT1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157
130C2KHT1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157
130C2KHT1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 114 115 0 4.53 0.8 0.06 0.03 3.15 4 0.124 0.157
1
No results

0 of 200 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
