CG Cable Gland

ETIM Classification

EC000441

For use with Flexible Cables and Cords in Ordinary, Wet or Hazardous Locations.

Description

The CG range of Cord Grip Cable Connectors are for use in heavy duty applications Designed for installations in accordance with the NEC and CEC. Its wide sealing range reduces the need for multiple connector sizes to cover a varied range of cables.

Features

  • Fully machined from high grade series 6000 aluminum or zinc plated steel
  • Can also be supplied in stainless steel or nickel plated brass on request
  • Product supplied with entry thread seal and locknut
  • Safe sealing solution manufactured from LSF halogen free thermoset elastomer, with a large temperature range of -76°F to +194°F
  • Wide cable sealing range
  • Easy to install
  • Approved to the latest edition of UL 514B & CSA C22.2 No.18.3-12
  • Suitable for use in hazardous locations when installed per National Electrical Code (NEC 501.10(B)(4)) & Canadian Electrical Code (CSA 22.1)
  • Strain relief available

Additional Information

Certification
UL Certificate Number E509101
UL Compliance Standards UL 514B, CSA C22.2 No.18.3-12
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
Technical Specification
Application EXNEC
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP displacement seal
Seal Area(s) Cable outer sheath
Type Material Options Nickel Plated Brass, Aluminium, Stainless Steel, Zinc Plated Steel

**Contact CMP for further information on Ingress Protection Ratings *** IP68 tested to 300 kPa for 24 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1

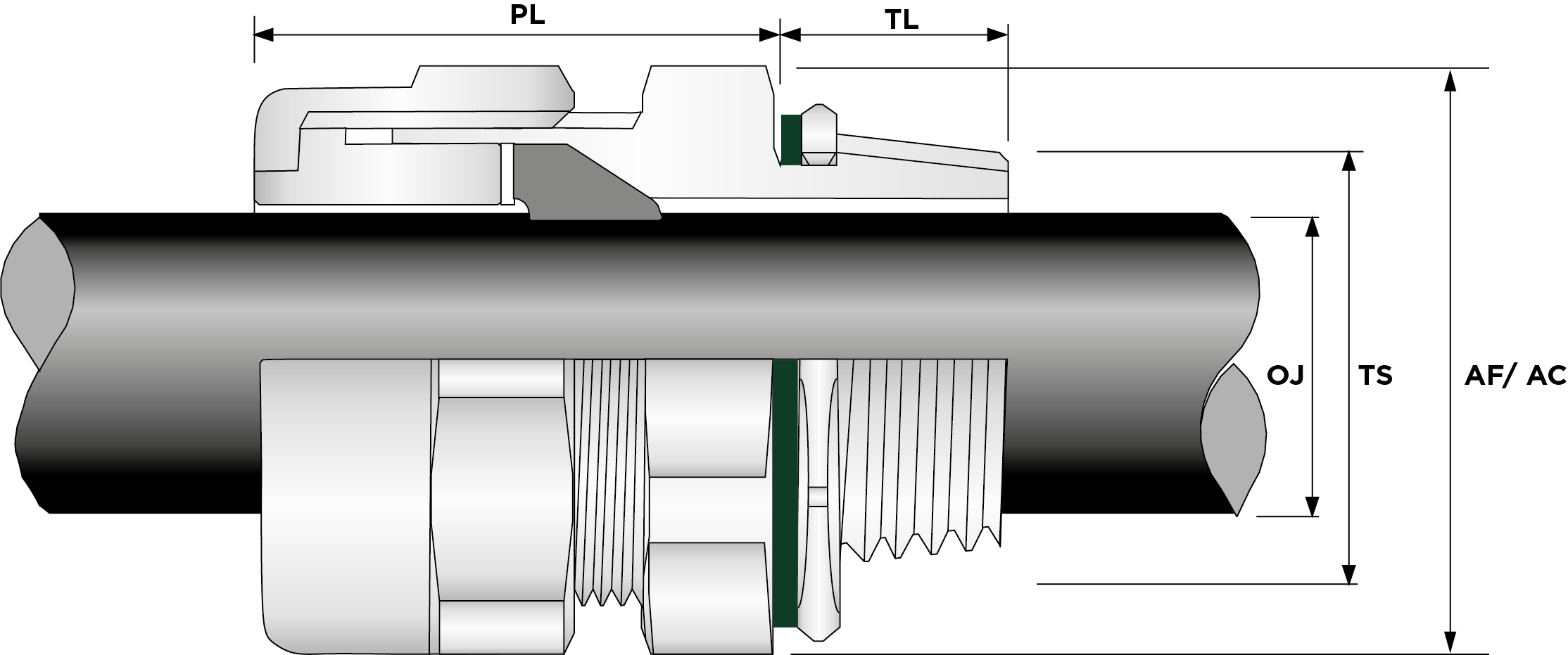

Part Number Size Material Entry Thread Entry Thread Size TS Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm)
CG-075A046 046 Aluminium NPT 3/4" 7.6 11.7 0.3 0.46 14 0.55 30.5 33.55 1.2 1.32 30
CG-0375MS046 046 Mild Steel NPT 3/8" 7.6 11.7 0.3 0.46 10.4 0.41 24 26.4 0.95 1.04 29.1
CG-050A046 046 Aluminium NPT 1/2" 7.6 11.7 0.3 0.46 13.5 0.53 24 26.4 0.95 1.04 29.1
CG-0375A046 046 Aluminium NPT 3/8" 7.6 11.7 0.3 0.46 10.4 0.41 24 26.4 0.95 1.04 29.1
CG-100MS046 046 Mild Steel NPT 1" 7.6 11.7 0.3 0.46 17.3 0.68 37.5 41.25 1.48 1.63 31
CG-075MS046 046 Mild Steel NPT 3/4" 7.6 11.7 0.3 0.46 14 0.55 30.5 33.55 1.2 1.32 30
CG-100A046 046 Aluminium NPT 1" 7.6 11.7 0.3 0.46 17.3 0.68 37.5 41.25 1.48 1.63 31
CG-050MS046 046 Mild Steel NPT 1/2" 7.6 11.7 0.3 0.46 13.5 0.53 24 26.4 0.95 1.04 29.1
CG-075MS054 054 Mild Steel NPT 3/4" 7.6 13.7 0.3 0.54 14 0.55 37.5 41.25 1.48 1.63 29.7
CG-050MS054 054 Mild Steel NPT 1/2" 7.6 13.7 0.3 0.54 13.5 0.53 30.5 33.55 1.2 1.32 28.7
CG-100A054 054 Aluminium NPT 1" 7.6 13.7 0.3 0.54 17.3 0.68 37.5 41.25 1.48 1.63 30.7
CG-075A054 054 Aluminium NPT 3/4" 7.6 13.7 0.3 0.54 14 0.55 37.5 41.25 1.48 1.63 29.7
CG-050A054 054 Aluminium NPT 1/2" 7.6 13.7 0.3 0.54 13.5 0.53 30.5 33.55 1.2 1.32 28.7
CG-100MS054 054 Mild Steel NPT 1" 7.6 13.7 0.3 0.54 17.3 0.68 37.5 41.25 1.48 1.63 30.7
CG-075A080 080 Aluminium NPT 3/4" 13 20.3 0.51 0.8 14 0.55 37.5 41.25 1.48 1.63 37.3
CG-100MS080 080 Mild Steel NPT 1" 13 20.3 0.51 0.8 17.3 0.68 37.5 41.25 1.48 1.63 38.3
CG-075MS080 080 Mild Steel NPT 3/4" 13 20.3 0.51 0.8 14 0.55 37.5 41.25 1.48 1.63 37.3
CG-100A080 080 Aluminium NPT 1" 13 20.3 0.51 0.8 17.3 0.68 37.5 41.25 1.48 1.63 38.3
CG-150MS104 104 Mild Steel NPT 1-1/2" 19.1 26.4 0.75 1.04 18.3 0.72 55 60.5 2.17 2.38 38.1
CG-125MS104 104 Mild Steel NPT 1-1/4" 19.1 26.4 0.75 1.04 18 0.71 50 55 1.97 2.17 36.1
CG-150A104 104 Aluminium NPT 1-1/2" 19.1 26.4 0.75 1.04 18.3 0.72 55 60.5 2.17 2.38 38.1
CG-100MS104 104 Mild Steel NPT 1" 19.1 26.4 0.75 1.04 17.3 0.68 43 47.3 1.69 1.86 36.1
CG-125A104 104 Aluminium NPT 1-1/4" 19.1 26.4 0.75 1.04 18 0.71 50 55 1.97 2.17 36.1
CG-100A104 104 Aluminium NPT 1" 19.1 26.4 0.75 1.04 17.3 0.68 43 47.3 1.69 1.86 36.1
CG-150A128 128 Aluminium NPT 1-1/2" 23.1 32.5 0.91 1.28 18.3 0.72 55 60.5 2.17 2.38 38.8
CG-125A128 128 Aluminium NPT 1-1/4" 23.1 32.5 0.91 1.28 18 0.71 52 57.2 2.05 2.25 36.8
CG-150MS128 128 Mild Steel NPT 1-1/2" 23.1 32.5 0.91 1.28 18.3 0.72 55 60.5 2.17 2.38 38.8
CG-125MS128 128 Mild Steel NPT 1-1/4" 23.1 32.5 0.91 1.28 18 0.71 52 57.2 2.05 2.25 36.8
CG-200MS149 149 Mild Steel NPT 2" 31 37.8 1.22 1.49 19.3 0.76 65 71.5 2.56 2.82 39.5
CG-150MS149 149 Mild Steel NPT 1-1/2" 31 37.8 1.22 1.49 18.3 0.72 60 66 2.36 2.6 39.5
CG-200A149 149 Aluminium NPT 2" 31 37.8 1.22 1.49 19.3 0.76 65 71.5 2.56 2.82 39.5
CG-150A149 149 Aluminium NPT 1-1/2" 31 37.8 1.22 1.49 18.3 0.72 60 66 2.36 2.6 39.5
CG-200MS174 174 Mild Steel NPT 2" 36.3 44.2 1.43 1.74 19.3 0.76 65 71.5 2.56 2.82 39.8
CG-250A174 174 Aluminium NPT 2-1/2" 36.3 44.2 1.43 1.74 29 1.14 75 82.5 2.96 3.25 39.8
CG-200A174 174 Aluminium NPT 2" 36.3 44.2 1.43 1.74 19.3 0.76 65 71.5 2.56 2.82 39.8
CG-250MS174 174 Mild Steel NPT 2-1/2" 36.3 44.2 1.43 1.74 29 1.14 75 82.5 2.96 3.25 39.8
