CWCIEL Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The CW CIEL range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with an external high current capacity earth connection.

Features

  • External earth connection
  • Third party short circuit tested
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • -60˚C to +130˚C
  • Deluge protection option
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

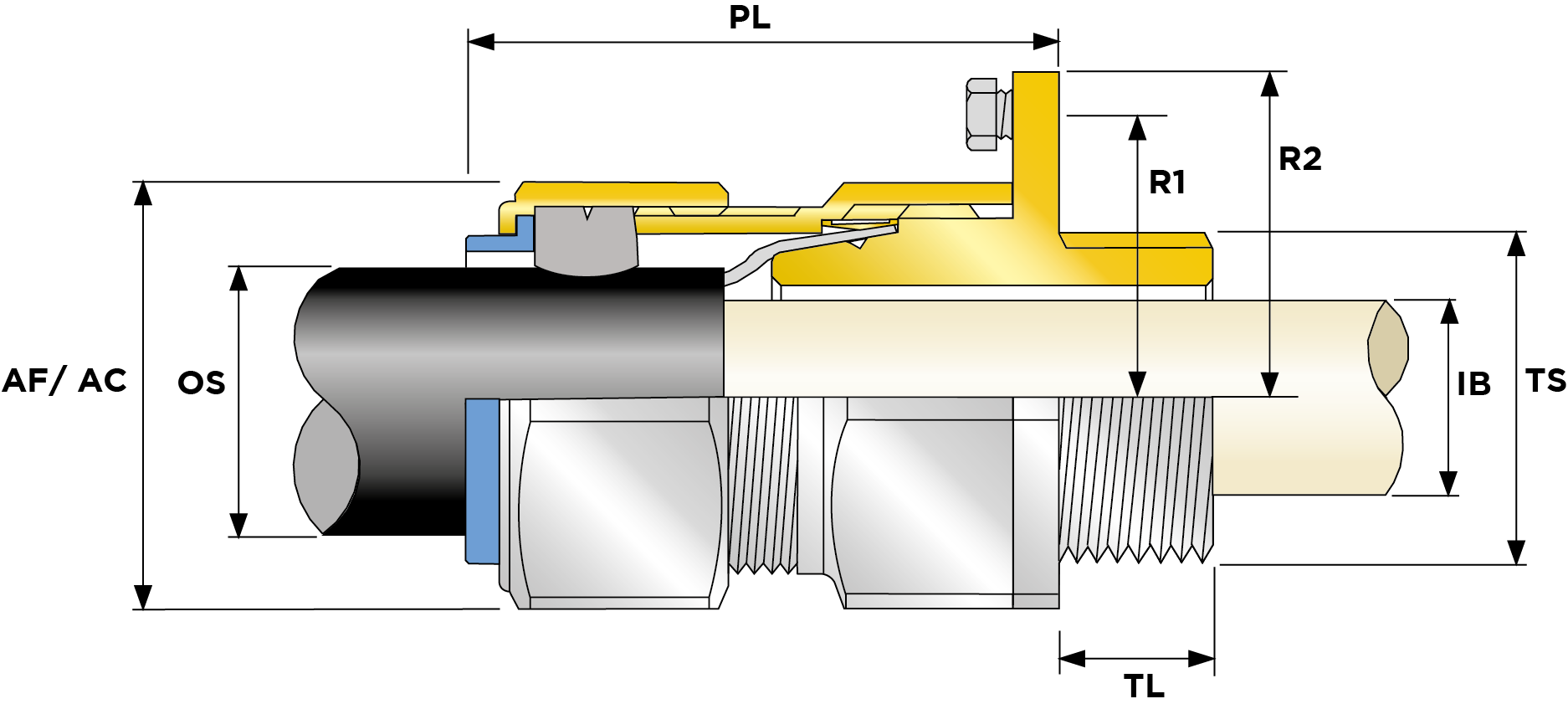

Part Number Size Material CIEL Earth Bolt Size EB Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Symmetrical Fault Current (kA) rating for 1 second Max Protrusion Length PL (mm) Nom C-to-C Radius R1 (mm) Nom C-to-Extremity Radius R2 (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Ass'y Weight
20SCWC1RA 20S Brass M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 48 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.2
20CWC1RA 20 Brass M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 48 31.8 41.3 14 0 0.55 0.8 1.25 0.031 0.049 0.28
20SCWC1RA1 20S Aluminium M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 48 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.0625
20CWC1RA1 20 Aluminium M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 48 31.8 41.3 14 0 0.55 0.8 1.25 0.031 0.049 0.08750000000000001
20SCWC1RA4 20S Stainless Steel M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 48 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.18867924528301888
20CWC1RA4 20 Stainless Steel M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 48 31.8 41.3 14 0 0.55 0.8 1.25 0.031 0.049 0.2641509433962264
20SCWC1RA5 20S Nickel Plated Brass M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 48 28.6 38.6 11.7 0 0.46 0.8 1.25 0.031 0.049 0.2
20CWC1RA5 20 Nickel Plated Brass M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 48 31.8 41.3 14 0 0.55 0.8 1.25 0.031 0.049 0.28
25CWC1RA 25 Brass M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.44
25SCWC1RA 25S Brass M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.44
25CWC1RA1 25 Aluminium M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.13749999999999998
25SCWC1RA1 25S Aluminium M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.13749999999999998
25CWC1RA4 25 Stainless Steel M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.4150943396226415
25SCWC1RA4 25S Stainless Steel M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.4150943396226415
25CWC1RA5 25 Nickel Plated Brass M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.44
25SCWC1RA5 25S Nickel Plated Brass M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 56 38.1 50.8 20 0 0.79 1.25 1.6 0.049 0.063 0.44
32CWC1RA 32 Brass M8 Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 26 54 41.3 54 26.3 0 1.04 1.6 2 0.063 0.079 0.51
32CWC1RA1 32 Aluminium M8 Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 26 54 41.3 54 26.3 0 1.04 1.6 2 0.063 0.079 0.159375
32CWC1RA4 32 Stainless Steel M8 Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 26 54 41.3 54 26.3 0 1.04 1.6 2 0.063 0.079 0.4811320754716981
32CWC1RA5 32 Nickel Plated Brass M8 Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 26 54 41.3 54 26.3 0 1.04 1.6 2 0.063 0.079 0.51
40CWC1RA 40 Brass M10 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 58 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.8
40CWC1RA1 40 Aluminium M10 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 58 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.25
40CWC1RA4 40 Stainless Steel M10 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 58 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.7547169811320755
40CWC1RA5 40 Nickel Plated Brass M10 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 58 50.8 68.3 32.2 0 1.27 1.6 2 0.063 0.079 0.8
50SCWC1RA 50S Brass M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 61 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.88
50CWC1RA 50 Brass M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 60 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 1.09
50SCWC1RA1 50S Aluminium M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 61 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.27499999999999997
50CWC1RA1 50 Aluminium M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 60 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 0.340625
50SCWC1RA4 50S Stainless Steel M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 61 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.830188679245283
50CWC1RA4 50 Stainless Steel M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 60 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 1.028301886792453
50SCWC1RA5 50S Nickel Plated Brass M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 61 57.2 74.6 38.2 0 1.5 2 2.5 0.079 0.098 0.88
50CWC1RA5 50 Nickel Plated Brass M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 60 60.3 79.4 44.1 0 1.74 2 2.5 0.079 0.098 1.09
63CWC1RA 63 Brass M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 71 70 90.5 56 0 2.2 2 2.5 0.079 0.098 1.6
63SCWC1RA 63S Brass M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 74 70 90.5 50 0 1.97 2 2.5 0.079 0.098 1.64
63CWC1RA1 63 Aluminium M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 71 70 90.5 56 0 2.2 2 2.5 0.079 0.098 0.5
63SCWC1RA1 63S Aluminium M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 74 70 90.5 50 0 1.97 2 2.5 0.079 0.098 0.5125
63CWC1RA4 63 Stainless Steel M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 71 70 90.5 56 0 2.2 2 2.5 0.079 0.098 1.509433962264151
63SCWC1RA4 63S Stainless Steel M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 74 70 90.5 50 0 1.97 2 2.5 0.079 0.098 1.5471698113207546
63CWC1RA5 63 Nickel Plated Brass M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 71 70 90.5 56 0 2.2 2 2.5 0.079 0.098 1.6
63SCWC1RA5 63S Nickel Plated Brass M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 74 70 90.5 50 0 1.97 2 2.5 0.079 0.098 1.64
75CWC1RA 75 Brass M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 82 82.6 108 68 0 2.68 2.5 3 0.098 0.118 2.72
75SCWC1RA 75S Brass M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 86 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 2.31
75CWC1RA1 75 Aluminium M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 82 82.6 108 68 0 2.68 2.5 3 0.098 0.118 0.85
75SCWC1RA1 75S Aluminium M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 86 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 0.7218749999999999
75CWC1RA4 75 Stainless Steel M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 82 82.6 108 68 0 2.68 2.5 3 0.098 0.118 2.5660377358490565
75SCWC1RA4 75S Stainless Steel M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 86 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 2.1792452830188678
75CWC1RA5 75 Nickel Plated Brass M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 82 82.6 108 68 0 2.68 2.5 3 0.098 0.118 2.72
75SCWC1RA5 75S Nickel Plated Brass M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 86 76.2 98.5 62 0 2.44 2 2.5 0.079 0.098 2.31
90CWC1RA 90 Brass M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 95 95.3 107.1 79 0 3.11 3.15 4 0.124 0.157 4.42
90CWC1RA1 90 Aluminium M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 95 95.3 107.1 79 0 3.11 3.15 4 0.124 0.157 1.3812499999999999
90CWC1RA4 90 Stainless Steel M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 95 95.3 107.1 79 0 3.11 3.15 4 0.124 0.157 4.169811320754716
90CWC1RA5 90 Nickel Plated Brass M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 95 95.3 107.1 79 0 3.11 3.15 4 0.124 0.157 4.42
100CWC1RA 100 Brass M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 95 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 4.82
100CWC1RA1 100 Aluminium M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 95 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 1.50625
100CWC1RA4 100 Stainless Steel M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 95 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 4.547169811320755
100CWC1RA5 100 Nickel Plated Brass M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 95 101.6 139.7 90 0 3.54 3.15 4 0.124 0.157 4.82
115CWC1RA 115 Brass M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 107.5 112 138.5 98 0 3.86 3.15 4 0.124 0.157 6.19
115CWC1RA1 115 Aluminium M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 107.5 112 138.5 98 0 3.86 3.15 4 0.124 0.157 1.934375
115CWC1RA4 115 Stainless Steel M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 107.5 112 138.5 98 0 3.86 3.15 4 0.124 0.157 5.839622641509434
115CWC1RA5 115 Nickel Plated Brass M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 107.5 112 138.5 98 0 3.86 3.15 4 0.124 0.157 6.19
130CWC1RA 130 Brass M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 8.39
130CWC1RA1 130 Aluminium M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 2.621875
130CWC1RA4 130 Stainless Steel M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 7.915094339622642
130CWC1RA5 130 Nickel Plated Brass M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 110 112 138.5 115 0 4.53 3.15 4 0.124 0.157 8.39
