CWE Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The CWe range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a single seal on the cable outer sheath.

Features

  • Metal-to-metal armour clamping
  • Direct and remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Controlled outer load retention seal
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Internationally marked, UKEX, IECEx and ATEX
  • Superior EMC performance

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1323X
ATEX Code of Protection ^ II 2G 1D Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -31
IECEx Certificate Number IECEx CML 18.0180X
IECEx Code of Protection Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1251X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04594/22
EAC Code of Protection { 1Ex e IIC Gb X; { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003285
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/5
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64839/E23-02-065457/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number S-XPL21804 21.0009X
Technical Specification
Application EXAT
Armour Clamping Detachable Armour Cone and AnyWay Universal Clamping Ring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique Outer Load Retention Seal
Seal Area(s) Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request Deluge Proof version available, ferrule colour coded white for ease of identification, please add 'D' after the product type

Downloads

Certificates

Product Selector

1

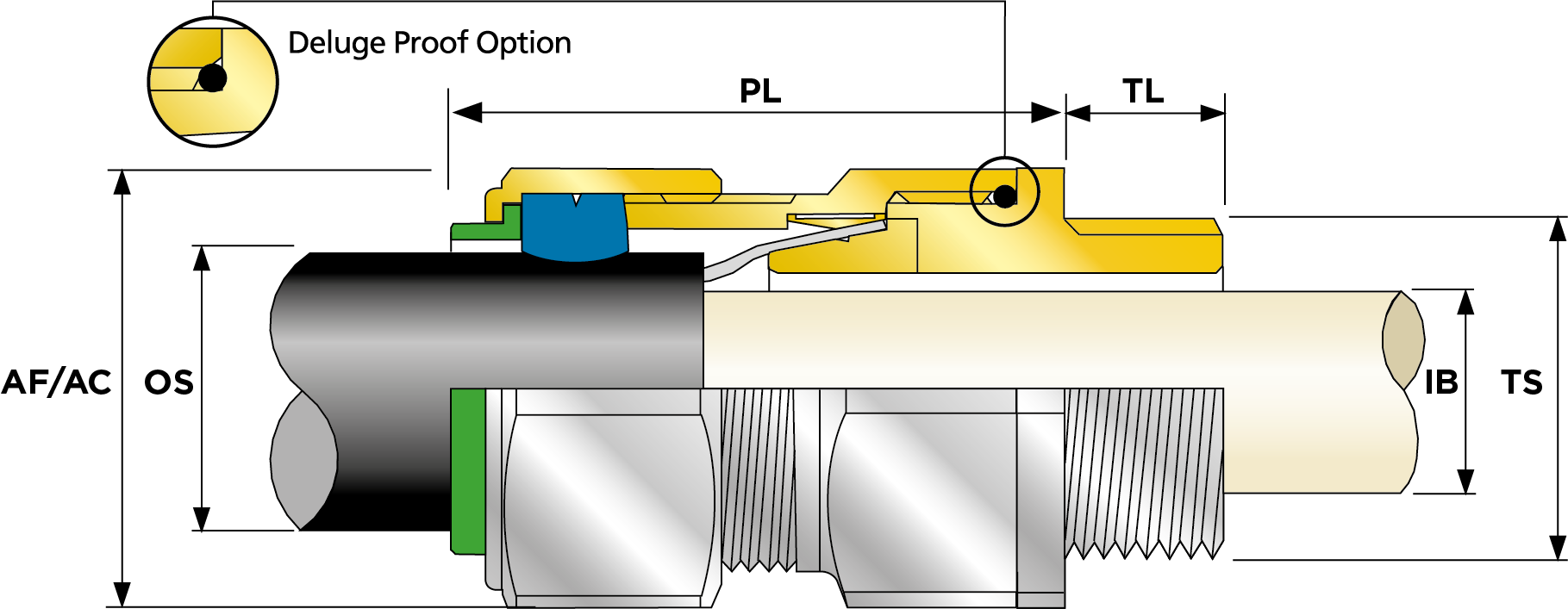

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20S16CWE1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 PVC04 0.1
20CWE1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.18
20SCWE1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.14
20CWE1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.056249999999999994
20SCWE1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.043750000000000004
20S16CWE1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 PVC04 0.03125
20CWE1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.16981132075471697
20SCWE1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.1320754716981132
20S16CWE1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 PVC04 0.09433962264150944
20CWE1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 PVC06 0.18
20SCWE1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 PVC04 0.14
20S16CWE1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 PVC04 0.1
20CWE1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWE1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWE1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20SCWE1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWE1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20S16CWE1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWE1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20SCWE1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20CWE1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWE1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20SCWE1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWE1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWE1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
25CWE1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.257
25SCWE1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.257
25CWE1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.0803125
25SCWE1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.0803125
25SCWE1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.24245283018867925
25CWE1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.24245283018867925
25CWE1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.257
25SCWE1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 PVC09 0.257
25CWE1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWE1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWE1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
32CWE1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 PVC11 0.376
32CWE1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 PVC11 0.1175
32CWE1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 PVC11 0.35471698113207545
32CWE1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 PVC11 0.376
32CWE1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWE1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
40CWE1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 PVC15 0.63
40CWE1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 PVC15 0.196875
40CWE1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 PVC15 0.5943396226415094
40CWE1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 PVC15 0.63
40CWE1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWE1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
50CWE1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 PVC21 0.862
50SCWE1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 PVC18 0.757
50CWE1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 PVC21 0.269375
50SCWE1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 PVC18 0.23656249999999998
50CWE1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 PVC21 0.8132075471698113
50SCWE1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 PVC18 0.7141509433962264
50CWE1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 PVC21 0.862
50SCWE1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 PVC18 0.757
50SCWE1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWE1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWE1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
63CWE1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 PVC25 1.36
63SCWE1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 PVC23 1.39
63SCWE1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 PVC23 0.43437499999999996
63CWE1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 PVC25 0.425
63CWE1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 PVC25 1.2830188679245282
63SCWE1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 PVC23 1.311320754716981
63CWE1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 PVC25 1.36
63SCWE1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 PVC23 1.39
63SCWE1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63SCWE1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63CWE1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63SCWE1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWE1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
75SCWE1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 PVC28 2.307
75CWE1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 PVC30 2.909
75CWE1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 PVC30 0.9090624999999999
75SCWE1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 PVC28 0.7209374999999999
75CWE1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 PVC30 2.744339622641509
75SCWE1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 PVC28 2.1764150943396223
75CWE1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 PVC30 2.909
75SCWE1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 PVC28 2.307
75SCWE1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75SCWE1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWE1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75SCWE1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75CWE1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWE1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75SCWE1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75CWE1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWE1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75SCWE1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWE1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
90CWE1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 PVC32 3.858
90CWE1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 PVC32 1.205625
90CWE1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 PVC32 3.6396226415094337
90CWE1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 PVC32 3.858
90CWE1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWE1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
100CWE1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.958
100CWE1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 1.549375
100CWE1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.6773584905660375
100CWE1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.958
100CWE1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWE1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
115CWE1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 5.058
115CWE1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 1.580625
115CWE1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 4.771698113207547
115CWE1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 5.058
115CWE1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWE1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
130CWE1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 6.158
130CWE1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 1.924375
130CWE1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 5.809433962264151
130CWE1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 6.158
130CWE1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWE1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWE1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWE1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
1
No results

0 of 200 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
