CWSOLO Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The E1W SOLO range of LSF cable cable gland kits are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed for low smoke and fume applications. LUL (London Underground) Approved.

Features

  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Deluge protection option
  • Superior EMC performance
  • LUL (London Underground) approved

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
London Underground Certificate Number 2707
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Cable Gland Kits Available Up to & including size 25 - 2 glands, 2 locknuts, 2 earth tags & 2 LSF shrouds Size 32 & above - 1 gland, 1 locknut, 1 earth tag & 1 LSF shroud
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information Ordering suffix ‘2RA’ includes locknut, earth tag & shroud Other kit options available

Downloads

Certificates

Product Selector

1

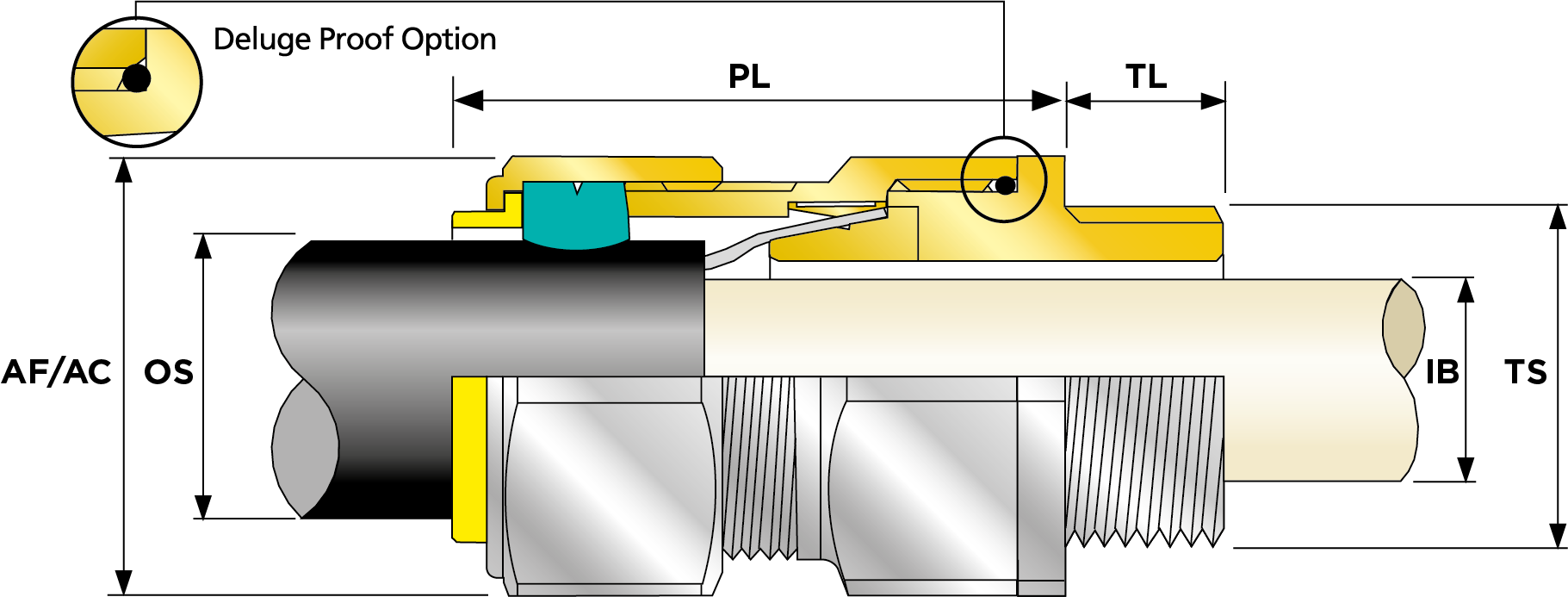

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20S16CWSL1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 LSF04 0.1
20CWSL1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 LSF06 0.18
20SCWSL1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF04 0.14
20CWSL1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 LSF06 0.056249999999999994
20SCWSL1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF04 0.043750000000000004
20S16CWSL1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 LSF04 0.03125
20CWSL1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 LSF06 0.16981132075471697
20SCWSL1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF04 0.1320754716981132
20S16CWSL1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 LSF04 0.09433962264150944
20CWSL1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049 LSF06 0.18
20SCWSL1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049 LSF04 0.14
20S16CWSL1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049 LSF04 0.1
20CWSL1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20SCWSL1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20S16CWSL1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20CWSL1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.8 1.25 0.031 0.049
20S16CWSL1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20S16CWSL1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.8 1.25 0.031 0.049
20CWSL1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.8 1.25 0.031 0.049
20SCWSL1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.8 1.25 0.031 0.049
25CWSL1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.257
25SCWSL1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.257
25CWSL1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.0803125
25SCWSL1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.0803125
25SCWSL1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.24245283018867925
25CWSL1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.24245283018867925
25CWSL1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.257
25SCWSL1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063 LSF09 0.257
25CWSL1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25CWSL1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
25SCWSL1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 1.25 1.6 0.049 0.063
32CWSL1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 LSF11 0.376
32CWSL1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 LSF11 0.1175
32CWSL1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 LSF11 0.35471698113207545
32CWSL1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079 LSF11 0.376
32CWSL1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
32CWSL1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 1.6 2 0.063 0.079
40CWSL1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 LSF15 0.63
40CWSL1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 LSF15 0.196875
40CWSL1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 LSF15 0.5943396226415094
40CWSL1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079 LSF15 0.63
40CWSL1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
40CWSL1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 1.6 2 0.063 0.079
50CWSL1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 LSF21 0.862
50SCWSL1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 LSF18 0.757
50CWSL1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 LSF21 0.269375
50SCWSL1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 LSF18 0.23656249999999998
50CWSL1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 LSF21 0.8132075471698113
50SCWSL1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 LSF18 0.7141509433962264
50CWSL1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098 LSF21 0.862
50SCWSL1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098 LSF18 0.757
50SCWSL1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
50SCWSL1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 2 2.5 0.079 0.098
50SCWSL1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 2 2.5 0.079 0.098
50CWSL1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 2 2.5 0.079 0.098
50CWSL1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 2 2.5 0.079 0.098
63CWSL1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 LSF25 1.36
63SCWSL1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 LSF23 1.39
63SCWSL1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 LSF23 0.43437499999999996
63CWSL1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 LSF25 0.425
63CWSL1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 LSF25 1.2830188679245282
63SCWSL1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 LSF23 1.311320754716981
63CWSL1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 2 2.5 0.079 0.098 LSF25 1.36
63SCWSL1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098 LSF23 1.39
63SCWSL1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63SCWSL1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63CWSL1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWSL1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63SCWSL1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWSL1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63SCWSL1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
63SCWSL1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 2 2.5 0.079 0.098
63SCWSL1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 2 2.5 0.079 0.098
63CWSL1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 2 2.5 0.079 0.098
63CWSL1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 2 2.5 0.079 0.098
75SCWSL1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 LSF28 2.307
75CWSL1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 LSF30 2.909
75CWSL1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 LSF30 0.9090624999999999
75SCWSL1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 LSF28 0.7209374999999999
75CWSL1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 LSF30 2.744339622641509
75SCWSL1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 LSF28 2.1764150943396223
75CWSL1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118 LSF30 2.909
75SCWSL1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098 LSF28 2.307
75SCWSL1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75SCWSL1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWSL1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75SCWSL1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWSL1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75SCWSL1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75CWSL1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
75SCWSL1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 2 2.5 0.079 0.098
75SCWSL1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 2 2.5 0.079 0.098
75CWSL1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 2.5 3 0.098 0.118
75CWSL1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 2.5 3 0.098 0.118
90CWSL1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 LSF32 3.858
90CWSL1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 LSF32 1.205625
90CWSL1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 LSF32 3.6396226415094337
90CWSL1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 3.15 4 0.124 0.157 LSF32 3.858
90CWSL1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
90CWSL1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 3.15 4 0.124 0.157
100CWSL1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.958
100CWSL1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 1.549375
100CWSL1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.6773584905660375
100CWSL1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 3.15 4 0.124 0.157 LSF33 4.958
100CWSL1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
100CWSL1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 3.15 4 0.124 0.157
115CWSL1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 5.058
115CWSL1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 1.580625
115CWSL1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 4.771698113207547
115CWSL1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157 LSF34 5.058
115CWSL1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 3.15 4 0.124 0.157
115CWSL1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 3.15 4 0.124 0.157
130CWSL1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 6.158
130CWSL1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 1.924375
130CWSL1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 5.809433962264151
130CWSL1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157 LSF35 6.158
130CWSL1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWSL1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWSL1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
130CWSL1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 3.15 4 0.124 0.157
1
No results

0 of 200 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
