CXHT Cable Gland

ETIM Classification

EC000441

For Braid, Pliable Wire and Steel Tape Armoured cables.

Description

The CXHT range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed for high temperature applications.

Features

  • -20˚C to 200˚C high temperature ThermIn seals
  • High quality durable materials
  • Robust, heavy duty design
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Controlled outer ‘load retention’ seal
  • Deluge protection option
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Cable Gland Kits Available Cable Gland kit for use with all types of SWA cable including 2 Brass Cable Glands, 2 Steel Locknuts, 2 Brass Earth Tags and 2 PVC Shrouds for sizes up to and including 32mm. For sizes 40mm and above each kit includes 1 of each component.
Seal Material CMP Thermoset Rubber
Seal Technique Unique CMP ‘LRS’ Outer Seal (Load Retention Seal)
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. Deluge Proof option available (CWDHT)

Downloads

Certificates

Product Selector

1

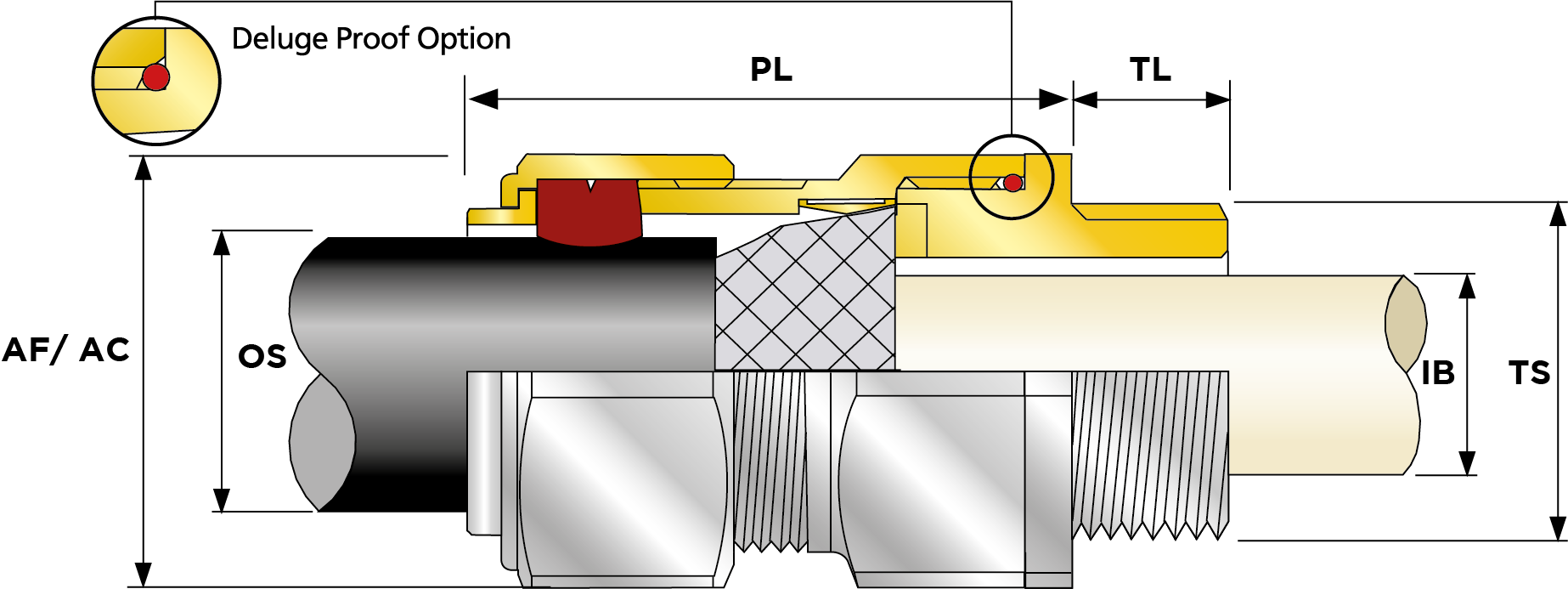

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20CXHT1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02 PVC06 0.15
20SCXHT1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01 PVC04 0.1
20S16CXHT1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01 PVC04 0.1
20SCXHT1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01 PVC04 0.03125
20S16CXHT1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01 PVC04 0.03125
20CXHT1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02 PVC06 0.04687499999999999
20S16CXHT1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01 PVC04 0.09433962264150944
20CXHT1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02 PVC06 0.14150943396226415
20SCXHT1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01 PVC04 0.09433962264150944
20CXHT1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02 PVC06 0.15
20SCXHT1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01 PVC04 0.1
20S16CXHT1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01 PVC04 0.1
20CXHT1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20SCXHT1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 48 11.7 0 0.46 0.3 0.04 0.01
20S16CXHT1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 48 8.7 0 0.34 0.3 0.04 0.01
20CXHT1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 48 14 0 0.55 0.4 0.04 0.02
20S16CXHT1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 48 8.7 0 0.34 0.3 0.04 0.01
20SCXHT1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 48 11.7 0 0.46 0.3 0.04 0.01
25SCXHT1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.22
25CXHT1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.22
25CXHT1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.06874999999999999
25SCXHT1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.06874999999999999
25CXHT1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.20754716981132074
25SCXHT1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.20754716981132074
25CXHT1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.22
25SCXHT1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02 PVC09 0.22
25CXHT1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25CXHT1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
25SCXHT1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 56 20 0 0.79 0.4 0.05 0.02
32CXHT1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02 PVC11 0.31
32CXHT1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02 PVC11 0.09687499999999999
32CXHT1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02 PVC11 0.29245283018867924
32CXHT1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02 PVC11 0.31
32CXHT1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
32CXHT1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 54 26.3 0 1.04 0.4 0.05 0.02
40CXHT1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02 PVC15 0.45
40CXHT1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02 PVC15 0.140625
40CXHT1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02 PVC15 0.42452830188679247
40CXHT1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02 PVC15 0.45
40CXHT1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
40CXHT1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 58 32.2 0 1.27 0.4 0.06 0.02
50CXHT1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02 PVC21 0.75
50SCXHT1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02 PVC18 0.57
50CXHT1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02 PVC21 0.234375
50SCXHT1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02 PVC18 0.17812499999999998
50CXHT1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02 PVC21 0.7075471698113207
50SCXHT1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02 PVC18 0.5377358490566037
50SCXHT1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02 PVC18 0.57
50CXHT1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02 PVC21 0.75
50SCXHT1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02
50SCXHT1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02
50CXHT1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 60 44.1 0 1.74 0.6 0.06 0.02
50SCXHT1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 61 38.2 0 1.5 0.4 0.06 0.02
50CXHT1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 60 44.1 0 1.74 0.6 0.06 0.02
63CXHT1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 0.6 0.06 0.02 PVC25 1.02
63SCXHT1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02 PVC23 1.04
63CXHT1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 0.6 0.06 0.02 PVC25 0.31875
63SCXHT1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02 PVC23 0.325
63CXHT1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 0.6 0.06 0.02 PVC25 0.9622641509433962
63SCXHT1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02 PVC23 0.9811320754716981
63CXHT1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 71 56 0 2.2 0.6 0.06 0.02 PVC25 1.02
63SCXHT1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02 PVC23 1.04
63SCXHT1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 0.6 0.06 0.02
63SCXHT1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 0.6 0.06 0.02
63SCXHT1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 0.6 0.06 0.02
63SCXHT1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 0.6 0.06 0.02
63SCXHT1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 74 50 0 1.97 0.6 0.06 0.02
63SCXHT1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 0.6 0.06 0.02
63CXHT1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 0.6 0.06 0.02
63SCXHT1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 74 50 0 1.97 0.6 0.06 0.02
63CXHT1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 71 56 0 2.2 0.6 0.06 0.02
63CXHT1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 71 56 0 2.2 0.6 0.06 0.02
75CXHT1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02 PVC30 2.09
75SCXHT1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02 PVC28 1.79
75SCXHT1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02 PVC28 0.559375
75CXHT1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02 PVC30 0.653125
75CXHT1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02 PVC30 1.9716981132075468
75SCXHT1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02 PVC28 1.6886792452830188
75CXHT1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02 PVC30 2.09
75SCXHT1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02 PVC28 1.79
75SCXHT1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02
75SCXHT1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02
75CXHT1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 0.6 0.06 0.02
75SCXHT1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02
75SCXHT1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 0.6 0.06 0.02
75SCXHT1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02
75SCXHT1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 0.6 0.06 0.02
75SCXHT1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 86 62 0 2.44 0.6 0.06 0.02
75SCXHT1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 86 62 0 2.44 0.6 0.06 0.02
75CXHT1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 82 68 0 2.68 0.6 0.06 0.02
75CXHT1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 82 68 0 2.68 0.6 0.06 0.02
90CXHT1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 0.8 0.06 0.03 PVC32 3.04
90CXHT1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 0.8 0.06 0.03 PVC32 0.95
90CXHT1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 0.8 0.06 0.03 PVC32 2.8679245283018866
90CXHT1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 95 80 0 3.15 0.8 0.06 0.03 PVC32 3.04
90CXHT1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 0.8 0.06 0.03
90CXHT1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 95 80 0 3.15 0.8 0.06 0.03
100CXHT1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 0.8 0.06 0.03 LSF33 3.13
100CXHT1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 0.8 0.06 0.03 LSF33 0.9781249999999999
100CXHT1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 0.8 0.06 0.03 LSF33 2.952830188679245
100CXHT1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 95 91 0 3.58 0.8 0.06 0.03 LSF33 3.13
100CXHT1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
100CXHT1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 95 91 0 3.58 0.8 0.06 0.03
115CXHT1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03 LSF34 4.48
115CXHT1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03 LSF34 1.4000000000000001
115CXHT1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03 LSF34 4.226415094339623
115CXHT1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03 LSF34 4.48
115CXHT1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 107.5 98 0 3.86 0.8 0.06 0.03
115CXHT1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 107.5 98 0 3.86 0.8 0.06 0.03
130CXHT1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03 LSF35 5.76
130CXHT1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03 LSF35 1.7999999999999998
130CXHT1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03 LSF35 5.433962264150943
130CXHT1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03 LSF35 5.76
130CXHT1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03
130CXHT1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03
130CXHT1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03
130CXHT1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 110 115 0 4.53 0.8 0.06 0.03
1
No results

0 of 199 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
