CXT Cable Gland

ETIM Classification

EC000441

For Screened Flexible (EMC) Braided cables.

Description

The CXT range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with a single seal on the cable outer sheath.

Features

  • Easy install
  • Mechanical retention of wire braid for electrical continuity
  • Displacement type seal
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Included Accessories Locknut & Washer
Seal Material CMP Thermoset Rubber
Seal Technique CMP Unique Displacement Seal Concep
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. Supplied with Locknut & Washer

Downloads

Certificates

Product Selector

1

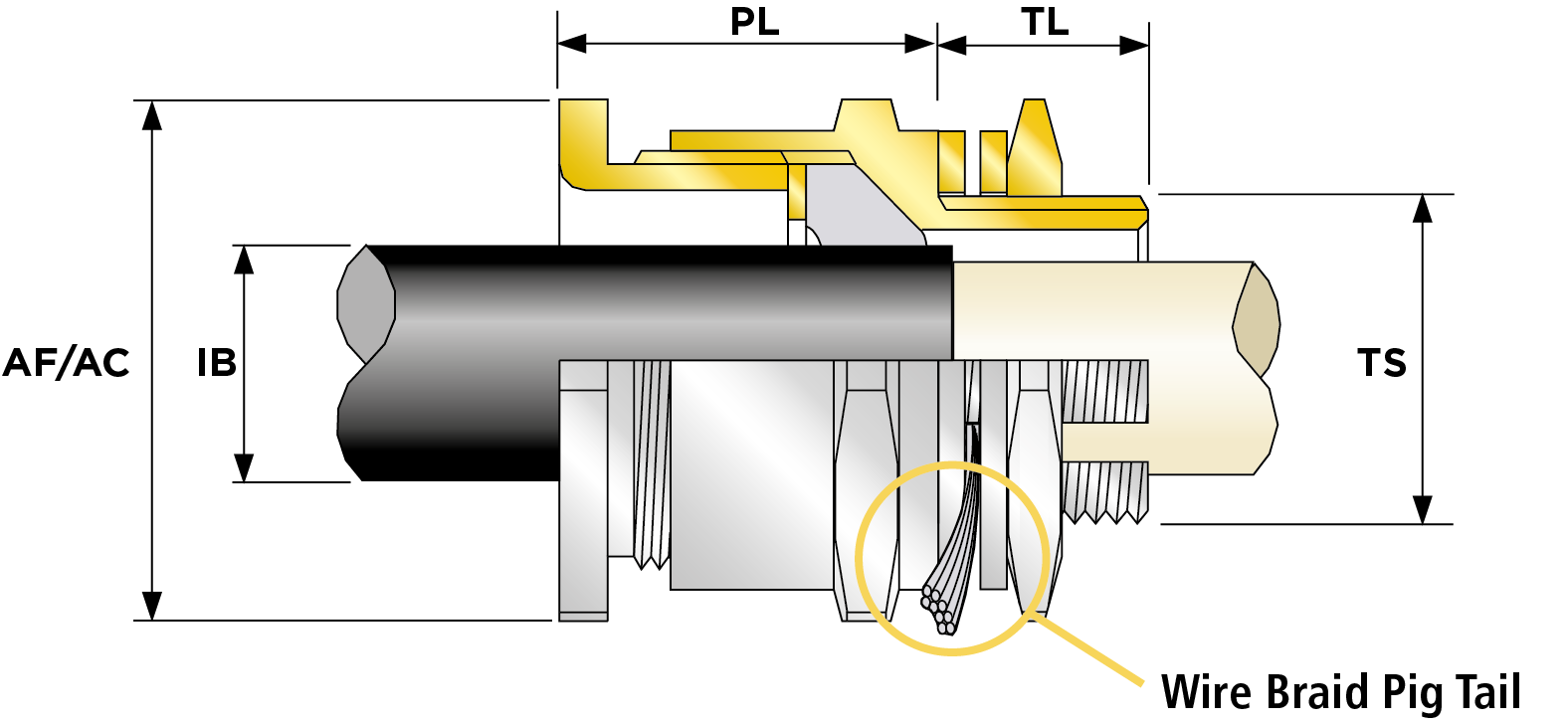

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Shroud Size Ass'y Weight
20S16CXT1RA 20S16 Brass Metric M20 1.5 3.2 8.7 0.13 0.34 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.07
20SCXT2RN 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 26 PVC04 0
20CXT2RN 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0
20CXT1RA 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SCXT1RA 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.06
20SCXT1RA1 20S Aluminium Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.02
20S16CXT1RA1 20S16 Aluminium Metric M20 1.5 3.2 8.7 0.13 0.34 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.02
20CXT1RA1 20 Aluminium Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.02
20SCXT1RA4 20S Stainless Steel Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.06
20S16CXT1RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8.7 0.13 0.34 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.07
20CXT1RA4 20 Stainless Steel Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SCXT1RA5 20S Nickel Plated Brass Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.06
20S16CXT1RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8.7 0.13 0.34 15 0.59 24 26.4 0.95 1.04 26 PVC04 0.07
20CXT1RA5 20 Nickel Plated Brass Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SCXT1RA031 20S Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26 0
20S16CXT1RA031 20S16 Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26 0
20CXT1RA031 20 Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7 0
20CXT1RA032 20 Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7 0
20SCXT1RA032 20S Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20S16CXT1RA032 20S16 Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20CXT1RA131 20 Aluminium NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7 0
20SCXT1RA131 20S Aluminium NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26 0
20S16CXT1RA131 20S16 Aluminium NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26 0
20SCXT1RA132 20S Aluminium NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20S16CXT1RA132 20S16 Aluminium NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20CXT1RA132 20 Aluminium NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7 0
20CXT1RA431 20 Stainless Steel NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7 0
20SCXT1RA431 20S Stainless Steel NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26 0
20S16CXT1RA431 20S16 Stainless Steel NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26 0
20CXT1RA432 20 Stainless Steel NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7 0
20SCXT1RA432 20S Stainless Steel NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20S16CXT1RA432 20S16 Stainless Steel NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20CXT1RA531 20 Nickel Plated Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7 0
20SCXT1RA531 20S Nickel Plated Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 26 0
20S16CXT1RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 26 0
20CXT1RA532 20 Nickel Plated Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 27.7 0
20SCXT1RA532 20S Nickel Plated Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 26 0
20S16CXT1RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 26 0
25CXT1RA 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 35.5 PVC09 0.13
25CXT2RN 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 35.5 PVC09 0
25CXT1RA1 25 Aluminium Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 35.5 PVC09 0.04
25CXT1RA4 25 Stainless Steel Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 35.5 PVC09 0.12
25CXT1RA5 25 Nickel Plated Brass Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 35.5 PVC09 0.13
25CXT1RA032 25 Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5 0
25CXT1RA033 25 Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5 0
25CXT1RA132 25 Aluminium NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5 0
25CXT1RA133 25 Aluminium NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5 0
25CXT1RA432 25 Stainless Steel NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5 0
25CXT1RA433 25 Stainless Steel NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5 0
25CXT1RA532 25 Nickel Plated Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5 0
25CXT1RA533 25 Nickel Plated Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 35.5 0
32CXT1RA 32 Brass Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 35.1 PVC10 0.15
32CXT1RA1 32 Aluminium Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 35.1 PVC10 0.05
32CXT1RA4 32 Stainless Steel Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 35.1 PVC10 0.14
32CXT1RA5 32 Nickel Plated Brass Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 35.1 PVC10 0.15
32CXT1RA033 32 Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1 0
32CXT1RA034 32 Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1 0
32CXT1RA133 32 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1 0
32CXT1RA134 32 Aluminium NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1 0
32CXT1RA433 32 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1 0
32CXT1RA434 32 Stainless Steel NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1 0
32CXT1RA533 32 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1 0
32CXT1RA534 32 Nickel Plated Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 35.1 0
40CXT1RA 40 Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40CXT1RA1 40 Aluminium Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.06
40CXT1RA4 40 Stainless Steel Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.19
40CXT1RA5 40 Nickel Plated Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40CXT1RA034 40 Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1 0
40CXT1RA035 40 Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1 0
40CXT1RA134 40 Aluminium NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1 0
40CXT1RA135 40 Aluminium NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1 0
40CXT1RA434 40 Stainless Steel NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1 0
40CXT1RA435 40 Stainless Steel NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1 0
40CXT1RA534 40 Nickel Plated Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 50 55 1.97 2.17 35.1 0
40CXT1RA535 40 Nickel Plated Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 54.8 60.3 2.16 2.38 35.1 0
50SCXT1RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.26
50CXT1RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50CXT1RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.08
50SCXT1RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.08
50CXT1RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.25
50SCXT1RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.25
50CXT1RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50SCXT1RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 33 PVC15 0.26
50SCXT1RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33 0
50CXT1RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3 0
50SCXT1RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33 0
50CXT1RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3 0
50SCXT1RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33 0
50SCXT1RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33 0
50CXT1RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3 0
50CXT1RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3 0
50SCXT1RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33 0
50CXT1RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3 0
50SCXT1RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33 0
50CXT1RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3 0
50SCXT1RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 33 0
50CXT1RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 37.3 0
50SCXT1RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 33 0
50CXT1RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 37.3 0
63CXT1RA 63 Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.4
63CXT1RA1 63 Aluminium Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.13
63SCXT1RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.13
63CXT1RA4 63 Stainless Steel Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.38
63SCXT1RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.41
63CXT1RA5 63 Nickel Plated Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.4
63SCXT1RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 33.5 PVC21 0.43
63SCXT1RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5 0
63SCXT1RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5 0
63CXT1RA037 63 Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 79 86.9 3.11 3.42 36.2 0
63CXT1RA038 63 Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2 0
63SCXT1RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5 0
63CXT1RA137 63 Aluminium NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 79 86.9 3.11 3.42 36.2 0
63SCXT1RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5 0
63CXT1RA138 63 Aluminium NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2 0
63SCXT1RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5 0
63SCXT1RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5 0
63CXT1RA437 63 Stainless Steel NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 79 86.9 3.11 3.42 36.2 0
63CXT1RA438 63 Stainless Steel NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2 0
63SCXT1RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 33.5 0
63SCXT1RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 33.5 0
63CXT1RA537 63 Nickel Plated Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 79 86.9 3.11 3.42 36.2 0
63CXT1RA538 63 Nickel Plated Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2 0
75CXT1RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.5
75SCXT1RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.52
75CXT1RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.16
75SCXT1RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.16
75CXT1RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.47
75SCXT1RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.49
75CXT1RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 40.9 PVC26 0.5
75SCXT1RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 34.1 PVC26 0.52
75SCXT1RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1 0
75CXT1RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9 0
75SCXT1RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1 0
75CXT1RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9 0
75SCXT1RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1 0
75CXT1RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9 0
75SCXT1RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1 0
75CXT1RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9 0
75SCXT1RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1 0
75CXT1RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9 0
75SCXT1RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1 0
75CXT1RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9 0
75SCXT1RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 34.1 0
75SCXT1RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1 0
75CXT1RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9 0
75CXT1RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 40.9 0
90CXT1RA 90 Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90CXT1RA1 90 Aluminium Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 0.5
90CXT1RA4 90 Stainless Steel Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.51
90CXT1RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90CXT1RA039 90 Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3 0
90CXT1RA139 90 Aluminium NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3 0
90CXT1RA0310 90 Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3 0
90CXT1RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3 0
90CXT1RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 108 118.8 4.26 4.68 60.3 0
90CXT1RA1310 90 Aluminium NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3 0
90CXT1RA4310 90 Stainless Steel NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3 0
90CXT1RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 123.2 135.5 4.85 5.34 60.3 0
100CXT1RA 100 Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100CXT1RA1 100 Aluminium Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 0.56
100CXT1RA4 100 Stainless Steel Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.68
100CXT1RA5 100 Nickel Plated Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100CXT1RA039 100 Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA139 100 Aluminium NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA0310 100 Brass NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA439 100 Stainless Steel NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA539 100 Nickel Plated Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA1310 100 Aluminium NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA4310 100 Stainless Steel NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2 0
100CXT1RA5310 100 Nickel Plated Brass NPT 4" 76 91 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 57.2 0
115CXT1RA 115 Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.67
115CXT1RA1 115 Aluminium Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 0.83
115CXT1RA4 115 Stainless Steel Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.52
115CXT1RA5 115 Nickel Plated Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 67.3 LSF34 2.67
115CXT1RA0310 115 Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3 0
115CXT1RA0312 115 Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3 0
115CXT1RA1310 115 Aluminium NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3 0
115CXT1RA1312 115 Aluminium NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3 0
115CXT1RA4310 115 Stainless Steel NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3 0
115CXT1RA4312 115 Stainless Steel NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3 0
115CXT1RA5310 115 Nickel Plated Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 67.3 0
115CXT1RA5312 115 Nickel Plated Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 67.3 0
130CXT1RA 130 Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.8
130CXT1RA1 130 Aluminium Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 1.19
130CXT1RA4 130 Stainless Steel Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.58
130CXT1RA5 130 Nickel Plated Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 74.7 LSF35 3.8
130CXT1RA0312 130 Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7 0
130CXT1RA1312 130 Aluminium NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7 0
130CXT1RA4312 130 Stainless Steel NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7 0
130CXT1RA5312 130 Nickel Plated Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 74.7 0
1
No results

0 of 190 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
