E1FU Cable Gland

ETIM Classification

EC000441

For all types of Armoured or Braided / Screened cables.

Description

The E1FU range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a seal on both the inner and the outer sheath.

Features

  • Metal-to-metal armour clamping
  • Direct and remote installation
  • Displacement type flameproof inner seal
  • Controlled outer load retention seal
  • Designed to reduce the effects of coldflow, see CMP Technical Document TS001
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Globally marked cCSAus, IECEx, ATEX and UKEX
  • Superior EMC performance

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1324X
ATEX Certificate Number 2 CML 18ATEX4316X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0181X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1252X, CML 21UKEX4253X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02515/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0257X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002870
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/7, P548696/2
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64823/E23-02-065420/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0010X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 1310517
CSA Code of Protection CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Type 4X; Ex e II; Ex nR II
CSA Compliance Standards CSA C22.2 No. 0, 18, 25, 30, 94, 174, 60079-0, -7, -15; UL 514B, UL 50, UL 2225, UL 60079-0, -7, -15
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
INMETRO Certificate Number TÜV 12.0618X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Armour Clamping Reversible Armour Cone and AnyWay Universal Clamping Ring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Inner Displacement Seal and Outer Load Retention Seal
Seal Area(s) Cable Inner Bedding and Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

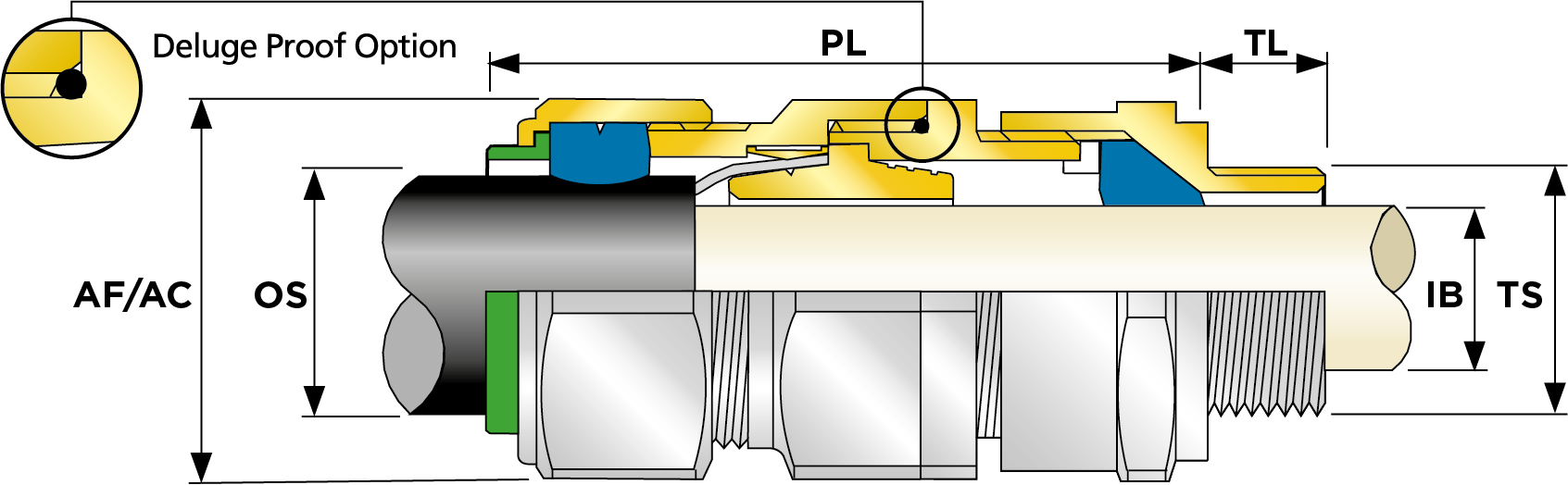

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20S16E1FU1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.16
20S16E1FU1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.049999999999999996
20S16E1FU1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.1509433962264151
20S16E1FU1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.16
20S16E1FU1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.15
20SE1FU1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.04687499999999999
20SE1FU1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.14150943396226415
20SE1FU1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.15
20S16E1FU1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16E1FU1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20E1FU1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.21
20E1FU1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.06562499999999999
20E1FU1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.1981132075471698
20E1FU1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.21
20SE1FU1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20SE1FU1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
25SE1FU1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.33
25SE1FU1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.103125
25SE1FU1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.3113207547169811
25SE1FU1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.33
20E1FU1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
25E1FU1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.33
25E1FU1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.103125
25E1FU1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.3113207547169811
25E1FU1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.33
20E1FU1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20E1FU1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
32E1FU1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.43
32E1FU1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.134375
32E1FU1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.40566037735849053
32E1FU1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.43
25SE1FU1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
40E1FU1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.62
40E1FU1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.19374999999999998
40E1FU1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.5849056603773585
40E1FU1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.62
25SE1FU1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25SE1FU1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
50SE1FU1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.75
50SE1FU1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.234375
50SE1FU1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.7075471698113207
50SE1FU1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 0.75
25E1FU1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
50E1FU1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 0.95
50E1FU1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 0.29687499999999994
50E1FU1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 0.8962264150943395
50E1FU1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 0.95
63SE1FU1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.34
63SE1FU1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 0.41875
63SE1FU1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.2641509433962264
63SE1FU1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.34
25E1FU1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25E1FU1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
32E1FU1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
63E1FU1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.34
63E1FU1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 0.41875
63E1FU1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.2641509433962264
63E1FU1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.34
75SE1FU1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 2.11
75SE1FU1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 0.6593749999999999
75SE1FU1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 1.990566037735849
75SE1FU1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 2.11
32E1FU1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32E1FU1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
40E1FU1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
75E1FU1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.42
75E1FU1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 0.75625
75E1FU1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.283018867924528
75E1FU1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 2.42
40E1FU1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40E1FU1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
90E1FU1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 4.21
90E1FU1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 1.3156249999999998
90E1FU1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 3.971698113207547
90E1FU1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 4.21
50SE1FU1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
100E1FU1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.45
100E1FU1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 1.390625
100E1FU1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.19811320754717
100E1FU1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.45
50SE1FU1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50SE1FU1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
115E1FU1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 6.19
115E1FU1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 1.934375
115E1FU1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 5.839622641509434
115E1FU1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 6.19
50E1FU1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
130E1FU1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.34
130E1FU1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 2.6062499999999997
130E1FU1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 7.867924528301886
130E1FU1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.34
50E1FU1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50E1FU1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63SE1FU1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63E1FU1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75SE1FU1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75E1FU1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75E1FU1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
90E1FU1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90E1FU1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100E1FU1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115E1FU1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
130E1FU1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157
130E1FU1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157
130E1FU1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157
130E1FU1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157
1
No results

0 of 200 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
