E1FX Cable Gland

ETIM Classification

EC000441

For Braid, Pliable Wire and Steel Tape Armoured cables.

Description

The E1FX range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a seal on both the inner and the outer sheath.

Features

  • Metal-to-metal armour clamping
  • Direct and remote installation
  • Displacement type flameproof inner seal
  • Controlled outer load retention seal
  • Designed to reduce the effects of coldflow, see CMP Technical Document TS001
  • Unique OSTG prevents overtightening
  • -60˚C to +130˚C
  • Globally marked cCSAus, IECEx, ATEX and UKEX
  • Superior EMC performance

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1324X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
IECEx Certificate Number IECEx CML 18.0181X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1252X, CML 21UKEX4253X
CSA Certificate Number CSA Certificate
CSA Code of Protection CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Type 4X; Ex e II; Ex nR II
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02515/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0257X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002870
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/7, P548696/2
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64823/E23-02-065420/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0010X
Technical Specification
Application EXAT; EXNEC
Armour Clamping Detachable Armour Cone and AnyWay Universal Clamping Ring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Inner Displacement Seal and Outer Load Retention Seal
Seal Area(s) Cable Inner Bedding and Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

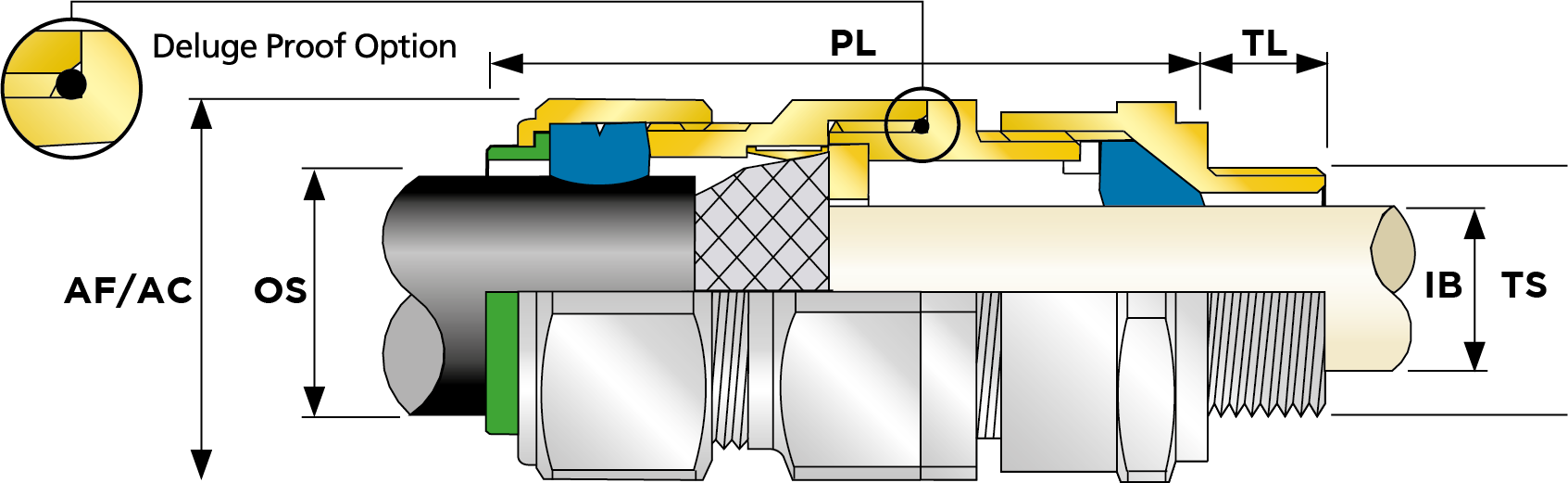

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20SE1FX1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 PVC04 0.15
20S16E1FX1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 PVC04 0.16
20S16E1FX2RZ 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 PVC04 0
20SE1FX2RZ 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 PVC04 0
20SE1FX1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 PVC04 0.05
20S16E1FX1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 PVC04 0.05
20S16E1FX1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 PVC04 0.15
20SE1FX1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 PVC04 0.14
20SE1FX1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 PVC04 0.15
20S16E1FX1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 PVC04 0.16
20SE1FX1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
20SE1FX1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0
20S16E1FX1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0
25SE1FX1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.33
25SE1FX1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.1
25SE1FX1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.31
25SE1FX1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.33
25SE1FX1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25SE1FX1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
50SE1FX1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 PVC18 0.75
50SE1FX1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 PVC18 0.23
50SE1FX1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 PVC18 0.71
50SE1FX1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 PVC18 0.75
50SE1FX1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
50SE1FX1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 38.1 1.16 1.5 0.4 0.06 0.02 0
63SE1FX1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 PVC23 1.34
63SE1FX1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 PVC23 0.42
63SE1FX1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 PVC23 1.26
63SE1FX1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 PVC23 1.34
63SE1FX1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
63SE1FX1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 49.9 1.58 1.96 0.6 0.06 0.02 0
75SE1FX1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 PVC28 2.11
75SE1FX1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 PVC28 0.66
75SE1FX1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 PVC28 1.99
75SE1FX1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 PVC28 2.11
75SE1FX1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
75SE1FX1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 61.9 2.08 2.44 0.6 0.06 0.02 0
20E1FX1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 PVC06 0.21
20E1FX1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 PVC06 0.07
20E1FX1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 PVC06 0.22
20E1FX1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 PVC06 0.21
20E1FX1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
20E1FX1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0
25E1FX1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.33
25E1FX2RZ 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0
25E1FX1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.1
25E1FX1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.31
25E1FX1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 PVC09 0.33
25E1FX1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
25E1FX1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.9 0.44 0.78 0.4 0.05 0.02 0
32E1FX2RZ 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 PVC11 0
32E1FX1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 PVC11 0.43
32E1FX1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 PVC11 0.13
32E1FX1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 PVC11 0.41
32E1FX1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 PVC11 0.43
32E1FX1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
32E1FX1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 26.2 0.67 1.03 0.4 0.05 0.02 0
40E1FX1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 PVC15 0.62
40E1FX1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 PVC15 0.19
40E1FX1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 PVC15 0.58
40E1FX1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 PVC15 0.62
40E1FX1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
40E1FX1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 32.1 0.87 1.26 0.4 0.06 0.02 0
50E1FX1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 PVC21 0.95
50E1FX1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 PVC21 0.3
50E1FX1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 PVC21 0.9
50E1FX1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 PVC21 0.95
50E1FX1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
50E1FX1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 44 1.4 1.73 0.6 0.06 0.02 0
63E1FX1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 PVC25 1.34
63E1FX1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 PVC25 0.42
63E1FX1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 PVC25 1.26
63E1FX1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 PVC25 1.34
63E1FX1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
63E1FX1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 55.9 1.86 2.2 0.6 0.06 0.02 0
75E1FX1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 PVC30 2.42
75E1FX1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 PVC30 0.76
75E1FX1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 PVC30 2.28
75E1FX1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 PVC30 2.42
75E1FX1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
75E1FX1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 67.9 2.33 2.67 0.6 0.06 0.02 0
90E1FX1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 PVC32 4.21
90E1FX1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 PVC32 1.32
90E1FX1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 PVC32 3.97
90E1FX1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 PVC32 4.21
90E1FX1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
90E1FX1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 78.6 2.62 3.09 0.8 0.06 0.03 0
100E1FX1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 LSF33 4.45
100E1FX1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 LSF33 1.39
100E1FX1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 LSF33 4.2
100E1FX1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 90.9 2.99 3.58 0.8 0.06 0.03 LSF33 4.45
100E1FX1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
100E1FX1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 90.9 2.99 3.58 0.8 0.06 0.03 0
115E1FX1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 LSF34 6.19
115E1FX1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 LSF34 1.93
115E1FX1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 LSF34 5.84
115E1FX1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 LSF34 6.19
115E1FX1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
115E1FX1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 97.9 3.39 3.85 0.8 0.06 0.03 0
130E1FX1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 LSF35 8.34
130E1FX1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 LSF35 2.61
130E1FX1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 LSF35 7.87
130E1FX1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 LSF35 8.34
130E1FX1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 0
130E1FX1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 0
130E1FX1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 0
130E1FX1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 114.9 3.82 4.52 0.8 0.06 0.03 0
1
No results

0 of 204 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
