E1WCIEL Cable Gland

ETIM Classification

EC000441

For all types of Steel and Aluminium Wire Armoured cables.

Description

The E1W CIEL range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with an external high current capacity earth connection.

Features

  • External earth connection
  • Third party short circuit tested
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Displacement type inner seal
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • Deluge protection option
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique CMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Seal
Seal Area(s) Cable Inner Bedding & Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

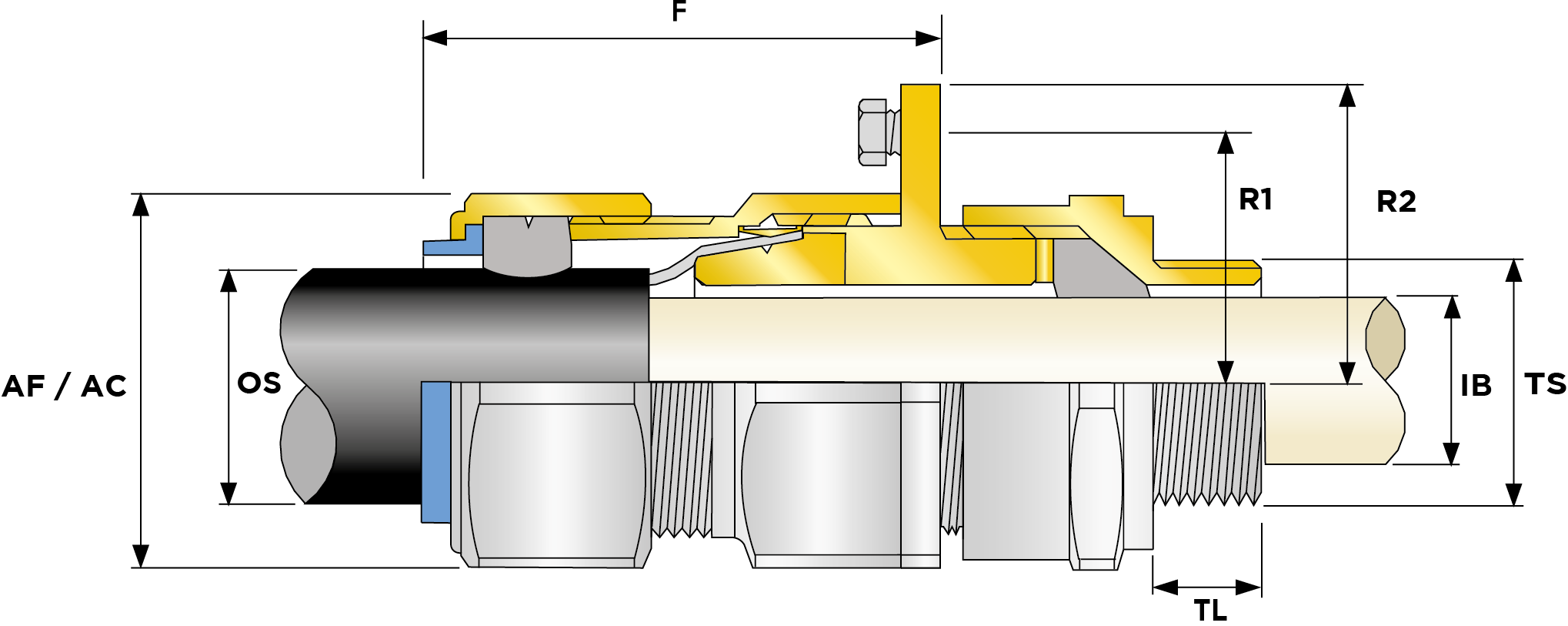

Part Number Size Material CIEL Earth Bolt Size EB Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Symmetrical Fault Current (kA) rating for 1 second Max Protrusion Length PL (mm) Nom C-to-C Radius R1 (mm) Nom C-to-Extremity Radius R2 (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Ass'y Weight
20SE1WC1RA 20S Brass M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049 0.195
20SE1WC1RA1 20S Aluminium M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049 0.0609375
20SE1WC1RA4 20S Stainless Steel M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049 0.18396226415094338
20SE1WC1RA5 20S Nickel Plated Brass M8 Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049 0.195
20SE1WC1RA031 20S Brass M8 NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA032 20S Brass M8 NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA131 20S Aluminium M8 NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA132 20S Aluminium M8 NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA431 20S Stainless Steel M8 NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA432 20S Stainless Steel M8 NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA531 20S Nickel Plated Brass M8 NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
20SE1WC1RA532 20S Nickel Plated Brass M8 NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 26 70 28.6 38.6 6.1 11.6 0.24 0.46 0.8 1.25 0.031 0.049
25SE1WC1RA 25S Brass M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.438
25SE1WC1RA1 25S Aluminium M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.136875
25SE1WC1RA4 25S Stainless Steel M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.4132075471698113
25SE1WC1RA5 25S Nickel Plated Brass M8 Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.438
25SE1WC1RA032 25S Brass M8 NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA033 25S Brass M8 NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA132 25S Aluminium M8 NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA133 25S Aluminium M8 NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA432 25S Stainless Steel M8 NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA433 25S Stainless Steel M8 NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA532 25S Nickel Plated Brass M8 NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25SE1WC1RA533 25S Nickel Plated Brass M8 NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
50SE1WC1RA 50S Brass M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098 0.883
50SE1WC1RA1 50S Aluminium M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098 0.2759375
50SE1WC1RA4 50S Stainless Steel M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098 0.8330188679245283
50SE1WC1RA5 50S Nickel Plated Brass M12 Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098 0.883
50SE1WC1RA035 50S Brass M12 NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA036 50S Brass M12 NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA135 50S Aluminium M12 NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA136 50S Aluminium M12 NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA435 50S Stainless Steel M12 NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA436 50S Stainless Steel M12 NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA535 50S Nickel Plated Brass M12 NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
50SE1WC1RA536 50S Nickel Plated Brass M12 NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 43 91 57.2 74.6 29.5 38.1 1.16 1.5 2 2.5 0.079 0.098
63SE1WC1RA 63S Brass M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098 1.636
63SE1WC1RA1 63S Aluminium M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098 0.51125
63SE1WC1RA4 63S Stainless Steel M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098 1.5433962264150942
63SE1WC1RA5 63S Nickel Plated Brass M12 Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098 1.636
63SE1WC1RA036 63S Brass M12 NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA037 63S Brass M12 NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA136 63S Aluminium M12 NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA137 63S Aluminium M12 NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA436 63S Stainless Steel M12 NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA437 63S Stainless Steel M12 NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA536 63S Nickel Plated Brass M12 NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
63SE1WC1RA537 63S Nickel Plated Brass M12 NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 43 102 70 90.5 40.1 49.9 1.58 1.96 2 2.5 0.079 0.098
75SE1WC1RA 75S Brass M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098 2.31
75SE1WC1RA1 75S Aluminium M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098 0.7218749999999999
75SE1WC1RA4 75S Stainless Steel M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098 2.1792452830188678
75SE1WC1RA5 75S Nickel Plated Brass M12 Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098 2.31
75SE1WC1RA037 75S Brass M12 NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA038 75S Brass M12 NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA137 75S Aluminium M12 NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA138 75S Aluminium M12 NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA437 75S Stainless Steel M12 NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA438 75S Stainless Steel M12 NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA537 75S Nickel Plated Brass M12 NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
75SE1WC1RA538 75S Nickel Plated Brass M12 NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 43 115 76.2 98.5 52.8 61.9 2.08 2.44 2 2.5 0.079 0.098
20E1WC1RA 20 Brass M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049 0.276
20E1WC1RA1 20 Aluminium M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049 0.08625000000000001
20E1WC1RA4 20 Stainless Steel M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049 0.26037735849056604
20E1WC1RA5 20 Nickel Plated Brass M8 Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049 0.276
20E1WC1RA031 20 Brass M8 NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA032 20 Brass M8 NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA131 20 Aluminium M8 NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA132 20 Aluminium M8 NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA431 20 Stainless Steel M8 NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA432 20 Stainless Steel M8 NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA531 20 Nickel Plated Brass M8 NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
20E1WC1RA532 20 Nickel Plated Brass M8 NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 26 73 31.8 41.8 6.5 13.9 0.26 0.55 0.8 1.25 0.031 0.049
25E1WC1RA 25 Brass M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.435
25E1WC1RA1 25 Aluminium M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.1359375
25E1WC1RA4 25 Stainless Steel M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.410377358490566
25E1WC1RA5 25 Nickel Plated Brass M8 Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063 0.435
25E1WC1RA032 25 Brass M8 NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA033 25 Brass M8 NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA132 25 Aluminium M8 NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA133 25 Aluminium M8 NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA432 25 Stainless Steel M8 NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA433 25 Stainless Steel M8 NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA532 25 Nickel Plated Brass M8 NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
25E1WC1RA533 25 Nickel Plated Brass M8 NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 26 89 38.1 50.8 11.1 19.9 0.44 0.78 1.25 1.6 0.049 0.063
32E1WC1RA 32 Brass M10 Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079 0.506
32E1WC1RA1 32 Aluminium M10 Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079 0.158125
32E1WC1RA4 32 Stainless Steel M10 Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079 0.47735849056603774
32E1WC1RA5 32 Nickel Plated Brass M10 Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079 0.506
32E1WC1RA033 32 Brass M10 NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA034 32 Brass M10 NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA133 32 Aluminium M10 NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA134 32 Aluminium M10 NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA433 32 Stainless Steel M10 NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA434 32 Stainless Steel M10 NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA533 32 Nickel Plated Brass M10 NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
32E1WC1RA534 32 Nickel Plated Brass M10 NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 26 86 41.3 54 17 26.2 0.67 1.03 1.6 2 0.063 0.079
40E1WC1RA 40 Brass M12 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079 0.802
40E1WC1RA1 40 Aluminium M12 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079 0.250625
40E1WC1RA4 40 Stainless Steel M12 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079 0.7566037735849057
40E1WC1RA5 40 Nickel Plated Brass M12 Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079 0.802
40E1WC1RA034 40 Brass M12 NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA035 40 Brass M12 NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA134 40 Aluminium M12 NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA135 40 Aluminium M12 NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA434 40 Stainless Steel M12 NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA435 40 Stainless Steel M12 NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA534 40 Nickel Plated Brass M12 NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
40E1WC1RA535 40 Nickel Plated Brass M12 NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 26 90 50.8 68.3 22 32.1 0.87 1.26 1.6 2 0.063 0.079
50E1WC1RA 50 Brass M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098 1.038
50E1WC1RA1 50 Aluminium M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098 0.32437499999999997
50E1WC1RA4 50 Stainless Steel M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098 0.9792452830188679
50E1WC1RA5 50 Nickel Plated Brass M12 Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098 1.038
50E1WC1RA036 50 Brass M12 NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA037 50 Brass M12 NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA136 50 Aluminium M12 NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA137 50 Aluminium M12 NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA436 50 Stainless Steel M12 NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA437 50 Stainless Steel M12 NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA536 50 Nickel Plated Brass M12 NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
50E1WC1RA537 50 Nickel Plated Brass M12 NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 43 95 60.3 79.4 35.6 44 1.4 1.73 2 2.5 0.079 0.098
63E1WC1RA 63 Brass M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098 1.597
63E1WC1RA1 63 Aluminium M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098 0.49906249999999996
63E1WC1RA4 63 Stainless Steel M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098 1.5066037735849056
63E1WC1RA5 63 Nickel Plated Brass M12 Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098 1.597
63E1WC1RA037 63 Brass M12 NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA038 63 Brass M12 NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA137 63 Aluminium M12 NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA138 63 Aluminium M12 NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA437 63 Stainless Steel M12 NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA438 63 Stainless Steel M12 NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA537 63 Nickel Plated Brass M12 NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
63E1WC1RA538 63 Nickel Plated Brass M12 NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 43 104 70 90.5 47.2 55.9 1.86 2.2 2 2.5 0.079 0.098
75E1WC1RA 75 Brass M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118 2.717
75E1WC1RA1 75 Aluminium M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118 0.8490624999999999
75E1WC1RA4 75 Stainless Steel M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118 2.5632075471698115
75E1WC1RA5 75 Nickel Plated Brass M12 Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118 2.717
75E1WC1RA038 75 Brass M12 NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA039 75 Brass M12 NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA138 75 Aluminium M12 NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA139 75 Aluminium M12 NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA438 75 Stainless Steel M12 NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA439 75 Stainless Steel M12 NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA538 75 Nickel Plated Brass M12 NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
75E1WC1RA539 75 Nickel Plated Brass M12 NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 43 117 82.6 108 59.1 67.9 2.33 2.67 2.5 3 0.098 0.118
90E1WC1RA 90 Brass M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157 4.17
90E1WC1RA1 90 Aluminium M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157 1.3031249999999999
90E1WC1RA4 90 Stainless Steel M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157 3.933962264150943
90E1WC1RA5 90 Nickel Plated Brass M12 Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157 4.17
90E1WC1RA039 90 Brass M12 NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA139 90 Aluminium M12 NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA0310 90 Brass M12 NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA439 90 Stainless Steel M12 NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA539 90 Nickel Plated Brass M12 NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA1310 90 Aluminium M12 NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA4310 90 Stainless Steel M12 NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
90E1WC1RA5310 90 Nickel Plated Brass M12 NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 43 147 95.3 127.1 66.6 78.6 2.62 3.09 3.15 4 0.124 0.157
100E1WC1RA 100 Brass M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157 4.82
100E1WC1RA1 100 Aluminium M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157 1.50625
100E1WC1RA4 100 Stainless Steel M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157 4.547169811320755
100E1WC1RA5 100 Nickel Plated Brass M12 Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157 4.82
100E1WC1RA039 100 Brass M12 NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA139 100 Aluminium M12 NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA0310 100 Brass M12 NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA439 100 Stainless Steel M12 NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA539 100 Nickel Plated Brass M12 NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA1310 100 Aluminium M12 NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA4310 100 Stainless Steel M12 NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
100E1WC1RA5310 100 Nickel Plated Brass M12 NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 43 140 102 133.8 76 90.9 2.99 3.58 3.15 4 0.124 0.157
115E1WC1RA 115 Brass M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157 6.191
115E1WC1RA1 115 Aluminium M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157 1.9346875
115E1WC1RA4 115 Stainless Steel M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157 5.840566037735849
115E1WC1RA5 115 Nickel Plated Brass M12 Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157 6.191
115E1WC1RA0310 115 Brass M12 NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA0312 115 Brass M12 NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA1310 115 Aluminium M12 NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA1312 115 Aluminium M12 NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA4310 115 Stainless Steel M12 NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA4312 115 Stainless Steel M12 NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA5310 115 Nickel Plated Brass M12 NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
115E1WC1RA5312 115 Nickel Plated Brass M12 NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 43 162 95.3 127.1 86 97.9 3.39 3.85 3.15 4 0.124 0.157
130E1WC1RA 130 Brass M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157 8.539
130E1WC1RA1 130 Aluminium M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157 2.6684374999999996
130E1WC1RA4 130 Stainless Steel M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157 8.05566037735849
130E1WC1RA5 130 Nickel Plated Brass M12 Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157 8.539
130E1WC1RA0312 130 Brass M12 NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157
130E1WC1RA1312 130 Aluminium M12 NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157
130E1WC1RA4312 130 Stainless Steel M12 NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157
130E1WC1RA5312 130 Nickel Plated Brass M12 NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 43 177 102 133.8 97 114.9 3.82 4.52 3.15 4 0.124 0.157
1
No results

0 of 188 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
