E2W Cable Gland

ETIM Classification

EC000441

For Steel and Aluminium Wire Armoured Lead Sheathed cables.

Description

The E2W range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with a seal on both the inner and the outer sheath.

Features

  • Effectively earths / grounds lead sheathed cables
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Displacement type inner seal
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • Deluge protection option
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique CMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Sea
Seal Area(s) Cable Inner Bedding & Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

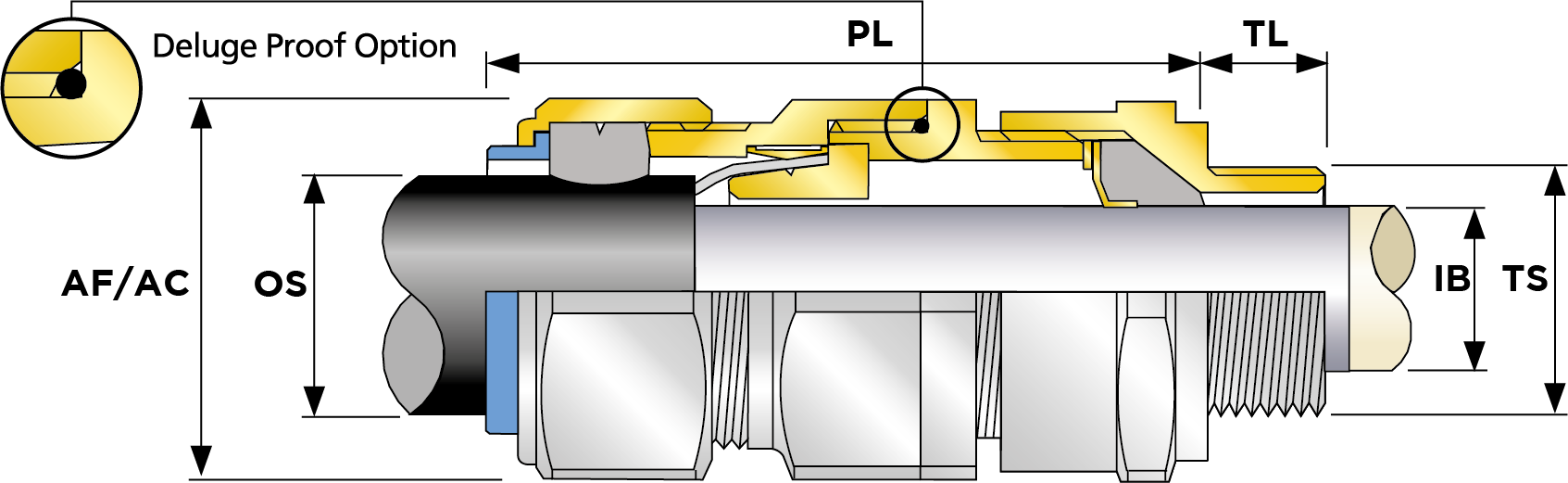

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Lead Sheath Ø (mm) Max Lead Sheath Ø (mm) Min Lead Sheath Ø (Imp) Max Lead Sheath Ø (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20SE2W1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049 PVC04 0.15
20S16E2W1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049 PVC04 0.16
20S16E2W1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049 PVC04 0.049999999999999996
20SE2W1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049 PVC04 0.04687499999999999
20SE2W1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049 PVC04 0.14150943396226415
20S16E2W1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049 PVC04 0.1509433962264151
20SE2W1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049 PVC04 0.15
20S16E2W1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049 PVC04 0.16
20SE2W1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
20SE2W1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.8 1.25 0.031 0.049
20S16E2W1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.8 1.25 0.031 0.049
25SE2W1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.33
25SE2W1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.103125
25SE2W1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.3113207547169811
25SE2W1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.33
25SE2W1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25SE2W1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
50SE2W1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098 PVC18 0.76
50SE2W1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098 PVC18 0.2375
50SE2W1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098 PVC18 0.7169811320754716
50SE2W1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098 PVC18 0.76
50SE2W1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
50SE2W1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 2 2.5 0.079 0.098
63SE2W1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098 PVC23 1.35
63SE2W1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098 PVC23 0.421875
63SE2W1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098 PVC23 1.2735849056603774
63SE2W1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098 PVC23 1.35
63SE2W1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
63SE2W1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 2 2.5 0.079 0.098
75SE2W1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098 PVC28 2.12
75SE2W1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098 PVC28 0.6625
75SE2W1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098 PVC28 2
75SE2W1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098 PVC28 2.12
75SE2W1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
75SE2W1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 2 2.5 0.079 0.098
20E2W1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049 PVC06 0.21
20E2W1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049 PVC06 0.06562499999999999
20E2W1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049 PVC06 0.1981132075471698
20E2W1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049 PVC06 0.21
20E2W1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
20E2W1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.8 1.25 0.031 0.049
25E2W1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.33
25E2W1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.103125
25E2W1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.3113207547169811
25E2W1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063 PVC09 0.33
25E2W1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
25E2W1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 1.25 1.6 0.049 0.063
32E2W1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079 PVC11 0.43
32E2W1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079 PVC11 0.43
32E2W1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079 PVC11 0.43
32E2W1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079 PVC11 0.43
32E2W1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
32E2W1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 1.6 2 0.063 0.079
40E2W1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079 PVC15 0.63
40E2W1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079 PVC15 0.196875
40E2W1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079 PVC15 0.5943396226415094
40E2W1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079 PVC15 0.63
40E2W1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
40E2W1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 1.6 2 0.063 0.079
50E2W1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098 PVC21 0.95
50E2W1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098 PVC21 0.29687499999999994
50E2W1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098 PVC21 0.8962264150943395
50E2W1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098 PVC21 0.95
50E2W1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
50E2W1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 2 2.5 0.079 0.098
63E2W1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098 PVC25 1.35
63E2W1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098 PVC25 0.421875
63E2W1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098 PVC25 1.2735849056603774
63E2W1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098 PVC25 1.35
63E2W1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
63E2W1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 2 2.5 0.079 0.098
75E2W1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118 PVC30 2.43
75E2W1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118 PVC30 0.759375
75E2W1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118 PVC30 2.292452830188679
75E2W1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118 PVC30 2.43
75E2W1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
75E2W1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 2.5 3 0.098 0.118
90E2W1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157 PVC32 4.23
90E2W1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157 PVC32 1.3218750000000001
90E2W1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157 PVC32 3.9905660377358494
90E2W1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157 PVC32 4.23
90E2W1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
90E2W1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 3.15 4 0.124 0.157
100E2W1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157 LSF33 4.47
100E2W1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157 LSF33 1.3968749999999999
100E2W1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157 LSF33 4.216981132075471
100E2W1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157 LSF33 4.47
100E2W1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
100E2W1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 3.15 4 0.124 0.157
115E2W1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157 LSF34 6.22
115E2W1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157 LSF34 1.9437499999999999
115E2W1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157 LSF34 5.867924528301886
115E2W1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157 LSF34 6.22
115E2W1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
115E2W1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 3.15 4 0.124 0.157
130E2W1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157 LSF35 8.38
130E2W1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157 LSF35 2.61875
130E2W1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157 LSF35 7.905660377358491
130E2W1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157 LSF35 8.38
130E2W1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157
130E2W1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157
130E2W1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157
130E2W1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 3.15 4 0.124 0.157
1
No results

0 of 200 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
