E2X Cable Gland

ETIM Classification

EC000441

For Braided & Steel Tape Armoured Lead Sheath cables.

Description

The E2X range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with a seal on both the inner and the outer sheath.

Features

  • Effectively earths / grounds lead sheathed cables
  • Metal-to-metal armour clamping
  • Direct & remote installation
  • Permanently crimped, low impedance earth termination
  • Secure against self-loosening
  • Displacement type inner seal
  • Controlled outer ‘load retention’ seal
  • Unique OSTG prevents overtightening
  • Deluge protection option
  • -60˚C to +130˚C
  • Superior EMC performance

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Armour Clamping Detachable Armour Cone & AnyWay Universal Clamping Ring
Seal Material CMP Thermoset Rubber
Seal Technique CMP Inner Displacement Seal & Unique CMP ‘LRS’ TM Outer Load Retention Sea
Seal Area(s) Cable Inner Lead Sheath & Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

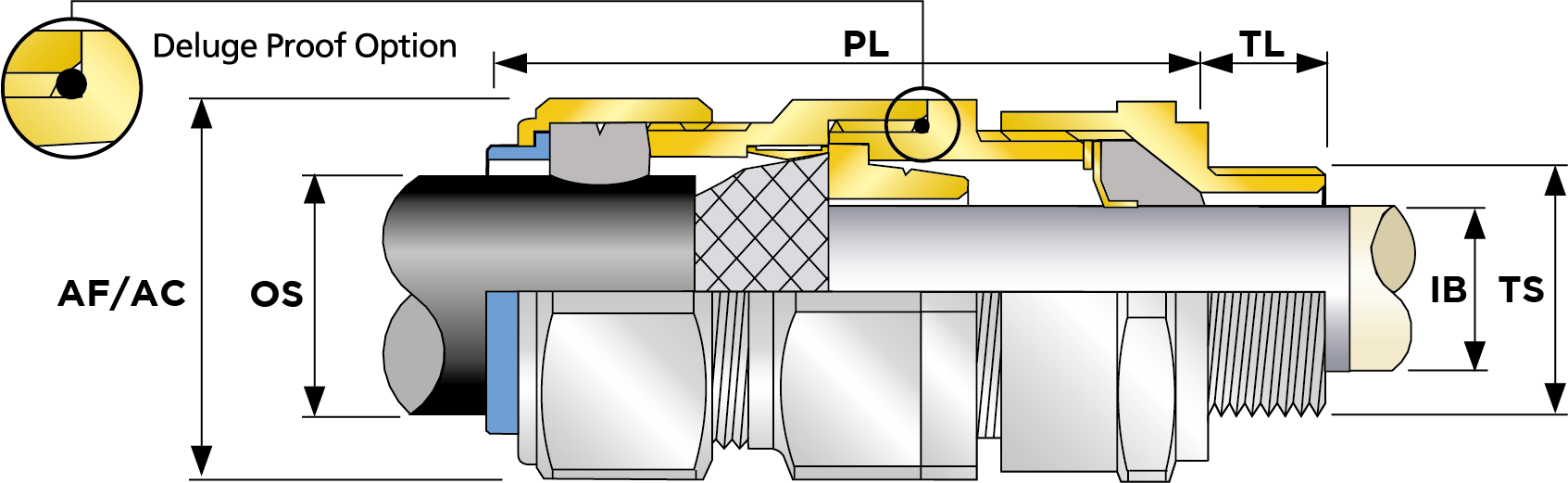

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Lead Sheath Ø (mm) Max Lead Sheath Ø (mm) Min Lead Sheath Ø (Imp) Max Lead Sheath Ø (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20S16E2X1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01 PVC04 0.16
20SE2X1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01 PVC04 0.15
20SE2X1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01 PVC04 0.04687499999999999
20S16E2X1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01 PVC04 0.049999999999999996
20SE2X1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01 PVC04 0.14150943396226415
20S16E2X1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01 PVC04 0.1509433962264151
20SE2X1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 10 0.39 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01 PVC04 0.15
20S16E2X1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 10 0.39 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01 PVC04 0.16
20SE2X1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20S16E2X1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20S16E2X1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20SE2X1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20SE2X1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20S16E2X1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20SE2X1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20S16E2X1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20S16E2X1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20SE2X1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20SE2X1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20S16E2X1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20SE2X1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 70 6.1 11 0.24 0.43 0.3 0.04 0.01
20S16E2X1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20S16E2X1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 30 33 1.18 1.3 72.5 3.1 7.8 0.12 0.31 0.3 0.04 0.01
20SE2X1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 30 33 1.18 1.3 70 6.1 11 0.24 0.43 0.3 0.04 0.01
25SE2X1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.33
25SE2X1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.103125
25SE2X1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.3113207547169811
25SE2X1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.33
25SE2X1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25SE2X1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
50SE2X1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02 PVC18 0.76
50SE2X1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02 PVC18 0.2375
50SE2X1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02 PVC18 0.7169811320754716
50SE2X1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02 PVC18 0.76
50SE2X1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
50SE2X1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 91 29.5 37.2 1.16 1.46 0.4 0.06 0.02
63SE2X1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02 PVC23 1.35
63SE2X1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02 PVC23 0.421875
63SE2X1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02 PVC23 1.2735849056603774
63SE2X1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02 PVC23 1.35
63SE2X1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
63SE2X1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102 40.1 48.5 1.58 1.91 0.6 0.06 0.02
75SE2X1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02 PVC28 2.12
75SE2X1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02 PVC28 0.6625
75SE2X1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02 PVC28 2
75SE2X1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02 PVC28 2.12
75SE2X1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3.9 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
75SE2X1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 115 52.8 60.2 2.08 2.37 0.6 0.06 0.02
20E2X1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02 PVC06 0.21
20E2X1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02 PVC06 0.06562499999999999
20E2X1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02 PVC06 0.1981132075471698
20E2X1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 10 0.39 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02 PVC06 0.21
20E2X1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
20E2X1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 73 6.5 13.4 0.26 0.53 0.4 0.04 0.02
25E2X1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.33
25E2X1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.103125
25E2X1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.3113207547169811
25E2X1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 10 0.39 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02 PVC09 0.33
25E2X1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
25E2X1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 89 11.1 19.3 0.44 0.76 0.4 0.05 0.02
32E2X1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02 PVC11 0.43
32E2X1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02 PVC11 0.43
32E2X1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02 PVC11 0.43
32E2X1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 10 0.39 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02 PVC11 0.43
32E2X1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
32E2X1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 86 17 25.5 0.67 1 0.4 0.05 0.02
40E2X1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02 PVC15 0.63
40E2X1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02 PVC15 0.196875
40E2X1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02 PVC15 0.5943396226415094
40E2X1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02 PVC15 0.63
40E2X1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
40E2X1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 90 22 31.2 0.87 1.23 0.4 0.06 0.02
50E2X1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02 PVC21 0.95
50E2X1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02 PVC21 0.29687499999999994
50E2X1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02 PVC21 0.8962264150943395
50E2X1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02 PVC21 0.95
50E2X1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
50E2X1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 95 35.6 42.6 1.4 1.68 0.6 0.06 0.02
63E2X1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02 PVC25 1.35
63E2X1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02 PVC25 0.421875
63E2X1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02 PVC25 1.2735849056603774
63E2X1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 75 82.5 2.96 3.25 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02 PVC25 1.35
63E2X1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
63E2X1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 104 47.2 54.2 1.86 2.13 0.6 0.06 0.02
75E2X1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02 PVC30 2.43
75E2X1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02 PVC30 0.759375
75E2X1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02 PVC30 2.292452830188679
75E2X1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02 PVC30 2.43
75E2X1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
75E2X1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 108 118.8 4.26 4.68 117 59.1 65.2 2.33 2.57 0.6 0.06 0.02
90E2X1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03 PVC32 4.23
90E2X1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03 PVC32 1.3218750000000001
90E2X1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03 PVC32 3.9905660377358494
90E2X1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 114.3 125.7 4.5 4.95 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03 PVC32 4.23
90E2X1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 114 125.4 4.49 4.94 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
90E2X1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 123.2 135.5 4.85 5.34 147 66.6 77.1 2.62 3.04 0.8 0.06 0.03
100E2X1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 0.8 0.06 0.03 LSF33 4.47
100E2X1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 0.8 0.06 0.03 LSF33 1.3968749999999999
100E2X1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 0.8 0.06 0.03 LSF33 4.216981132075471
100E2X1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 123 135.3 4.85 5.33 140 76 88.1 2.99 3.47 0.8 0.06 0.03 LSF33 4.47
100E2X1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
100E2X1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 44 1.73 123.2 135.5 4.85 5.34 140 76 88.1 2.99 3.47 0.8 0.06 0.03
115E2X1RA 115 Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03 LSF34 6.22
115E2X1RA1 115 Aluminium Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03 LSF34 1.9437499999999999
115E2X1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03 LSF34 5.867924528301886
115E2X1RA5 115 Nickel Plated Brass Metric M115 2 101.5 110.2 4 4.34 24 0.94 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03 LSF34 6.22
115E2X1RA0310 115 Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA0312 115 Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA1310 115 Aluminium NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA1312 115 Aluminium NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA5310 115 Nickel Plated Brass NPT 4" 101.5 110.2 4 4.34 44 1.73 133.4 146.7 5.26 5.78 162 86 94.1 3.39 3.7 0.8 0.06 0.03
115E2X1RA5312 115 Nickel Plated Brass NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 162 86 94.1 3.39 3.7 0.8 0.06 0.03
130E2X1RA 130 Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03 LSF35 8.38
130E2X1RA1 130 Aluminium Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03 LSF35 2.61875
130E2X1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03 LSF35 7.905660377358491
130E2X1RA5 130 Nickel Plated Brass Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03 LSF35 8.38
130E2X1RA0312 130 Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03
130E2X1RA1312 130 Aluminium NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03
130E2X1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03
130E2X1RA5312 130 Nickel Plated Brass NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 152.4 167.6 6 6.6 174 97 110.1 3.82 4.33 0.8 0.06 0.03
1
No results

0 of 199 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
