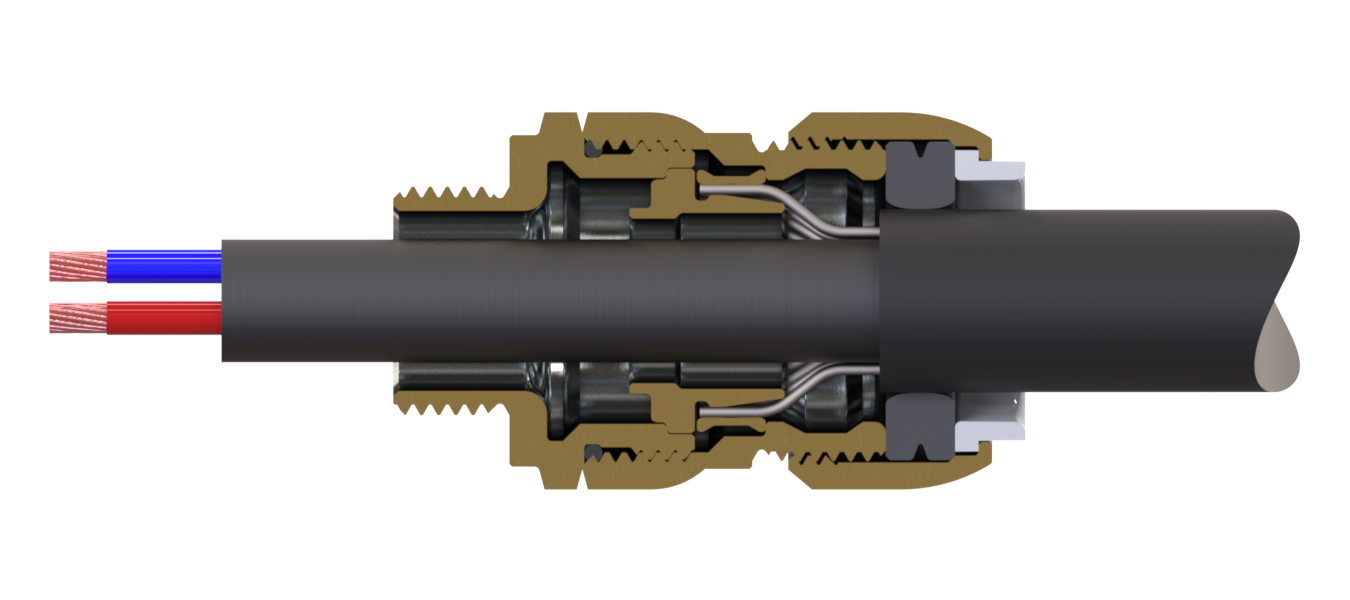

FORTRA-CTUEV Cable Gland

ETIM Classification

EC000441

For all types of Armoured or Braided / Screened cables

Description

The CTUeV range of cable glands are for use in heavy duty applications in Explosive Atmospheres. For all types of Armoured or Braided / Screened cables. Designed with a single seal on the cable outer sheath and an integral protected deluge seal. Also provides a 360 degree contact around the screen for superior EMC performance.

Features

  • Unique patented captive ‘Adaptive’ armour cone for all types of armour or braid, with captive ‘AnyWay’ clamping ring
  • Metal-to-metal armour clamping; no installation or inspection ambiguity
  • Unique ‘Quick’ thread for faster armour clamping
  • Unique spring provides a 360 degree contact around the cable screen for superior EMC performance
  • Outer seal with wider cable acceptance, meaning fewer stocking sizes
  • IP66, 67, 68, 69 & 69K as standard with fully enclosed/protected deluge seal for third party compliance to DTS 01
  • Compact design; ideal for applications with limited installation space
  • Fewer tools required for installation and maintenance

Additional Information

Certification
ATEX Certificate Number CML 24ATEX1333X
ATEX Code of Protection ^ I M2 Ex eb I Mb; ^ II 2G 1D, Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/06617028/64e74f6ad564070019d58c53/atexlogo.jpg
IECEx Certificate Number IECEx CML 24.0137X
IECEx Code of Protection Ex eb I Mb, Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/1a644042/685afb8a626fb1a5637e189b/iecexlogo.jpg
Industrial Certificate Number CML 24CA17921
CE Logo Filename CE.jpg
CE Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/e6cd9bc2/64e74da5f9e88500180b83ee/CE.jpg
Technical Specification
Application EXAT
Armour Clamping Captive ‘Adaptive’ Armour Cone and Captive ‘AnyWay’ Clamping Ring
Seal Material LSF Halogen Free Silicone
Seal Technique Outer Load Retention Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Stainless Steel

* Mechanical classifications applied as per IEC/EN 62444
** When CMP installation accessories are used. Refer to www.cmp-products.com for further information
*** IP68 tested to 300 kPa for 168 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1
Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20CTUEV002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.13
20S16RCTUEV002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.10
20RCTUEV002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.13
20SCTUEV002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20S16CTUEV002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.10
20SRCTUEV002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20SCTUEV031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16CTUEV031 20S16 Brass NPT 1/2" 6.1 13.2 0.24 0.52 19.9 0.78 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20CTUEV031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20CTUEV032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20SCTUEV032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16CTUEV032 20S16 Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16RCTUEV402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20RCTUEV402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.12
20SCTUEV402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.08
20S16CTUEV402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20SRCTUEV402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.08
20CTUEV402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.12
20S16CTUEV431 20S16 Stainless Steel NPT 1/2" 6.1 13.2 0.24 0.52 19.9 0.78 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20CTUEV431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20SCTUEV431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20SCTUEV432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16CTUEV432 20S16 Stainless Steel NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20CTUEV432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20RCTUEV502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.13
20SCTUEV502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20S16CTUEV502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.10
20SRCTUEV502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.09
20CTUEV502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC06 0.13
20S16RCTUEV502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05 PVC04 0.10
20CTUEV531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20SCTUEV531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16CTUEV531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.2 0.24 0.52 19.9 0.78 24 26.4 0.94 1.04 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20SCTUEV532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 52 11.6 0.46 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20S16CTUEV532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 52 7 0.28 0.2 0.02 0.01 0.8 1.25 0.03 0.05
20CTUEV532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 50 14 0.55 0.2 0.02 0.01 0.8 1.25 0.03 0.05
25CTUEV003 25 Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.23
25RCTUEV003 25 Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.23
25CTUEV032 25 Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
25CTUEV033 25 Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
25CTUEV403 25 Stainless Steel Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.21
25RCTUEV403 25 Stainless Steel Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.21
25CTUEV432 25 Stainless Steel NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
25CTUEV433 25 Stainless Steel NPT 1" 16 26.2 0.63 1.03 25 0.98 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
25CTUEV503 25 Nickel Plated Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.23
25RCTUEV503 25 Nickel Plated Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06 PVC09 0.23
25CTUEV532 25 Nickel Plated Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
25CTUEV533 25 Nickel Plated Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 62.5 19.5 0.77 0.2 0.02 0.01 1.3 1.6 0.05 0.06
32CTUEV004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.36
32RCTUEV004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.36
32CTUEV033 32 Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
32CTUEV034 32 Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
32RCTUEV404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.33
32CTUEV404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.33
32CTUEV433 32 Stainless Steel NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
32CTUEV434 32 Stainless Steel NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
32RCTUEV504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.36
32CTUEV504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08 PVC11 0.36
32CTUEV533 32 Nickel Plated Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
32CTUEV534 32 Nickel Plated Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 66.5 26.5 1.04 0.2 0.02 0.01 1.6 2 0.06 0.08
40RCTUEV005 40 Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.51
40CTUEV005 40 Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.51
40CTUEV034 40 Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
40CTUEV035 40 Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
40RCTUEV405 40 Stainless Steel Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.47
40CTUEV405 40 Stainless Steel Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.47
40CTUEV434 40 Stainless Steel NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
40CTUEV435 40 Stainless Steel NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
40CTUEV505 40 Nickel Plated Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.51
40RCTUEV505 40 Nickel Plated Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08 PVC15 0.51
40CTUEV534 40 Nickel Plated Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
40CTUEV535 40 Nickel Plated Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 71.5 32 1.26 0.2 0.03 0.01 1.6 2 0.06 0.08
50CTUEV006 50 Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.82
50RCTUEV006 50 Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.82
50CTUEV035 50 Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV036 50 Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV037 50 Brass NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50RCTUEV406 50 Stainless Steel Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.76
50CTUEV406 50 Stainless Steel Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.76
50CTUEV435 50 Stainless Steel NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV436 50 Stainless Steel NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV437 50 Stainless Steel NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50RCTUEV506 50 Nickel Plated Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.82
50CTUEV506 50 Nickel Plated Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC21 0.82
50CTUEV535 50 Nickel Plated Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV536 50 Nickel Plated Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
50CTUEV537 50 Nickel Plated Brass NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 74.5 44 1.73 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV007 63 Brass Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 1.03
63RCTUEV007 63 Brass Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 1.03
63CTUEV036 63 Brass NPT 2" 52 66 2.05 2.6 26.9 1.06 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV037 63 Brass NPT 2-1/2" 52 66 2.05 2.6 39.9 1.57 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV038 63 Brass NPT 3" 52 66 2.05 2.6 41.5 1.63 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63RCTUEV407 63 Stainless Steel Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 0.96
63CTUEV407 63 Stainless Steel Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 0.96
63CTUEV436 63 Stainless Steel NPT 2" 52 66 2.05 2.6 26.9 1.06 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV437 63 Stainless Steel NPT 2-1/2" 52 66 2.05 2.6 39.9 1.57 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV438 63 Stainless Steel NPT 3" 52 66 2.05 2.6 41.5 1.63 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63RCTUEV507 63 Nickel Plated Brass Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 1.03
63CTUEV507 63 Nickel Plated Brass Metric M63 1.5 52 66 2.05 2.6 15 0.59 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1 PVC25 1.03
63CTUEV536 63 Nickel Plated Brass NPT 2" 52 66 2.05 2.6 26.9 1.06 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV537 63 Nickel Plated Brass NPT 2-1/2" 52 66 2.05 2.6 39.9 1.57 80 88 3.15 3.46 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
63CTUEV538 63 Nickel Plated Brass NPT 3" 52 66 2.05 2.6 41.5 1.63 85.5 55 2.17 0.3 0.03 0.01 2 2.5 0.08 0.1
75RCTUEV008 75 Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.91
75CTUEV008 75 Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.91
75CTUEV037 75 Brass NPT 2-1/2" 64.5 78.5 2.54 3.09 39.9 1.57 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV038 75 Brass NPT 3" 64.5 78.5 2.54 3.09 41.5 1.63 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV039 75 Brass NPT 3-1/2" 64.5 78.5 2.54 3.09 42.8 1.69 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV408 75 Stainless Steel Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.76
75RCTUEV408 75 Stainless Steel Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.76
75CTUEV437 75 Stainless Steel NPT 2-1/2" 64.5 78.5 2.54 3.09 39.9 1.57 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV438 75 Stainless Steel NPT 3" 64.5 78.5 2.54 3.09 41.5 1.63 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV439 75 Stainless Steel NPT 3-1/2" 64.5 78.5 2.54 3.09 42.8 1.69 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75RCTUEV508 75 Nickel Plated Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.91
75CTUEV508 75 Nickel Plated Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12 PVC30 1.91
75CTUEV537 75 Nickel Plated Brass NPT 2-1/2" 64.5 78.5 2.54 3.09 39.9 1.57 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV538 75 Nickel Plated Brass NPT 3" 64.5 78.5 2.54 3.09 41.5 1.63 100 110 3.94 4.33 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
75CTUEV539 75 Nickel Plated Brass NPT 3-1/2" 64.5 78.5 2.54 3.09 42.8 1.69 90 68 2.68 0.3 0.03 0.01 2.5 3.15 0.1 0.12
90CTUEV009 90 Brass Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.96
90RCTUEV009 90 Brass Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.96
90CTUEV039 90 Brass NPT 3-1/2" 75 90.5 2.95 3.56 42.8 1.69 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
90CTUEV0310 90 Brass NPT 4" 75 90.5 2.95 3.56 44 1.73 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
90CTUEV409 90 Stainless Steel Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.65
90RCTUEV409 90 Stainless Steel Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.65
90CTUEV439 90 Stainless Steel NPT 3-1/2" 75 90.5 2.95 3.56 42.8 1.69 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
90CTUEV509 90 Nickel Plated Brass Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.96
90RCTUEV509 90 Nickel Plated Brass Metric M90 2 75 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC32 3.96
90CTUEV539 90 Nickel Plated Brass NPT 3-1/2" 75 90.5 2.95 3.56 42.8 1.69 114 125.4 4.49 4.94 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
90CTUEV4310 90 Stainless Steel NPT 4" 75 90.5 2.95 3.56 44 1.73 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
90CTUEV5310 90 Nickel Plated Brass NPT 4" 75 90.5 2.95 3.56 44 1.73 133.3 78.5 3.09 0.4 0.03 0.02 3.15 4 0.12 0.16
100CTUEV0010 100 Brass Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.65
100RCTUEV0010 100 Brass Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.65
100CTUEV039 100 Brass NPT 3-1/2" 86 101.5 3.39 4 42.8 1.69 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
100CTUEV0310 100 Brass NPT 4" 86 101.5 3.39 4 44 1.73 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
100CTUEV439 100 Stainless Steel NPT 3-1/2" 86 101.5 3.39 4 42.8 1.69 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
100CTUEV539 100 Nickel Plated Brass NPT 3-1/2" 86 101.5 3.39 4 42.8 1.69 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
100CTUEV4010 100 Stainless Steel Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.37
100RCTUEV4010 100 Stainless Steel Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.37
100CTUEV4310 100 Stainless Steel NPT 4" 86 101.5 3.39 4 44 1.73 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
100RCTUEV5010 100 Nickel Plated Brass Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.65
100CTUEV5010 100 Nickel Plated Brass Metric M100 2 86 101.5 3.39 4 24 0.94 123 135.3 4.84 5.33 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC33 3.65
100CTUEV5310 100 Nickel Plated Brass NPT 4" 86 101.5 3.39 4 44 1.73 125.9 90.5 3.56 0.4 0.03 0.02 3.15 4 0.12 0.16
115RCTUEV0011 115 Brass Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 5.25
115CTUEV0011 115 Brass Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 5.25
115CTUEV0310 115 Brass NPT 4" 101 110.5 3.98 4.35 44 1.73 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
115CTUEV0312 115 Brass NPT 5" 101 110.5 3.98 4.35 46.8 1.84 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
115RCTUEV4011 115 Stainless Steel Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 4.85
115CTUEV4011 115 Stainless Steel Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 4.85
115CTUEV4310 115 Stainless Steel NPT 4" 101 110.5 3.98 4.35 44 1.73 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
115CTUEV4312 115 Stainless Steel NPT 5" 101 110.5 3.98 4.35 46.8 1.84 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
115RCTUEV5011 115 Nickel Plated Brass Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 5.25
115CTUEV5011 115 Nickel Plated Brass Metric M115 2 101 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC34 5.25
115CTUEV5310 115 Nickel Plated Brass NPT 4" 101 110.5 3.98 4.35 44 1.73 133 146.3 5.24 5.76 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
115CTUEV5312 115 Nickel Plated Brass NPT 5" 101 110.5 3.98 4.35 46.8 1.84 140.5 98 3.86 0.4 0.03 0.02 3.15 4 0.12 0.16
130RCTUEV0012 130 Brass Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.73
130CTUEV0012 130 Brass Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.73
130CTUEV0312 130 Brass NPT 5" 110 123.5 4.33 4.8 46.8 1.84 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16
130RCTUEV4012 130 Stainless Steel Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.21
130CTUEV4012 130 Stainless Steel Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.21
130CTUEV4312 130 Stainless Steel NPT 5" 110 123.5 4.33 4.8 46.8 1.84 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16
130RCTUEV5012 130 Nickel Plated Brass Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.73
130CTUEV5012 130 Nickel Plated Brass Metric M130 2 110 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16 PVC35 6.73
130CTUEV5312 130 Nickel Plated Brass NPT 5" 110 123.5 4.33 4.8 46.8 1.84 153 168.3 6.02 6.6 140.5 115 4.53 0.4 0.03 0.02 3.15 4 0.12 0.16
1
No results

0 of 162 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
