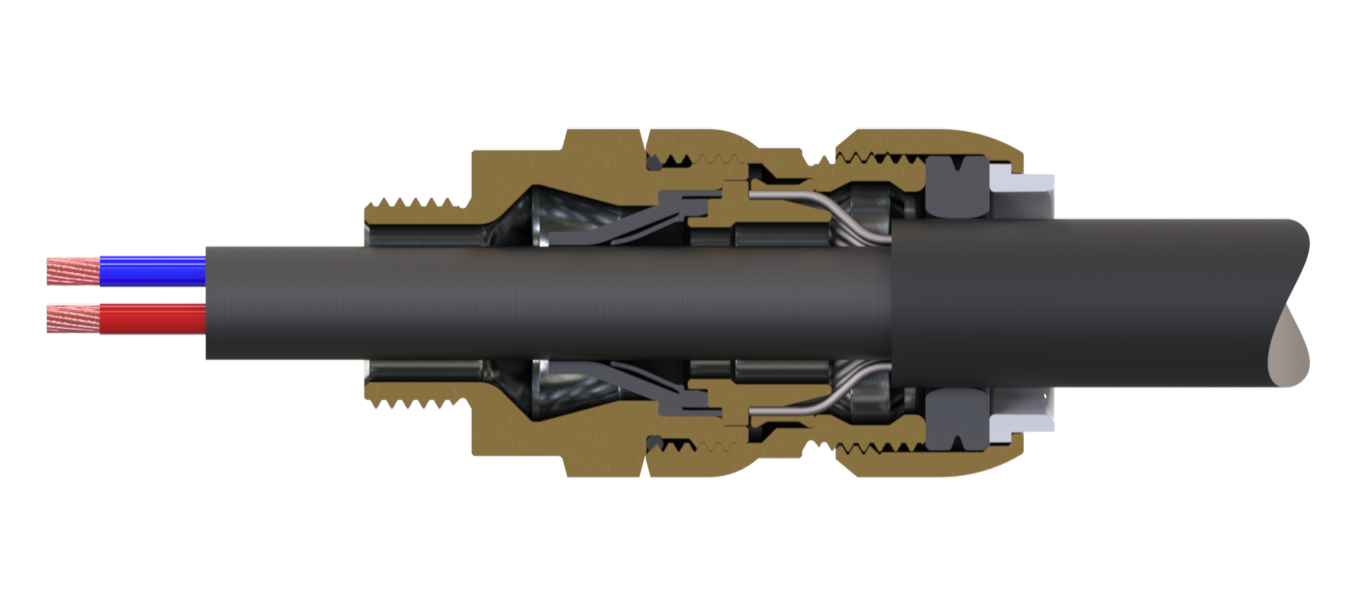

FORTRA-E1FX Cable Gland

ETIM Classification

EC000441

For Braid, Pliable Wire and Steel Tape Armoured cables

Description

The E1FX range of cable glands are for use in heavy duty applications in Explosive Atmospheres. For Braid, Pliable Wire and Steel Tape Armoured cables. Designed with a seal on both the inner and the outer sheath.

Features

  • Flameproof inner diaphragm seal – safe, reliable & robust; no installation or inspection ambiguity
  • Excellent cold flow performance with third party verified test report on cable types used globally
  • Outer seal with wider cable acceptance, meaning fewer stocking sizes
  • IP66 as standard with option to fit fully enclosed/protected deluge seal for IP67 68 69 & 69K & third party compliance to DTS 01
  • Dedicated captive cone for braid, with ‘AnyWay’ clamping ring
  • Metal-to-metal armour clamping; no installation or inspection ambiguity
  • Compact design; ideal for applications with limited installation space
  • Fewer installation steps for faster process
  • Fewer tools required for installation and maintenance

Additional Information

Certification
ATEX Certificate Number CML 24ATEX1333X
ATEX Certificate Number 2 CML 24ATEX4334X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/06617028/64e74f6ad564070019d58c53/atexlogo.jpg
IECEx Certificate Number IECEx CML 24.0137X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/1a644042/685afb8a626fb1a5637e189b/iecexlogo.jpg
Industrial Certificate Number CML 24CA17921
CE Logo Filename CE.jpg
CE Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/e6cd9bc2/64e74da5f9e88500180b83ee/CE.jpg
UKEX Certificate Number CML 24UKEX1335X, CML 24UKEX4336X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
EAC Certificate Number EAЭC KZ 7100841.01.01.07859
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
UkrSepro Certificate Number CЦ 25.1094X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
ABS Certificate Number 25-0285992-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
INMETRO Certificate Number TÜV 25.0801X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
Taiwan Certificate Number ML141200751312
Taiwan Logo Filename taiwanlogo.jpg
Taiwan Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/1d316014/69302466157771e7acc227bf/taiwanlogo.jpg
Technical Specification
Application EXAT
Armour Clamping Captive Armour Cone and ‘AnyWay’ Clamping Ring
Seal Material LSF Halogen Free Silicone
Seal Technique CMP Inner Diaphragm Seal and Outer Load Retention Sea
Seal Area(s) Cable Inner Bedding and Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical classifications applied as per IEC/EN 62444
** When CMP installation accessories are used. Refer to www.cmp-products.com for further information
*** IP68 tested to 300 kPa for 168 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1
Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20S16E1FX002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7.0 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20RE1FXD002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20S16E1FXD002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20SRE1FX002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20SRE1FXD002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20S16RE1FXD002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20SE1FXD002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20S16RE1FX002 20S16 Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20RE1FX002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20SE1FX002 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6.0 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20SE1FXD031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FX031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20S16E1FX031 20S16 Brass NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD031 20S16 Brass NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SE1FXD032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FX032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20S16E1FXD032 20S16 Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FX032 20S16 Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SE1FX102 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6.0 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.05
20S16E1FX102 20S16 Aluminium Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7.0 0.12 0.28 0.2 0.02 0.01 PVC04 0.05
20SRE1FXD102 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.05
20SRE1FX102 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.05
20RE1FX102 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.07
20S16RE1FXD102 20S16 Aluminium Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.05
20SE1FXD102 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.05
20S16RE1FX102 20S16 Aluminium Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.05
20RE1FXD102 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.07
20S16E1FXD102 20S16 Aluminium Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.05
20S16E1FX131 20S16 Aluminium NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD131 20S16 Aluminium NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SE1FX131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FX132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20S16E1FX132 20S16 Aluminium NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD132 20S16 Aluminium NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SRE1FX402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.10
20SRE1FXD402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.10
20S16RE1FX402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.10
20RE1FX402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.16
20S16RE1FXD402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.10
20SE1FXD402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.10
20SE1FX402 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6.0 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.10
20S16E1FXD402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.10
20RE1FXD402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.16
20S16E1FX402 20S16 Stainless Steel Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7.0 0.12 0.28 0.2 0.02 0.01 PVC04 0.10
20S16E1FX431 20S16 Stainless Steel NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD431 20S16 Stainless Steel NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SE1FX431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FX432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20S16E1FX432 20S16 Stainless Steel NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD432 20S16 Stainless Steel NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SRE1FX502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20SRE1FXD502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20SE1FXD502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20S16RE1FX502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20RE1FX502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20S16RE1FXD502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20SE1FX502 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.94 1.04 56 6.0 11.6 0.24 0.46 0.2 0.02 0.01 PVC04 0.11
20S16E1FXD502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20RE1FXD502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20S16E1FX502 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.2 0.24 0.52 15 0.59 24 26.4 0.94 1.04 56 3.1 7.0 0.12 0.28 0.2 0.02 0.01 PVC04 0.11
20SE1FX531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.94 1.04 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20S16E1FXD531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FX531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.2 0.24 0.52 24 26.4 0.94 1.04 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FX532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20S16E1FXD532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.2 0.24 0.52 20.2 0.8 56 3.1 7 0.12 0.28 0.2 0.02 0.01
20SE1FX532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
20SE1FXD532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 56 6 11.6 0.24 0.46 0.2 0.02 0.01
25RE1FX003 25 Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25RE1FXD003 25 Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25RE1FX103 25 Aluminium Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.12
25RE1FXD103 25 Aluminium Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.12
25RE1FX403 25 Stainless Steel Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.27
25RE1FXD403 25 Stainless Steel Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.27
25RE1FXD503 25 Nickel Plated Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25RE1FX503 25 Nickel Plated Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
32RE1FX004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32RE1FXD004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32RE1FX104 32 Aluminium Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.19
32RE1FXD104 32 Aluminium Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.19
32RE1FXD404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.39
32RE1FX404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.39
32RE1FX504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32RE1FXD504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
40RE1FX005 40 Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40RE1FXD005 40 Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40RE1FX105 40 Aluminium Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.27
40RE1FXD105 40 Aluminium Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.27
40RE1FXD405 40 Stainless Steel Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.57
40RE1FX405 40 Stainless Steel Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.57
40RE1FXD505 40 Nickel Plated Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40RE1FX505 40 Nickel Plated Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
50RE1FX006 50 Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
50RE1FX106 50 Aluminium Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 0.45
50RE1FX406 50 Stainless Steel Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 0.95
50RE1FX506 50 Nickel Plated Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
20E1FXD002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20E1FX002 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8.0 14.0 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20E1FX031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX102 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8.0 14.0 0.31 0.55 0.2 0.02 0.01 PVC06 0.07
20E1FXD102 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.07
20E1FX131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8.0 14.0 0.31 0.55 0.2 0.02 0.01 PVC06 0.16
20E1FXD402 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.16
20E1FX431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8.0 14.0 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20E1FXD502 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01 PVC06 0.17
20E1FXD531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30 33 1.18 1.3 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FX532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
20E1FXD532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 60 8 14 0.31 0.55 0.2 0.02 0.01
25E1FX003 25 Brass Metric M25 1.5 16.0 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11.0 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25E1FXD003 25 Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25E1FXD032 25 Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX032 25 Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX033 25 Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD033 25 Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD103 25 Aluminium Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.12
25E1FX103 25 Aluminium Metric M25 1.5 16.0 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11.0 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.12
25E1FX132 25 Aluminium NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD132 25 Aluminium NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD133 25 Aluminium NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX133 25 Aluminium NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX403 25 Stainless Steel Metric M25 1.5 16.0 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11.0 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.27
25E1FXD403 25 Stainless Steel Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.27
25E1FX432 25 Stainless Steel NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD432 25 Stainless Steel NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD433 25 Stainless Steel NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX433 25 Stainless Steel NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD503 25 Nickel Plated Brass Metric M25 1.5 16 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25E1FX503 25 Nickel Plated Brass Metric M25 1.5 16.0 26.2 0.63 1.03 15 0.59 37.5 41.3 1.48 1.63 73.5 11.0 19.5 0.43 0.77 0.2 0.02 0.01 PVC09 0.30
25E1FX532 25 Nickel Plated Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD532 25 Nickel Plated Brass NPT 3/4" 16 26.2 0.63 1.03 20.2 0.8 37.5 41.3 1.48 1.63 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FX533 25 Nickel Plated Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
25E1FXD533 25 Nickel Plated Brass NPT 1" 16 26.2 0.63 1.03 25 0.98 73.5 11 19.5 0.43 0.77 0.2 0.02 0.01
32E1FX004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17.0 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32E1FXD004 32 Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32E1FXD033 32 Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX033 32 Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX034 32 Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD034 32 Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD104 32 Aluminium Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.19
32E1FX104 32 Aluminium Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17.0 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.19
32E1FXD133 32 Aluminium NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX133 32 Aluminium NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD134 32 Aluminium NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX134 32 Aluminium NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17.0 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.39
32E1FXD404 32 Stainless Steel Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.39
32E1FX433 32 Stainless Steel NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD433 32 Stainless Steel NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD434 32 Stainless Steel NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX434 32 Stainless Steel NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32E1FX504 32 Nickel Plated Brass Metric M32 1.5 21.5 33.9 0.85 1.33 15 0.59 46 50.6 1.81 1.99 78.5 17.0 26.5 0.67 1.04 0.2 0.02 0.01 PVC11 0.43
32E1FX533 32 Nickel Plated Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD533 32 Nickel Plated Brass NPT 1" 21.5 33.9 0.85 1.33 25 0.98 46 50.6 1.81 1.99 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FX534 32 Nickel Plated Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
32E1FXD534 32 Nickel Plated Brass NPT 1-1/4" 21.5 33.9 0.85 1.33 25.6 1.01 78.5 17 26.5 0.67 1.04 0.2 0.02 0.01
40E1FX005 40 Brass Metric M40 1.5 28.0 40.4 1.10 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22.0 32.0 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40E1FXD005 40 Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40E1FX034 40 Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD034 40 Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX035 40 Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD035 40 Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD105 40 Aluminium Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.27
40E1FX105 40 Aluminium Metric M40 1.5 28.0 40.4 1.10 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22.0 32.0 0.87 1.26 0.2 0.03 0.01 PVC15 0.27
40E1FXD134 40 Aluminium NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX134 40 Aluminium NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD135 40 Aluminium NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX135 40 Aluminium NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD405 40 Stainless Steel Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.57
40E1FX405 40 Stainless Steel Metric M40 1.5 28.0 40.4 1.10 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22.0 32.0 0.87 1.26 0.2 0.03 0.01 PVC15 0.57
40E1FX434 40 Stainless Steel NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD434 40 Stainless Steel NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD435 40 Stainless Steel NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX435 40 Stainless Steel NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX505 40 Nickel Plated Brass Metric M40 1.5 28.0 40.4 1.10 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22.0 32.0 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40E1FXD505 40 Nickel Plated Brass Metric M40 1.5 28 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01 PVC15 0.62
40E1FX534 40 Nickel Plated Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD534 40 Nickel Plated Brass NPT 1-1/4" 28 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FX535 40 Nickel Plated Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
40E1FXD535 40 Nickel Plated Brass NPT 1-1/2" 28 40.4 1.1 1.59 26.1 1.03 83.5 22 32 0.87 1.26 0.2 0.03 0.01
50E1FX006 50 Brass Metric M50 1.5 38.0 53.2 1.50 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44.0 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
50E1FXD006 50 Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
50E1FX035 50 Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD035 50 Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD036 50 Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX036 50 Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX037 50 Brass NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD037 50 Brass NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX106 50 Aluminium Metric M50 1.5 38.0 53.2 1.50 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44.0 1.16 1.73 0.3 0.03 0.01 PVC21 0.45
50E1FXD106 50 Aluminium Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 0.45
50E1FX135 50 Aluminium NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD135 50 Aluminium NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX136 50 Aluminium NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD136 50 Aluminium NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD137 50 Aluminium NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX137 50 Aluminium NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD406 50 Stainless Steel Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 0.95
50E1FX406 50 Stainless Steel Metric M50 1.5 38.0 53.2 1.50 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44.0 1.16 1.73 0.3 0.03 0.01 PVC21 0.95
50E1FX435 50 Stainless Steel NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD435 50 Stainless Steel NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX436 50 Stainless Steel NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD436 50 Stainless Steel NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX437 50 Stainless Steel NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD506 50 Nickel Plated Brass Metric M50 1.5 38 53.2 1.5 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
50E1FX506 50 Nickel Plated Brass Metric M50 1.5 38.0 53.2 1.50 2.09 15 0.59 70 77 2.76 3.03 95 29.5 44.0 1.16 1.73 0.3 0.03 0.01 PVC21 1.03
50E1FXD535 50 Nickel Plated Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX535 50 Nickel Plated Brass NPT 1-1/2" 38 53.2 1.5 2.09 26.1 1.03 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX536 50 Nickel Plated Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FXD536 50 Nickel Plated Brass NPT 2" 38 53.2 1.5 2.09 26.9 1.06 70 77 2.76 3.03 95 29.5 44 1.16 1.73 0.3 0.03 0.01
50E1FX537 50 Nickel Plated Brass NPT 2-1/2" 38 53.2 1.5 2.09 39.9 1.57 95 29.5 44 1.16 1.73 0.3 0.03 0.01
63E1FX007 63 Brass Metric M63 1.5 52.0 66.0 2.05 2.60 15 0.59 80 88 3.15 3.46 106 41.5 55.0 1.63 2.17 0.3 0.03 0.01 PVC25 1.24
63E1FX107 63 Aluminium Metric M63 1.5 52.0 66.0 2.05 2.60 15 0.59 80 88 3.15 3.46 106 41.5 55.0 1.63 2.17 0.3 0.03 0.01 PVC25 0.57
63E1FX407 63 Stainless Steel Metric M63 1.5 52.0 66.0 2.05 2.60 15 0.59 80 88 3.15 3.46 106 41.5 55.0 1.63 2.17 0.3 0.03 0.01 PVC25 1.14
63E1FX507 63 Nickel Plated Brass Metric M63 1.5 52.0 66.0 2.05 2.60 15 0.59 80 88 3.15 3.46 106 41.5 55.0 1.63 2.17 0.3 0.03 0.01 PVC25 1.24
75E1FX008 75 Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 106 53.5 68.0 2.11 2.68 0.3 0.03 0.01 PVC30 2.19
75E1FX108 75 Aluminium Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 106 53.5 68.0 2.11 2.68 0.3 0.03 0.01 PVC30 0.96
75E1FX408 75 Stainless Steel Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 106 53.5 68.0 2.11 2.68 0.3 0.03 0.01 PVC30 2.01
75E1FX508 75 Nickel Plated Brass Metric M75 1.5 64.5 78.5 2.54 3.09 15 0.59 100 110 3.94 4.33 106 53.5 68.0 2.11 2.68 0.3 0.03 0.01 PVC30 2.19
90E1FX009 90 Brass Metric M90 2 75.0 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 136 66.0 78.5 2.60 3.09 0.4 0.03 0.02 PVC32 4.17
90E1FX109 90 Aluminium Metric M90 2 75.0 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 136 66.0 78.5 2.60 3.09 0.4 0.03 0.02 PVC32 1.75
90E1FX409 90 Stainless Steel Metric M90 2 75.0 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 136 66.0 78.5 2.60 3.09 0.4 0.03 0.02 PVC32 3.83
90E1FX509 90 Nickel Plated Brass Metric M90 2 75.0 90.5 2.95 3.56 24 0.94 114 125.4 4.49 4.94 136 66.0 78.5 2.60 3.09 0.4 0.03 0.02 PVC32 4.17
100E1FX0010 100 Brass Metric M100 2 86.0 101.5 3.39 4.0 24 0.94 123 135.3 4.84 5.33 141 76.0 90.5 2.99 3.56 0.4 0.03 0.02 PVC33 4.27
100E1FX1010 100 Aluminium Metric M100 2 86.0 101.5 3.39 4.0 24 0.94 123 135.3 4.84 5.33 141 76.0 90.5 2.99 3.56 0.4 0.03 0.02 PVC33 1.86
100E1FX4010 100 Stainless Steel Metric M100 2 86.0 101.5 3.39 4.0 24 0.94 123 135.3 4.84 5.33 141 76.0 90.5 2.99 3.56 0.4 0.03 0.02 PVC33 3.93
100E1FX5010 100 Nickel Plated Brass Metric M100 2 86.0 101.5 3.39 4.0 24 0.94 123 135.3 4.84 5.33 141 76.0 90.5 2.99 3.56 0.4 0.03 0.02 PVC33 4.27
115E1FX0011 115 Brass Metric M115 2 101.0 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 155.5 86.0 98.0 3.39 3.86 0.4 0.03 0.02 PVC34 5.88
115E1FX1011 115 Aluminium Metric M115 2 101.0 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 155.5 86.0 98.0 3.39 3.86 0.4 0.03 0.02 PVC34 2.53
115E1FX4011 115 Stainless Steel Metric M115 2 101.0 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 155.5 86.0 98.0 3.39 3.86 0.4 0.03 0.02 PVC34 5.40
115E1FX5011 115 Nickel Plated Brass Metric M115 2 101.0 110.5 3.98 4.35 24 0.94 133 146.3 5.24 5.76 155.5 86.0 98.0 3.39 3.86 0.4 0.03 0.02 PVC34 5.88
130E1FX0012 130 Brass Metric M130 2 110.0 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 165.7 97.0 115.0 3.82 4.53 0.4 0.03 0.02 PVC35 7.85
130E1FX1012 130 Aluminium Metric M130 2 110.0 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 165.7 97.0 115.0 3.82 4.53 0.4 0.03 0.02 PVC35 3.35
130E1FX4012 130 Stainless Steel Metric M130 2 110.0 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 165.7 97.0 115.0 3.82 4.53 0.4 0.03 0.02 PVC35 7.21
130E1FX5012 130 Nickel Plated Brass Metric M130 2 110.0 123.5 4.33 4.8 24 0.94 153 168.3 6.02 6.6 165.7 97.0 115.0 3.82 4.53 0.4 0.03 0.02 PVC35 7.85
1
No results

0 of 250 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
