PX2KXREX Cable Gland

ETIM Classification

EC000441

For Braid, Pliable Wire and Steel Tape Armoured cables.

Description

The PX2KXREX range of RapidEx barrier cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed to prevent gas, vapour or fluid from migrating through a cable, or else prevent flame transmission from a Flameproof type ‘d’ enclosure, as determined by IEC 60079-14. The RapidEx liquid pour sealing system enhances reliability, reduces risk and significantly reduces curing time.

Features

  • RapidEx liquid pour sealing system
  • reduces installation time
  • Metal-to-metal armour clamping
  • Direct and remote installation
  • Integral protected deluge seal
  • Controlled outer load retention seal
  • Unique OSTG prevents over tightening
  • -60˚C to +85˚C

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1325X
ATEX Certificate Number 2 CML 18ATEX4317X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0182X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1214X, CML 21UKEX4215X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04595/22
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 19-AV4BO-0372X, 19-AV4BO-0373X, 19-AV4BO-0374X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313003190
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/8, P548696/12
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64838/E23-02-065451/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21962 21.0305X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 2288626
CSA Code of Protection Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F and G; Class III, Div 1 and 2; Type 4X; Oil Resistance II; Class I, Zone 1, AEx d IIC Gb, AEx e IIC Gb; Class I, Zone 2, AEx nR IIC Gc, Ex nR IIC Gc; Class I, Zone 20 AEx ta IIIC Da
CSA Compliance Standards CSA C22.2 No. 0, 18, 25, 30, 174, 94, 60079-0, -1, -7, -15, -31; UL 514B, UL 2225, UL 50, UL 60079-0, -1, -7, -15
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
INMETRO Certificate Number TÜV 12.2073X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Armour Clamping Detachable Resin Tube / Cone and AnyWay Universal Clamping Ring
Patent Granted ES 2287986, NO 2287986, TR 2287986, AU 2010284848, AU 2014274614, GB 2485114, SG 178839, US 8872027, US 9484133, US 9774178, MY 153846, US 10193321, US1034078
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Barrier Compound
Seal Technique CMP Outer Load Retention Seal and Inner RapidEx Barrier Seal
Seal Area(s) Inner RapidEx Barrier Seal and Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. ***Where the cable is permitted by code (NEC and/or CEC) **** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request.

Downloads

Certificates

Product Selector

1

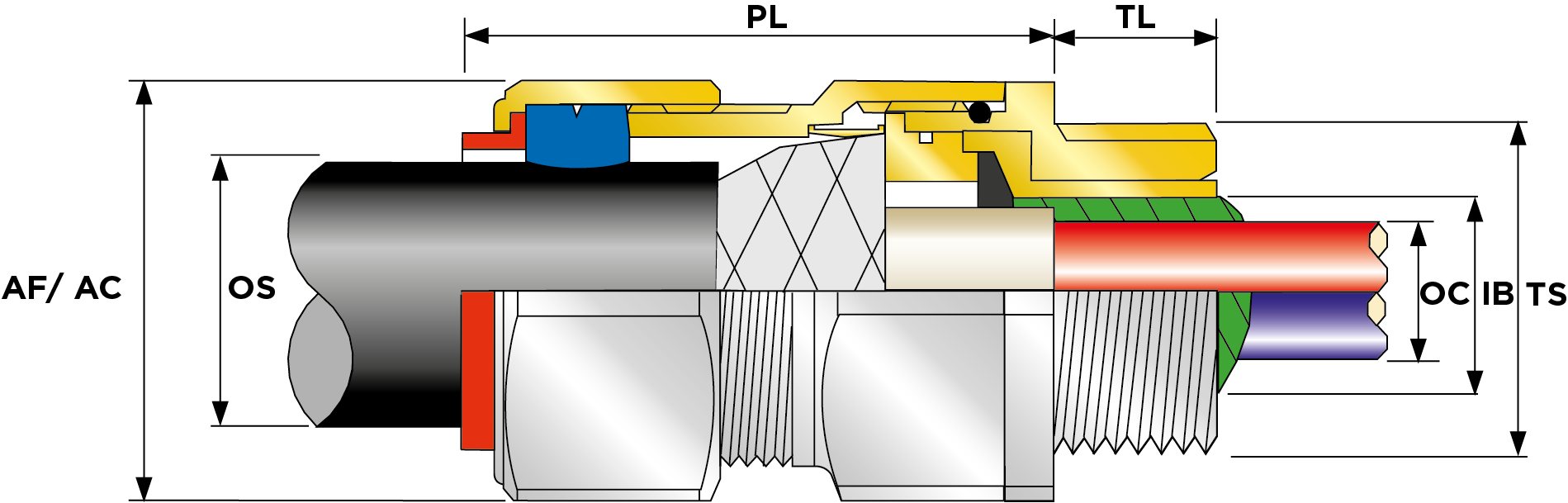

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Max Ø Over Conductors (mm) Max Ø Over Conductors (Imp) Max No. of Conductors NC Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Shroud Size Ass'y Weight
20S16PX2KXREX1RA 20S16 Brass Metric M20 1.5 6.1 13.1 0.24 0.52 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.24
20S16PX2KXREX1RA1 20S16 Aluminium Metric M20 1.5 6.1 13.1 0.24 0.52 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.075
20S16PX2KXREX1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.22641509433962262
20S16PX2KXREX1RA5 20S16 Nickel Plated Brass Metric M20 1.5 6.1 13.1 0.24 0.52 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.24
20S16PX2KXREX1RA031 20S16 Brass NPT 1/2" 6.1 13.1 0.24 0.52 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA131 20S16 Aluminium NPT 1/2" 6.1 13.1 0.24 0.52 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA531 20S16 Nickel Plated Brass NPT 1/2" 6.1 13.1 0.24 0.52 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA 20S Brass Metric M20 1.5 9.5 15.9 0.37 0.63 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.23
20SPX2KXREX1RA1 20S Aluminium Metric M20 1.5 9.5 15.9 0.37 0.63 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.071875
20SPX2KXREX1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.2169811320754717
20SPX2KXREX1RA5 20S Nickel Plated Brass Metric M20 1.5 9.5 15.9 0.37 0.63 11.7 0.46 21 15 0.59 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01 PVC06 0.23
20S16PX2KXREX1RA032 20S16 Brass NPT 3/4" 6.1 13.1 0.24 0.52 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA132 20S16 Aluminium NPT 3/4" 6.1 13.1 0.24 0.52 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20S16PX2KXREX1RA532 20S16 Nickel Plated Brass NPT 3/4" 6.1 13.1 0.24 0.52 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20PX2KXREX1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 12.6 0.5 21 15 0.59 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02 PVC06 0.24
20PX2KXREX1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 12.6 0.5 21 15 0.59 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02 PVC06 0.075
20PX2KXREX1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 12.6 0.5 21 15 0.59 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02 PVC06 0.22641509433962262
20PX2KXREX1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 12.6 0.5 21 15 0.59 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02 PVC06 0.24
20SPX2KXREX1RA031 20S Brass NPT 1/2" 9.5 15.9 0.37 0.63 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA131 20S Aluminium NPT 1/2" 9.5 15.9 0.37 0.63 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA531 20S Nickel Plated Brass NPT 1/2" 9.5 15.9 0.37 0.63 11.7 0.46 21 19.9 0.78 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA032 20S Brass NPT 3/4" 9.5 15.9 0.37 0.63 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA132 20S Aluminium NPT 3/4" 9.5 15.9 0.37 0.63 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
20SPX2KXREX1RA532 20S Nickel Plated Brass NPT 3/4" 9.5 15.9 0.37 0.63 11.7 0.46 21 20.2 0.8 30.5 33.6 1.2 1.32 62 11.7 0 0.46 0.3 0.04 0.01
25SPX2KXREX1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.37
25SPX2KXREX1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.11562499999999999
25SPX2KXREX1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.3490566037735849
25SPX2KXREX1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.37
20PX2KXREX1RA031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 12.6 0.5 21 19.9 0.78 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 12.6 0.5 21 19.9 0.78 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 12.6 0.5 21 19.9 0.78 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 12.6 0.5 21 19.9 0.78 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
25PX2KXREX1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.37
25PX2KXREX1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.11562499999999999
25PX2KXREX1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.3490566037735849
25PX2KXREX1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 17.5 0.69 30 15 0.59 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02 PVC09 0.37
20PX2KXREX1RA032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 12.6 0.5 21 20.2 0.8 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 12.6 0.5 21 20.2 0.8 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 12.6 0.5 21 20.2 0.8 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
20PX2KXREX1RA532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 12.6 0.5 21 20.2 0.8 30.5 33.6 1.2 1.32 63 12.9 0 0.51 0.4 0.04 0.02
32PX2KXREX1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 23.6 0.93 50 15 0.59 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02 PVC11 0.57
32PX2KXREX1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 23.6 0.93 50 15 0.59 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02 PVC11 0.17812499999999998
32PX2KXREX1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 23.6 0.93 50 15 0.59 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02 PVC11 0.5377358490566037
32PX2KXREX1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 23.6 0.93 50 15 0.59 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02 PVC11 0.57
25SPX2KXREX1RA032 25S Brass NPT 3/4" 14 22 0.55 0.87 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
40PX2KXREX1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 30 1.18 59 15 0.59 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02 PVC15 0.8
40PX2KXREX1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 30 1.18 59 15 0.59 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02 PVC15 0.25
40PX2KXREX1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 30 1.18 59 15 0.59 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02 PVC15 0.7547169811320755
40PX2KXREX1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 30 1.18 59 15 0.59 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02 PVC15 0.8
25SPX2KXREX1RA033 25S Brass NPT 1" 14 22 0.55 0.87 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA133 25S Aluminium NPT 1" 14 22 0.55 0.87 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25SPX2KXREX1RA533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
50SPX2KXREX1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 36.6 1.44 89 15 0.59 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02 PVC18 0.9
50SPX2KXREX1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 36.6 1.44 89 15 0.59 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02 PVC18 0.28125
50SPX2KXREX1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 36.6 1.44 89 15 0.59 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02 PVC18 0.8490566037735849
50SPX2KXREX1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 36.6 1.44 89 15 0.59 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02 PVC18 0.9
25PX2KXREX1RA032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 17.5 0.69 30 20.2 0.8 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
50PX2KXREX1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 41 1.61 115 15 0.59 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02 PVC21 1.19
50PX2KXREX1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 41 1.61 115 15 0.59 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02 PVC21 0.37187499999999996
50PX2KXREX1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 41 1.61 115 15 0.59 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02 PVC21 1.1226415094339621
50PX2KXREX1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 41 1.61 115 15 0.59 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02 PVC21 1.19
25PX2KXREX1RA033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
25PX2KXREX1RA533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 17.5 0.69 30 25 0.98 37.5 41.3 1.48 1.63 69.5 17.9 0 0.7 0.4 0.05 0.02
63SPX2KXREX1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 47.9 1.89 115 15 0.59 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02 PVC23 1.39
63SPX2KXREX1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 47.9 1.89 115 15 0.59 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02 PVC23 0.43437499999999996
63SPX2KXREX1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 47.9 1.89 115 15 0.59 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02 PVC23 1.311320754716981
63SPX2KXREX1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 47.9 1.89 115 15 0.59 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02 PVC23 1.39
32PX2KXREX1RA033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 23.6 0.93 50 25 0.98 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 23.6 0.93 50 25 0.98 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 23.6 0.93 50 25 0.98 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 23.6 0.93 50 25 0.98 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
63PX2KXREX1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 53.7 2.11 115 15 0.59 80 88 3.15 3.47 80.3 54 0 2.13 0.6 0.06 0.02 PVC25 1.41
63PX2KXREX1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 53.7 2.11 115 15 0.59 80 88 3.15 3.47 80.3 54 0 2.13 0.6 0.06 0.02 PVC25 0.44062499999999993
63PX2KXREX1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 53.7 2.11 115 15 0.59 80 88 3.15 3.47 80.3 54 0 2.13 0.6 0.06 0.02 PVC25 1.3301886792452828
63PX2KXREX1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 53.7 2.11 115 15 0.59 80 88 3.15 3.47 80.3 54 0 2.13 0.6 0.06 0.02 PVC25 1.41
32PX2KXREX1RA034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 23.6 0.93 50 25.6 1.01 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 23.6 0.93 50 25.6 1.01 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 23.6 0.93 50 25.6 1.01 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
32PX2KXREX1RA534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 23.6 0.93 50 25.6 1.01 46 50.6 1.81 1.99 75 23.9 0 0.94 0.4 0.05 0.02
75SPX2KXREX1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 59.9 2.36 140 15 0.59 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02 PVC28 2.09
75SPX2KXREX1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 59.9 2.36 140 15 0.59 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02 PVC28 0.653125
75SPX2KXREX1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 59.9 2.36 140 15 0.59 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02 PVC28 1.9716981132075468
75SPX2KXREX1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 59.9 2.36 140 15 0.59 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02 PVC28 2.09
40PX2KXREX1RA034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 30 1.18 59 25.6 1.01 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 30 1.18 59 25.6 1.01 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 30 1.18 59 25.6 1.01 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 30 1.18 59 25.6 1.01 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
75PX2KXREX1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 64.3 2.53 140 15 0.59 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02 PVC30 2.54
75PX2KXREX1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 64.3 2.53 140 15 0.59 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02 PVC30 0.79375
75PX2KXREX1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 64.3 2.53 140 15 0.59 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02 PVC30 2.3962264150943398
75PX2KXREX1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 64.3 2.53 140 15 0.59 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02 PVC30 2.54
40PX2KXREX1RA035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 30 1.18 59 26.1 1.03 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 30 1.18 59 26.1 1.03 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 30 1.18 59 26.1 1.03 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
40PX2KXREX1RA535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 30 1.18 59 26.1 1.03 55 60.5 2.17 2.38 75 30.3 0 1.19 0.4 0.06 0.02
90PX2KXREX1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 75.3 2.96 140 20 0.79 115 126.5 4.53 4.98 102.1 75.6 0 2.98 0.8 0.06 0.03 PVC32 3.71
90PX2KXREX1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 75.3 2.96 140 20 0.79 115 126.5 4.53 4.98 102.1 75.6 0 2.98 0.8 0.06 0.03 PVC32 1.1593749999999998
90PX2KXREX1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 75.3 2.96 140 20 0.79 115 126.5 4.53 4.98 102.1 75.6 0 2.98 0.8 0.06 0.03 PVC32 3.5
90PX2KXREX1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 75.3 2.96 140 20 0.79 115 126.5 4.53 4.98 102.1 75.6 0 2.98 0.8 0.06 0.03 PVC32 3.71
50SPX2KXREX1RA035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.1 1.03 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.1 1.03 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.1 1.03 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.1 1.03 60 66 2.36 2.6 77 36.9 0 1.45 0.4 0.06 0.02
100PX2KXREX1RA 100 Brass Metric M100 2 86.1 101.4 3.39 3.99 83.6 3.29 200 20 0.79 127 139.7 5 5.5 114 85.9 0 3.38 0.8 0.06 0.03 LSF33 4.31
100PX2KXREX1RA1 100 Aluminium Metric M100 2 86.1 101.4 3.39 3.99 83.6 3.29 200 20 0.79 127 139.7 5 5.5 114 85.9 0 3.38 0.8 0.06 0.03 LSF33 1.3468749999999998
100PX2KXREX1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 83.6 3.29 200 20 0.79 127 139.7 5 5.5 114 85.9 0 3.38 0.8 0.06 0.03 LSF33 4.066037735849056
100PX2KXREX1RA5 100 Nickel Plated Brass Metric M100 2 86.1 101.4 3.39 3.99 83.6 3.29 200 20 0.79 127 139.7 5 5.5 114 85.9 0 3.38 0.8 0.06 0.03 LSF33 4.31
50SPX2KXREX1RA036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.9 1.06 65 71.5 2.56 2.82 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.9 1.06 65 71.5 2.56 2.82 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.9 1.06 65 71.5 2.56 2.82 77 36.9 0 1.45 0.4 0.06 0.02
50SPX2KXREX1RA536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 36.6 1.44 89 26.9 1.06 65 71.5 2.56 2.82 77 36.9 0 1.45 0.4 0.06 0.02
50PX2KXREX1RA036 50 Brass NPT 2" 40.4 53 1.59 2.09 41 1.61 115 26.9 1.06 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 41 1.61 115 26.9 1.06 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 41 1.61 115 26.9 1.06 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 41 1.61 115 26.9 1.06 70 77 2.76 3.03 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 41 1.61 115 39.9 1.57 80 88 3.15 3.47 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 41 1.61 115 39.9 1.57 80 88 3.15 3.47 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 41 1.61 115 39.9 1.57 80 88 3.15 3.47 77 41.3 0 1.63 0.6 0.06 0.02
50PX2KXREX1RA537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 41 1.61 115 39.9 1.57 80 88 3.15 3.47 77 41.3 0 1.63 0.6 0.06 0.02
63SPX2KXREX1RA036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 47.9 1.89 115 26.9 1.06 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 47.9 1.89 115 26.9 1.06 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 47.9 1.89 115 26.9 1.06 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 47.9 1.89 115 26.9 1.06 75 82.5 2.96 3.25 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 47.9 1.89 115 39.9 1.57 79 86.9 3.11 3.42 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 47.9 1.89 115 39.9 1.57 79 86.9 3.11 3.42 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 47.9 1.89 115 39.9 1.57 79 86.9 3.11 3.42 79.7 47.8 0 1.88 0.6 0.06 0.02
63SPX2KXREX1RA537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 47.9 1.89 115 39.9 1.57 79 86.9 3.11 3.42 79.7 47.8 0 1.88 0.6 0.06 0.02
63PX2KXREX1RA037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 53.7 2.11 115 39.9 1.57 79 86.9 3.11 3.42 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 53.7 2.11 115 39.9 1.57 79 86.9 3.11 3.42 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 53.7 2.11 115 39.9 1.57 79 86.9 3.11 3.42 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 53.7 2.11 115 39.9 1.57 79 86.9 3.11 3.42 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 53.7 2.11 115 41.5 1.63 100 110 3.94 4.33 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 53.7 2.11 115 41.5 1.63 100 110 3.94 4.33 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 53.7 2.11 115 41.5 1.63 100 110 3.94 4.33 80.3 54 0 2.13 0.6 0.06 0.02
63PX2KXREX1RA538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 53.7 2.11 115 41.5 1.63 100 110 3.94 4.33 80.3 54 0 2.13 0.6 0.06 0.02
75SPX2KXREX1RA037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 59.9 2.36 140 39.9 1.57 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 59.9 2.36 140 39.9 1.57 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 59.9 2.36 140 39.9 1.57 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 59.9 2.36 140 39.9 1.57 90 99 3.55 3.9 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA038 75S Brass NPT 3" 59 72 2.32 2.83 59.9 2.36 140 41.5 1.63 100 110 3.94 4.33 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA138 75S Aluminium NPT 3" 59 72 2.32 2.83 59.9 2.36 140 41.5 1.63 100 110 3.94 4.33 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 59.9 2.36 140 41.5 1.63 100 110 3.94 4.33 86.8 60.2 0 2.37 0.6 0.06 0.02
75SPX2KXREX1RA538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 59.9 2.36 140 41.5 1.63 100 110 3.94 4.33 86.8 60.2 0 2.37 0.6 0.06 0.02
75PX2KXREX1RA038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 64.3 2.53 140 41.5 1.63 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 64.3 2.53 140 41.5 1.63 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 64.3 2.53 140 41.5 1.63 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 64.3 2.53 140 41.5 1.63 100 110 3.94 4.33 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 64.3 2.53 140 42.8 1.69 114.3 125.7 4.5 4.95 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 64.3 2.53 140 42.8 1.69 114.3 125.7 4.5 4.95 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 64.3 2.53 140 42.8 1.69 114.3 125.7 4.5 4.95 88.3 64.2 0 2.53 0.6 0.06 0.02
75PX2KXREX1RA539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 64.3 2.53 140 42.8 1.69 114.3 125.7 4.5 4.95 88.3 64.2 0 2.53 0.6 0.06 0.02
90PX2KXREX1RA0310 90 Brass NPT 4" 76.2 90.3 3 3.56 75.3 2.96 140 44 1.73 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 75.3 2.96 140 44 1.73 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 75.3 2.96 140 44 1.73 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 75.3 2.96 140 44 1.73 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 75.3 2.96 140 42.8 1.69 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 75.3 2.96 140 42.8 1.69 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 75.3 2.96 140 42.8 1.69 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
90PX2KXREX1RA539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 75.3 2.96 140 42.8 1.69 114.3 125.7 4.5 4.95 102.1 75.6 0 2.98 0.8 0.06 0.03
100PX2KXREX1RA0310 100 Brass NPT 4" 86.1 101.4 3.39 3.99 83.6 3.29 200 44 1.73 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA1310 100 Aluminium NPT 4" 86.1 101.4 3.39 3.99 83.6 3.29 200 44 1.73 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 83.6 3.29 200 44 1.73 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA5310 100 Nickel Plated Brass NPT 4" 86.1 101.4 3.39 3.99 83.6 3.29 200 44 1.73 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA039 100 Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 83.6 3.29 200 42.8 1.69 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA139 100 Aluminium NPT 3-1/2" 86.1 101.4 3.39 3.99 83.6 3.29 200 42.8 1.69 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 83.6 3.29 200 42.8 1.69 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
100PX2KXREX1RA539 100 Nickel Plated Brass NPT 3-1/2" 86.1 101.4 3.39 3.99 83.6 3.29 200 42.8 1.69 133 146.3 5.24 5.76 114 85.9 0 3.38 0.8 0.06 0.03
1
No results

0 of 180 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
