PXRC Cable Gland

ETIM Classification

EC000441

For all types of Unarmoured cables when housed in rigid and flexible conduits.

Description

The PXRC range of compound barrier cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed to prevent gas, vapour or fluid from migrating through a cable, or else prevent flame transmission from a Flameproof type ‘d’ enclosure, as determined by IEC 60079-14

Features

  • Designed for rigid and flexible conduits
  • Easy install running coupler design
  • Compound barrier type flameproof seal
  • -60˚C to +85˚C
  • Internationally marked, UKEX, IECEx and ATEX
  • Compound barrier seals around internal cable cores after removing any inner cable sheath/bedding; completely eliminating any risk of coldflow

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1325X
ATEX Code of Protection ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
IECEx Certificate Number IECEx CML 18.0182X
IECEx Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1214X, CML 21UKEX4215X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04595/22
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0252X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313003190
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/8, P548696/12
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64838/E23-02-065451/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21962 21.0305X
Technical Specification
Application EXAT
Seal Material Epoxy Barrier Compound
Seal Area(s) Inner Compound Barrier
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. Alternative conduit sizes available upon request. See ‘thread option ordering examples’ table below for typical NPT and Metric thread ordering references

Downloads

Certificates

Product Selector

1

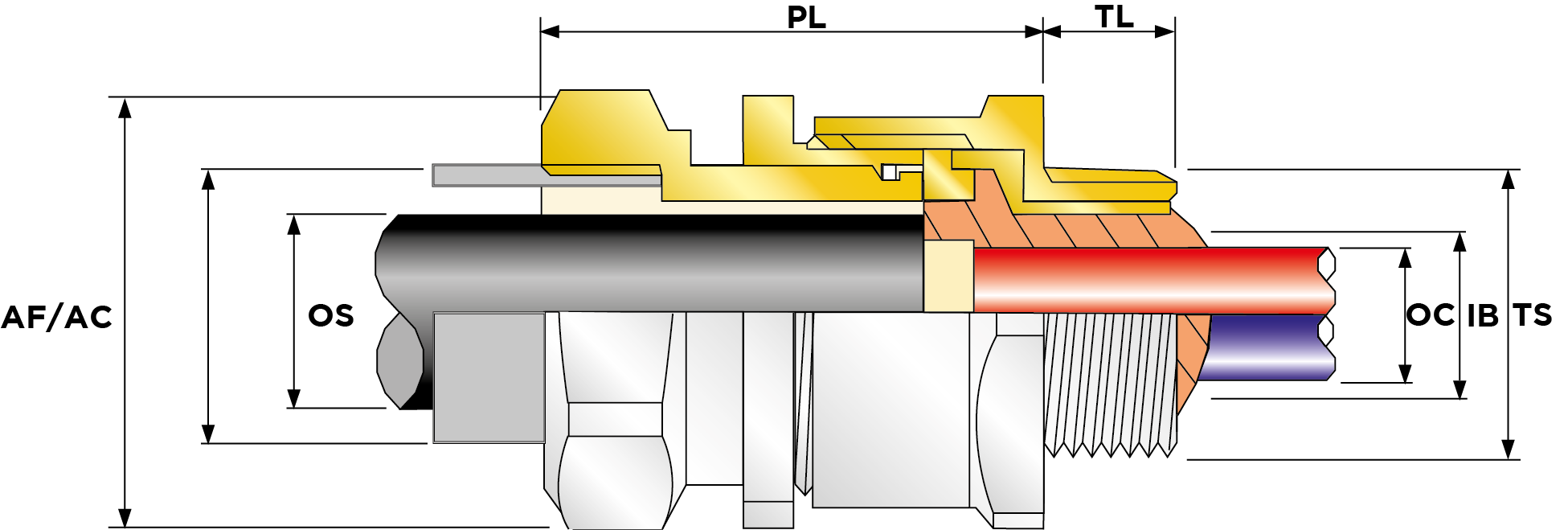

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) NPT Female Thread F1 Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Ass'y Weight
20PXRC1RA 20 Brass Metric M20 1.5 13.9 0 0.55 15 0.59 30 33 1.18 1.3 45.9 12.9 0 0.51 0.17
20PXRC1RA1 20 Aluminium Metric M20 1.5 13.9 0 0.55 15 0.59 30 33 1.18 1.3 45.9 12.9 0 0.51 0.053125
20PXRC1RA4 20 Stainless Steel Metric M20 1.5 13.9 0 0.55 15 0.59 30 33 1.18 1.3 45.9 12.9 0 0.51 0.16037735849056603
20PXRC1RA5 20 Nickel Plated Brass Metric M20 1.5 13.9 0 0.55 15 0.59 30 33 1.18 1.3 45.9 12.9 0 0.51 0.17
20PXRC1RA031 20 Brass NPT 1/2" 13.9 0 0.55 19.9 0.78 30.5 33.6 1.2 1.32 45.9 1/2" 12.9 0 0.51
20PXRC1RA032 20 Brass NPT 3/4" 13.9 0 0.55 20.2 0.8 30.5 33.6 1.2 1.32 45.9 3/4" 12.9 0 0.51
20PXRC1RA131 20 Aluminium NPT 1/2" 13.9 0 0.55 19.9 0.78 30.5 33.6 1.2 1.32 45.9 1/2" 12.9 0 0.51
20PXRC1RA132 20 Aluminium NPT 3/4" 13.9 0 0.55 20.2 0.8 30.5 33.6 1.2 1.32 45.9 3/4" 12.9 0 0.51
20PXRC1RA431 20 Stainless Steel NPT 1/2" 13.9 0 0.55 19.9 0.78 30.5 33.6 1.2 1.32 45.9 1/2" 12.9 0 0.51
20PXRC1RA432 20 Stainless Steel NPT 3/4" 13.9 0 0.55 20.2 0.8 30.5 33.6 1.2 1.32 45.9 3/4" 12.9 0 0.51
20PXRC1RA531 20 Nickel Plated Brass NPT 1/2" 13.9 0 0.55 19.9 0.78 30.5 33.6 1.2 1.32 45.9 1/2" 12.9 0 0.51
20PXRC1RA532 20 Nickel Plated Brass NPT 3/4" 13.9 0 0.55 20.2 0.8 30.5 33.6 1.2 1.32 45.9 3/4" 12.9 0 0.51
25PXRC1RA 25 Brass Metric M25 1.5 19.9 0 0.78 15 0.59 36 39.6 1.42 1.56 48.6 17.9 0 0.7 0.33
25PXRC1RA1 25 Aluminium Metric M25 1.5 19.9 0 0.78 15 0.59 36 39.6 1.42 1.56 48.6 17.9 0 0.7 0.103125
25PXRC1RA4 25 Stainless Steel Metric M25 1.5 19.9 0 0.78 15 0.59 36 39.6 1.42 1.56 48.6 17.9 0 0.7 0.3113207547169811
25PXRC1RA5 25 Nickel Plated Brass Metric M25 1.5 19.9 0 0.78 15 0.59 36 39.6 1.42 1.56 48.6 17.9 0 0.7 0.33
25PXRC1RA032 25 Brass NPT 3/4" 19.9 0 0.78 20.2 0.8 36 39.6 1.42 1.56 48.6 3/4" 17.9 0 0.7
25PXRC1RA033 25 Brass NPT 1" 19.9 0 0.78 25 0.98 36 39.6 1.42 1.56 48.6 1" 17.9 0 0.7
25PXRC1RA132 25 Aluminium NPT 3/4" 19.9 0 0.78 20.2 0.8 36 39.6 1.42 1.56 48.6 3/4" 17.9 0 0.7
25PXRC1RA133 25 Aluminium NPT 1" 19.9 0 0.78 25 0.98 36 39.6 1.42 1.56 48.6 1" 17.9 0 0.7
25PXRC1RA432 25 Stainless Steel NPT 3/4" 19.9 0 0.78 20.2 0.8 36 39.6 1.42 1.56 48.6 3/4" 17.9 0 0.7
25PXRC1RA433 25 Stainless Steel NPT 1" 19.9 0 0.78 25 0.98 36 39.6 1.42 1.56 48.6 1" 17.9 0 0.7
25PXRC1RA532 25 Nickel Plated Brass NPT 3/4" 19.9 0 0.78 20.2 0.8 36 39.6 1.42 1.56 48.6 3/4" 17.9 0 0.7
25PXRC1RA533 25 Nickel Plated Brass NPT 1" 19.9 0 0.78 25 0.98 36 39.6 1.42 1.56 48.6 1" 17.9 0 0.7
32PXRC1RA 32 Brass Metric M32 1.5 26.2 0 1.03 15 0.59 41 45.1 1.62 1.78 53 23.9 0 0.94 0.32
32PXRC1RA1 32 Aluminium Metric M32 1.5 26.2 0 1.03 15 0.59 41 45.1 1.62 1.78 53 23.9 0 0.94 0.09999999999999999
32PXRC1RA4 32 Stainless Steel Metric M32 1.5 26.2 0 1.03 15 0.59 41 45.1 1.62 1.78 53 23.9 0 0.94 0.3018867924528302
32PXRC1RA5 32 Nickel Plated Brass Metric M32 1.5 26.2 0 1.03 15 0.59 41 45.1 1.62 1.78 53 23.9 0 0.94 0.32
32PXRC1RA033 32 Brass NPT 1" 26.2 0 1.03 25 0.98 41 45.1 1.62 1.78 53 1" 23.9 0 0.94
32PXRC1RA034 32 Brass NPT 1-1/4" 26.2 0 1.03 25.6 1.01 46 50.6 1.81 1.99 53 1-1/4" 23.9 0 0.94
32PXRC1RA133 32 Aluminium NPT 1" 26.2 0 1.03 25 0.98 41 45.1 1.62 1.78 53 1" 23.9 0 0.94
32PXRC1RA134 32 Aluminium NPT 1-1/4" 26.2 0 1.03 25.6 1.01 46 50.6 1.81 1.99 53 1-1/4" 23.9 0 0.94
32PXRC1RA433 32 Stainless Steel NPT 1" 26.2 0 1.03 25 0.98 41 45.1 1.62 1.78 53 1" 23.9 0 0.94
32PXRC1RA434 32 Stainless Steel NPT 1-1/4" 26.2 0 1.03 25.6 1.01 46 50.6 1.81 1.99 53 1-1/4" 23.9 0 0.94
32PXRC1RA533 32 Nickel Plated Brass NPT 1" 26.2 0 1.03 25 0.98 41 45.1 1.62 1.78 53 1" 23.9 0 0.94
32PXRC1RA534 32 Nickel Plated Brass NPT 1-1/4" 26.2 0 1.03 25.6 1.01 46 50.6 1.81 1.99 53 1-1/4" 23.9 0 0.94
40PXRC1RA 40 Brass Metric M40 1.5 32.3 0 1.27 15 0.59 50 55 1.97 2.17 50.5 30.3 0 1.19 0.41
40PXRC1RA1 40 Aluminium Metric M40 1.5 32.3 0 1.27 15 0.59 50 55 1.97 2.17 50.5 30.3 0 1.19 0.128125
40PXRC1RA4 40 Stainless Steel Metric M40 1.5 32.3 0 1.27 15 0.59 50 55 1.97 2.17 50.5 30.3 0 1.19 0.38679245283018865
40PXRC1RA5 40 Nickel Plated Brass Metric M40 1.5 32.3 0 1.27 15 0.59 50 55 1.97 2.17 50.5 30.3 0 1.19 0.41
40PXRC1RA034 40 Brass NPT 1-1/4" 32.3 0 1.27 25.6 1.01 50 55 1.97 2.17 50.5 1-1/4" 30.3 0 1.19
40PXRC1RA035 40 Brass NPT 1-1/2" 32.3 0 1.27 26.1 1.03 50 55 1.97 2.17 50.5 1-1/2" 30.3 0 1.19
40PXRC1RA134 40 Aluminium NPT 1-1/4" 32.3 0 1.27 25.6 1.01 50 55 1.97 2.17 50.5 1-1/4" 30.3 0 1.19
40PXRC1RA135 40 Aluminium NPT 1-1/2" 32.3 0 1.27 26.1 1.03 50 55 1.97 2.17 50.5 1-1/2" 30.3 0 1.19
40PXRC1RA434 40 Stainless Steel NPT 1-1/4" 32.3 0 1.27 25.6 1.01 50 55 1.97 2.17 50.5 1-1/4" 30.3 0 1.19
40PXRC1RA435 40 Stainless Steel NPT 1-1/2" 32.3 0 1.27 26.1 1.03 50 55 1.97 2.17 50.5 1-1/2" 30.3 0 1.19
40PXRC1RA534 40 Nickel Plated Brass NPT 1-1/4" 32.3 0 1.27 25.6 1.01 50 55 1.97 2.17 50.5 1-1/4" 30.3 0 1.19
40PXRC1RA535 40 Nickel Plated Brass NPT 1-1/2" 32.3 0 1.27 26.1 1.03 50 55 1.97 2.17 50.5 1-1/2" 30.3 0 1.19
50PXRC1RA 50 Brass Metric M50 1.5 44.2 0 1.74 15 0.59 60 66 2.36 2.6 64.5 41.3 0 1.63 0.61
50SPXRC1RA 50S Brass Metric M50 1.5 38.9 0 1.53 15 0.59 55 60.5 2.17 2.38 59.6 36.9 0 1.45 0.57
50PXRC1RA1 50 Aluminium Metric M50 1.5 44.2 0 1.74 15 0.59 60 66 2.36 2.6 64.5 41.3 0 1.63 0.190625
50SPXRC1RA1 50S Aluminium Metric M50 1.5 38.9 0 1.53 15 0.59 55 60.5 2.17 2.38 59.6 36.9 0 1.45 0.17812499999999998
50PXRC1RA4 50 Stainless Steel Metric M50 1.5 44.2 0 1.74 15 0.59 60 66 2.36 2.6 64.5 41.3 0 1.63 0.5754716981132075
50SPXRC1RA4 50S Stainless Steel Metric M50 1.5 38.9 0 1.53 15 0.59 55 60.5 2.17 2.38 59.6 36.9 0 1.45 0.5377358490566037
50PXRC1RA5 50 Nickel Plated Brass Metric M50 1.5 44.2 0 1.74 15 0.59 60 66 2.36 2.6 64.5 41.3 0 1.63 0.61
50SPXRC1RA5 50S Nickel Plated Brass Metric M50 1.5 38.9 0 1.53 15 0.59 55 60.5 2.17 2.38 59.6 36.9 0 1.45 0.57
50SPXRC1RA035 50S Brass NPT 1-1/2" 38.9 0 1.53 26.1 1.03 55 60.5 2.17 2.38 59.6 1-1/2" 36.9 0 1.45
50SPXRC1RA036 50S Brass NPT 2" 38.9 0 1.53 26.9 1.06 65 71.5 2.56 2.82 59.6 2" 36.9 0 1.45
50PXRC1RA036 50 Brass NPT 2" 44.2 0 1.74 26.9 1.06 70 77 2.76 3.03 64.5 2" 41.3 0 1.63
50PXRC1RA037 50 Brass NPT 2-1/2" 44.2 0 1.74 39.9 1.57 79 86.9 3.11 3.42 64.5 2-1/2" 41.3 0 1.63
50SPXRC1RA135 50S Aluminium NPT 1-1/2" 38.9 0 1.53 26.1 1.03 55 60.5 2.17 2.38 59.6 1-1/2" 36.9 0 1.45
50SPXRC1RA136 50S Aluminium NPT 2" 38.9 0 1.53 26.9 1.06 65 71.5 2.56 2.82 59.6 2" 36.9 0 1.45
50PXRC1RA136 50 Aluminium NPT 2" 44.2 0 1.74 26.9 1.06 70 77 2.76 3.03 64.5 2" 41.3 0 1.63
50PXRC1RA137 50 Aluminium NPT 2-1/2" 44.2 0 1.74 39.9 1.57 79 86.9 3.11 3.42 64.5 2-1/2" 41.3 0 1.63
50SPXRC1RA435 50S Stainless Steel NPT 1-1/2" 38.9 0 1.53 26.1 1.03 55 60.5 2.17 2.38 59.6 1-1/2" 36.9 0 1.45
50PXRC1RA436 50 Stainless Steel NPT 2" 44.2 0 1.74 26.9 1.06 70 77 2.76 3.03 64.5 2" 41.3 0 1.63
50SPXRC1RA436 50S Stainless Steel NPT 2" 38.9 0 1.53 26.9 1.06 65 71.5 2.56 2.82 59.6 2" 36.9 0 1.45
50PXRC1RA437 50 Stainless Steel NPT 2-1/2" 44.2 0 1.74 39.9 1.57 79 86.9 3.11 3.42 64.5 2-1/2" 41.3 0 1.63
50SPXRC1RA535 50S Nickel Plated Brass NPT 1-1/2" 38.9 0 1.53 26.1 1.03 55 60.5 2.17 2.38 59.6 1-1/2" 36.9 0 1.45
50SPXRC1RA536 50S Nickel Plated Brass NPT 2" 38.9 0 1.53 26.9 1.06 65 71.5 2.56 2.82 59.6 2" 36.9 0 1.45
50PXRC1RA536 50 Nickel Plated Brass NPT 2" 44.2 0 1.74 26.9 1.06 70 77 2.76 3.03 64.5 2" 41.3 0 1.63
50PXRC1RA537 50 Nickel Plated Brass NPT 2-1/2" 44.2 0 1.74 39.9 1.57 79 86.9 3.11 3.42 64.5 2-1/2" 41.3 0 1.63
63SPXRC1RA 63S Brass Metric M63 1.5 50 0 1.97 15 0.59 70 77 2.76 3.03 63.5 48.4 0 1.91 0.94
63PXRC1RA 63 Brass Metric M63 1.5 56 0 2.2 15 0.59 75 82.5 2.96 3.25 64.6 54 0 2.13 0.89
63PXRC1RA1 63 Aluminium Metric M63 1.5 56 0 2.2 15 0.59 75 82.5 2.96 3.25 64.6 54 0 2.13 0.278125
63SPXRC1RA1 63S Aluminium Metric M63 1.5 50 0 1.97 15 0.59 70 77 2.76 3.03 63.5 48.4 0 1.91 0.29374999999999996
63PXRC1RA4 63 Stainless Steel Metric M63 1.5 56 0 2.2 15 0.59 75 82.5 2.96 3.25 64.6 54 0 2.13 0.8396226415094339
63SPXRC1RA4 63S Stainless Steel Metric M63 1.5 50 0 1.97 15 0.59 70 77 2.76 3.03 63.5 48.4 0 1.91 0.8867924528301886
63PXRC1RA5 63 Nickel Plated Brass Metric M63 1.5 56 0 2.2 15 0.59 75 82.5 2.96 3.25 64.6 54 0 2.13 0.89
63SPXRC1RA5 63S Nickel Plated Brass Metric M63 1.5 50 0 1.97 15 0.59 70 77 2.76 3.03 63.5 48.4 0 1.91 0.94
63SPXRC1RA036 63S Brass NPT 2" 50 0 1.97 26.9 1.06 70 77 2.76 3.03 63.5 2" 48.4 0 1.91
63PXRC1RA037 63 Brass NPT 2-1/2" 56 0 2.2 39.9 1.57 80 88 3.15 3.47 64.6 2-1/2" 54 0 2.13
63SPXRC1RA037 63S Brass NPT 2-1/2" 50 0 1.97 39.9 1.57 79 86.9 3.11 3.42 63.5 2-1/2" 48.4 0 1.91
63PXRC1RA038 63 Brass NPT 3" 56 0 2.2 41.5 1.63 100 110 3.94 4.33 64.6 3" 54 0 2.13
63SPXRC1RA136 63S Aluminium NPT 2" 50 0 1.97 26.9 1.06 70 77 2.76 3.03 63.5 2" 48.4 0 1.91
63PXRC1RA137 63 Aluminium NPT 2-1/2" 56 0 2.2 39.9 1.57 80 88 3.15 3.47 64.6 2-1/2" 54 0 2.13
63SPXRC1RA137 63S Aluminium NPT 2-1/2" 50 0 1.97 39.9 1.57 79 86.9 3.11 3.42 63.5 2-1/2" 48.4 0 1.91
63PXRC1RA138 63 Aluminium NPT 3" 56 0 2.2 41.5 1.63 100 110 3.94 4.33 64.6 3" 54 0 2.13
63SPXRC1RA436 63S Stainless Steel NPT 2" 50 0 1.97 26.9 1.06 70 77 2.76 3.03 63.5 2" 48.4 0 1.91
63SPXRC1RA437 63S Stainless Steel NPT 2-1/2" 50 0 1.97 39.9 1.57 79 86.9 3.11 3.42 63.5 2-1/2" 48.4 0 1.91
63PXRC1RA437 63 Stainless Steel NPT 2-1/2" 56 0 2.2 39.9 1.57 80 88 3.15 3.47 64.6 2-1/2" 54 0 2.13
63PXRC1RA438 63 Stainless Steel NPT 3" 56 0 2.2 41.5 1.63 100 110 3.94 4.33 64.6 3" 54 0 2.13
63SPXRC1RA536 63S Nickel Plated Brass NPT 2" 50 0 1.97 26.9 1.06 70 77 2.76 3.03 63.5 2" 48.4 0 1.91
63PXRC1RA537 63 Nickel Plated Brass NPT 2-1/2" 56 0 2.2 39.9 1.57 80 88 3.15 3.47 64.6 2-1/2" 54 0 2.13
63SPXRC1RA537 63S Nickel Plated Brass NPT 2-1/2" 50 0 1.97 39.9 1.57 79 86.9 3.11 3.42 63.5 2-1/2" 48.4 0 1.91
63PXRC1RA538 63 Nickel Plated Brass NPT 3" 56 0 2.2 41.5 1.63 100 110 3.94 4.33 64.6 3" 54 0 2.13
75PXRC1RA 75 Brass Metric M75 1.5 68.1 0 2.68 15 0.59 85 93.5 3.35 3.68 72.5 64.2 0 2.53 1.16
75SPXRC1RA 75S Brass Metric M75 1.5 62.4 0 2.46 15 0.59 80 88 3.15 3.47 72.9 60.2 0 2.37 1.29
75PXRC1RA1 75 Aluminium Metric M75 1.5 68.1 0 2.68 15 0.59 85 93.5 3.35 3.68 72.5 64.2 0 2.53 0.36249999999999993
75SPXRC1RA1 75S Aluminium Metric M75 1.5 62.4 0 2.46 15 0.59 80 88 3.15 3.47 72.9 60.2 0 2.37 0.403125
75PXRC1RA4 75 Stainless Steel Metric M75 1.5 68.1 0 2.68 15 0.59 85 93.5 3.35 3.68 72.5 64.2 0 2.53 1.0943396226415094
75SPXRC1RA4 75S Stainless Steel Metric M75 1.5 62.4 0 2.46 15 0.59 80 88 3.15 3.47 72.9 60.2 0 2.37 1.2169811320754718
75PXRC1RA5 75 Nickel Plated Brass Metric M75 1.5 68.1 0 2.68 15 0.59 85 93.5 3.35 3.68 72.5 64.2 0 2.53 1.16
75SPXRC1RA5 75S Nickel Plated Brass Metric M75 1.5 62.4 0 2.46 15 0.59 80 88 3.15 3.47 72.9 60.2 0 2.37 1.29
75SPXRC1RA037 75S Brass NPT 2-1/2" 62.4 0 2.46 39.9 1.57 80 88 3.15 3.47 72.9 2-1/2" 60.2 0 2.37
75PXRC1RA038 75 Brass NPT 3" 68.1 0 2.68 41.5 1.63 100 110 3.94 4.33 72.5 3" 64.2 0 2.53
75SPXRC1RA038 75S Brass NPT 3" 62.4 0 2.46 41.5 1.63 100 110 3.94 4.33 72.9 3" 60.2 0 2.37
75PXRC1RA039 75 Brass NPT 3-1/2" 68.1 0 2.68 42.8 1.69 114.3 125.7 4.5 4.95 72.5 3-1/2" 64.2 0 2.53
75SPXRC1RA137 75S Aluminium NPT 2-1/2" 62.4 0 2.46 39.9 1.57 80 88 3.15 3.47 72.9 2-1/2" 60.2 0 2.37
75PXRC1RA138 75 Aluminium NPT 3" 68.1 0 2.68 41.5 1.63 100 110 3.94 4.33 72.5 3" 64.2 0 2.53
75SPXRC1RA138 75S Aluminium NPT 3" 62.4 0 2.46 41.5 1.63 100 110 3.94 4.33 72.9 3" 60.2 0 2.37
75PXRC1RA139 75 Aluminium NPT 3-1/2" 68.1 0 2.68 42.8 1.69 114.3 125.7 4.5 4.95 72.5 3-1/2" 64.2 0 2.53
75SPXRC1RA437 75S Stainless Steel NPT 2-1/2" 62.4 0 2.46 39.9 1.57 80 88 3.15 3.47 72.9 2-1/2" 60.2 0 2.37
75SPXRC1RA438 75S Stainless Steel NPT 3" 62.4 0 2.46 41.5 1.63 100 110 3.94 4.33 72.9 3" 60.2 0 2.37
75PXRC1RA438 75 Stainless Steel NPT 3" 68.1 0 2.68 41.5 1.63 100 110 3.94 4.33 72.5 3" 64.2 0 2.53
75PXRC1RA439 75 Stainless Steel NPT 3-1/2" 68.1 0 2.68 42.8 1.69 114.3 125.7 4.5 4.95 72.5 3-1/2" 64.2 0 2.53
75SPXRC1RA537 75S Nickel Plated Brass NPT 2-1/2" 62.4 0 2.46 39.9 1.57 80 88 3.15 3.47 72.9 2-1/2" 60.2 0 2.37
75PXRC1RA538 75 Nickel Plated Brass NPT 3" 68.1 0 2.68 41.5 1.63 100 110 3.94 4.33 72.5 3" 64.2 0 2.53
75SPXRC1RA538 75S Nickel Plated Brass NPT 3" 62.4 0 2.46 41.5 1.63 100 110 3.94 4.33 72.9 3" 60.2 0 2.37
75PXRC1RA539 75 Nickel Plated Brass NPT 3-1/2" 68.1 0 2.68 42.8 1.69 114.3 125.7 4.5 4.95 72.5 3-1/2" 64.2 0 2.53
90PXRC1RA 90 Brass Metric M90 2 80.1 0 3.15 20 0.79 108 118.8 4.26 4.68 89.5 75.6 0 2.98 2.63
90PXRC1RA1 90 Aluminium Metric M90 2 80.1 0 3.15 20 0.79 108 118.8 4.26 4.68 89.5 75.6 0 2.98 0.8218749999999999
90PXRC1RA4 90 Stainless Steel Metric M90 2 80.1 0 3.15 20 0.79 108 118.8 4.26 4.68 89.5 75.6 0 2.98 2.481132075471698
90PXRC1RA5 90 Nickel Plated Brass Metric M90 2 80.1 0 3.15 20 0.79 108 118.8 4.26 4.68 89.5 75.6 0 2.98 2.63
90PXRC1RA039 90 Brass NPT 3-1/2" 80.1 0 3.15 42.8 1.69 108 118.8 4.26 4.68 89.5 3-1/2" 75.6 0 2.98
90PXRC1RA139 90 Aluminium NPT 3-1/2" 80.1 0 3.15 42.8 1.69 108 118.8 4.26 4.68 89.5 3-1/2" 75.6 0 2.98
90PXRC1RA0310 90 Brass NPT 4" 80.1 0 3.15 44 1.73 127 139.7 5 5.5 89.5 4" 75.6 0 2.98
90PXRC1RA439 90 Stainless Steel NPT 3-1/2" 80.1 0 3.15 42.8 1.69 108 118.8 4.26 4.68 89.5 3-1/2" 75.6 0 2.98
90PXRC1RA539 90 Nickel Plated Brass NPT 3-1/2" 80.1 0 3.15 42.8 1.69 108 118.8 4.26 4.68 89.5 3-1/2" 75.6 0 2.98
90PXRC1RA1310 90 Aluminium NPT 4" 80.1 0 3.15 44 1.73 127 139.7 5 5.5 89.5 4" 75.6 0 2.98
90PXRC1RA4310 90 Stainless Steel NPT 4" 80.1 0 3.15 44 1.73 127 139.7 5 5.5 89.5 4" 75.6 0 2.98
90PXRC1RA5310 90 Nickel Plated Brass NPT 4" 80.1 0 3.15 44 1.73 127 139.7 5 5.5 89.5 4" 75.6 0 2.98
1
No results

0 of 132 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
