PXSS2K Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The PXSS2K range of compound barrier cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed to prevent gas, vapour or fluid from migrating through a cable, or else prevent flame transmission from a Flameproof type ‘d’ enclosure, as determined by IEC 60079-14

Features

  • Direct and remote installation
  • Superior levels of cable retention
  • Displacement type environmental seal
  • Compound barrier type flameproof seal
  • Deluge protected
  • -60˚C to +85˚C
  • Globally marked, UL, cCSAus, IECEx, ATEX and UKEX
  • Compound barrier seals around internal cable cores after removing any inner cable sheath/bedding; completely eliminating any risk of coldflow

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1325X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
IECEx Certificate Number IECEx CML 18.0182X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1214X, CML 21UKEX4215X
CSA Certificate Number CSA Certificate
CSA Code of Protection Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F and G; Class III, Div 1 and 2; Type 4X; Oil Resistance II; Class I, Zone 1, AEx d IIC Gb, AEx e IIC Gb; Class I, Zone 2, AEx nR IIC Gc, Ex nR IIC Gc; Class I, Zone 20 AEx ta IIIC Da
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
UL Certificate Number 20130624-E201187, 20121003-E253914, E1615256
UL Compliance Standards ANSI/UL 2225, CSA C22.2 No. 174
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04595/22
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0252X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313003190
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/8, P548696/12
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64838/E23-02-065451/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21962 21.0305X
Technical Specification
Application EXAT; EXNEC
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / Epoxy Barrier Compound
Seal Technique CMP Displacement Seal
Seal Area(s) Inner Compound Barrier and Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. ***Where the cable is permitted by code (NEC and/or CEC) **** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

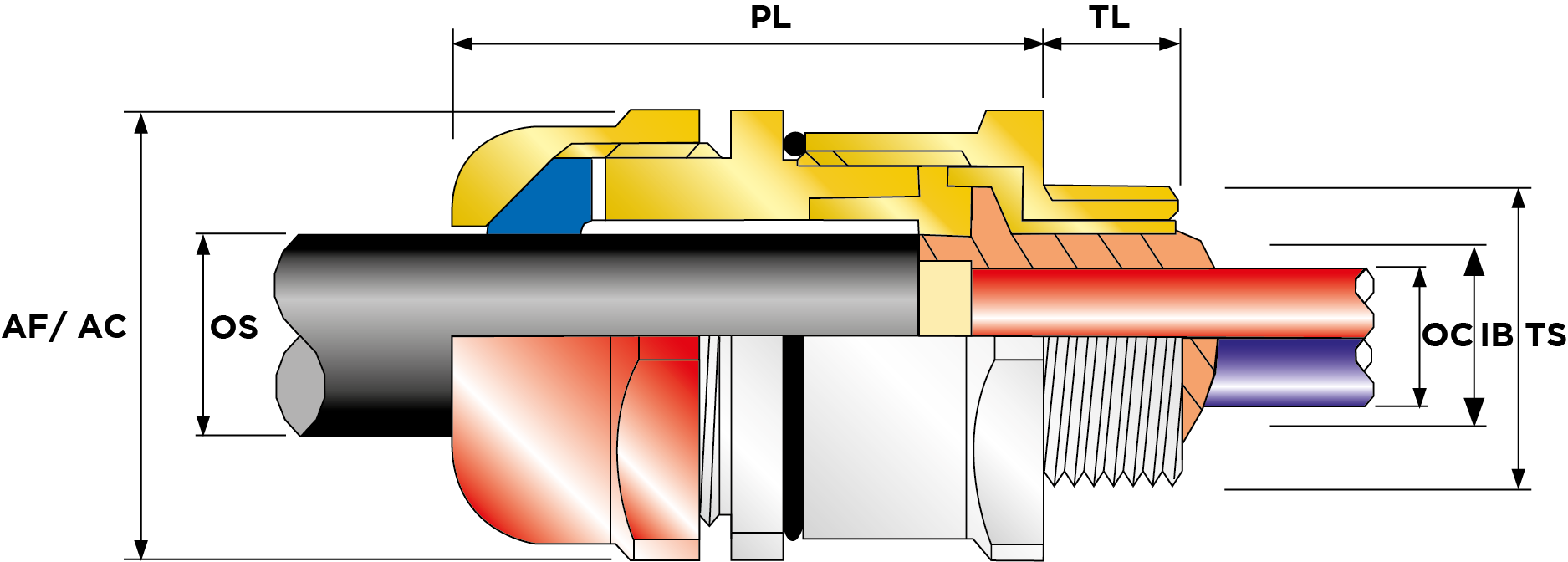

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Shroud Size Ass'y Weight
20PXSS2K1RA 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.2
20SPXSS2K1RA 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 30 33 1.18 1.3 53.1 11.7 0 0.46 PVC06 0.2
20S16PXSS2K1RA 20S16 Brass Metric M20 1.5 3.1 8.6 0.12 0.34 15 0.59 30 33 1.18 1.3 53.1 8.6 0 0.34 PVC06 0.2
20LPXSS2K1RA 20L Brass Metric M20 1.5 10 15.9 0.39 0.63 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.2
20PXSS2K1RA1 20 Aluminium Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.0625
20SPXSS2K1RA1 20S Aluminium Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 30 33 1.18 1.3 53.1 11.7 0 0.46 PVC06 0.0625
20S16PXSS2K1RA1 20S16 Aluminium Metric M20 1.5 3.1 8.6 0.12 0.34 15 0.59 30 33 1.18 1.3 53.1 8.6 0 0.34 PVC06 0.0625
20LPXSS2K1RA1 20L Aluminium Metric M21 2.5 10 15.9 0.39 0.63 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.0625
20PXSS2K1RA4 20 Stainless Steel Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.18867924528301888
20SPXSS2K1RA4 20S Stainless Steel Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 30 33 1.18 1.3 53.1 11.7 0 0.46 PVC06 0.18867924528301888
20S16PXSS2K1RA4 20S16 Stainless Steel Metric M20 1.5 3.1 8.6 0.12 0.34 15 0.59 30 33 1.18 1.3 53.1 8.6 0 0.34 PVC06 0.18867924528301888
20LPXSS2K1RA4 20L Stainless Steel Metric M21 2.5 10 15.9 0.39 0.63 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.18867924528301888
20PXSS2K1RA5 20 Nickel Plated Brass Metric M20 1.5 6.5 14 0.26 0.55 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.2
20SPXSS2K1RA5 20S Nickel Plated Brass Metric M20 1.5 6.1 11.7 0.24 0.46 15 0.59 30 33 1.18 1.3 53.1 11.7 0 0.46 PVC06 0.2
20S16PXSS2K1RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.1 8.6 0.12 0.34 15 0.59 30 33 1.18 1.3 53.1 8.6 0 0.34 PVC06 0.2
20LPXSS2K1RA5 20L Nickel Plated Brass Metric M21 1.5 10 15.9 0.39 0.63 15 0.59 30 33 1.18 1.3 54.2 12.9 0 0.51 PVC06 0.2
20PXSS2K1RA031 20 Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA031 20S Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA031 20S16 Brass NPT 1/2" 3.1 8.6 0.12 0.34 19.9 0.78 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA031 20L Brass NPT 1/2" 10 15.9 0.39 0.63 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20LPXSS2K1RA032 20L Brass NPT 3/4" 10 15.9 0.39 0.63 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA032 20 Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA032 20S Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA032 20S16 Brass NPT 3/4" 3.1 8.6 0.12 0.34 20.2 0.8 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA131 20L Aluminium NPT 1/2" 10 15.9 0.39 0.63 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA131 20 Aluminium NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA131 20S Aluminium NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA131 20S16 Aluminium NPT 1/2" 3.1 8.6 0.12 0.34 19.9 0.78 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA132 20L Aluminium NPT 3/4" 10 15.9 0.39 0.63 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA132 20 Aluminium NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA132 20S Aluminium NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA132 20S16 Aluminium NPT 3/4" 3.1 8.6 0.12 0.34 20.2 0.8 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA431 20L Stainless Steel NPT 1/2" 10 15.9 0.39 0.63 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA431 20 Stainless Steel NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA431 20S Stainless Steel NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA431 20S16 Stainless Steel NPT 1/2" 3.1 8.6 0.12 0.34 19.9 0.78 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA432 20L Stainless Steel NPT 3/4" 10 15.9 0.39 0.63 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA432 20 Stainless Steel NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA432 20S Stainless Steel NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA432 20S16 Stainless Steel NPT 3/4" 3.1 8.6 0.12 0.34 20.2 0.8 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA531 20L Nickel Plated Brass NPT 1/2" 10 15.9 0.39 0.63 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA531 20 Nickel Plated Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA531 20S Nickel Plated Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA531 20S16 Nickel Plated Brass NPT 1/2" 3.1 8.6 0.12 0.34 19.9 0.78 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
20LPXSS2K1RA532 20L Nickel Plated Brass NPT 3/4" 10 15.9 0.39 0.63 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20PXSS2K1RA532 20 Nickel Plated Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 30.5 33.6 1.2 1.32 54.2 12.9 0 0.51
20SPXSS2K1RA532 20S Nickel Plated Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 30.5 33.6 1.2 1.32 53.1 11.7 0 0.46
20S16PXSS2K1RA532 20S16 Nickel Plated Brass NPT 3/4" 3.1 8.6 0.12 0.34 20.2 0.8 30.5 33.6 1.2 1.32 53.1 8.6 0 0.34
25PXSS2K1RA 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 60 17.9 0 0.7 PVC09 0.33
25PXSS2K1RA1 25 Aluminium Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 60 17.9 0 0.7 PVC09 0.103125
25PXSS2K1RA4 25 Stainless Steel Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 60 17.9 0 0.7 PVC09 0.3113207547169811
25PXSS2K1RA5 25 Nickel Plated Brass Metric M25 1.5 11.1 20 0.44 0.79 15 0.59 36 39.6 1.42 1.56 60 17.9 0 0.7 PVC09 0.33
25PXSS2K1RA032 25 Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA033 25 Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA132 25 Aluminium NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA133 25 Aluminium NPT 1" 11.1 20 0.44 0.79 25 0.98 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA432 25 Stainless Steel NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA433 25 Stainless Steel NPT 1" 11.1 20 0.44 0.79 25 0.98 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA532 25 Nickel Plated Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 60 17.9 0 0.7
25PXSS2K1RA533 25 Nickel Plated Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 36 39.6 1.42 1.56 60 17.9 0 0.7
32LPXSS2K1RA 32L Brass Metric M32 1.5 20 27.4 0.79 1.08 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.39
32PXSS2K1RA 32 Brass Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.39
32LPXSS2K1RA1 32L Aluminium Metric M32 1.5 20 27.4 0.79 1.08 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.121875
32PXSS2K1RA1 32 Aluminium Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.121875
32LPXSS2K1RA4 32L Stainless Steel Metric M32 1.5 20 27.4 0.79 1.08 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.36792452830188677
32PXSS2K1RA4 32 Stainless Steel Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.36792452830188677
32LPXSS2K1RA5 32L Nickel Plated Brass Metric M32 1.5 20 27.4 0.79 1.08 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.39
32PXSS2K1RA5 32 Nickel Plated Brass Metric M32 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 61.1 23.9 0 0.94 PVC10 0.39
32LPXSS2K1RA033 32L Brass NPT 1" 20 27.4 0.79 1.08 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32PXSS2K1RA033 32 Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32LPXSS2K1RA034 32L Brass NPT 1-1/4" 20 27.4 0.79 1.08 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32PXSS2K1RA034 32 Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32LPXSS2K1RA133 32L Aluminium NPT 1" 20 27.4 0.79 1.08 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32PXSS2K1RA133 32 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32LPXSS2K1RA134 32L Aluminium NPT 1-1/4" 20 27.4 0.79 1.08 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32PXSS2K1RA134 32 Aluminium NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32LPXSS2K1RA433 32L Stainless Steel NPT 1" 20 27.4 0.79 1.08 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32PXSS2K1RA433 32 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32LPXSS2K1RA434 32L Stainless Steel NPT 1-1/4" 20 27.4 0.79 1.08 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32PXSS2K1RA434 32 Stainless Steel NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32LPXSS2K1RA533 32L Nickel Plated Brass NPT 1" 20 27.4 0.79 1.08 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32PXSS2K1RA533 32 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 61.1 23.9 0 0.94
32LPXSS2K1RA534 32L Nickel Plated Brass NPT 1-1/4" 20 27.4 0.79 1.08 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
32PXSS2K1RA534 32 Nickel Plated Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 61.1 23.9 0 0.94
40PXSS2K1RA 40 Brass Metric M40 1.5 22 32.1 0.87 1.26 15 0.59 50 55 1.97 2.17 62.4 30.3 0 1.19 PVC13 0.56
40PXSS2K1RA1 40 Aluminium Metric M40 1.5 22 32.1 0.87 1.26 15 0.59 50 55 1.97 2.17 62.4 30.3 0 1.19 PVC13 0.17500000000000002
40PXSS2K1RA4 40 Stainless Steel Metric M40 1.5 22 32.1 0.87 1.26 15 0.59 50 55 1.97 2.17 62.4 30.3 0 1.19 PVC13 0.5283018867924528
40PXSS2K1RA5 40 Nickel Plated Brass Metric M40 1.5 22 32.1 0.87 1.26 15 0.59 50 55 1.97 2.17 62.4 30.3 0 1.19 PVC13 0.56
40PXSS2K1RA034 40 Brass NPT 1-1/4" 22 32.1 0.87 1.26 25.6 1.01 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA035 40 Brass NPT 1-1/2" 22 32.1 0.87 1.26 26.1 1.03 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA134 40 Aluminium NPT 1-1/4" 22 32.1 0.87 1.26 25.6 1.01 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA135 40 Aluminium NPT 1-1/2" 22 32.1 0.87 1.26 26.1 1.03 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA434 40 Stainless Steel NPT 1-1/4" 22 32.1 0.87 1.26 25.6 1.01 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA435 40 Stainless Steel NPT 1-1/2" 22 32.1 0.87 1.26 26.1 1.03 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA534 40 Nickel Plated Brass NPT 1-1/4" 22 32.1 0.87 1.26 25.6 1.01 50 55 1.97 2.17 62.4 30.3 0 1.19
40PXSS2K1RA535 40 Nickel Plated Brass NPT 1-1/2" 22 32.1 0.87 1.26 26.1 1.03 50 55 1.97 2.17 62.4 30.3 0 1.19
50PXSS2K1RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 67.6 41.3 0 1.63 PVC18 0.73
50SPXSS2K1RA 50S Brass Metric M50 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 65.2 36.9 0 1.45 PVC15 0.66
50PXSS2K1RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 67.6 41.3 0 1.63 PVC18 0.228125
50SPXSS2K1RA1 50S Aluminium Metric M50 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 65.2 36.9 0 1.45 PVC15 0.20625
50PXSS2K1RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 67.6 41.3 0 1.63 PVC18 0.6886792452830188
50SPXSS2K1RA4 50S Stainless Steel Metric M50 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 65.2 36.9 0 1.45 PVC15 0.6226415094339622
50PXSS2K1RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 67.6 41.3 0 1.63 PVC18 0.73
50SPXSS2K1RA5 50S Nickel Plated Brass Metric M50 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 65.2 36.9 0 1.45 PVC15 0.66
50SPXSS2K1RA035 50S Brass NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 65.2 36.9 0 1.45
50SPXSS2K1RA036 50S Brass NPT 2" 29.5 38.2 1.16 1.5 26.9 1.06 65 71.5 2.56 2.82 65.2 36.9 0 1.45
50PXSS2K1RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 67.6 41.3 0 1.63
50PXSS2K1RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 79 86.9 3.11 3.42 67.6 41.3 0 1.63
50SPXSS2K1RA135 50S Aluminium NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 65.2 36.9 0 1.45
50SPXSS2K1RA136 50S Aluminium NPT 2" 29.5 38.2 1.16 1.5 26.9 1.06 65 71.5 2.56 2.82 65.2 36.9 0 1.45
50PXSS2K1RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 67.6 41.3 0 1.63
50PXSS2K1RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 79 86.9 3.11 3.42 67.6 41.3 0 1.63
50SPXSS2K1RA435 50S Stainless Steel NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 65.2 36.9 0 1.45
50SPXSS2K1RA436 50S Stainless Steel NPT 2" 29.5 38.2 1.16 1.5 26.9 1.06 65 71.5 2.56 2.82 65.2 36.9 0 1.45
50PXSS2K1RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 67.6 41.3 0 1.63
50PXSS2K1RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 79 86.9 3.11 3.42 67.6 41.3 0 1.63
50SPXSS2K1RA535 50S Nickel Plated Brass NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 65.2 36.9 0 1.45
50SPXSS2K1RA536 50S Nickel Plated Brass NPT 2" 29.5 38.2 1.16 1.5 26.9 1.06 65 71.5 2.56 2.82 65.2 36.9 0 1.45
50PXSS2K1RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 67.6 41.3 0 1.63
50PXSS2K1RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 79 86.9 3.11 3.42 67.6 41.3 0 1.63
63PXSS2K1RA 63 Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 70.4 54 0 2.13 PVC23 1.06
63SPXSS2K1RA 63S Brass Metric M63 1.5 40.1 49.9 1.58 1.96 15 0.59 70 77 2.76 3.03 71.1 48.4 0 1.91 PVC21 1.07
63PXSS2K1RA1 63 Aluminium Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 70.4 54 0 2.13 PVC23 0.33125
63SPXSS2K1RA1 63S Aluminium Metric M63 1.5 40.1 49.9 1.58 1.96 15 0.59 70 77 2.76 3.03 71.1 48.4 0 1.91 PVC21 0.334375
63PXSS2K1RA4 63 Stainless Steel Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 70.4 54 0 2.13 PVC23 1
63SPXSS2K1RA4 63S Stainless Steel Metric M63 1.5 40.1 49.9 1.58 1.96 15 0.59 70 77 2.76 3.03 71.1 48.4 0 1.91 PVC21 1.009433962264151
63PXSS2K1RA5 63 Nickel Plated Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 70.4 54 0 2.13 PVC23 1.06
63SPXSS2K1RA5 63S Nickel Plated Brass Metric M63 1.5 40.1 49.9 1.58 1.96 15 0.59 70 77 2.76 3.03 71.1 48.4 0 1.91 PVC21 1.07
63SPXSS2K1RA036 63S Brass NPT 2" 40.1 49.9 1.58 1.96 26.9 1.06 70 77 2.76 3.03 71.1 48.4 0 1.91
63PXSS2K1RA037 63 Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 70.4 54 0 2.13
63SPXSS2K1RA037 63S Brass NPT 2-1/2" 40.1 49.9 1.58 1.96 39.9 1.57 79 86.9 3.11 3.42 71.1 48.4 0 1.91
63PXSS2K1RA038 63 Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 70.4 54 0 2.13
63SPXSS2K1RA136 63S Aluminium NPT 2" 40.1 49.9 1.58 1.96 26.9 1.06 70 77 2.76 3.03 71.1 48.4 0 1.91
63SPXSS2K1RA137 63S Aluminium NPT 2-1/2" 40.1 49.9 1.58 1.96 39.9 1.57 79 86.9 3.11 3.42 71.1 48.4 0 1.91
63PXSS2K1RA137 63 Aluminium NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 70.4 54 0 2.13
63PXSS2K1RA138 63 Aluminium NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 70.4 54 0 2.13
63SPXSS2K1RA436 63S Stainless Steel NPT 2" 40.1 49.9 1.58 1.96 26.9 1.06 70 77 2.76 3.03 71.1 48.4 0 1.91
63SPXSS2K1RA437 63S Stainless Steel NPT 2-1/2" 40.1 49.9 1.58 1.96 39.9 1.57 79 86.9 3.11 3.42 71.1 48.4 0 1.91
63PXSS2K1RA437 63 Stainless Steel NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 70.4 54 0 2.13
63PXSS2K1RA438 63 Stainless Steel NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 70.4 54 0 2.13
63SPXSS2K1RA536 63S Nickel Plated Brass NPT 2" 40.1 49.9 1.58 1.96 26.9 1.06 70 77 2.76 3.03 71.1 48.4 0 1.91
63SPXSS2K1RA537 63S Nickel Plated Brass NPT 2-1/2" 40.1 49.9 1.58 1.96 39.9 1.57 79 86.9 3.11 3.42 71.1 48.4 0 1.91
63PXSS2K1RA537 63 Nickel Plated Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 70.4 54 0 2.13
63PXSS2K1RA538 63 Nickel Plated Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 70.4 54 0 2.13
75SPXSS2K1RA 75S Brass Metric M75 1.5 52.8 61.9 2.08 2.44 15 0.59 80 88 3.15 3.47 75.3 60.2 0 2.37 PVC25 1.3
75PXSS2K1RA 75 Brass Metric M75 1.5 59.1 67.9 2.33 2.67 15 0.59 85 93.5 3.35 3.68 74.9 64.2 0 2.53 PVC27 1.3
75SPXSS2K1RA1 75S Aluminium Metric M75 1.5 52.8 61.9 2.08 2.44 15 0.59 80 88 3.15 3.47 75.3 60.2 0 2.37 PVC25 0.40625
75PXSS2K1RA1 75 Aluminium Metric M75 1.5 59.1 67.9 2.33 2.67 15 0.59 85 93.5 3.35 3.68 74.9 64.2 0 2.53 PVC27 0.40625
75SPXSS2K1RA4 75S Stainless Steel Metric M75 1.5 52.8 61.9 2.08 2.44 15 0.59 80 88 3.15 3.47 75.3 60.2 0 2.37 PVC25 1.2264150943396226
75PXSS2K1RA4 75 Stainless Steel Metric M75 1.5 59.1 67.9 2.33 2.67 15 0.59 85 93.5 3.35 3.68 74.9 64.2 0 2.53 PVC27 1.2264150943396226
75SPXSS2K1RA5 75S Nickel Plated Brass Metric M75 1.5 52.8 61.9 2.08 2.44 15 0.59 80 88 3.15 3.47 75.3 60.2 0 2.37 PVC25 1.3
75PXSS2K1RA5 75 Nickel Plated Brass Metric M75 1.5 59.1 67.9 2.33 2.67 15 0.59 85 93.5 3.35 3.68 74.9 64.2 0 2.53 PVC27 1.3
75SPXSS2K1RA037 75S Brass NPT 2-1/2" 52.8 61.9 2.08 2.44 39.9 1.57 80 88 3.15 3.47 75.3 60.2 0 2.37
75PXSS2K1RA038 75 Brass NPT 3" 59.1 67.9 2.33 2.67 41.5 1.63 100 110 3.94 4.33 74.9 64.2 0 2.53
75SPXSS2K1RA038 75S Brass NPT 3" 52.8 61.9 2.08 2.44 41.5 1.63 100 110 3.94 4.33 75.3 60.2 0 2.37
75PXSS2K1RA039 75 Brass NPT 3-1/2" 59.1 67.9 2.33 2.67 42.8 1.69 114.3 125.7 4.5 4.95 74.9 64.2 0 2.53
75SPXSS2K1RA137 75S Aluminium NPT 2-1/2" 52.8 61.9 2.08 2.44 39.9 1.57 80 88 3.15 3.47 75.3 60.2 0 2.37
75PXSS2K1RA138 75 Aluminium NPT 3" 59.1 67.9 2.33 2.67 41.5 1.63 100 110 3.94 4.33 74.9 64.2 0 2.53
75SPXSS2K1RA138 75S Aluminium NPT 3" 52.8 61.9 2.08 2.44 41.5 1.63 100 110 3.94 4.33 75.3 60.2 0 2.37
75PXSS2K1RA139 75 Aluminium NPT 3-1/2" 59.1 67.9 2.33 2.67 42.8 1.69 114.3 125.7 4.5 4.95 74.9 64.2 0 2.53
75SPXSS2K1RA437 75S Stainless Steel NPT 2-1/2" 52.8 61.9 2.08 2.44 39.9 1.57 80 88 3.15 3.47 75.3 60.2 0 2.37
75PXSS2K1RA438 75 Stainless Steel NPT 3" 59.1 67.9 2.33 2.67 41.5 1.63 100 110 3.94 4.33 74.9 64.2 0 2.53
75SPXSS2K1RA438 75S Stainless Steel NPT 3" 52.8 61.9 2.08 2.44 41.5 1.63 100 110 3.94 4.33 75.3 60.2 0 2.37
75PXSS2K1RA439 75 Stainless Steel NPT 3-1/2" 59.1 67.9 2.33 2.67 42.8 1.69 114.3 125.7 4.5 4.95 74.9 64.2 0 2.53
75SPXSS2K1RA537 75S Nickel Plated Brass NPT 2-1/2" 52.8 61.9 2.08 2.44 39.9 1.57 80 88 3.15 3.47 75.3 60.2 0 2.37
75PXSS2K1RA538 75 Nickel Plated Brass NPT 3" 59.1 67.9 2.33 2.67 41.5 1.63 100 110 3.94 4.33 74.9 64.2 0 2.53
75SPXSS2K1RA538 75S Nickel Plated Brass NPT 3" 52.8 61.9 2.08 2.44 41.5 1.63 100 110 3.94 4.33 75.3 60.2 0 2.37
75PXSS2K1RA539 75 Nickel Plated Brass NPT 3-1/2" 59.1 67.9 2.33 2.67 42.8 1.69 114.3 125.7 4.5 4.95 74.9 64.2 0 2.53
90PXSS2K1RA 90 Brass Metric M90 2 66.6 79.4 2.62 3.13 20 0.79 108 118.8 4.26 4.68 94.8 75.6 0 2.98 PVC31 3.02
90PXSS2K1RA1 90 Aluminium Metric M90 2 66.6 79.4 2.62 3.13 20 0.79 108 118.8 4.26 4.68 94.8 75.6 0 2.98 PVC31 0.94375
90PXSS2K1RA4 90 Stainless Steel Metric M90 2 66.6 79.4 2.62 3.13 20 0.79 108 118.8 4.26 4.68 94.8 75.6 0 2.98 PVC31 2.849056603773585
90PXSS2K1RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.4 2.62 3.13 20 0.79 108 118.8 4.26 4.68 94.8 75.6 0 2.98 PVC31 3.02
90PXSS2K1RA039 90 Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 94.8 75.6 0 2.98
90PXSS2K1RA139 90 Aluminium NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 94.8 75.6 0 2.98
90PXSS2K1RA0310 90 Brass NPT 4" 66.6 79.4 2.62 3.13 44 1.73 127 139.7 5 5.5 94.8 75.6 0 2.98
90PXSS2K1RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 94.8 75.6 0 2.98
90PXSS2K1RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 94.8 75.6 0 2.98
90PXSS2K1RA1310 90 Aluminium NPT 4" 66.6 79.4 2.62 3.13 44 1.73 127 139.7 5 5.5 94.8 75.6 0 2.98
90PXSS2K1RA4310 90 Stainless Steel NPT 4" 66.6 79.4 2.62 3.13 44 1.73 127 139.7 5 5.5 94.8 75.6 0 2.98
90PXSS2K1RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.4 2.62 3.13 44 1.73 127 139.7 5 5.5 94.8 75.6 0 2.98
100PXSS2K1RA 100 Brass Metric M100 2 76 90.9 2.99 3.58 20 0.79 123 135.3 4.85 5.33 86.3 85.9 0 3.38 LSF33 4
100PXSS2K1RA1 100 Aluminium Metric M100 2 76 90.9 2.99 3.58 20 0.79 123 135.3 4.85 5.33 86.3 85.9 0 3.38 LSF33 1.25
100PXSS2K1RA4 100 Stainless Steel Metric M100 2 76 90.9 2.99 3.58 20 0.79 123 135.3 4.85 5.33 86.3 85.9 0 3.38 LSF33 3.773584905660377
100PXSS2K1RA5 100 Nickel Plated Brass Metric M100 2 76 90.9 2.99 3.58 20 0.79 123 135.3 4.85 5.33 86.3 85.9 0 3.38 LSF33 4
100PXSS2K1RA039 100 Brass NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA139 100 Aluminium NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA0310 100 Brass NPT 4" 76 90.9 2.99 3.58 44 1.73 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA439 100 Stainless Steel NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA539 100 Nickel Plated Brass NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA1310 100 Aluminium NPT 4" 76 90.9 2.99 3.58 44 1.73 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA4310 100 Stainless Steel NPT 4" 76 90.9 2.99 3.58 44 1.73 123 135.3 4.85 5.33 86.3 85.9 0 3.38
100PXSS2K1RA5310 100 Nickel Plated Brass NPT 4" 76 90.9 2.99 3.58 44 1.73 123 135.3 4.85 5.33 86.3 85.9 0 3.38
1
No results

0 of 192 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
