RA2E Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The RA2e range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with an integral O-ring interface seal as standard.

Features

  • O-ring face seal as standard
  • 10mm thread length on sizes 32 and below
  • Displacement type seal
  • Deluge protected
  • -60˚C to +130˚C
  • Internationally marked, UKEX, IECEx and ATEX

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1321X
ATEX Code of Protection ^ II 2G 3G 1D Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -31
IECEx Certificate Number IECEx CML 18.0179X
IECEx Code of Protection Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1245X, CML 21UKEX4246X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02519/20
EAC Code of Protection { 1Ex e IIC Gb X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 14-GA4BO-0251X, 13-GA4BO-0749X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002951
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772/2, P548696/9
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64837/E23-02-065446/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number S-XPL21804 21.0008X
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Displacement Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

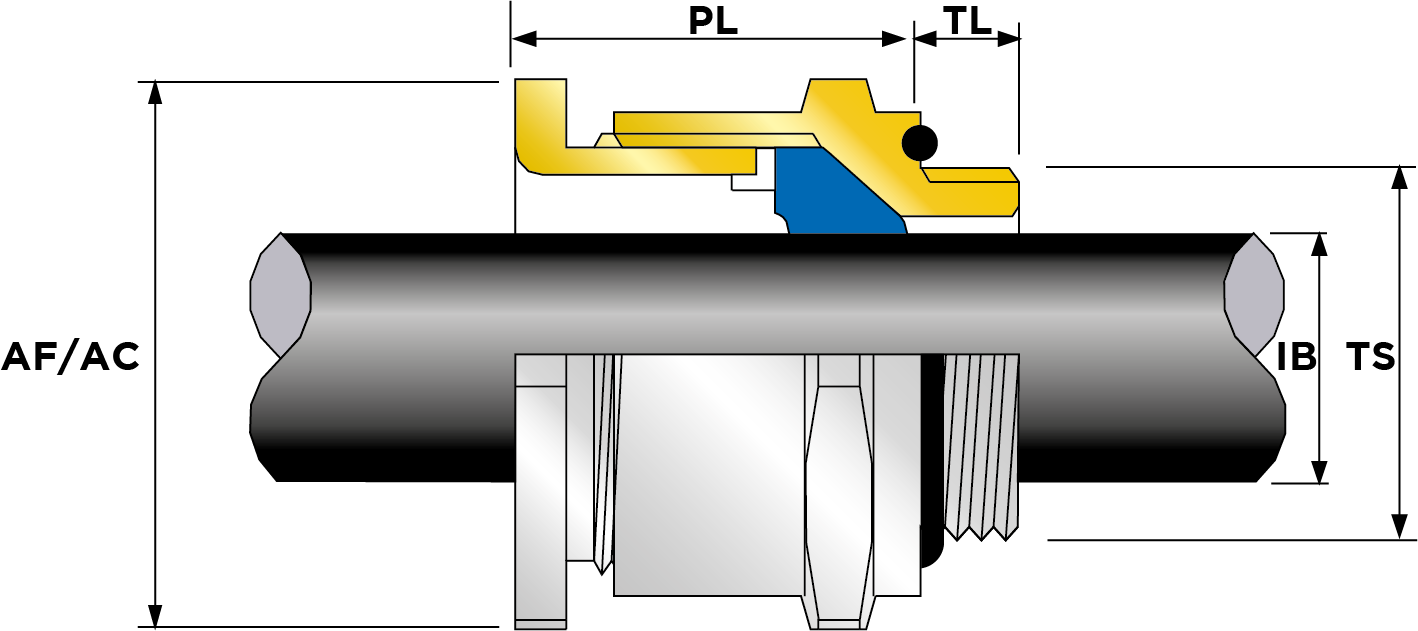

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Shroud Size Ass'y Weight
16RA2E1RA 16 Brass Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 29.9 PVC05 0.06
16RA2E1RA1 16 Aluminium Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 29.9 PVC05 0.01875
16RA2E1RA4 16 Stainless Steel Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 29.9 PVC05 0.056603773584905655
16RA2E1RA5 16 Nickel Plated Brass Metric M16 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 29.9 PVC05 0.06
20RA2E1RA 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SRA2E1RA 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.06
20S16RA2E1RA 20S16 Brass Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.07
20RA2E1RA1 20 Aluminium Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.021875000000000002
20SRA2E1RA1 20S Aluminium Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.01875
20S16RA2E1RA1 20S16 Aluminium Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.021875000000000002
20RA2E1RA4 20 Stainless Steel Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.0660377358490566
20SRA2E1RA4 20S Stainless Steel Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.056603773584905655
20S16RA2E1RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.0660377358490566
20RA2E1RA5 20 Nickel Plated Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 27.7 PVC05 0.07
20SRA2E1RA5 20S Nickel Plated Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.06
20S16RA2E1RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8.7 0.13 0.34 10 0.39 27 29.7 1.06 1.17 26 PVC05 0.07
20RA2E1RA031 20 Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SRA2E1RA031 20S Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 27 29.7 1.06 1.17 26
20S16RA2E1RA031 20S16 Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 27 29.7 1.06 1.17 26
20RA2E1RA032 20 Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 36 39.6 1.42 1.56 27.7
20SRA2E1RA032 20S Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 36 39.6 1.42 1.56 26
20S16RA2E1RA032 20S16 Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 36 39.6 1.42 1.56 26
20RA2E1RA131 20 Aluminium NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SRA2E1RA131 20S Aluminium NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 27 29.7 1.06 1.17 26
20S16RA2E1RA131 20S16 Aluminium NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 27 29.7 1.06 1.17 26
20RA2E1RA132 20 Aluminium NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 36 39.6 1.42 1.56 27.7
20SRA2E1RA132 20S Aluminium NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 36 39.6 1.42 1.56 26
20S16RA2E1RA132 20S16 Aluminium NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 36 39.6 1.42 1.56 26
20RA2E1RA431 20 Stainless Steel NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SRA2E1RA431 20S Stainless Steel NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 27 29.7 1.06 1.17 26
20S16RA2E1RA431 20S16 Stainless Steel NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 27 29.7 1.06 1.17 26
20RA2E1RA432 20 Stainless Steel NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 36 39.6 1.42 1.56 27.7
20SRA2E1RA432 20S Stainless Steel NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 36 39.6 1.42 1.56 26
20S16RA2E1RA432 20S16 Stainless Steel NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 36 39.6 1.42 1.56 26
20RA2E1RA531 20 Nickel Plated Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 27.7
20SRA2E1RA531 20S Nickel Plated Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 27 29.7 1.06 1.17 26
20S16RA2E1RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8.7 0.13 0.34 19.9 0.78 27 29.7 1.06 1.17 26
20RA2E1RA532 20 Nickel Plated Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 36 39.6 1.42 1.56 27.7
20SRA2E1RA532 20S Nickel Plated Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 36 39.6 1.42 1.56 26
20S16RA2E1RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8.7 0.13 0.34 20.2 0.8 36 39.6 1.42 1.56 26
25RA2E1RA 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.13
25RA2E1RA1 25 Aluminium Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.040625
25RA2E1RA4 25 Stainless Steel Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.12264150943396226
25RA2E1RA5 25 Nickel Plated Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 35.5 PVC09 0.13
25RA2E1RA032 25 Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25RA2E1RA033 25 Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 41 45.1 1.62 1.78 35.5
25RA2E1RA132 25 Aluminium NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25RA2E1RA133 25 Aluminium NPT 1" 11.1 20 0.44 0.79 25 0.98 41 45.1 1.62 1.78 35.5
25RA2E1RA432 25 Stainless Steel NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25RA2E1RA433 25 Stainless Steel NPT 1" 11.1 20 0.44 0.79 25 0.98 41 45.1 1.62 1.78 35.5
25RA2E1RA532 25 Nickel Plated Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 35.5
25RA2E1RA533 25 Nickel Plated Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 41 45.1 1.62 1.78 35.5
32RA2E1RA 32 Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.7 35.1 PVC10 0.15
32RA2E1RA1 32 Aluminium Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.7 35.1 PVC10 0.04687499999999999
32RA2E1RA4 32 Stainless Steel Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.7 35.1 PVC10 0.14150943396226415
32RA2E1RA5 32 Nickel Plated Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.7 35.1 PVC10 0.15
32RA2E1RA033 32 Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32RA2E1RA034 32 Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 55 60.5 2.17 2.38 35.1
32RA2E1RA133 32 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32RA2E1RA134 32 Aluminium NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 55 60.5 2.17 2.38 35.1
32RA2E1RA433 32 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32RA2E1RA434 32 Stainless Steel NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 55 60.5 2.17 2.38 35.1
32RA2E1RA533 32 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 35.1
32RA2E1RA534 32 Nickel Plated Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 55 60.5 2.17 2.38 35.1
40RA2E1RA 40 Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40RA2E1RA1 40 Aluminium Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.0625
40RA2E1RA4 40 Stainless Steel Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.18867924528301888
40RA2E1RA5 40 Nickel Plated Brass Metric M40 1.5 23.5 32.2 0.93 1.27 15 0.59 50 55 1.97 2.17 35.1 PVC13 0.2
40RA2E1RA034 40 Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 55 60.5 2.17 2.38 35.1
40RA2E1RA035 40 Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 60 66 2.36 2.6 35.1
40RA2E1RA134 40 Aluminium NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 55 60.5 2.17 2.38 35.1
40RA2E1RA135 40 Aluminium NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 60 66 2.36 2.6 35.1
40RA2E1RA434 40 Stainless Steel NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 55 60.5 2.17 2.38 35.1
40RA2E1RA435 40 Stainless Steel NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 60 66 2.36 2.6 35.1
40RA2E1RA534 40 Nickel Plated Brass NPT 1-1/4" 23.5 32.2 0.93 1.27 25.6 1.01 55 60.5 2.17 2.38 35.1
40RA2E1RA535 40 Nickel Plated Brass NPT 1-1/2" 23.5 32.2 0.93 1.27 26.1 1.03 60 66 2.36 2.6 35.1
50RA2E1RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50SRA2E1RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 60 66 2.36 2.6 33 PVC18 0.26
50RA2E1RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.084375
50SRA2E1RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 60 66 2.36 2.6 33 PVC18 0.08125
50RA2E1RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.25471698113207547
50SRA2E1RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 60 66 2.36 2.6 33 PVC18 0.24528301886792453
50RA2E1RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 37.3 PVC18 0.27
50SRA2E1RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 60 66 2.36 2.6 33 PVC18 0.26
50SRA2E1RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 60 66 2.36 2.6 33
50RA2E1RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 37.3
50SRA2E1RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 70 77 2.76 3.03 33
50RA2E1RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 90 99 3.55 3.9 37.3
50SRA2E1RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 60 66 2.36 2.6 33
50RA2E1RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 37.3
50SRA2E1RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 70 77 2.76 3.03 33
50RA2E1RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 90 99 3.55 3.9 37.3
50SRA2E1RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 60 66 2.36 2.6 33
50RA2E1RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 37.3
50SRA2E1RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 70 77 2.76 3.03 33
50RA2E1RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 90 99 3.55 3.9 37.3
50SRA2E1RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 60 66 2.36 2.6 33
50SRA2E1RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 70 77 2.76 3.03 33
50RA2E1RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 70 77 2.76 3.03 37.3
50RA2E1RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 90 99 3.55 3.9 37.3
63RA2E1RA 63 Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.46
63SRA2E1RA 63S Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 75 82.5 2.96 3.25 33.5 PVC23 0.43
63SRA2E1RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 75 82.5 2.96 3.25 33.5 PVC23 0.134375
63RA2E1RA1 63 Aluminium Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.14375
63RA2E1RA4 63 Stainless Steel Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.4339622641509434
63SRA2E1RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 75 82.5 2.96 3.25 33.5 PVC23 0.40566037735849053
63RA2E1RA5 63 Nickel Plated Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 36.2 PVC23 0.46
63SRA2E1RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 75 82.5 2.96 3.25 33.5 PVC23 0.43
63SRA2E1RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70.5 77.55 2.78 3.06 33.5
63SRA2E1RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 90 99 3.55 3.9 33.5
63RA2E1RA037 63 Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 90 99 3.55 3.9 36.2
63RA2E1RA038 63 Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SRA2E1RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70.5 77.55 2.78 3.06 33.5
63RA2E1RA137 63 Aluminium NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 90 99 3.55 3.9 36.2
63SRA2E1RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 90 99 3.55 3.9 33.5
63RA2E1RA138 63 Aluminium NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SRA2E1RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70.5 77.55 2.78 3.06 33.5
63SRA2E1RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 90 99 3.55 3.9 33.5
63RA2E1RA437 63 Stainless Steel NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 90 99 3.55 3.9 36.2
63RA2E1RA438 63 Stainless Steel NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
63SRA2E1RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70.5 77.55 2.78 3.06 33.5
63SRA2E1RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 90 99 3.55 3.9 33.5
63RA2E1RA537 63 Nickel Plated Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 90 99 3.55 3.9 36.2
63RA2E1RA538 63 Nickel Plated Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 36.2
75SRA2E1RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 90 99 3.55 3.9 34.1 PVC27 0.52
75RA2E1RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 89 97.9 3.51 3.86 40.9 PVC27 0.5
75RA2E1RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 89 97.9 3.51 3.86 40.9 PVC27 0.15625
75SRA2E1RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 90 99 3.55 3.9 34.1 PVC27 0.1625
75RA2E1RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 89 97.9 3.51 3.86 40.9 PVC27 0.4716981132075471
75SRA2E1RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 90 99 3.55 3.9 34.1 PVC27 0.49056603773584906
75RA2E1RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 89 97.9 3.51 3.86 40.9 PVC27 0.5
75SRA2E1RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 90 99 3.55 3.9 34.1 PVC27 0.52
75SRA2E1RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 90 99 3.55 3.9 34.1
75RA2E1RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SRA2E1RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75RA2E1RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 114.3 125.73 4.5 4.95 40.9
75SRA2E1RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 90 99 3.55 3.9 34.1
75RA2E1RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SRA2E1RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75RA2E1RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 114.3 125.73 4.5 4.95 40.9
75SRA2E1RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 90 99 3.55 3.9 34.1
75RA2E1RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75SRA2E1RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75RA2E1RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 114.3 125.73 4.5 4.95 40.9
75SRA2E1RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 90 99 3.55 3.9 34.1
75SRA2E1RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 34.1
75RA2E1RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 40.9
75RA2E1RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 114.3 125.73 4.5 4.95 40.9
90RA2E1RA 90 Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90RA2E1RA1 90 Aluminium Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 0.5
90RA2E1RA4 90 Stainless Steel Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.509433962264151
90RA2E1RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.9 2.62 3.15 24 0.94 108 118.8 4.26 4.68 60.3 PVC31 1.6
90RA2E1RA039 90 Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 114.3 125.73 4.5 4.95 60.3
90RA2E1RA139 90 Aluminium NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 114.3 125.73 4.5 4.95 60.3
90RA2E1RA0310 90 Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 133.4 146.74 5.26 5.78 60.3
90RA2E1RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 114.3 125.73 4.5 4.95 60.3
90RA2E1RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.9 2.62 3.15 42.8 1.69 114.3 125.73 4.5 4.95 60.3
90RA2E1RA1310 90 Aluminium NPT 4" 66.6 79.9 2.62 3.15 44 1.73 133.4 146.74 5.26 5.78 60.3
90RA2E1RA4310 90 Stainless Steel NPT 4" 66.6 79.9 2.62 3.15 44 1.73 133.4 146.74 5.26 5.78 60.3
90RA2E1RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.9 2.62 3.15 44 1.73 133.4 146.74 5.26 5.78 60.3
100RA2E1RA 100 Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100RA2E1RA1 100 Aluminium Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 0.55625
100RA2E1RA4 100 Stainless Steel Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.6792452830188678
100RA2E1RA5 100 Nickel Plated Brass Metric M100 2 76 91 2.99 3.58 24 0.94 123 135.3 4.85 5.33 57.2 LSF33 1.78
100RA2E1RA039 100 Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.52 4.85 5.34 57.2
100RA2E1RA139 100 Aluminium NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.52 4.85 5.34 57.2
100RA2E1RA0310 100 Brass NPT 4" 76 91 2.99 3.58 44 1.73 133.4 146.74 5.26 5.78 57.2
100RA2E1RA439 100 Stainless Steel NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.52 4.85 5.34 57.2
100RA2E1RA539 100 Nickel Plated Brass NPT 3-1/2" 76 91 2.99 3.58 42.8 1.69 123.2 135.52 4.85 5.34 57.2
100RA2E1RA1310 100 Aluminium NPT 4" 76 91 2.99 3.58 44 1.73 133.4 146.74 5.26 5.78 57.2
100RA2E1RA4310 100 Stainless Steel NPT 4" 76 91 2.99 3.58 44 1.73 133.4 146.74 5.26 5.78 57.2
100RA2E1RA5310 100 Nickel Plated Brass NPT 4" 76 91 2.99 3.58 44 1.73 133.4 146.74 5.26 5.78 57.2
115RA2E1RA 115 Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.74 5.26 5.78 67.3 LSF34 2.67
115RA2E1RA1 115 Aluminium Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.74 5.26 5.78 67.3 LSF34 0.834375
115RA2E1RA4 115 Stainless Steel Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.74 5.26 5.78 67.3 LSF34 2.5188679245283017
115RA2E1RA5 115 Nickel Plated Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.74 5.26 5.78 67.3 LSF34 2.67
115RA2E1RA0310 115 Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.74 5.26 5.78 67.3
115RA2E1RA0312 115 Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.64 6 6.61 67.3
115RA2E1RA1310 115 Aluminium NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.74 5.26 5.78 67.3
115RA2E1RA1312 115 Aluminium NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.64 6 6.61 67.3
115RA2E1RA4310 115 Stainless Steel NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.74 5.26 5.78 67.3
115RA2E1RA4312 115 Stainless Steel NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.64 6 6.61 67.3
115RA2E1RA5310 115 Nickel Plated Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.74 5.26 5.78 67.3
115RA2E1RA5312 115 Nickel Plated Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.64 6 6.61 67.3
130RA2E1RA 130 Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.64 6 6.61 74.7 LSF35 3.8
130RA2E1RA1 130 Aluminium Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.64 6 6.61 74.7 LSF35 1.1874999999999998
130RA2E1RA4 130 Stainless Steel Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.64 6 6.61 74.7 LSF35 3.584905660377358
130RA2E1RA5 130 Nickel Plated Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.64 6 6.61 74.7 LSF35 3.8
130RA2E1RA0312 130 Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.64 6 6.61 74.7
130RA2E1RA1312 130 Aluminium NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.64 6 6.61 74.7
130RA2E1RA4312 130 Stainless Steel NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.64 6 6.61 74.7
130RA2E1RA5312 130 Nickel Plated Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.64 6 6.61 74.7
1
No results

0 of 192 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
