Description

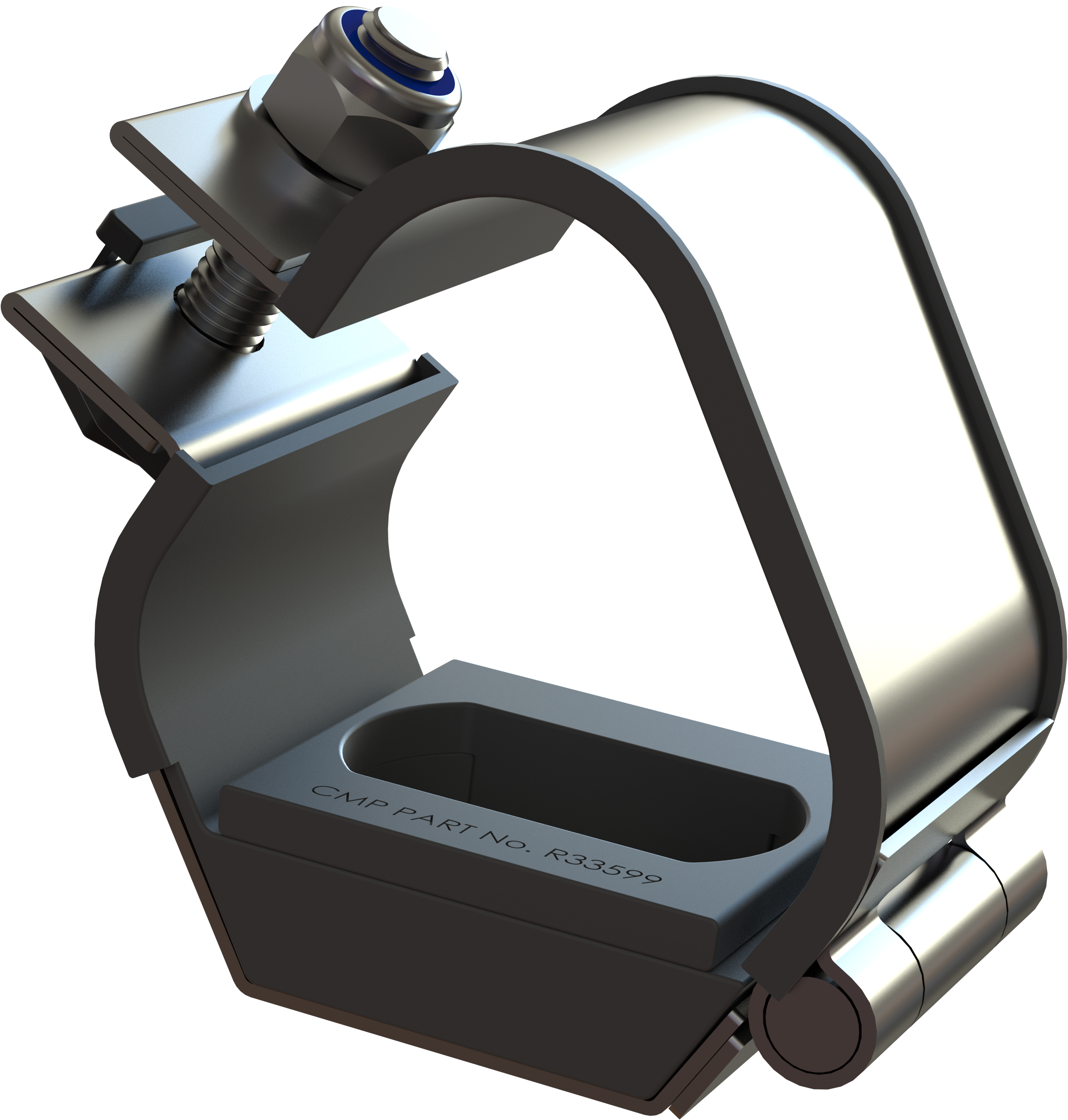

The CMP Patriot is a trefoil composite cable cleat, designed and tested in accordance with IEC 61914. Manufactured from 316L Stainless Steel with Low Smoke & Fume, Zero Halogen (LSF0H), Phosphorus free polymeric liners to protect the cable sheath. The single closing fixture with captive bolt ensures a quick installation. The fully opening hinge allows the cable cleat to be opened wide for easy cable installation, and the single closing fixture with captive bolt ensures a quick installation. The three M10 fixing clearance holes in the base allows versatility of fixing the cleat to the mounting structure.

---

Features

• Third party certified to IEC 61914, Lloyds, RMRS, UL, GOST-R, LUL
• 316L Stainless Steel
• Trefoil formation
• Short circuit rating of 135kA
• Operating temperature -60°C to +60°C
• Combined single (M10) or two bolt (M10) base fixing

---

Technical Specification
Axial load test EC 61914 clause 9.4 Information on request Base Fixing Ø (D1) 2 x M10 Base Fixing Ø (D2) 1 x M10 Cable Ø range take (mm) 48-55 Depth (D) 54 Height (H) 124 Hole Pitch (P) 50 Lateral Load Test Figure IEC 61914 clause 9-3 Information on request Width (W) 137 Weight (g) 483

Certification

UL Certificate Number 20181221_E490770 UL Compliance Standards UL 2239, CSA C22.2 No. 18.4-15 UL Logo Filename ullistedlogo.jpg UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000c/ullistedlogo.jpg London Underground Certificate Number 3271 LR Certificate Number 16-00050-03 LR Logo Filename lrlogo.jpg LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg BV Certificate Number 44507/B0 BV BV Logo Filename bvlogo.jpg BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg ABS Certificate Number 21-2090845_PDA ABS Logo Filename abstypelogo.jpg ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg RMRS Certificate Number 11130200 RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg GOSTR Certificate Number 04ИДЮ101.GB.C02493 GOSTR Logo Filename GOSTRLogo.jpg GOSTR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000004/GOSTRLogo.jpg LU Logo Filename LULogo.jpg LU Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/4342085c/644b8946f631051ac7000001/LULogo.jpg DNV Logo Filename dnvlogo.jpg DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg DNV-GL Certificate Number DNV TAE00000JE

ETIM
Mounting Direct Corrosion resistant Yes Flame resistant Yes Ambient temperature during operating -60 Resistant to short circuit forces High voltage Approved according to IEC 61914 Yes Useful cross section 55 Number of mounting holes 2 Mounting holes M10 With protective insulation Yes UV resistant Yes Width 137 Height 124 Depth 54 Thickness 1.5
