SDSSIR Cable Cleat

ETIM Classification

EC004588

Side opening standard duty stainless steel, trefoil intermediate restraint

Description

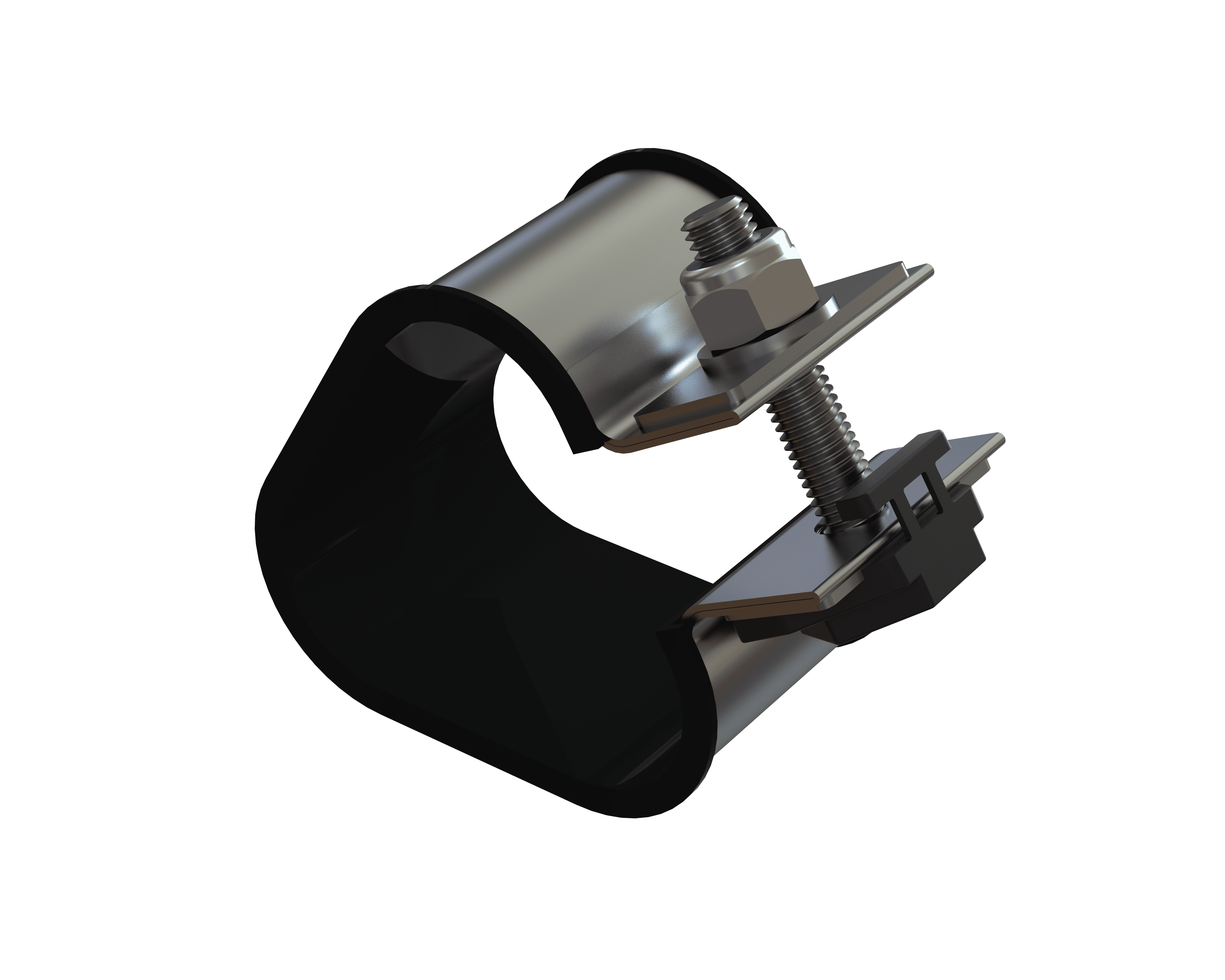

The CMP Patriot (IR) is a trefoil composite intermediate restraint, designed and tested in accordance with IEC 61914. Manufactured from 316L Stainless Steel with Low Smoke & Fume, Zero Halogen (LSF0H), Phosphorus free polymeric liners to protect the cable sheath. Intermediate restraints are cable retaining devices that can be used in conjunction with fixed cable cleats; they hold the cables together in formation, in order to provide resistance to electromechanical forces. The single closing fixture with captive bolt ensures a quick installation.

Features

  • Third party certified to IEC 61914, UL, GOST-R, LUL
  • 316L Stainless Steel
  • Trefoil formation
  • Operating temperature -60°C to +60°C

Additional Information

Certification
Technical Specification
Axial Load Test Range, IEC 61914 clause 9.4 Information on request
Cable Formation Trefoil
Classification IEC61914 clause 6.1 6.1.3 Composite
Cleat Material 316L Stainless Steel with standard liners. Liners are classified as Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus Free.
Impact Resistance, IEC 61914 clause 6.3 Very heavy
Lateral Load Test Range, IEC 61914 clause 9.3 Information on request
Needle Flame Test, IEC61914 clause 10, 10.1, IEC 60695-11-5 Pass 120 Second
Temperature For Permanent Application, IEC 61914 clause 6.2 -60°C to +60°C

Downloads

Certificates

Product Selector

1
Part Number Cable Ø range take (mm) Width (W) Height (H) Depth (D) Weight (g)
SDSSIR019022 19-22 81 78 54 214
SDSSIR022026 22-26 89 81 54 227
SDSSIR026030 26-30 97 84 54 238
SDSSIR030034 30-34 105 87 54 250
SDSSIR034038 34-38 112 91 54 263
SDSSIR038042 38-42 119 97 54 276
SDSSIR042046 42-46 126 101 54 289
SDSSIR046050 46-50 131 106 54 302
SDSSIR050054 50-54 139 111 54 315
SDSSIR054058 54-58 146 118 54 327
SDSSIR058062 58-62 153 126 54 341
SDSSIR062066 62-66 160 133 54 355
SDSSIR066070 66-70 161 141 54 368
SDSSIR070074 70-74 174 148 54 381
SDSSIR0740878 74-78 181 156 54 394
SDSSIR078082 78-82 188 163 54 407
SDSSIR082086 82-86 195 171 54 421
SDSSIR086090 86-90 201 178 54 434
SDSSIR090094 90-94 208 186 54 447
SDSSIR094098 94-98 215 193 54 460
SDSSIR098102 98-102 222 201 54 473
SDSSIR102106 102-106 229 208 54 486
SDSSIR106110 106-110 236 215 54 499
SDSSIR110114 110-114 243 223 54 512
SDSSIR114118 114-118 250 230 54 525
SDSSIR118122 118-122 256 238 54 539
SDSSIR122126 122-126 263 246 54 552
SDSSIR126130 126-130 270 253 54 565
1
No results

0 of 28 Selected
