Sentinel Cable Gland
ETIM Classification
EC000441
Description
The Sentinel range of corrosion shields are for use in heavy duty applications in Harsh Corrosive Environments with TMC2 & TM2CX cable glands. Designed to offer long term reliability of cable terminations, this range helps extend the life span of cable glands.
Features
- Quick and easy installation, no special tools required
- Clear, visible external identification
- Fully Inspectable
- Fully resistant to potash, UV & salt spray
- Low smoke & fume, zero halogen, flame retardant to UL94-HB
- Supplied with clearance hole and threaded entry interface seals
Additional Information
| Certification | |
|---|---|
|
|
|
| Technical Specification | ||||
|---|---|---|---|---|
|
||||
Certificates
Product Selector
1

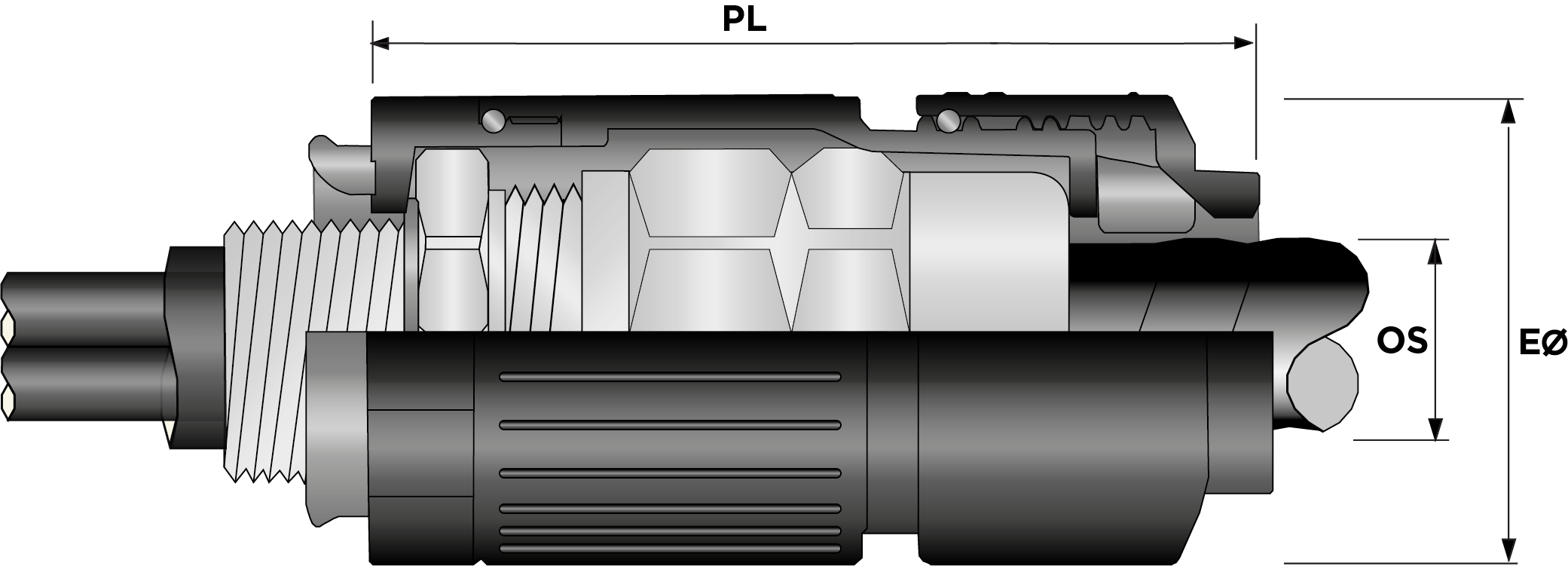

| Part Number | Material | Entry Thread Size TS | Max Envelope Dia EØ (mm) | Min Overall Cable Ø OS (mm) | Max Overall Cable Ø OS (mm) | Min Overall Cable Ø OS (Imp) | Max Overall Cable Ø OS (Imp) | Max Protrusion Length PL (mm) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
SEN-030-075 | Halogen Free Polyamide | 1/2" | 1.88 | 12.7 | 19.05 | 0.5 | 0.75 | 3.52 |
|
|
SEN-037-099 | Halogen Free Polyamide | 1/2" | 2.16 | 17.53 | 25.15 | 0.69 | 0.99 | 4.01 |
|
|
SEN-046-118 | Halogen Free Polyamide | 3/4" | 2.61 | 22.1 | 29.97 | 0.87 | 1.18 | 4.37 |
|
|
SEN-052-137 | Halogen Free Polyamide | 1" | 2.91 | 25.91 | 34.8 | 1.02 | 1.37 | 4.65 |
|
|
SEN-060-162 | Halogen Free Polyamide | 1-1/4" | 3.28 | 33.02 | 41.15 | 1.3 | 1.62 | 4.8 |
|
|
SEN-065-190 | Halogen Free Polyamide | 1-1/4" | 3.44 | 39.88 | 48.26 | 1.57 | 1 | 4.84 |
