SS2KGP Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The SS2KGP range of cable glands are for use in heavy duty applications in Industrial Areas (Safe Areas). Designed with a seal on both the inner and the outer sheath, or a double seal on the cable outer sheath.

Features

  • Direct & remote installation
  • Superior levels of cable retention
  • Displacement type seals
  • Deluge protected
  • -60˚C to +130˚C

Additional Information

Certification
Industrial Certificate Number Sira 10Y9148U
Technical Specification
Application IND
Seal Material CMP Thermoset Rubber
Seal Technique CMP Unique Displacement Seal Concept
Seal Area(s) Cable Inner Bedding & Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical & Electrical Classifications applied as per IEC 62444 & EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

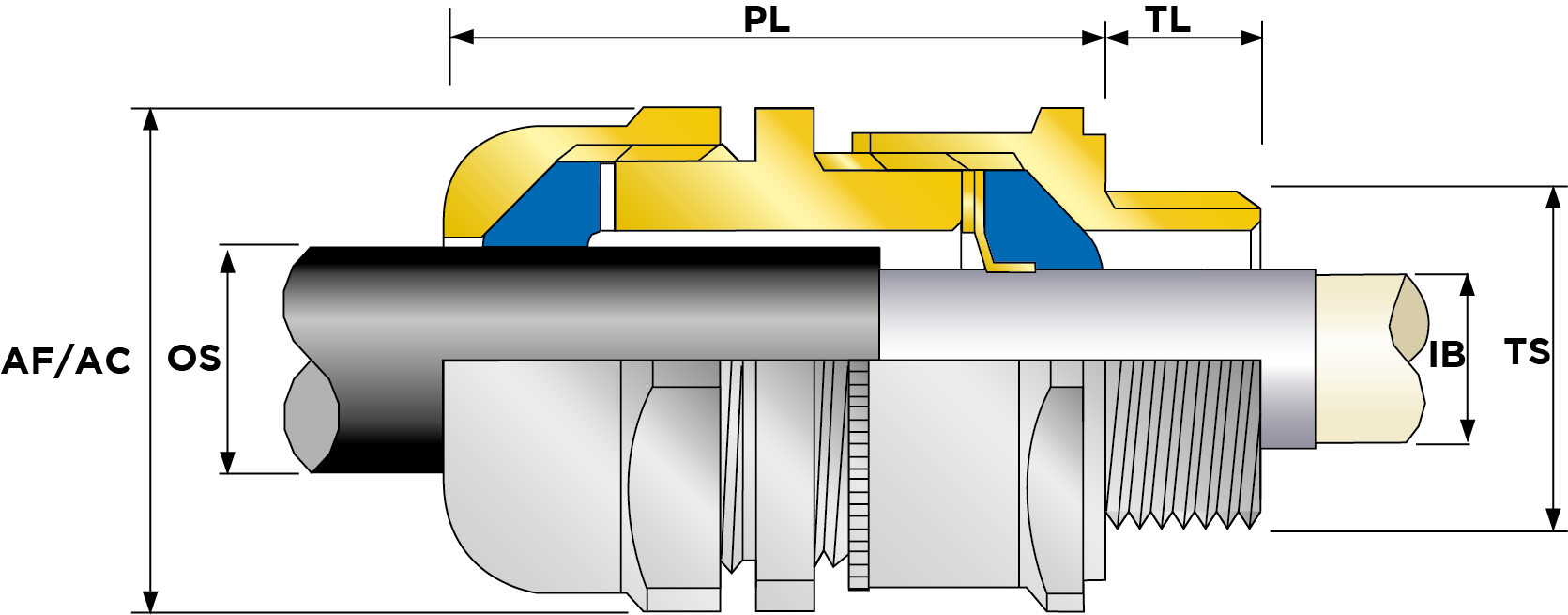

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Maximum Cap Screw Head Recess Diameter RØ Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Shroud Size Ass'y Weight
16SS2KGP1RA 16 Brass Metric M16 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.14
16SS2KGP1RA1 16 Aluminium Metric M16 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.043750000000000004
16SS2KGP1RA4 16 Stainless Steel Metric M16 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.1320754716981132
16SS2KGP1RA5 16 Nickel Plated Brass Metric M16 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.14
20SS2KGP1RA 20 Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55 PVC05 0.16
20SSS2KGP1RA 20S Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46 PVC04 0.13
20S16SS2KGP1RA 20S16 Brass Metric M20 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.14
20SS2KGP1RA1 20 Aluminium Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55 PVC05 0.049999999999999996
20SSS2KGP1RA1 20S Aluminium Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46 PVC04 0.040625
20S16SS2KGP1RA1 20S16 Aluminium Metric M20 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.043750000000000004
20SS2KGP1RA4 20 Stainless Steel Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55 PVC05 0.1509433962264151
20SSS2KGP1RA4 20S Stainless Steel Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46 PVC04 0.12264150943396226
20S16SS2KGP1RA4 20S16 Stainless Steel Metric M20 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.1320754716981132
20SS2KGP1RA5 20 Nickel Plated Brass Metric M20 1.5 6.5 14 0.26 0.55 10 0.39 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55 PVC05 0.16
20SSS2KGP1RA5 20S Nickel Plated Brass Metric M20 1.5 6.1 11.7 0.24 0.46 10 0.39 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46 PVC04 0.13
20S16SS2KGP1RA5 20S16 Nickel Plated Brass Metric M20 1.5 3.2 8.6 0.13 0.34 10 0.39 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34 PVC04 0.14
20SS2KGP1RA031 20 Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55
20SSS2KGP1RA031 20S Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA031 20S16 Brass NPT 1/2" 3.2 8.6 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34
20SS2KGP1RA032 20 Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 54 6.5 14 0.26 0.55
20SSS2KGP1RA032 20S Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA032 20S16 Brass NPT 3/4" 3.2 8.6 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 49 3.2 8.7 0.13 0.34
20SS2KGP1RA131 20 Aluminium NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55
20SSS2KGP1RA131 20S Aluminium NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA131 20S16 Aluminium NPT 1/2" 3.2 8.6 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34
20SSS2KGP1RA132 20S Aluminium NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA132 20S16 Aluminium NPT 3/4" 3.2 8.6 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 49 3.2 8.7 0.13 0.34
20SS2KGP1RA132 20 Aluminium NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 54 6.5 14 0.26 0.55
20SS2KGP1RA431 20 Stainless Steel NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55
20SSS2KGP1RA431 20S Stainless Steel NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA431 20S16 Stainless Steel NPT 1/2" 3.2 8.6 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34
20SS2KGP1RA432 20 Stainless Steel NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 54 6.5 14 0.26 0.55
20SSS2KGP1RA432 20S Stainless Steel NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA432 20S16 Stainless Steel NPT 3/4" 3.2 8.6 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 49 3.2 8.7 0.13 0.34
20SS2KGP1RA531 20 Nickel Plated Brass NPT 1/2" 6.5 14 0.26 0.55 19.9 0.78 27 29.7 1.06 1.17 54 6.5 14 0.26 0.55
20SSS2KGP1RA531 20S Nickel Plated Brass NPT 1/2" 6.1 11.7 0.24 0.46 19.9 0.78 24 26.4 0.95 1.04 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA531 20S16 Nickel Plated Brass NPT 1/2" 3.2 8.6 0.13 0.34 19.9 0.78 24 26.4 0.95 1.04 49 3.2 8.7 0.13 0.34
20SS2KGP1RA532 20 Nickel Plated Brass NPT 3/4" 6.5 14 0.26 0.55 20.2 0.8 31.5 34.7 1.24 1.37 54 6.5 14 0.26 0.55
20SSS2KGP1RA532 20S Nickel Plated Brass NPT 3/4" 6.1 11.7 0.24 0.46 20.2 0.8 31.5 34.7 1.24 1.37 49 6.1 11.7 0.24 0.46
20S16SS2KGP1RA532 20S16 Nickel Plated Brass NPT 3/4" 3.2 8.6 0.13 0.34 20.2 0.8 31.5 34.7 1.24 1.37 49 3.2 8.7 0.13 0.34
25SS2KGP1RA 25 Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79 PVC09 0.3
25SS2KGP1RA1 25 Aluminium Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79 PVC09 0.09374999999999999
25SS2KGP1RA4 25 Stainless Steel Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79 PVC09 0.2830188679245283
25SS2KGP1RA5 25 Nickel Plated Brass Metric M25 1.5 11.1 20 0.44 0.79 10 0.39 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79 PVC09 0.3
25SS2KGP1RA032 25 Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79
25SS2KGP1RA033 25 Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 66 11.1 20 0.44 0.79
25SS2KGP1RA132 25 Aluminium NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79
25SS2KGP1RA133 25 Aluminium NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 66 11.1 20 0.44 0.79
25SS2KGP1RA432 25 Stainless Steel NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79
25SS2KGP1RA433 25 Stainless Steel NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 66 11.1 20 0.44 0.79
25SS2KGP1RA532 25 Nickel Plated Brass NPT 3/4" 11.1 20 0.44 0.79 20.2 0.8 36 39.6 1.42 1.56 66 11.1 20 0.44 0.79
25SS2KGP1RA533 25 Nickel Plated Brass NPT 1" 11.1 20 0.44 0.79 25 0.98 37.6 41.4 1.48 1.63 66 11.1 20 0.44 0.79
32SS2KGP1RA 32 Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04 PVC10 0.35
32SS2KGP1RA1 32 Aluminium Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04 PVC10 0.10937499999999999
32SS2KGP1RA4 32 Stainless Steel Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04 PVC10 0.330188679245283
32SS2KGP1RA5 32 Nickel Plated Brass Metric M32 1.5 17 26.3 0.67 1.04 10 0.39 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04 PVC10 0.35
32SS2KGP1RA033 32 Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04
32SS2KGP1RA034 32 Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 67 17 26.3 0.67 1.04
32SS2KGP1RA133 32 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04
32SS2KGP1RA134 32 Aluminium NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 67 17 26.3 0.67 1.04
32SS2KGP1RA433 32 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04
32SS2KGP1RA434 32 Stainless Steel NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 67 17 26.3 0.67 1.04
32SS2KGP1RA533 32 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 67 17 26.3 0.67 1.04
32SS2KGP1RA534 32 Nickel Plated Brass NPT 1-1/4" 17 26.3 0.67 1.04 25.6 1.01 46 50.6 1.81 1.99 67 17 26.3 0.67 1.04
40SS2KGP1RA 40 Brass Metric M40 1.5 23.5 32.1 0.93 1.26 15 0.59 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27 PVC13 0.5
40SS2KGP1RA1 40 Aluminium Metric M40 1.5 23.5 32.1 0.93 1.26 15 0.59 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27 PVC13 0.15625
40SS2KGP1RA4 40 Stainless Steel Metric M40 1.5 23.5 32.1 0.93 1.26 15 0.59 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27 PVC13 0.4716981132075471
40SS2KGP1RA5 40 Nickel Plated Brass Metric M40 1.5 23.5 32.1 0.93 1.26 15 0.59 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27 PVC13 0.5
40SS2KGP1RA034 40 Brass NPT 1-1/4" 23.5 32.1 0.93 1.26 25.6 1.01 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27
40SS2KGP1RA035 40 Brass NPT 1-1/2" 23.5 32.1 0.93 1.26 26.1 1.03 54.8 60.3 2.16 2.38 70 23.5 32.2 0.93 1.27
40SS2KGP1RA134 40 Aluminium NPT 1-1/4" 23.5 32.1 0.93 1.26 25.6 1.01 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27
40SS2KGP1RA135 40 Aluminium NPT 1-1/2" 23.5 32.1 0.93 1.26 26.1 1.03 54.8 60.3 2.16 2.38 70 23.5 32.2 0.93 1.27
40SS2KGP1RA434 40 Stainless Steel NPT 1-1/4" 23.5 32.1 0.93 1.26 25.6 1.01 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27
40SS2KGP1RA435 40 Stainless Steel NPT 1-1/2" 23.5 32.1 0.93 1.26 26.1 1.03 54.8 60.3 2.16 2.38 70 23.5 32.2 0.93 1.27
40SS2KGP1RA534 40 Nickel Plated Brass NPT 1-1/4" 23.5 32.1 0.93 1.26 25.6 1.01 50 55 1.97 2.17 70 23.5 32.2 0.93 1.27
40SS2KGP1RA535 40 Nickel Plated Brass NPT 1-1/2" 23.5 32.1 0.93 1.26 26.1 1.03 54.8 60.3 2.16 2.38 70 23.5 32.2 0.93 1.27
50SS2KGP1RA 50 Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 70 35.6 44 1.4 1.73 PVC18 0.59
50SSS2KGP1RA 50S Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5 PVC15 0.56
50SS2KGP1RA1 50 Aluminium Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 70 35.6 44 1.4 1.73 PVC18 0.18437499999999998
50SSS2KGP1RA1 50S Aluminium Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5 PVC15 0.17500000000000002
50SS2KGP1RA4 50 Stainless Steel Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 70 35.6 44 1.4 1.73 PVC18 0.5566037735849056
50SSS2KGP1RA4 50S Stainless Steel Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5 PVC15 0.5283018867924528
50SS2KGP1RA5 50 Nickel Plated Brass Metric M50 1.5 35.6 44 1.4 1.73 15 0.59 60 66 2.36 2.6 70 35.6 44 1.4 1.73 PVC18 0.59
50SSS2KGP1RA5 50S Nickel Plated Brass Metric M50 1.5 31 38.2 1.22 1.5 15 0.59 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5 PVC15 0.56
50SSS2KGP1RA035 50S Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5
50SS2KGP1RA036 50 Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 70 35.6 44 1.4 1.73
50SSS2KGP1RA036 50S Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 65 31 38.2 1.22 1.5
50SS2KGP1RA037 50 Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 70 35.6 44 1.4 1.73
50SSS2KGP1RA135 50S Aluminium NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5
50SSS2KGP1RA136 50S Aluminium NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 65 31 38.2 1.22 1.5
50SS2KGP1RA136 50 Aluminium NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 70 35.6 44 1.4 1.73
50SS2KGP1RA137 50 Aluminium NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 70 35.6 44 1.4 1.73
50SSS2KGP1RA435 50S Stainless Steel NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5
50SSS2KGP1RA436 50S Stainless Steel NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 65 31 38.2 1.22 1.5
50SS2KGP1RA436 50 Stainless Steel NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 70 35.6 44 1.4 1.73
50SS2KGP1RA437 50 Stainless Steel NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 70 35.6 44 1.4 1.73
50SSS2KGP1RA535 50S Nickel Plated Brass NPT 1-1/2" 31 38.2 1.22 1.5 26.1 1.03 55 60.5 2.17 2.38 65 31 38.2 1.22 1.5
50SS2KGP1RA536 50 Nickel Plated Brass NPT 2" 35.6 44 1.4 1.73 26.9 1.06 65 71.5 2.56 2.82 70 35.6 44 1.4 1.73
50SSS2KGP1RA536 50S Nickel Plated Brass NPT 2" 31 38.2 1.22 1.5 26.9 1.06 65 71.5 2.56 2.82 65 31 38.2 1.22 1.5
50SS2KGP1RA537 50 Nickel Plated Brass NPT 2-1/2" 35.6 44 1.4 1.73 39.9 1.57 80 88 3.15 3.47 70 35.6 44 1.4 1.73
63SS2KGP1RA 63 Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 71 47.2 55.9 1.86 2.2 PVC23 0.85
63SSS2KGP1RA 63S Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 41.5 49.9 1.63 1.96 PVC21 0.89
63SSS2KGP1RA1 63S Aluminium Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 41.5 49.9 1.63 1.96 PVC21 0.278125
63SS2KGP1RA1 63 Aluminium Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 71 47.2 55.9 1.86 2.2 PVC23 0.265625
63SS2KGP1RA4 63 Stainless Steel Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 71 47.2 55.9 1.86 2.2 PVC23 0.8018867924528301
63SSS2KGP1RA4 63S Stainless Steel Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 41.5 49.9 1.63 1.96 PVC21 0.8396226415094339
63SS2KGP1RA5 63 Nickel Plated Brass Metric M63 1.5 47.2 55.9 1.86 2.2 15 0.59 75 82.5 2.96 3.25 71 47.2 55.9 1.86 2.2 PVC23 0.85
63SSS2KGP1RA5 63S Nickel Plated Brass Metric M63 1.5 41.5 49.9 1.63 1.96 15 0.59 70.5 77.6 2.78 3.06 70 41.5 49.9 1.63 1.96 PVC21 0.89
63SSS2KGP1RA036 63S Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 41.5 49.9 1.63 1.96
63SSS2KGP1RA037 63S Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 41.5 49.9 1.63 1.96
63SS2KGP1RA037 63 Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 71 47.2 55.9 1.86 2.2
63SS2KGP1RA038 63 Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 71 47.2 55.9 1.86 2.2
63SSS2KGP1RA136 63S Aluminium NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 41.5 49.9 1.63 1.96
63SSS2KGP1RA137 63S Aluminium NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 41.5 49.9 1.63 1.96
63SS2KGP1RA137 63 Aluminium NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 71 47.2 55.9 1.86 2.2
63SS2KGP1RA138 63 Aluminium NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 71 47.2 55.9 1.86 2.2
63SSS2KGP1RA436 63S Stainless Steel NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 41.5 49.9 1.63 1.96
63SS2KGP1RA437 63 Stainless Steel NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 71 47.2 55.9 1.86 2.2
63SSS2KGP1RA437 63S Stainless Steel NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 41.5 49.9 1.63 1.96
63SS2KGP1RA438 63 Stainless Steel NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 71 47.2 55.9 1.86 2.2
63SSS2KGP1RA536 63S Nickel Plated Brass NPT 2" 41.5 49.9 1.63 1.96 26.9 1.06 70 77 2.76 3.03 70 41.5 49.9 1.63 1.96
63SSS2KGP1RA537 63S Nickel Plated Brass NPT 2-1/2" 41.5 49.9 1.63 1.96 39.9 1.57 80 88 3.15 3.47 70 41.5 49.9 1.63 1.96
63SS2KGP1RA537 63 Nickel Plated Brass NPT 2-1/2" 47.2 55.9 1.86 2.2 39.9 1.57 80 88 3.15 3.47 71 47.2 55.9 1.86 2.2
63SS2KGP1RA538 63 Nickel Plated Brass NPT 3" 47.2 55.9 1.86 2.2 41.5 1.63 100 110 3.94 4.33 71 47.2 55.9 1.86 2.2
75SSS2KGP1RA 75S Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 70 54 61.9 2.13 2.44 PVC26 1.02
75SS2KGP1RA 75 Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 75 61.1 67.9 2.41 2.67 PVC26 0.99
75SS2KGP1RA1 75 Aluminium Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 75 61.1 67.9 2.41 2.67 PVC26 0.30937499999999996
75SSS2KGP1RA1 75S Aluminium Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 70 54 61.9 2.13 2.44 PVC26 0.31875
75SS2KGP1RA4 75 Stainless Steel Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 75 61.1 67.9 2.41 2.67 PVC26 0.9339622641509433
75SSS2KGP1RA4 75S Stainless Steel Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 70 54 61.9 2.13 2.44 PVC26 0.9622641509433962
75SS2KGP1RA5 75 Nickel Plated Brass Metric M75 1.5 61.1 67.9 2.41 2.67 15 0.59 84 92.4 3.31 3.64 75 61.1 67.9 2.41 2.67 PVC26 0.99
75SSS2KGP1RA5 75S Nickel Plated Brass Metric M75 1.5 54 61.9 2.13 2.44 15 0.59 84 92.4 3.31 3.64 70 54 61.9 2.13 2.44 PVC26 1.02
75SSS2KGP1RA037 75S Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 70 54 61.9 2.13 2.44
75SS2KGP1RA038 75 Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 75 61.1 67.9 2.41 2.67
75SSS2KGP1RA038 75S Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 70 54 61.9 2.13 2.44
75SS2KGP1RA039 75 Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 75 ` 61.1 67.9 2.41 2.67
75SSS2KGP1RA137 75S Aluminium NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 70 54 61.9 2.13 2.44
75SSS2KGP1RA138 75S Aluminium NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 70 54 61.9 2.13 2.44
75SS2KGP1RA138 75 Aluminium NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 75 61.1 67.9 2.41 2.67
75SS2KGP1RA139 75 Aluminium NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 75 ` 61.1 67.9 2.41 2.67
75SSS2KGP1RA437 75S Stainless Steel NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 70 54 61.9 2.13 2.44
75SSS2KGP1RA438 75S Stainless Steel NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 70 54 61.9 2.13 2.44
75SS2KGP1RA438 75 Stainless Steel NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 75 61.1 67.9 2.41 2.67
75SS2KGP1RA439 75 Stainless Steel NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 75 ` 61.1 67.9 2.41 2.67
75SSS2KGP1RA537 75S Nickel Plated Brass NPT 2-1/2" 54 61.9 2.13 2.44 39.9 1.57 80 88 3.15 3.47 70 54 61.9 2.13 2.44
75SSS2KGP1RA538 75S Nickel Plated Brass NPT 3" 54 61.9 2.13 2.44 41.5 1.63 100 110 3.94 4.33 70 54 61.9 2.13 2.44
75SS2KGP1RA538 75 Nickel Plated Brass NPT 3" 61.1 67.9 2.41 2.67 41.5 1.63 100 110 3.94 4.33 75 61.1 67.9 2.41 2.67
75SS2KGP1RA539 75 Nickel Plated Brass NPT 3-1/2" 61.1 67.9 2.41 2.67 42.8 1.69 108 118.8 4.26 4.68 75 ` 61.1 67.9 2.41 2.67
90SS2KGP1RA 90 Brass Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15 PVC31 2.99
90SS2KGP1RA1 90 Aluminium Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15 PVC31 0.9343750000000001
90SS2KGP1RA4 90 Stainless Steel Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15 PVC31 2.8207547169811322
90SS2KGP1RA5 90 Nickel Plated Brass Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15 PVC31 2.99
90SS2KGP1RA039 90 Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15
90SS2KGP1RA139 90 Aluminium NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15
90SS2KGP1RA0310 90 Brass NPT 4" 66.6 79.4 2.62 3.13 44 1.73 123.2 135.5 4.85 5.34 113 66.6 79.9 2.62 3.15
90SS2KGP1RA439 90 Stainless Steel NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15
90SS2KGP1RA539 90 Nickel Plated Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 108 118.8 4.26 4.68 113 66.6 79.9 2.62 3.15
90SS2KGP1RA1310 90 Aluminium NPT 4" 66.6 79.4 2.62 3.13 44 1.73 123.2 135.5 4.85 5.34 113 66.6 79.9 2.62 3.15
90SS2KGP1RA4310 90 Stainless Steel NPT 4" 66.6 79.4 2.62 3.13 44 1.73 123.2 135.5 4.85 5.34 113 66.6 79.9 2.62 3.15
90SS2KGP1RA5310 90 Nickel Plated Brass NPT 4" 66.6 79.4 2.62 3.13 44 1.73 123.2 135.5 4.85 5.34 113 66.6 79.9 2.62 3.15
100SS2KGP1RA 100 Brass Metric M100 2 76 90.9 2.99 3.58 24 0.94 123 135.3 4.85 5.33 106 76 91 2.99 3.58 LSF33 3.39
100SS2KGP1RA1 100 Aluminium Metric M100 2 76 90.9 2.99 3.58 24 0.94 123 135.3 4.85 5.33 106 76 91 2.99 3.58 LSF33 1.059375
100SS2KGP1RA4 100 Stainless Steel Metric M100 2 76 90.9 2.99 3.58 24 0.94 123 135.3 4.85 5.33 106 76 91 2.99 3.58 LSF33 3.19811320754717
100SS2KGP1RA5 100 Nickel Plated Brass Metric M100 2 76 90.9 2.99 3.58 24 0.94 123 135.3 4.85 5.33 106 76 91 2.99 3.58 LSF33 3.39
100SS2KGP1RA039 100 Brass NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA139 100 Aluminium NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA0310 100 Brass NPT 4" 76 90.9 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA439 100 Stainless Steel NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA539 100 Nickel Plated Brass NPT 3-1/2" 76 90.9 2.99 3.58 42.8 1.69 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA1310 100 Aluminium NPT 4" 76 90.9 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA4310 100 Stainless Steel NPT 4" 76 90.9 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
100SS2KGP1RA5310 100 Nickel Plated Brass NPT 4" 76 90.9 2.99 3.58 44 1.73 123.2 135.5 4.85 5.34 106 76 91 2.99 3.58
115SS2KGP1RA 115 Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85 LSF34 5.32
115SS2KGP1RA1 115 Aluminium Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85 LSF34 1.6625
115SS2KGP1RA4 115 Stainless Steel Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85 LSF34 5.018867924528302
115SS2KGP1RA5 115 Nickel Plated Brass Metric M115 2 86 97.9 3.39 3.85 24 0.94 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85 LSF34 5.32
115SS2KGP1RA0310 115 Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85
115SS2KGP1RA0312 115 Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 128 86 97.9 3.39 3.85
115SS2KGP1RA1310 115 Aluminium NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85
115SS2KGP1RA1312 115 Aluminium NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 128 86 97.9 3.39 3.85
115SS2KGP1RA4310 115 Stainless Steel NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85
115SS2KGP1RA4312 115 Stainless Steel NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 128 86 97.9 3.39 3.85
115SS2KGP1RA5310 115 Nickel Plated Brass NPT 4" 86 97.9 3.39 3.85 44 1.73 133.4 146.7 5.26 5.78 128 86 97.9 3.39 3.85
115SS2KGP1RA5312 115 Nickel Plated Brass NPT 5" 86 97.9 3.39 3.85 46.8 1.84 152.4 167.6 6 6.6 128 86 97.9 3.39 3.85
130SS2KGP1RA 130 Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52 LSF35 6.35
130SS2KGP1RA1 130 Aluminium Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52 LSF35 1.9843749999999998
130SS2KGP1RA4 130 Stainless Steel Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52 LSF35 5.9905660377358485
130SS2KGP1RA5 130 Nickel Plated Brass Metric M130 2 97 114.9 3.82 4.52 24 0.94 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52 LSF35 6.35
130SS2KGP1RA0312 130 Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52
130SS2KGP1RA1312 130 Aluminium NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52
130SS2KGP1RA4312 130 Stainless Steel NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52
130SS2KGP1RA5312 130 Nickel Plated Brass NPT 5" 97 114.9 3.82 4.52 46.8 1.84 152.4 167.6 6 6.6 129 97 114.9 3.82 4.52
1
No results

0 of 192 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
