T3CDSWVAR Cable Gland

ETIM Classification

EC000441

For Variable Speed Drive (VSD) cable with Copper Tape Screen (CTS)

Description

The Triton CDS range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a unique compensating displacement seal (CDS) to reduce the effects of coldflow.

Features

  • Fully sequential, three step installation procedure
  • Reduces installation times, cost and risk
  • Direct and remote installation
  • Unique compensating displacement seal system (CDS)
  • Metal-to-metal installation every time regardless of cable diameter
  • Designed to reduce the effects of coldflow. See CMP Technical Doc TS002
  • Integral protected deluge seal
  • Controlled outer load retention seal
  • Unique OSTG prevents over tightening
  • -60˚C to +130˚C (standard),
  • Globally marked, UL, cCSAus,
  • IECEx, ATEX and UKEX

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1326X
ATEX Certificate Number 2 CML 18ATEX4318X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0183X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1258X, CML 21UKEX4259X
UL Certificate Number 20171006-E256367
UL Code of Protection Class I, Zone 1, AEx e II
UL Compliance Standards UL 514B, 2225, 50, EN 50014, 50018, 60529
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.04599/22
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 20-AV4BO-0199X, 20-AV4BO-0200X, 20-AV4BO-0201X, 20-AV4BO-0202X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002527
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/4, P548696/1
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64840/E23-02-065461/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0011X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 1310517
CSA Code of Protection CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Types 3, 4 and 4X; Oil Resistance II; Class I, Zone 1, AEx e II, AEx nR II, Ex d IIC, Ex e IIC, Ex nR II
CSA Compliance Standards CSA C22.2 No. 0, 18, 25, 30, 94, 174, 60079-0, -7; UL 514B, UL 50, UL 2225, UL 60079-0, -7
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
INMETRO Certificate Number TÜV 11.0374X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

Downloads

Certificates

Product Selector

1

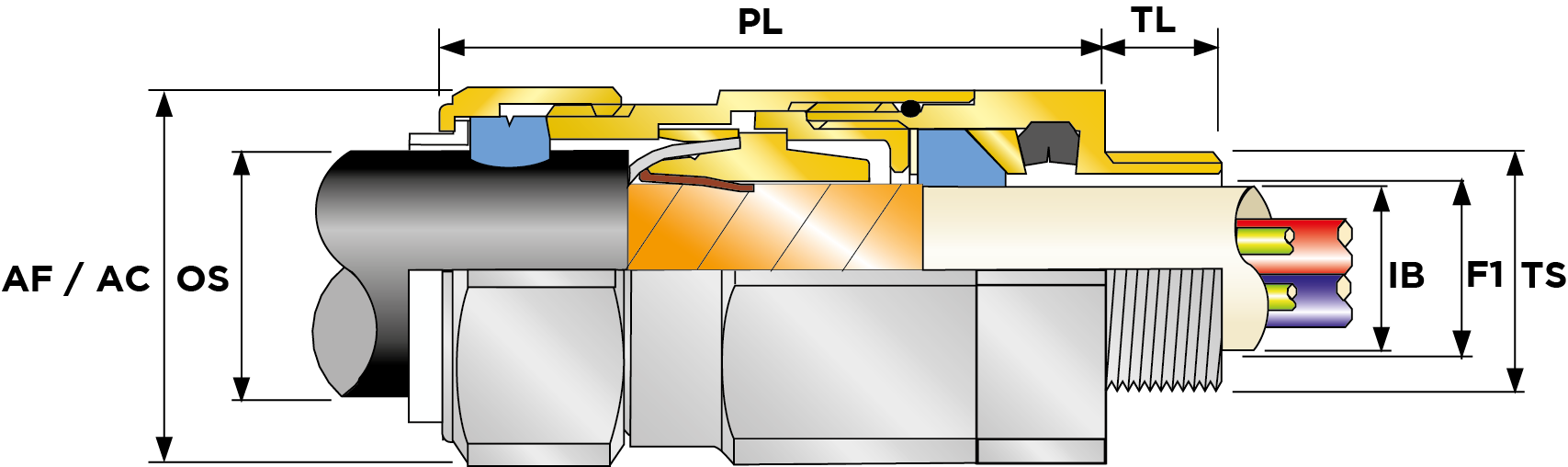

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min VAR Tape Ø (mm) Min VAR Tape Ø (Imp) Max VAR Tape Ø (mm) Max VAR Tape Ø (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20T3CDSWVAR1RA 20 Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049 PVC06 0.28
20T3CDSWVAR1RA1 20 Aluminium Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049 PVC06 0.09
20T3CDSWVAR1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049 PVC06 0.26
20T3CDSWVAR1RA5 20 Nickel Plated Brass Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049 PVC06 0.28
20T3CDSWVAR031 20 Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR131 20 Aluminium NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR531 20 Nickel Plated Brass NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR032 20 Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR132 20 Aluminium NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
20T3CDSWVAR532 20 Nickel Plated Brass NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 76.2 6.5 13.9 0.26 0.55 8.5 0.33 13.2 0.52 0.8 1.25 0.031 0.049
25ST3CDSWVAR1RA 25S Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063 PVC09 0.44
25ST3CDSWVAR1RA1 25S Aluminium Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063 PVC09 0.14
25ST3CDSWVAR1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063 PVC09 0.42
25ST3CDSWVAR1RA5 25S Nickel Plated Brass Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063 PVC09 0.44
25T3CDSWVAR1RA 25 Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063 PVC09 0.44
25T3CDSWVAR1RA1 25 Aluminium Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063 PVC09 0.14
25T3CDSWVAR1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063 PVC09 0.42
25T3CDSWVAR1RA5 25 Nickel Plated Brass Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063 PVC09 0.44
25ST3CDSWVAR032 25S Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR132 25S Aluminium NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR532 25S Nickel Plated Brass NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR033 25S Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR133 25S Aluminium NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
25ST3CDSWVAR533 25S Nickel Plated Brass NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 88.8 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.76 1.25 1.6 0.049 0.063
32T3CDSWVAR1RA 32 Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079 PVC11 0.63
32T3CDSWVAR1RA1 32 Aluminium Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079 PVC11 0.20
32T3CDSWVAR1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079 PVC11 0.59
32T3CDSWVAR1RA5 32 Nickel Plated Brass Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079 PVC11 0.63
25T3CDSWVAR032 25 Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR132 25 Aluminium NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR532 25 Nickel Plated Brass NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
40T3CDSWVAR1RA 40 Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079 PVC15 0.91
40T3CDSWVAR1RA1 40 Aluminium Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079 PVC15 0.28
40T3CDSWVAR1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079 PVC15 0.86
40T3CDSWVAR1RA5 40 Nickel Plated Brass Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079 PVC15 0.91
25T3CDSWVAR033 25 Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR133 25 Aluminium NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
25T3CDSWVAR533 25 Nickel Plated Brass NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 88.7 11.1 19.9 0.44 0.78 12.5 0.49 19.2 0.75 1.25 1.6 0.049 0.063
50ST3CDSWVAR1RA 50S Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098 PVC18 1.12
50ST3CDSWVAR1RA1 50S Aluminium Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098 PVC18 0.35
50ST3CDSWVAR1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098 PVC18 1.06
50ST3CDSWVAR1RA5 50S Nickel Plated Brass Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098 PVC18 1.12
32T3CDSWVAR033 32 Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR133 32 Aluminium NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR533 32 Nickel Plated Brass NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
50T3CDSWVAR1RA 50 Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098 PVC21 1.60
50T3CDSWVAR1RA1 50 Aluminium Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098 PVC21 0.50
50T3CDSWVAR1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098 PVC21 1.51
50T3CDSWVAR1RA5 50 Nickel Plated Brass Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098 PVC21 1.60
32T3CDSWVAR034 32 Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR134 32 Aluminium NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
32T3CDSWVAR534 32 Nickel Plated Brass NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 90.7 17 26.2 0.67 1.03 16.5 0.65 25.5 1.00 1.6 2 0.063 0.079
63ST3CDSWVAR1RA 63S Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098 PVC23 1.73
63ST3CDSWVAR1RA1 63S Aluminium Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098 PVC23 0.54
63ST3CDSWVAR1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098 PVC23 1.63
63ST3CDSWVAR1RA5 63S Nickel Plated Brass Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098 PVC23 1.73
40T3CDSWVAR034 40 Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR134 40 Aluminium NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR534 40 Nickel Plated Brass NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
63T3CDSWVAR1RA 63 Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098 PVC25 1.78
63T3CDSWVAR1RA1 63 Aluminium Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098 PVC25 0.56
63T3CDSWVAR1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098 PVC25 1.68
63T3CDSWVAR1RA5 63 Nickel Plated Brass Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098 PVC25 1.78
40T3CDSWVAR035 40 Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR135 40 Aluminium NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
40T3CDSWVAR535 40 Nickel Plated Brass NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 93.2 22 32.1 0.87 1.26 22 0.87 31.1 1.22 1.6 2 0.063 0.079
75ST3CDSWVAR1RA 75S Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098 PVC28 2.57
75ST3CDSWVAR1RA1 75S Aluminium Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098 PVC28 0.80
75ST3CDSWVAR1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098 PVC28 2.42
75ST3CDSWVAR1RA5 75S Nickel Plated Brass Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098 PVC28 2.57
50ST3CDSWVAR035 50S Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR135 50S Aluminium NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR535 50S Nickel Plated Brass NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
75T3CDSWVAR1RA 75 Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118 PVC30 3.33
75T3CDSWVAR1RA1 75 Aluminium Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118 PVC30 1.04
75T3CDSWVAR1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118 PVC30 3.14
75T3CDSWVAR1RA5 75 Nickel Plated Brass Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118 PVC30 3.33
50ST3CDSWVAR036 50S Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR136 50S Aluminium NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
50ST3CDSWVAR536 50S Nickel Plated Brass NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 100.7 29.5 38.1 1.16 1.5 29 1.14 37.2 1.46 2 2.5 0.079 0.098
90T3CDSWVAR1RA 90 Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157 PVC32 4.87
90T3CDSWVAR1RA1 90 Aluminium Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157 PVC32 1.52
90T3CDSWVAR1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157 PVC32 4.59
90T3CDSWVAR1RA5 90 Nickel Plated Brass Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157 PVC32 4.87
50T3CDSWVAR036 50 Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR136 50 Aluminium NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR536 50 Nickel Plated Brass NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR037 50 Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR137 50 Aluminium NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
50T3CDSWVAR537 50 Nickel Plated Brass NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 105.8 35.6 44 1.4 1.73 32 1.26 43 1.69 2 2.5 0.079 0.098
63ST3CDSWVAR036 63S Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR136 63S Aluminium NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR536 63S Nickel Plated Brass NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR037 63S Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR137 63S Aluminium NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63ST3CDSWVAR537 63S Nickel Plated Brass NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 102.5 40.1 49.9 1.58 1.96 33 1.30 48.9 1.93 2 2.5 0.079 0.098
63T3CDSWVAR037 63 Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR137 63 Aluminium NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR537 63 Nickel Plated Brass NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR038 63 Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR138 63 Aluminium NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
63T3CDSWVAR538 63 Nickel Plated Brass NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 105.4 47.2 55.9 1.86 2.2 38 1.50 54.9 2.16 2 2.5 0.079 0.098
75ST3CDSWVAR037 75S Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3. 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR137 75S Aluminium NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3. 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3. 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR537 75S Nickel Plated Brass NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3. 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR038 75S Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR138 75S Aluminium NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75ST3CDSWVAR538 75S Nickel Plated Brass NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 110.6 52.8 61.9 2.08 2.44 44 1.73 60.9 2.40 2 2.5 0.079 0.098
75T3CDSWVAR038 75 Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR138 75 Aluminium NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR538 75 Nickel Plated Brass NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR039 75 Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 110 121 4.33 4.77 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR139 75 Aluminium NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 110 121 4.33 4.77 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 110 121 4.33 4.77 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
75T3CDSWVAR539 75 Nickel Plated Brass NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 110 121 4.33 4.77 120.3 59.1 67.9 2.33 2.67 50 1.97 66.9 2.63 2.5 3 0.098 0.118
90T3CDSWVAR039 90 Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR139 90 Aluminium NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR539 90 Nickel Plated Brass NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR0310 90 Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 127 139.7 5 5.5 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR1310 90 Aluminium NPT 4" 76.2 90.3 3 3.56 44 1.73 127 139.7 5 5.5 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 127 139.7 5 5.5 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
90T3CDSWVAR5310 90 Nickel Plated Brass NPT 4" 76.2 90.3 3 3.56 44 1.73 127 139.7 5 5.5 138.9 66.6 78.6 2.62 3.09 59 2.32 78.4 3.09 3.15 4 0.124 0.157
1
No results

0 of 144 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
