TC Cable Gland

ETIM Classification

EC000441

For all types of Unarmored Tray Cables, Flexible Cables & Cord

Description

The TC range of cable glands are for use in heavy duty applications in Hazardous (Classified) Locations. Designed with integral O-ring seal.

Features

Aluminum, nickel plated brass or stainless steel design
Increased cable range with removable insert
Optional thread sizes
-60˚C to +110˚C (-76˚F to +230˚F)
Globally marked, cCSAus, IECEx, ATEX and UKEX
Heavy duty design
O-ring face seal as standard

Additional Information

ATEX Certificate Number	CML 18ATEX1334X
ATEX Code of Protection	^ II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards	EN 60079-0, -1, -7, -31
IECEx Certificate Number	IECEx CML 18.0191X
IECEx Code of Protection	Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards	IEC 60079-0, -1, -7, -31
IECEx Logo Filename	iecexlogo.jpg
IECEx Logo	https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number	CML 21UKEX1260X
CSA Certificate Number	CSA Certificate
CSA Code of Protection	CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 2, Groups E, F, and G; Class III, Division 2; Enclosure Type 4X; Ex e; Class I, Zone 1, AEx e
CSA Logo Filename	cCSAusLogo.jpg
CSA Logo	https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CCC Certificate Number	2020322313003408
CCC Logo Filename	ccclogo.jpg
CCC Logo	https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number	3866
PESO Certificate Number	P533772/13, P548696/7
PESO Logo	https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request.

Certificates

Product Selector

Showing:

Refine by part number

Entry thread type
Entry thread size
Cable Diameter Minimum
Cable Diameter Maximum
Gland Material

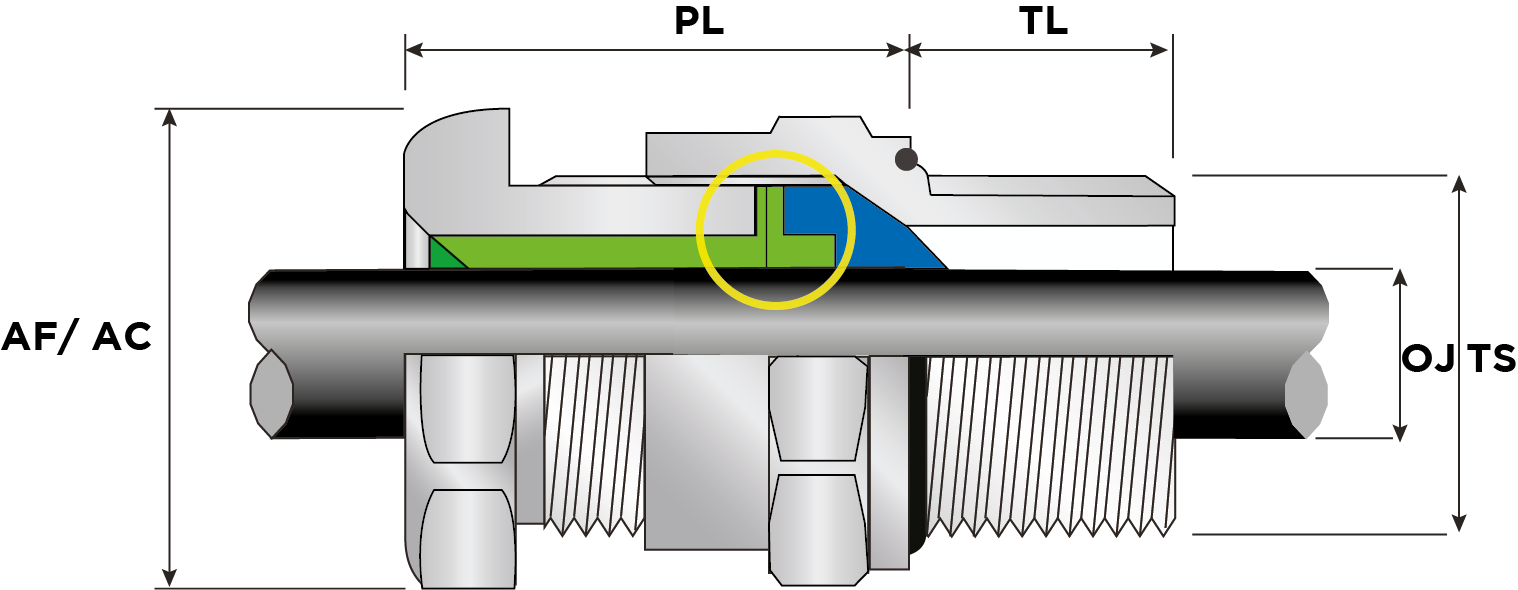

	Part Number	Size	Material	Entry Thread	Entry Thread Size TS	Entry Thread Pitch TP	Min Thread Length TL (mm)	Min Thread Length TL (Imp)	Max Across Flats AF (mm)	Max Across Corners AC (mm)	Max Across Flats AF (Imp)	Max Across Corners AC (Imp)	Max Protrusion Length PL (mm)	Minimum Cable Jacket Diameter OJ With Insert (mm)	Maximum Cable Jacket Diameter OJ With Insert (mm)	Min Cable Jacket Ø w/o Insert OJ (mm)
Select	TC-M20A0551RA102	55	Aluminium	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-M20A0281RA102	28	Aluminium	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-M25A0791RA103	79	Aluminium	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-M25A0551RA103	55	Aluminium	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-M25A0281RA103	28	Aluminium	Metric	M25	1.5	15	0.59	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-M32A1041RA104	104	Aluminium	Metric	M32	1.5	15	0.59	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-M32A0791RA104	79	Aluminium	Metric	M32	1.5	15	0.59	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-M40A1271RA105	127	Aluminium	Metric	M40	1.5	15	0.59	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-M40A1041RA105	104	Aluminium	Metric	M40	1.5	15	0.59	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-M40A1501RA105	150	Aluminium	Metric	M40	1.5	15	0.59	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-M50A1271RA106	127	Aluminium	Metric	M50	1.5	15	0.59	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-M50A1971RA106	197	Aluminium	Metric	M50	1.5	15	0.59	70	51.6	2.76	2.03	1.74			1.63
Select	TC-M50A1741RA106	174	Aluminium	Metric	M50	1.5	15	0.59	70	75.6	2.76	2.98	1.63			1.4
Select	TC-M50A1501RA106	150	Aluminium	Metric	M50	1.5	15	0.59	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-M63A1971RA107	197	Aluminium	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.63
Select	TC-M63A1741RA107	174	Aluminium	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.63			1.4
Select	TC-M63A2441RA107	244	Aluminium	Metric	M63	1.5	15	0.59	90	99	3.55	3.9	1.79			2.13
Select	TC-M63A2201RA107	220	Aluminium	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.86
Select	TC-M75A2681RA108	268	Aluminium	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.41
Select	TC-M75A2441RA108	244	Aluminium	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.13
Select	TC-M90A2681RA109	268	Aluminium	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	1.79			2.41
Select	TC-M90A3151RA109	315	Aluminium	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	2.5			2.62
Select	TC-050A0551RA131	55	Aluminium	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-050A0281RA131	28	Aluminium	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-075A0281RA132	28	Aluminium	NPT	3/4"		20.2	0.8	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-075A0791RA132	79	Aluminium	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-075A0551RA132	55	Aluminium	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-100A1041RA133	104	Aluminium	NPT	1"		25	0.98	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-100A0791RA133	79	Aluminium	NPT	1"		25	0.98	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-125A1041RA134	104	Aluminium	NPT	1-1/4"		25.6	1.01	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-125A1271RA134	127	Aluminium	NPT	1-1/4"		25.6	1.01	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-150A1501RA135	150	Aluminium	NPT	1-1/2"		26.1	1.03	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-150A1271RA135	127	Aluminium	NPT	1-1/2"		26.1	1.03	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-200A1741RA136	174	Aluminium	NPT	2"		26.9	1.06	70	75.6	2.76	2.98	1.63			1.4
Select	TC-200A1501RA136	150	Aluminium	NPT	2"		26.9	1.06	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-200A1971RA136	197	Aluminium	NPT	2"		26.9	1.06	70	51.6	2.76	2.03	1.74			1.63
Select	TC-250A1741RA137	174	Aluminium	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.63			1.4
Select	TC-250A2441RA137	244	Aluminium	NPT	2-1/2"		39.9	1.57	90	99	3.55	3.9	1.79			2.13
Select	TC-250A2201RA137	220	Aluminium	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.86
Select	TC-250A1971RA137	197	Aluminium	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.63
Select	TC-300A2201RA138	220	Aluminium	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.74			1.86
Select	TC-300A2681RA138	268	Aluminium	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.41
Select	TC-300A2441RA138	244	Aluminium	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.13
Select	TC-350A3151RA139	315	Aluminium	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	2.5			2.62
Select	TC-350A2681RA139	268	Aluminium	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	1.79			2.41
Select	TC-M20SS0281RA402	28	Stainless Steel	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-M20SS0551RA402	55	Stainless Steel	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-M25SS0281RA403	28	Stainless Steel	Metric	M25	1.5	15	0.59	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-M25SS0791RA403	79	Stainless Steel	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-M25SS0551RA403	55	Stainless Steel	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-M32SS1041RA404	104	Stainless Steel	Metric	M32	1.5	15	0.59	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-M32SS0791RA404	79	Stainless Steel	Metric	M32	1.5	15	0.59	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-M40SS1041RA405	104	Stainless Steel	Metric	M40	1.5	15	0.59	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-M40SS1501RA405	150	Stainless Steel	Metric	M40	1.5	15	0.59	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-M40SS1271RA405	127	Stainless Steel	Metric	M40	1.5	15	0.59	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-M50SS1741RA406	174	Stainless Steel	Metric	M50	1.5	15	0.59	70	75.6	2.76	2.98	1.63			1.4
Select	TC-M50SS1501RA406	150	Stainless Steel	Metric	M50	1.5	15	0.59	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-M50SS1271RA406	127	Stainless Steel	Metric	M50	1.5	15	0.59	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-M50SS1971RA406	197	Stainless Steel	Metric	M50	1.5	15	0.59	70	51.6	2.76	2.03	1.74			1.63
Select	TC-M63SS2441RA407	244	Stainless Steel	Metric	M63	1.5	15	0.59	90	99	3.55	3.9	1.79			2.13
Select	TC-M63SS2201RA407	220	Stainless Steel	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.86
Select	TC-M63SS1971RA407	197	Stainless Steel	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.63
Select	TC-M63SS1741RA407	174	Stainless Steel	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.63			1.4
Select	TC-M75SS2681RA408	268	Stainless Steel	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.41
Select	TC-M75SS2441RA408	244	Stainless Steel	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.13
Select	TC-M90SS3151RA409	315	Stainless Steel	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	2.5			2.62
Select	TC-M90SS2681RA409	268	Stainless Steel	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	1.79			2.41
Select	TC-050SS0551RA431	55	Stainless Steel	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-050SS0281RA431	28	Stainless Steel	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-075SS0791RA432	79	Stainless Steel	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-075SS0551RA432	55	Stainless Steel	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-075SS0281RA432	28	Stainless Steel	NPT	3/4"		20.2	0.8	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-100SS1041RA433	104	Stainless Steel	NPT	1"		25	0.98	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-100SS0791RA433	79	Stainless Steel	NPT	1"		25	0.98	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-125SS1271RA434	127	Stainless Steel	NPT	1-1/4"		25.6	1.01	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-125SS1041RA434	104	Stainless Steel	NPT	1-1/4"		25.6	1.01	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-150SS1271RA435	127	Stainless Steel	NPT	1-1/2"		26.1	1.03	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-150SS1501RA435	150	Stainless Steel	NPT	1-1/2"		26.1	1.03	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-200SS1971RA436	197	Stainless Steel	NPT	2"		26.9	1.06	70	51.6	2.76	2.03	1.74			1.63
Select	TC-200SS1741RA436	174	Stainless Steel	NPT	2"		26.9	1.06	70	75.6	2.76	2.98	1.63			1.4
Select	TC-200SS1501RA436	150	Stainless Steel	NPT	2"		26.9	1.06	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-250SS1741RA437	174	Stainless Steel	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.63			1.4
Select	TC-250SS2441RA437	244	Stainless Steel	NPT	2-1/2"		39.9	1.57	90	99	3.55	3.9	1.79			2.13
Select	TC-250SS2201RA437	220	Stainless Steel	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.86
Select	TC-250SS1971RA437	197	Stainless Steel	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.63
Select	TC-300SS2681RA438	268	Stainless Steel	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.41
Select	TC-300SS2441RA438	244	Stainless Steel	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.13
Select	TC-300SS2201RA438	220	Stainless Steel	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.74			1.86
Select	TC-350SS3151RA439	315	Stainless Steel	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	2.5			2.62
Select	TC-350SS2681RA439	268	Stainless Steel	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	1.79			2.41
Select	TC-M20NB0281RA502	28	Nickel Plated Brass	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-M20NB0551RA502	55	Nickel Plated Brass	Metric	M20	1.5	15	0.59	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-M25NB0281RA503	28	Nickel Plated Brass	Metric	M25	1.5	15	0.59	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-M25NB0791RA503	79	Nickel Plated Brass	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-M25NB0551RA503	55	Nickel Plated Brass	Metric	M25	1.5	15	0.59	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-M32NB1041RA504	104	Nickel Plated Brass	Metric	M32	1.5	15	0.59	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-M32NB0791RA504	79	Nickel Plated Brass	Metric	M32	1.5	15	0.59	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-M40NB1041RA505	104	Nickel Plated Brass	Metric	M40	1.5	15	0.59	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-M40NB1501RA505	150	Nickel Plated Brass	Metric	M40	1.5	15	0.59	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-M40NB1271RA505	127	Nickel Plated Brass	Metric	M40	1.5	15	0.59	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-M50NB1741RA506	174	Nickel Plated Brass	Metric	M50	1.5	15	0.59	70	75.6	2.76	2.98	1.63			1.4
Select	TC-M50NB1501RA506	150	Nickel Plated Brass	Metric	M50	1.5	15	0.59	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-M50NB1271RA506	127	Nickel Plated Brass	Metric	M50	1.5	15	0.59	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-M50NB1971RA506	197	Nickel Plated Brass	Metric	M50	1.5	15	0.59	70	51.6	2.76	2.03	1.74			1.63
Select	TC-M63NB2441RA507	244	Nickel Plated Brass	Metric	M63	1.5	15	0.59	90	99	3.55	3.9	1.79			2.13
Select	TC-M63NB2201RA507	220	Nickel Plated Brass	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.86
Select	TC-M63NB1971RA507	197	Nickel Plated Brass	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.74			1.63
Select	TC-M63NB1741RA507	174	Nickel Plated Brass	Metric	M63	1.5	15	0.59	90	97.2	3.55	3.83	1.63			1.4
Select	TC-M75NB2681RA508	268	Nickel Plated Brass	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.41
Select	TC-M75NB2441RA508	244	Nickel Plated Brass	Metric	M75	1.5	15	0.59	110	118.8	4.33	4.68	1.79			2.13
Select	TC-M90NB3151RA509	315	Nickel Plated Brass	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	2.5			2.62
Select	TC-M90NB2681RA509	268	Nickel Plated Brass	Metric	M90	2	24	0.94	123	132.8	4.85	5.23	1.79			2.41
Select	TC-050NB0281RA531	28	Nickel Plated Brass	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.13	0.28
Select	TC-050NB0551RA531	55	Nickel Plated Brass	NPT	1/2"		19.9	0.78	30.5	33.6	1.2	1.32	1.2	0.26	0.41	0.41
Select	TC-075NB0791RA532	79	Nickel Plated Brass	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.44	0.61	0.61
Select	TC-075NB0551RA532	55	Nickel Plated Brass	NPT	3/4"		20.2	0.8	37.5	41.3	1.48	1.63	1.24	0.26	0.41	0.41
Select	TC-075NB0281RA532	28	Nickel Plated Brass	NPT	3/4"		20.2	0.8	37.5	40.5	1.48	1.6	1.24	0.13	0.28
Select	TC-100NB1041RA533	104	Nickel Plated Brass	NPT	1"		25	0.98	46	50.6	1.81	1.99	1.65	0.67	0.85	0.85
Select	TC-100NB0791RA533	79	Nickel Plated Brass	NPT	1"		25	0.98	46	49.7	1.81	1.96	1.65	0.44	0.61	0.61
Select	TC-125NB1271RA534	127	Nickel Plated Brass	NPT	1-1/4"		25.6	1.01	52	57.2	2.05	2.25	1.65	0.93	1.1	1.1
Select	TC-125NB1041RA534	104	Nickel Plated Brass	NPT	1-1/4"		25.6	1.01	52	56.2	2.05	2.21	1.65	0.67	0.85	0.85
Select	TC-150NB1501RA535	150	Nickel Plated Brass	NPT	1-1/2"		26.1	1.03	60	66	2.36	2.6	1.65	1.22	1.37	1.37
Select	TC-150NB1271RA535	127	Nickel Plated Brass	NPT	1-1/2"		26.1	1.03	60	64.8	2.36	2.55	1.65	0.93	1.1	1.1
Select	TC-200NB1501RA536	150	Nickel Plated Brass	NPT	2"		26.9	1.06	75	81	2.96	3.19	1.65	1.22	1.37	1.37
Select	TC-200NB1971RA536	197	Nickel Plated Brass	NPT	2"		26.9	1.06	70	51.6	2.76	2.03	1.74			1.63
Select	TC-200NB1741RA536	174	Nickel Plated Brass	NPT	2"		26.9	1.06	70	75.6	2.76	2.98	1.63			1.4
Select	TC-250NB2201RA537	220	Nickel Plated Brass	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.86
Select	TC-250NB1971RA537	197	Nickel Plated Brass	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.74			1.63
Select	TC-250NB1741RA537	174	Nickel Plated Brass	NPT	2-1/2"		39.9	1.57	90	97.2	3.55	3.83	1.63			1.4
Select	TC-250NB2441RA537	244	Nickel Plated Brass	NPT	2-1/2"		39.9	1.57	90	99	3.55	3.9	1.79			2.13
Select	TC-300NB2681RA538	268	Nickel Plated Brass	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.41
Select	TC-300NB2441RA538	244	Nickel Plated Brass	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.79			2.13
Select	TC-300NB2201RA538	220	Nickel Plated Brass	NPT	3"		41.5	1.63	110	118.8	4.33	4.68	1.74			1.86
Select	TC-350NB3151RA539	315	Nickel Plated Brass	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	2.5			2.62
Select	TC-350NB2681RA539	268	Nickel Plated Brass	NPT	3-1/2"		42.8	1.69	123	132.8	4.85	5.23	1.79			2.41
Select	TC-M100A3541RA1010	354	Aluminium	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.36			2.99
Select	TC-M100A3151RA1010	315	Aluminium	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.5			2.62
Select	TC-400A3151RA1310	315	Aluminium	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.5			2.62
Select	TC-400A3541RA1310	354	Aluminium	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.36			2.99
Select	TC-M100SS3541RA4010	354	Stainless Steel	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.36			2.99
Select	TC-M100SS3151RA4010	315	Stainless Steel	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.5			2.62
Select	TC-400SS3541RA4310	354	Stainless Steel	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.36			2.99
Select	TC-400SS3151RA4310	315	Stainless Steel	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.5			2.62
Select	TC-M100NB3541RA5010	354	Nickel Plated Brass	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.36			2.99
Select	TC-M100NB3151RA5010	315	Nickel Plated Brass	Metric	M100	2	24	0.94	133.4	144	5.26	5.67	2.5			2.62
Select	TC-400NB3541RA5310	354	Nickel Plated Brass	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.36			2.99
Select	TC-400NB3151RA5310	315	Nickel Plated Brass	NPT	4"		44	1.73	133.4	144	5.26	5.67	2.5			2.62

No results

0 of 147 Selected

Showing:

"*" indicates required fields

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Email Address*

Country*

For all types of Unarmored Tray Cables, Flexible Cables & Cord

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Registered office

For all types of Unarmored Tray Cables, Flexible Cables & Cord

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Your Shortlist

Your Selection

We'd like to keep in touch

Registered office
