TE1FU Cable Gland

ETIM Classification

EC000441

For all types of Armoured or Braided / Screened cables.

Description

The TE1FU range of cable glands are for use in heavy duty applications in Explosive Atmospheres. Designed with a unique compensating displacement seal (CDS) to reduce the effects of coldflow. Constructed from Stainless Steel for a more compact design.

Features

  • Stainless steel compact design
  • Fully sequential, three step installation procedure
  • Direct and remote installation
  • Unique compensating displacement seal system(CDS)
  • Metal-to-metal installation regardless of cable bedding diameter
  • Integral protected deluge seal
  • -60˚C to +130˚C
  • Designed to reduce the effects of coldflow, see CMP Technical Document TS002
  • Controlled outer load retention seal
  • Unique OSTG prevents overtightening
  • Globally marked cCSAus, IECEx, ATEX and UKEX
  • Superior EMC performance
  • Reduces installation times, cost and risk

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1326X
ATEX Certificate Number 2 CML 18ATEX4318X
ATEX Code of Protection ^ I M2 Ex db I Mb, Ex eb I Mb; ^ II 2G 3G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0183X
IECEx Code of Protection Ex db I Mb, Ex eb I Mb, Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1258X, CML 21UKEX4259X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02514/20
EAC Code of Protection { 1Ex db IIC Gb X, { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da X
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
KCs Certificate Number 19-AV4BO-0375X, 19-AV4BO-0376X, 19-AV4BO-0377X, 19-AV4BO-0378X
KCs Logo Filename kcslogo.jpg
KCs Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000007/kcslogo.jpg
CCC Certificate Number 2020322313002527
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/4, P548696/1
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64840/E23-02-065461/NB0007
ECAS Logo Filename ecaslogo.jpg
SANS Certificate Number MS-XPL21804 21.0011X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 1310517
CSA Code of Protection CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 2, Groups E, F, and G; Class III, Div 1 and 2; Enclosure Types 3, 4 and 4X; Oil Resistance II; Class I, Zone 1, AEx e II, AEx nR II, Ex d IIC, Ex e IIC, Ex nR II
CSA Compliance Standards CSA C22.2 No. 0, 18, 25, 30, 94, 174, 60079-0, -7; UL 514B, UL 50, UL 2225, UL 60079-0, -7
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
INMETRO Certificate Number TÜV 11.0374X
INMETRO Logo Filename inmetrologo.jpg
INMETRO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000006/inmetrologo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Armour Clamping Reversible Armour Cone and AnyWay Universal Clamping Ring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Inner Compensating Displacement Seal (CDS) and Outer Load Retention Seal
Seal Area(s) Cable Inner Bedding and Outer Cable Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information. *** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request

Downloads

Certificates

Product Selector

1

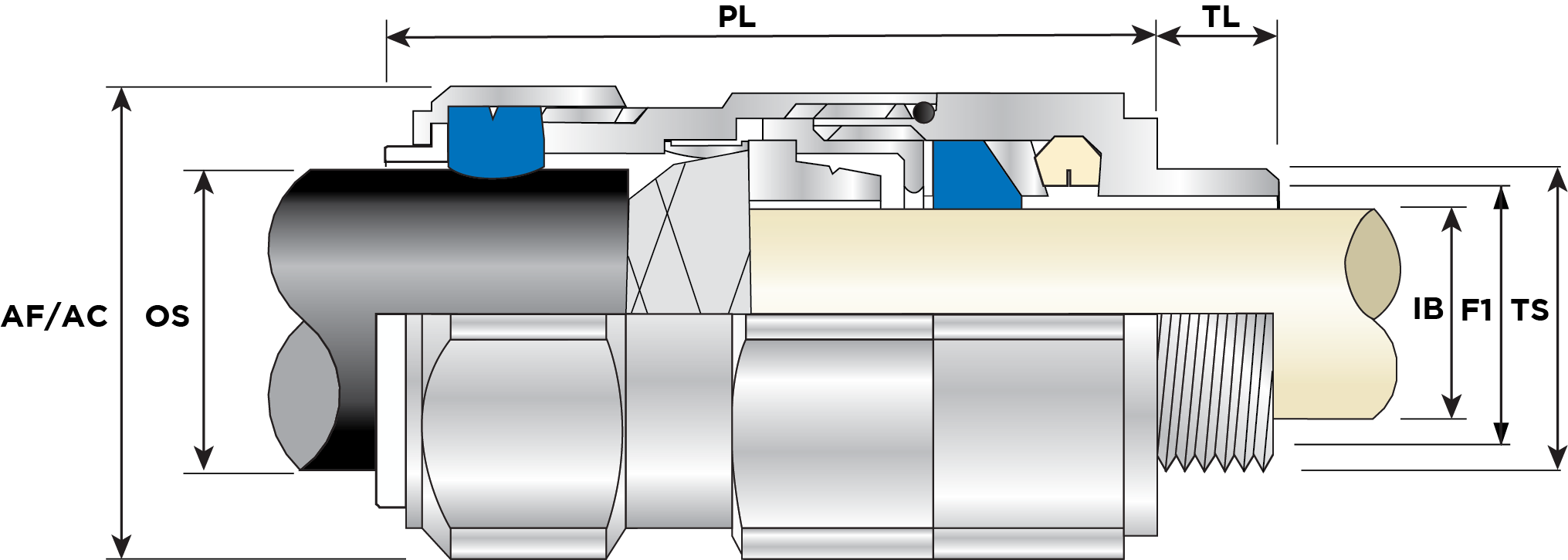

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp) Min Cable Bedding Ø IB (Imp) Min Armour Thickness X Cone X1 (mm) Max Armour Thickness X Cone X1 (mm) Min Armour Thickness X Cone X1 (Imp) Min Armour Thickness W Cone W1 (mm) Max Armour Thickness W Cone W1 (mm) Min Armour Thickness W Cone W1 (Imp) Max Armour Thickness W Cone W1 (Imp) Shroud Size Ass'y Weight
20TE1FU1RA4 20 Stainless Steel Metric M20 1.5 12.5 20.9 0.49 0.82 15 0.59 30.5 33.6 1.2 1.32 61.2 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049 PVC06 0.23
20STE1FU1RA4 20S Stainless Steel Metric M20 1.5 9.5 15.9 0.37 0.63 15 0.59 24 26.4 0.95 1.04 57.3 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.15
20S16TE1FU1RA4 20S16 Stainless Steel Metric M20 1.5 6.1 13.1 0.24 0.52 15 0.59 24 26.4 0.95 1.04 57.3 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049 PVC04 0.15
20STE1FU1RA431 20S Stainless Steel NPT 1/2" 9.5 15.9 0.37 0.63 19.9 0.78 24 26.4 0.95 1.04 57.3 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20S16TE1FU1RA431 20S16 Stainless Steel NPT 1/2" 6.1 13.1 0.24 0.52 19.9 0.78 24 26.4 0.95 1.04 57.3 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20TE1FU1RA431 20 Stainless Steel NPT 1/2" 12.5 20.9 0.49 0.82 19.9 0.78 30.5 33.6 1.2 1.32 61.2 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20S16TE1FU1RA432 20S16 Stainless Steel NPT 3/4" 6.1 13.1 0.24 0.52 20.2 0.8 31.5 34.7 1.24 1.37 57.3 3.1 8.6 0.12 0.34 0.3 0.04 0.01 0.8 1.25 0.031 0.049
20TE1FU1RA432 20 Stainless Steel NPT 3/4" 12.5 20.9 0.49 0.82 20.2 0.8 30.5 33.6 1.2 1.32 61.2 6.5 13.9 0.26 0.55 0.4 0.04 0.02 0.8 1.25 0.031 0.049
20STE1FU1RA432 20S Stainless Steel NPT 3/4" 9.5 15.9 0.37 0.63 20.2 0.8 31.5 34.7 1.24 1.37 57.3 6.1 11.6 0.24 0.46 0.3 0.04 0.01 0.8 1.25 0.031 0.049
25TE1FU1RA4 25 Stainless Steel Metric M25 1.5 18.2 26.2 0.72 1.03 15 0.59 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.34
25STE1FU1RA4 25S Stainless Steel Metric M25 1.5 14 22 0.55 0.87 15 0.59 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063 PVC09 0.34
25TE1FU1RA432 25 Stainless Steel NPT 3/4" 18.2 26.2 0.72 1.03 20.2 0.8 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25STE1FU1RA432 25S Stainless Steel NPT 3/4" 14 22 0.55 0.87 20.2 0.8 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25TE1FU1RA433 25 Stainless Steel NPT 1" 18.2 26.2 0.72 1.03 25 0.98 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
25STE1FU1RA433 25S Stainless Steel NPT 1" 14 22 0.55 0.87 25 0.98 37.5 41.3 1.48 1.63 74 11.1 19.9 0.44 0.78 0.4 0.05 0.02 1.25 1.6 0.049 0.063
32TE1FU1RA4 32 Stainless Steel Metric M32 1.5 23.7 33.9 0.93 1.33 15 0.59 46 50.6 1.81 1.99 78.2 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079 PVC11 0.55
32TE1FU1RA433 32 Stainless Steel NPT 1" 23.7 33.9 0.93 1.33 25 0.98 46 50.6 1.81 1.99 78.2 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
32TE1FU1RA434 32 Stainless Steel NPT 1-1/4" 23.7 33.9 0.93 1.33 25.6 1.01 46 50.6 1.81 1.99 78.2 17 26.2 0.67 1.03 0.4 0.05 0.02 1.6 2 0.063 0.079
40TE1FU1RA4 40 Stainless Steel Metric M40 1.5 27.9 40.4 1.1 1.59 15 0.59 55 60.5 2.17 2.38 81.6 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079 PVC15 0.79
40TE1FU1RA434 40 Stainless Steel NPT 1-1/4" 27.9 40.4 1.1 1.59 25.6 1.01 55 60.5 2.17 2.38 81.6 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
40TE1FU1RA435 40 Stainless Steel NPT 1-1/2" 27.9 40.4 1.1 1.59 26.1 1.03 55 60.5 2.17 2.38 81.6 22 32.1 0.87 1.26 0.4 0.06 0.02 1.6 2 0.063 0.079
50STE1FU1RA4 50S Stainless Steel Metric M50 1.5 35.2 46.7 1.39 1.84 15 0.59 60 66 2.36 2.6 88.1 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098 PVC18 1
50TE1FU1RA4 50 Stainless Steel Metric M50 1.5 40.4 53 1.59 2.09 15 0.59 70.1 77.1 2.76 3.04 91.2 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC21 1.37
50STE1FU1RA435 50S Stainless Steel NPT 1-1/2" 35.2 46.7 1.39 1.84 26.1 1.03 60 66 2.36 2.6 88.1 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50STE1FU1RA436 50S Stainless Steel NPT 2" 35.2 46.7 1.39 1.84 26.9 1.06 65 71.5 2.56 2.82 88.1 29.5 38.1 1.16 1.5 0.4 0.06 0.02 2 2.5 0.079 0.098
50TE1FU1RA436 50 Stainless Steel NPT 2" 40.4 53 1.59 2.09 26.9 1.06 70.1 77.1 2.76 3.04 91.2 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
50TE1FU1RA437 50 Stainless Steel NPT 2-1/2" 40.4 53 1.59 2.09 39.9 1.57 80 88 3.15 3.47 91.2 35.6 44 1.4 1.73 0.6 0.06 0.02 2 2.5 0.079 0.098
63TE1FU1RA4 63 Stainless Steel Metric M63 1.5 54.6 65.8 2.15 2.59 15 0.59 80 88 3.15 3.47 90.3 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC25 1.56
63STE1FU1RA4 63S Stainless Steel Metric M63 1.5 45.6 59.4 1.8 2.34 15 0.59 75 82.5 2.96 3.25 90.5 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC23 1.5
63STE1FU1RA436 63S Stainless Steel NPT 2" 45.6 59.4 1.8 2.34 26.9 1.06 75 82.5 2.96 3.25 90.5 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63TE1FU1RA437 63 Stainless Steel NPT 2-1/2" 54.6 65.8 2.15 2.59 39.9 1.57 80 88 3.15 3.47 90.3 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
63STE1FU1RA437 63S Stainless Steel NPT 2-1/2" 45.6 59.4 1.8 2.34 39.9 1.57 80 88 3.15 3.47 90.5 40.1 49.9 1.58 1.96 0.6 0.06 0.02 2 2.5 0.079 0.098
63TE1FU1RA438 63 Stainless Steel NPT 3" 54.6 65.8 2.15 2.59 41.5 1.63 100 110 3.94 4.33 90.3 47.2 55.9 1.86 2.2 0.6 0.06 0.02 2 2.5 0.079 0.098
75TE1FU1RA4 75 Stainless Steel Metric M75 1.5 66.7 78.4 2.63 3.09 15 0.59 100 110 3.94 4.33 110.8 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118 PVC30 3.15
75STE1FU1RA4 75S Stainless Steel Metric M75 1.5 59 72 2.32 2.83 15 0.59 90 99 3.55 3.9 104.7 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098 PVC28 2.45
75STE1FU1RA437 75S Stainless Steel NPT 2-1/2" 59 72 2.32 2.83 39.9 1.57 90 99 3.55 3. 104.7 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75STE1FU1RA438 75S Stainless Steel NPT 3" 59 72 2.32 2.83 41.5 1.63 100 110 3.94 4.33 104.7 52.8 61.9 2.08 2.44 0.6 0.06 0.02 2 2.5 0.079 0.098
75TE1FU1RA438 75 Stainless Steel NPT 3" 66.7 78.4 2.63 3.09 41.5 1.63 100 110 3.94 4.33 110.8 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
75TE1FU1RA439 75 Stainless Steel NPT 3-1/2" 66.7 78.4 2.63 3.09 42.8 1.69 110 121 4.33 4.77 110.8 59.1 67.9 2.33 2.67 0.6 0.06 0.02 2.5 3 0.098 0.118
90TE1FU1RA4 90 Stainless Steel Metric M90 2 76.2 90.3 3 3.56 24 0.94 115 126.5 4.53 4.98 135.5 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157 PVC32 4.62
90TE1FU1RA439 90 Stainless Steel NPT 3-1/2" 76.2 90.3 3 3.56 42.8 1.69 115 126.5 4.53 4.98 135.5 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
90TE1FU1RA4310 90 Stainless Steel NPT 4" 76.2 90.3 3 3.56 44 1.73 127 139.7 5 5.5 135.5 66.6 78.6 2.62 3.09 0.8 0.06 0.03 3.15 4 0.124 0.157
100TE1FU1RA4 100 Stainless Steel Metric M100 2 86.1 101.4 3.39 3.99 24 0.94 127 139.7 5 5.5 126.8 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF33 4.95
100TE1FU1RA439 100 Stainless Steel NPT 3-1/2" 86.1 101.4 3.39 3.99 42.8 1.69 127 139.7 5 5.5 126.8 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
100TE1FU1RA4310 100 Stainless Steel NPT 4" 86.1 101.4 3.39 3.99 44 1.73 127 139.7 5 5.5 126.8 76 90.9 2.99 3.58 0.8 0.06 0.03 3.15 4 0.124 0.157
115TE1FU1RA4 115 Stainless Steel Metric M115 2 101.5 110.2 4 4.34 24 0.94 138 151.8 5.44 5.98 157.5 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF34 7.6
115TE1FU1RA4310 115 Stainless Steel NPT 4" 101.5 110.2 4 4.34 44 1.73 138 151.8 5.44 5.98 157.5 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
115TE1FU1RA4312 115 Stainless Steel NPT 5" 101.5 110.2 4 4.34 46.8 1.84 152.4 167.6 6 6.6 157.5 86 97.9 3.39 3.85 0.8 0.06 0.03 3.15 4 0.124 0.157
130TE1FU1RA4 130 Stainless Steel Metric M130 2 110.2 123.2 4.34 4.85 24 0.94 157 172.7 6.19 6.8 164.5 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157 LSF35 8.73
130TE1FU1RA4312 130 Stainless Steel NPT 5" 110.2 123.2 4.34 4.85 46.8 1.84 157 172.7 6.19 6.8 164.5 97 114.9 3.82 4.52 0.8 0.06 0.03 3.15 4 0.124 0.157
