TMC Cable Gland

ETIM Classification

EC000441

For MC, MC-HL, Interlocked and Teck Armored cables.

Description

The TMC range of cable glands are for use in heavy duty applications in Hazardous (Classified) Locations. Designed for a simple, sequential installation process

Features

  • Simple, sequential installation process
  • No disassembly required
  • Integral protected deluge seal
  • Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
  • -60°C to +130°C (-76˚F to +266˚F)
  • Globally marked, UL, cCSAus, IECEx, ATEX and UKEX
  • O-ring face seal supplied with Aluminum glands
  • SOLO LSF Halogen Free Shrouds also available on request

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1337X
ATEX Code of Protection ^ II 2G 1D Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0184X
IECEx Code of Protection Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1261X
UL Certificate Number 20120921-E256366
UL Code of Protection Class I, Zones 1 and 2, AEx E II
UL Compliance Standards UL2225, UL514B, UL 60079-0, UL60079-7
UL Logo Filename ullistedlogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000c/ullistedlogo.jpg
CCC Certificate Number 2020322313003429
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772/11
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64842/E23-02-065468/NB0007
ECAS Logo Filename ecaslogo.jpg
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 1129339
CSA Code of Protection Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Types 3, 4 and 4X; Ex e II; Class I, Zone 1, AEx e II
CSA Compliance Standards CSA C22.2 No, 0, 18.3, 25, 174, 94, 60079-0, -1, -7
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-LD1948801-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Armour Clamping Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Load Retention Seal
Seal Area(s) Cable Outer Jacket
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

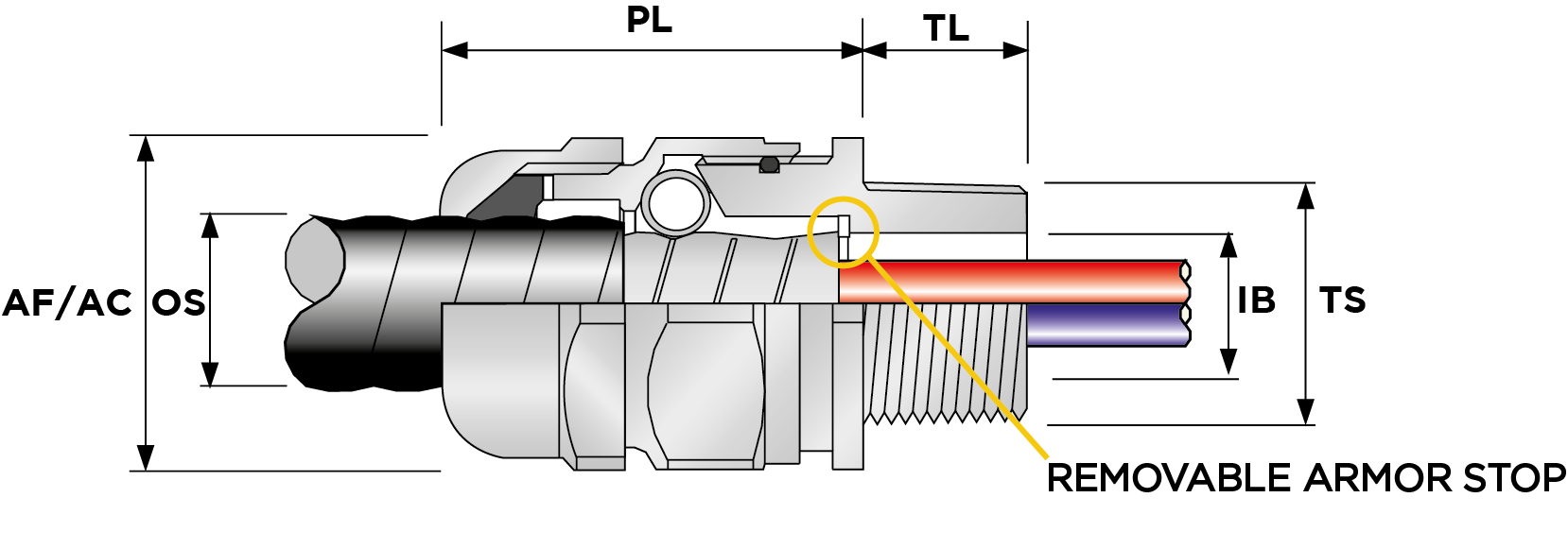

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Over Armour Ø OA Arm-Stop In (mm) Max Over Armour Ø OA Arm-Stop In (mm) Max Over Armour Ø OA Arm-Stop Out (mm)
TMC075SS1AA403 075 Stainless Steel Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100SS1AA404 100 Stainless Steel Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125SS1AA405 125 Stainless Steel Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150SS1AA406 150 Stainless Steel Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC300SS1AA409 300 Stainless Steel Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC075SS1AA432 075 Stainless Steel NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100SS1AA433 100 Stainless Steel NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC075SS1AA433 075 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC125SS1AA434 125 Stainless Steel NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC100SS1AA434 100 Stainless Steel NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125SS1AA435 125 Stainless Steel NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150SS1AA435 150 Stainless Steel NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC150SS1AA436 150 Stainless Steel NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC300SS1AA438 300 Stainless Steel NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC300SS1AA439 300 Stainless Steel NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC350SS1AA439 350 Stainless Steel NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC350SS1AA4010 350 Stainless Steel Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC400SS1AA4310 400 Stainless Steel NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC350SS1AA4310 350 Stainless Steel NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC050A1AA102 050 Aluminium Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC050SA1AA102 050S Aluminium Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC075A1AA103 075 Aluminium Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100A1AA104 100 Aluminium Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125A1AA105 125 Aluminium Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC200SA1AA106 200S Aluminium Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC150A1AA106 150 Aluminium Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200A1AA107 200 Aluminium Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250SA1AA108 250S Aluminium Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC250A1AA108 250 Aluminium Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC300A1AA109 300 Aluminium Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC050A1AA131 050 Aluminium NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC050SA1AA131 050S Aluminium NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC075A1AA132 075 Aluminium NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100A1AA133 100 Aluminium NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125A1AA134 125 Aluminium NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150A1AA135 150 Aluminium NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200SA1AA136 200S Aluminium NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC200A1AA136 200 Aluminium NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250A1AA137 250 Aluminium NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC250SA1AA137 250S Aluminium NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC300A1AA138 300 Aluminium NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC350A1AA139 350 Aluminium NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC050SS1AA402 050 Stainless Steel Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC200SS1AA407 200 Stainless Steel Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250SS1AA408 250 Stainless Steel Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC050SS1AA432 050 Stainless Steel NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC200SS1AA437 200 Stainless Steel NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250SS1AA438 250 Stainless Steel NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC050SNB1AA502 050S Nickel Plated Brass Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC050NB1AA502 050 Nickel Plated Brass Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC075NB1AA503 075 Nickel Plated Brass Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100NB1AA504 100 Nickel Plated Brass Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125NB1AA505 125 Nickel Plated Brass Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC200SNB1AA506 200S Nickel Plated Brass Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC150NB1AA506 150 Nickel Plated Brass Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200NB1AA507 200 Nickel Plated Brass Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250NB1AA508 250 Nickel Plated Brass Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC250SNB1AA508 250S Nickel Plated Brass Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC300NB1AA509 300 Nickel Plated Brass Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC050NB1AA532 050 Nickel Plated Brass NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC050SNB1AA532 050S Nickel Plated Brass NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC075NB1AA533 075 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100NB1AA534 100 Nickel Plated Brass NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125NB1AA535 125 Nickel Plated Brass NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150NB1AA536 150 Nickel Plated Brass NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200NB1AA537 200 Nickel Plated Brass NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC200SNB1AA537 200S Nickel Plated Brass NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC250NB1AA538 250 Nickel Plated Brass NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC250SNB1AA538 250S Nickel Plated Brass NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC300NB1AA539 300 Nickel Plated Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC350A1AA1010 350 Aluminium Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC400A1AA1310 400 Aluminium NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC350NB1AA5010 350 Nickel Plated Brass Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC350NB1AA5310 350 Nickel Plated Brass NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC400NB1AA5310 400 Nickel Plated Brass NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC050SA1AA132 050S Aluminium NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC050A1AA132 050 Aluminium NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC075A1AA133 075 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100A1AA134 100 Aluminium NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125A1AA135 125 Aluminium NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150A1AA136 150 Aluminium NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200SA1AA137 200S Aluminium NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC200A1AA137 200 Aluminium NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250A1AA138 250 Aluminium NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC250SA1AA138 250S Aluminium NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC300A1AA139 300 Aluminium NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC050SSS1AA402 050S Stainless Steel Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC200SSS1AA406 200S Stainless Steel Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC250SSS1AA408 250S Stainless Steel Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC050SSS1AA432 050S Stainless Steel NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC200SSS1AA437 200S Stainless Steel NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC250SSS1AA438 250S Stainless Steel NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC050NB1AA531 050 Nickel Plated Brass NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC050SNB1AA531 050S Nickel Plated Brass NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC075NB1AA532 075 Nickel Plated Brass NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.5905511811023623 0.7598425196850395 0.7598425196850395 0.9212598425196851
TMC100NB1AA533 100 Nickel Plated Brass NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.7795275590551182 0.9685039370078741 0.9685039370078741 1.1496062992125984
TMC125NB1AA534 125 Nickel Plated Brass NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.078740157480315 1.2283464566929134 1.2283464566929134 1.389763779527559
TMC150NB1AA535 150 Nickel Plated Brass NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.3188976377952757 1.4606299212598426 1.4606299212598426 1.6181102362204727
TMC200NB1AA536 200 Nickel Plated Brass NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC200SNB1AA536 200S Nickel Plated Brass NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC250NB1AA537 250 Nickel Plated Brass NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC250SNB1AA537 250S Nickel Plated Brass NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
TMC300NB1AA538 300 Nickel Plated Brass NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.5393700787401574 2.779527559055118 2.779527559055118 2.9685039370078745
TMC350NB1AA539 350 Nickel Plated Brass NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC350A1AA1310 350 Aluminium NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.6299212598425195 2.9094488188976384 3.2913385826771653 3.2913385826771653 3.4881889763779528
TMC050SS1AA431 050 Stainless Steel NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.5098425196850394 0.6692913385826772
TMC200SS1AA436 200 Stainless Steel NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.7716535433070868 1.9291338582677167 1.9291338582677167 2.0905511811023625
TMC250SS1AA437 250 Stainless Steel NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.2519685039370083 2.409448818897638 2.409448818897638 2.5511811023622046
TMC050SSS1AA431 050S Stainless Steel NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.33858267716535434 0.5
TMC200SSS1AA436 200S Stainless Steel NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.5118110236220472 1.6811023622047245 1.6811023622047245 1.8503937007874016
TMC250SSS1AA437 250S Stainless Steel NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.051181102362205 2.161417322834646 2.161417322834646 2.3188976377952755
1
No results

0 of 111 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
