TMC2 Cable Gland

ETIM Classification

EC000441

For MC, MC-HL, Interlocked and Teck Armored cables.

Description

The TMC2 range of cable glands are for use in heavy duty applications in Hazardous (Classified) Locations. Designed for a simple, sequential installation process

Features

  • Simplified two part design
  • Compact slim profile
  • Independent sealing and armor clamping
  • Simple, sequential installation process
  • No disassembly required
  • O-ring face seal as standard
  • Hub not required
  • Low Impedance Copper Plated Stainless Steel 360°Grounding Spring
  • -60˚C to +110˚C (-76˚F to +230˚F)
  • Globally marked, cCSAus, IECEx, ATEX and UKEX

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1335X
ATEX Code of Protection ^ II 2G 1D Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 18.0192X
IECEx Code of Protection Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1262X
CCC Certificate Number 2020322313003284
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P533772/9
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64843/E23-02-065471/NB0007
ECAS Logo Filename ecaslogo.jpg
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
CSA Certificate Number 2194053
CSA Code of Protection CANADA: Class I, Div 2, Groups A, B, C and D; CANADA AND US: Class II, Div 1 and 2, Groups E, F and G; Class III, Div 1 and 2; Enclosure Types 4X; Ex e II; Class I, Zone 1, AEx e II, AEx ta IIC
CSA Compliance Standards CSA C22.2 No. 0, 18, 25, 30, 174, 94, 60079-0, -7; UL 514B, 50, 2225
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
CIDET Logo Filename cidetlogo.jpg
CIDET Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000011/cidetlogo.jpg
UkrSepro Certificate Number CЦ 19.0371X
UkrSepro Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000b/ukrseprologo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
ABS Certificate Number 20-2022051-PDA
ABS Logo Filename abstypelogo.jpg
ABS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000d/abstypelogo.jpg
RMRS Certificate Number 11130200
RMRS Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a9194f631056650000001/rmrslogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT; EXNEC
Armour Clamping Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer
Seal Technique CMP Load Retention Seal
Seal Area(s) Cable Outer Jacket
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

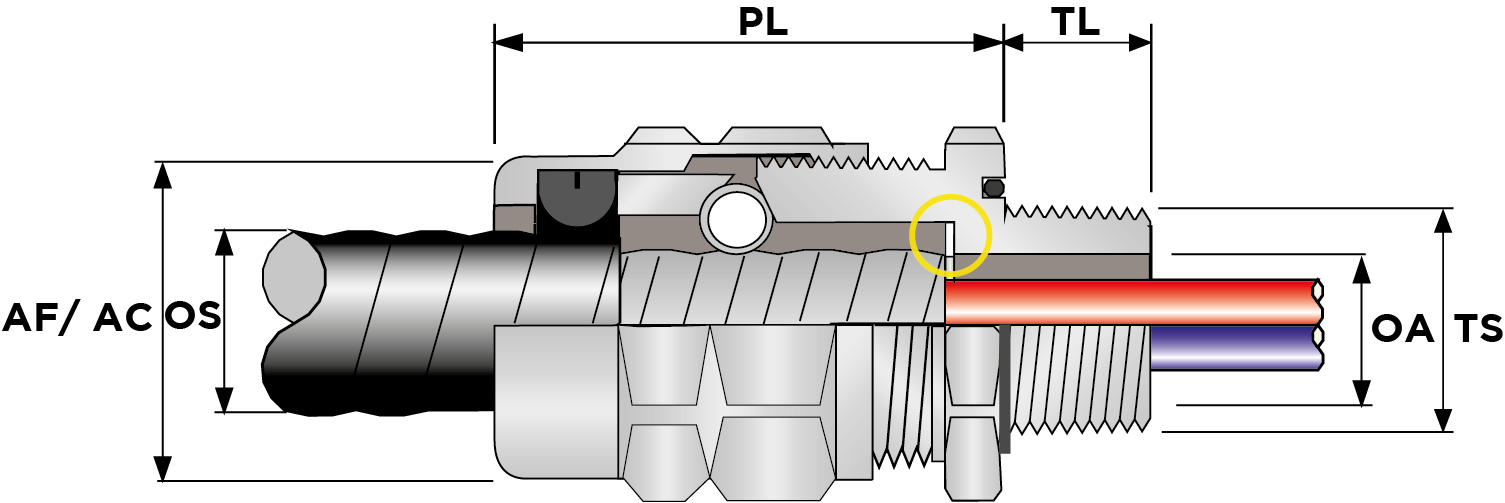

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Over Armour Ø OA Arm-Stop In (mm) Max Over Armour Ø OA Arm-Stop In (mm) Max Over Armour Ø OA Arm-Stop Out (mm)
TMC2-M20A0991RA102 099 Aluminium Metric M20 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-050A0991RA131 099 Aluminium NPT 1/2" 17.5 25.1 0.69 0.99 19.9 0.78 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-M20SS0991RA402 099 Stainless Steel Metric M20 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-050SS0991RA431 099 Stainless Steel NPT 1/2" 17.5 25.1 0.69 0.99 19.9 0.78 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-M20NB0991RA502 099 Nickel Plated Brass Metric M20 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-050NB0991RA531 099 Nickel Plated Brass NPT 1/2" 17.5 25.1 0.69 0.99 19.9 0.78 37.6 41.4 1.48 1.63 2.96 0.6 0.65 0.65 0.89
TMC2-M20A0751RA102 075 Aluminium Metric M20 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-050A0751RA131 075 Aluminium NPT 1/2" 12.7 19.1 0.5 0.75 19.9 0.78 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M20SS0751RA402 075 Stainless Steel Metric M20 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-050SS0751RA431 075 Stainless Steel NPT 1/2" 12.7 19.1 0.5 0.75 19.9 0.78 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M20NB0751RA502 075 Nickel Plated Brass Metric M20 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-050NB0751RA531 075 Nickel Plated Brass NPT 1/2" 12.7 19.1 0.5 0.75 19.9 0.78 30.5 33.6 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M25A1181RA103 118 Aluminium Metric M25 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-075A1181RA132 118 Aluminium NPT 3/4" 22.1 30 0.87 1.18 20.2 0.8 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-M25SS1181RA403 118 Stainless Steel Metric M25 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-075SS1181RA432 118 Stainless Steel NPT 3/4" 22.1 30 0.87 1.18 20.2 0.8 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-M25NB1181RA503 118 Nickel Plated Brass Metric M25 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-075NB1181RA532 118 Nickel Plated Brass NPT 3/4" 22.1 30 0.87 1.18 20.2 0.8 46 50.6 1.81 1.99 3.15 0.79 0.86 0.86 1.1
TMC2-M25A0991RA103 099 Aluminium Metric M25 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-075A0991RA132 099 Aluminium NPT 3/4" 17.5 25.1 0.69 0.99 20.2 0.8 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-M25SS0991RA403 099 Stainless Steel Metric M25 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-075SS0991RA432 099 Stainless Steel NPT 3/4" 17.5 25.1 0.69 0.99 20.2 0.8 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-M25NB0991RA503 099 Nickel Plated Brass Metric M25 1.5 17.5 25.1 0.69 0.99 15 0.59 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-075NB0991RA532 099 Nickel Plated Brass NPT 3/4" 17.5 25.1 0.69 0.99 20.2 0.8 37.6 41.4 1.48 1.63 2.96 0.6 0.78 0.78 0.89
TMC2-M25A0751RA103 075 Aluminium Metric M25 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-075A0751RA132 075 Aluminium NPT 3/4" 12.7 19.1 0.5 0.75 20.2 0.8 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M25SS0751RA403 075 Stainless Steel Metric M25 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-075SS0751RA432 075 Stainless Steel NPT 3/4" 12.7 19.1 0.5 0.75 20.2 0.8 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M25NB0751RA503 075 Nickel Plated Brass Metric M25 1.5 12.7 19.1 0.5 0.75 15 0.59 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-075NB0751RA532 075 Nickel Plated Brass NPT 3/4" 12.7 19.1 0.5 0.75 20.2 0.8 30.5 33.5 1.2 1.32 2.44 0.42 0.55 0.55 0.63
TMC2-M32A1371RA104 137 Aluminium Metric M32 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-100A1371RA133 137 Aluminium NPT 1" 25.9 34.8 1.02 1.37 25 0.98 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-M32SS1371RA404 137 Stainless Steel Metric M32 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-100SS1371RA433 137 Stainless Steel NPT 1" 25.9 34.8 1.02 1.37 25 0.98 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-M32NB1371RA504 137 Nickel Plated Brass Metric M32 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-100NB1371RA533 137 Nickel Plated Brass NPT 1" 25.9 34.8 1.02 1.37 25 0.98 52.1 57.3 2.05 2.26 3.55 0.94 1.08 1.08 1.28
TMC2-M32A1181RA104 118 Aluminium Metric M32 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-100A1181RA133 118 Aluminium NPT 1" 22.1 30 0.87 1.18 25 0.98 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-M32SS1181RA404 118 Stainless Steel Metric M32 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-100SS1181RA433 118 Stainless Steel NPT 1" 22.1 30 0.87 1.18 25 0.98 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-M32NB1181RA504 118 Nickel Plated Brass Metric M32 1.5 22.1 30 0.87 1.18 15 0.59 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-100NB1181RA533 118 Nickel Plated Brass NPT 1" 22.1 30 0.87 1.18 25 0.98 46 50.6 1.81 1.99 3.15 0.79 0.98 0.98 1.1
TMC2-M40A1901RA105 190 Aluminium Metric M40 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-125A1901RA134 190 Aluminium NPT 1-1/4" 39.9 48.3 1.57 1.9 25.6 1.01 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M40SS1901RA405 190 Stainless Steel Metric M40 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-125SS1901RA434 190 Stainless Steel NPT 1-1/4" 39.9 48.3 1.57 1.9 25.6 1.01 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M40NB1901RA505 190 Nickel Plated Brass Metric M40 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-125NB1901RA534 190 Nickel Plated Brass NPT 1-1/4" 39.9 48.3 1.57 1.9 25.6 1.01 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M40A1621RA105 162 Aluminium Metric M40 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-125A1621RA134 162 Aluminium NPT 1-1/4" 33 41.1 1.3 1.62 25.6 1.01 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-M40SS1621RA405 162 Stainless Steel Metric M40 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-125SS1621RA434 162 Stainless Steel NPT 1-1/4" 33 41.1 1.3 1.62 25.6 1.01 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-M40NB1621RA505 162 Nickel Plated Brass Metric M40 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-125NB1621RA534 162 Nickel Plated Brass NPT 1-1/4" 33 41.1 1.3 1.62 25.6 1.01 59.9 65.9 2.36 2.6 3.59 1.22 1.35 1.35 1.5
TMC2-M40A1371RA105 137 Aluminium Metric M40 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-125A1371RA134 137 Aluminium NPT 1-1/4" 25.9 34.8 1.02 1.37 25.6 1.01 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-M40SS1371RA405 137 Stainless Steel Metric M40 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-125SS1371RA434 137 Stainless Steel NPT 1-1/4" 25.9 34.8 1.02 1.37 25.6 1.01 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-M40NB1371RA505 137 Nickel Plated Brass Metric M40 1.5 25.9 34.8 1.02 1.37 15 0.59 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-125NB1371RA534 137 Nickel Plated Brass NPT 1-1/4" 25.9 34.8 1.02 1.37 25.6 1.01 52.1 57.3 2.05 2.26 3.55 0.94 1.18 1.18 1.28
TMC2-M50A2331RA106 233 Aluminium Metric M50 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-150A2331RA135 233 Aluminium NPT 1-1/2" 48.5 59.2 1.91 2.33 26.1 1.03 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M50SS2331RA406 233 Stainless Steel Metric M50 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-150SS2331RA435 233 Stainless Steel NPT 1-1/2" 48.5 59.2 1.91 2.33 26.1 1.03 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M50NB2331RA506 233 Nickel Plated Brass Metric M50 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-150NB2331RA535 233 Nickel Plated Brass NPT 1-1/2" 48.5 59.2 1.91 2.33 26.1 1.03 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M50A2001RA106 200 Aluminium Metric M50 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-150A2001RA135 200 Aluminium NPT 1-1/2" 41.9 50.8 1.65 2 26.1 1.03 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M50SS2001RA406 200 Stainless Steel Metric M50 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-150SS2001RA435 200 Stainless Steel NPT 1-1/2" 41.9 50.8 1.65 2 26.1 1.03 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M50NB2001RA506 200 Nickel Plated Brass Metric M50 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-150NB2001RA535 200 Nickel Plated Brass NPT 1-1/2" 41.9 50.8 1.65 2 26.1 1.03 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M50A1901RA106 190 Aluminium Metric M50 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-150A1901RA135 190 Aluminium NPT 1-1/2" 39.9 48.3 1.57 1.9 26.1 1.03 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M50SS1901RA406 190 Stainless Steel Metric M50 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-150SS1901RA435 190 Stainless Steel NPT 1-1/2" 39.9 48.3 1.57 1.9 26.1 1.03 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M50NB1901RA506 190 Nickel Plated Brass Metric M50 1.5 39.9 48.3 1.57 1.9 15 0.59 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-150NB1901RA535 190 Nickel Plated Brass NPT 1-1/2" 39.9 48.3 1.57 1.9 26.1 1.03 65 71.5 2.56 2.82 3.59 1.51 1.72
TMC2-M50A1621RA106 162 Aluminium Metric M50 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2. 3.59 1.22 1.42 1.42 1.5
TMC2-150A1621RA135 162 Aluminium NPT 1-1/2" 33 41.1 1.3 1.62 26.1 1.03 59.9 65.9 2.36 2.6 3.59 1.22 1.42 1.42 1.5
TMC2-M50SS1621RA406 162 Stainless Steel Metric M50 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2. 3.59 1.22 1.42 1.42 1.5
TMC2-150SS1621RA435 162 Stainless Steel NPT 1-1/2" 33 41.1 1.3 1.62 26.1 1.03 59.9 65.9 2.36 2.6 3.59 1.22 1.42 1.42 1.5
TMC2-M50NB1621RA506 162 Nickel Plated Brass Metric M50 1.5 33 41.1 1.3 1.62 15 0.59 59.9 65.9 2.36 2. 3.59 1.22 1.42 1.42 1.5
TMC2-150NB1621RA535 162 Nickel Plated Brass NPT 1-1/2" 33 41.1 1.3 1.62 26.1 1.03 59.9 65.9 2.36 2.6 3.59 1.22 1.42 1.42 1.5
TMC2-M63A2721RA107 272 Aluminium Metric M63 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-200A2721RA136 272 Aluminium NPT 2" 57.7 69.1 2.27 2.72 26.9 1.06 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-M63SS2721RA407 272 Stainless Steel Metric M63 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-200SS2721RA436 272 Stainless Steel NPT 2" 57.7 69.1 2.27 2.72 26.9 1.06 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-M63NB2721RA507 272 Nickel Plated Brass Metric M63 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-200NB2721RA536 272 Nickel Plated Brass NPT 2" 57.7 69.1 2.27 2.72 26.9 1.06 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.17 2.61
TMC2-M63A2331RA107 233 Aluminium Metric M63 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-200A2331RA136 233 Aluminium NPT 2" 48.5 59.2 1.91 2.33 26.9 1.06 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M63SS2331RA407 233 Stainless Steel Metric M63 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-200SS2331RA436 233 Stainless Steel NPT 2" 48.5 59.2 1.91 2.33 26.9 1.06 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M63NB2331RA507 233 Nickel Plated Brass Metric M63 1.5 48.5 59.2 1.91 2.33 15 0.59 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-200NB2331RA536 233 Nickel Plated Brass NPT 2" 48.5 59.2 1.91 2.33 26.9 1.06 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M63A2001RA107 200 Aluminium Metric M63 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-200A2001RA136 200 Aluminium NPT 2" 41.9 50.8 1.65 2 26.9 1.06 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M63SS2001RA407 200 Stainless Steel Metric M63 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-200SS2001RA436 200 Stainless Steel NPT 2" 41.9 50.8 1.65 2 26.9 1.06 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M63NB2001RA507 200 Nickel Plated Brass Metric M63 1.5 41.9 50.8 1.65 2 15 0.59 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-200NB2001RA536 200 Nickel Plated Brass NPT 2" 41.9 50.8 1.65 2 26.9 1.06 69.9 76.8 2.75 3.03 3.76 1.57 1.7 1.7 1.88
TMC2-M75A3251RA108 325 Aluminium Metric M75 1.5 66.5 82.6 2.62 3.25 15 0.59 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-250A2721RA137 272 Aluminium NPT 2-1/2" 57.7 69.1 2.27 2.72 39.9 1.57 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-M75SS3251RA408 325 Stainless Steel Metric M75 1.5 66.5 82.6 2.62 3.25 15 0.59 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-250SS2721RA437 272 Stainless Steel NPT 2-1/2" 57.7 69.1 2.27 2.72 39.9 1.57 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-M75NB3251RA508 325 Nickel Plated Brass Metric M75 1.5 66.5 82.6 2.62 3.25 15 0.59 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-250NB2721RA537 272 Nickel Plated Brass NPT 2-1/2" 57.7 69.1 2.27 2.72 39.9 1.57 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-M75A2721RA108 272 Aluminium Metric M75 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-250A2331RA137 233 Aluminium NPT 2-1/2" 48.5 59.2 1.91 2.33 39.9 1.57 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M75SS2721RA408 272 Stainless Steel Metric M75 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-250SS2331RA437 233 Stainless Steel NPT 2-1/2" 48.5 59.2 1.91 2.33 39.9 1.57 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M75NB2721RA508 272 Nickel Plated Brass Metric M75 1.5 57.7 69.1 2.27 2.72 15 0.59 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-250NB2331RA537 233 Nickel Plated Brass NPT 2-1/2" 48.5 59.2 1.91 2.33 39.9 1.57 74.9 82.4 2.95 3.25 3.97 1.81 2.21
TMC2-M90A3761RA109 376 Aluminium Metric M90 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-300A3251RA138 325 Aluminium NPT 3" 66.5 82.6 2.62 3.25 41.5 1.63 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-M90SS3761RA409 376 Stainless Steel Metric M90 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-300SS3251RA438 325 Stainless Steel NPT 3" 66.5 82.6 2.62 3.25 41.5 1.63 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-M90NB3761RA509 376 Nickel Plated Brass Metric M90 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-300NB3251RA538 325 Nickel Plated Brass NPT 3" 66.5 82.6 2.62 3.25 41.5 1.63 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-M90A3251RA109 325 Aluminium Metric M90 2 66.5 82.6 2.62 3.25 24 0.94 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-300A2721RA138 272 Aluminium NPT 3" 57.7 69.1 2.27 2.72 41.5 1.63 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-M90SS3251RA409 325 Stainless Steel Metric M90 2 66.5 82.6 2.62 3.25 24 0.94 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-300SS2721RA438 272 Stainless Steel NPT 3" 57.7 69.1 2.27 2.72 41.5 1.63 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-M90NB3251RA509 325 Nickel Plated Brass Metric M90 2 66.5 82.6 2.62 3.25 24 0.94 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-300NB2721RA538 272 Nickel Plated Brass NPT 3" 57.7 69.1 2.27 2.72 41.5 1.63 89.9 98.9 3.54 3.9 4.1 2.14 2.46 2.46 2.61
TMC2-350A3761RA139 376 Aluminium NPT 3-1/2" 80.3 95.5 3.16 3.76 42.8 1.69 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-350SS3761RA439 376 Stainless Steel NPT 3-1/2" 80.3 95.5 3.16 3.76 42.8 1.69 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-350NB3761RA539 376 Nickel Plated Brass NPT 3-1/2" 80.3 95.5 3.16 3.76 42.8 1.69 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-M100A4251RA1010 425 Aluminium Metric M100 2 94 108 3.7 4.25 24 0.94 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-M100SS4251RA4010 425 Stainless Steel Metric M100 2 94 108 3.7 4.25 24 0.94 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-M100NB4251RA5010 425 Nickel Plated Brass Metric M100 2 94 108 3.7 4.25 24 0.94 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-350A3251RA139 325 Aluminium NPT 3-1/2" 66.5 82.6 2.62 3.25 42.8 1.69 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-350SS3251RA439 325 Stainless Steel NPT 3-1/2" 66.5 82.6 2.62 3.25 42.8 1.69 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-350NB3251RA539 325 Nickel Plated Brass NPT 3-1/2" 66.5 82.6 2.62 3.25 42.8 1.69 110 121 4.33 4.77 4.67 2.49 2.78 2.78 2.97
TMC2-M100A3761RA1010 376 Aluminium Metric M100 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-M100SS3761RA4010 376 Stainless Steel Metric M100 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-M100NB3761RA5010 376 Nickel Plated Brass Metric M100 2 80.3 95.5 3.16 3.76 24 0.94 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-400A4251RA1310 425 Aluminium NPT 4" 94 108 3.7 4.25 44 1.73 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-400SS4251RA4310 425 Stainless Steel NPT 4" 94 108 3.7 4.25 44 1.73 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-400NB4251RA5310 425 Nickel Plated Brass NPT 4" 94 108 3.7 4.25 44 1.73 132.8 146.1 5.23 5.76 5.16 3.56 3.94
TMC2-400A3761RA1310 376 Aluminium NPT 4" 80.3 95.5 3.16 3.76 44 1.73 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-400SS3761RA4310 376 Stainless Steel NPT 4" 80.3 95.5 3.16 3.76 44 1.73 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
TMC2-400NB3761RA5310 376 Nickel Plated Brass NPT 4" 80.3 95.5 3.16 3.76 44 1.73 122.9 135.2 4.84 5.33 4.95 2.95 3.45 3.45 3.54
1
No results

0 of 144 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
