TMCX Cable Gland

ETIM Classification

EC000441

For MC, MC-HL, Interlocked and Teck Armored cables.

Description

The TMCX range of compound barrier cable glands are for use in heavy duty applications in Hazardous (Classified) Locations. Designed to prevent gas, vapor or fluid from migrating through a cable, or else prevent flame transmission from an explosion-proof Ex d enclosure.

Features

  • Simple, sequential installation process
  • Compound barrier type flameproof seal
  • Integral protected deluge seal
  • Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
  • Disconnectable, union design feature
  • -60˚C to +85˚C (-76˚F to +185˚F)
  • Globally marked, UL, cCSAus, IECEx, ATEX and UKEX

Additional Information

Certification
ATEX Certificate Number CML 18ATEX1337X
ATEX Code of Protection ^ II 2G 1D Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -1, -7, -31
IECEx Certificate Number IECEx CML 18.0184X
IECEx Code of Protection Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -1, -7, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX1261X
CSA Certificate Number CSA Certificate
CSA Code of Protection Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Encl. Types 3, 4 and 4X; Ex d IIC/ Ex e II; Class I, Zone 1, AEx d IIC/ AEx e II
CSA Logo Filename cCSAusLogo.jpg
CSA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a5309f631055fb7000001/cCSAusLogo.jpg
UL Certificate Number 20180608-E256366, 20170602-E161256, 20131016-E161256
UL Compliance Standards UL2225, UL514B, UL 60079-0, UL60079-7
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
CCC Certificate Number 2020322313003429
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
RETIE Certificate Number 3866
PESO Certificate Number P548696/15
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
ECAS Certificate Number 23-03-64842/E23-02-065468/NB0007
ECAS Logo Filename ecaslogo.jpg
Taiwan Certificate Number ML091200702UK2
Taiwan Logo Filename taiwanlogo.jpg
Taiwan Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/8356159a/6454d312f631057c17000001/taiwanlogo.jpg
Technical Specification
Application EXAT; EXNEC
Armour Clamping Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
Seal Material CMP SOLO LSF Halogen Free Thermoset Elastomer / Epoxy Barrier Compound
Seal Technique CMP Displacement Seal
Seal Area(s) Inner Compound Barrier and Cable Outer Jacket
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel

* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 ** ** When CMP installation accessories are used. Refer to www.cmp-products.com for further information.

Downloads

Certificates

Product Selector

1

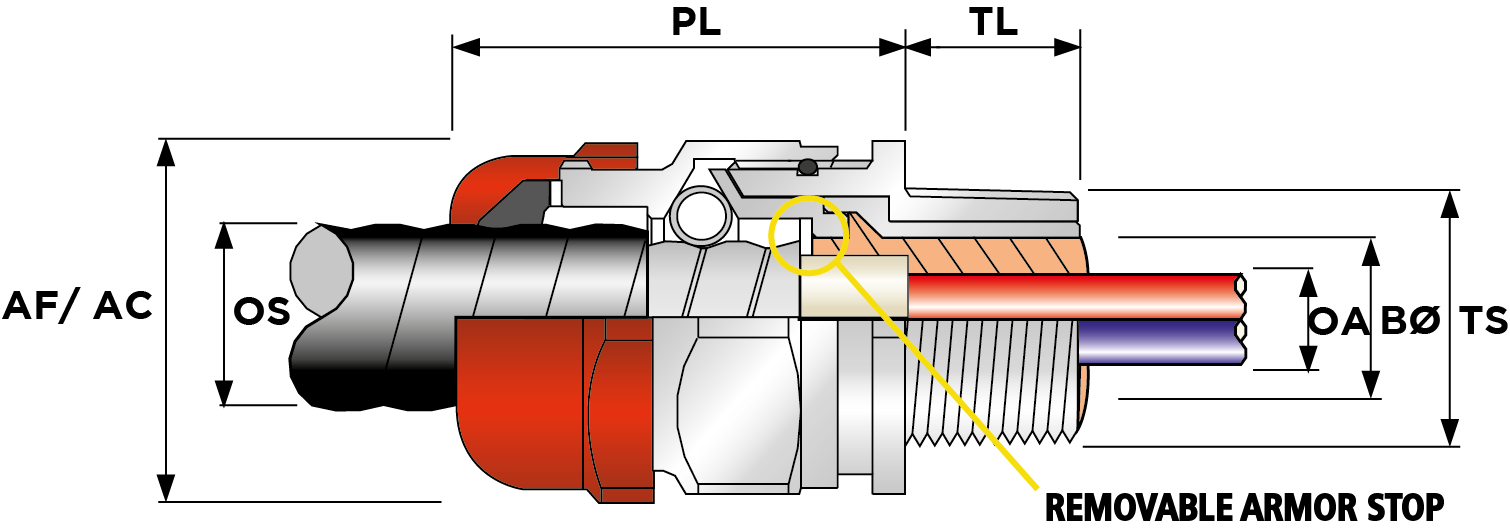

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Over Armour Ø OA Arm-Stop In (mm) Max Over Armour Ø OA Arm-Stop Out (mm)
TMCX050SA1AA102 050S Aluminium Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX050A1AA102 050 Aluminium Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX075A1AA103 075 Aluminium Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100A1AA104 100 Aluminium Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX125A1AA105 125 Aluminium Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX150A1AA106 150 Aluminium Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX200SA1AA106 200S Aluminium Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX200A1AA107 200 Aluminium Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX250A1AA108 250 Aluminium Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SA1AA108 250S Aluminium Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX300A1AA109 300 Aluminium Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX050A1AA131 050 Aluminium NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050SA1AA131 050S Aluminium NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX075A1AA132 075 Aluminium NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX050A1AA132 050 Aluminium NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050SA1AA132 050S Aluminium NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX100A1AA133 100 Aluminium NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX075A1AA133 075 Aluminium NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100A1AA134 100 Aluminium NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX125A1AA134 125 Aluminium NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX150A1AA135 150 Aluminium NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX125A1AA135 125 Aluminium NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX200A1AA136 200 Aluminium NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX200SA1AA136 200S Aluminium NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX150A1AA136 150 Aluminium NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX250A1AA137 250 Aluminium NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SA1AA137 250S Aluminium NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX200A1AA137 200 Aluminium NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX200SA1AA137 200S Aluminium NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX250SA1AA138 250S Aluminium NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX300A1AA138 300 Aluminium NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX250A1AA138 250 Aluminium NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX350A1AA139 350 Aluminium NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX300A1AA139 300 Aluminium NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX050SS1AA402 050 Stainless Steel Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050SSS1AA402 050S Stainless Steel Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX075SS1AA403 075 Stainless Steel Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100SS1AA404 100 Stainless Steel Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX125SS1AA405 125 Stainless Steel Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX200SSS1AA406 200S Stainless Steel Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX150SS1AA406 150 Stainless Steel Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX200SS1AA407 200 Stainless Steel Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX250SS1AA408 250 Stainless Steel Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SSS1AA408 250S Stainless Steel Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX300SS1AA409 300 Stainless Steel Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX050SS1AA431 050 Stainless Steel NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050SSS1AA431 050S Stainless Steel NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX050SS1AA432 050 Stainless Steel NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050SSS1AA432 050S Stainless Steel NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX075SS1AA432 075 Stainless Steel NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100SS1AA433 100 Stainless Steel NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX075SS1AA433 075 Stainless Steel NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX125SS1AA434 125 Stainless Steel NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX100SS1AA434 100 Stainless Steel NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX150SS1AA435 150 Stainless Steel NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX125SS1AA435 125 Stainless Steel NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX200SSS1AA436 200S Stainless Steel NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX150SS1AA436 150 Stainless Steel NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX200SS1AA436 200 Stainless Steel NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX200SS1AA437 200 Stainless Steel NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX200SSS1AA437 200S Stainless Steel NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX250SS1AA437 250 Stainless Steel NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SSS1AA437 250S Stainless Steel NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX300SS1AA438 300 Stainless Steel NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX250SS1AA438 250 Stainless Steel NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SSS1AA438 250S Stainless Steel NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX350SS1AA439 350 Stainless Steel NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX300SS1AA439 300 Stainless Steel NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX050SNB1AA502 050S Nickel Plated Brass Metric M20 1.5 8.9 14 0.35 0.55 15 0.59 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX050NB1AA502 050 Nickel Plated Brass Metric M20 1.5 14 20 0.51 0.79 15 0.59 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX075NB1AA503 075 Nickel Plated Brass Metric M25 1.5 17 26.3 0.67 1.04 15 0.59 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100NB1AA504 100 Nickel Plated Brass Metric M32 1.5 23.1 32.3 0.91 1.27 15 0.59 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX125NB1AA505 125 Nickel Plated Brass Metric M40 1.5 29.5 38.2 1.16 1.5 15 0.59 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX200SNB1AA506 200S Nickel Plated Brass Metric M50 1.5 40.1 51 1.58 2.01 15 0.59 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX150NB1AA506 150 Nickel Plated Brass Metric M50 1.5 35.6 44.1 1.4 1.74 15 0.59 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX200NB1AA507 200 Nickel Plated Brass Metric M63 1.5 47.2 56 1.86 2.2 15 0.59 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX250NB1AA508 250 Nickel Plated Brass Metric M75 1.5 59.1 68 2.33 2.68 15 0.59 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX250SNB1AA508 250S Nickel Plated Brass Metric M75 1.5 52.8 62 2.08 2.44 15 0.59 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX300NB1AA509 300 Nickel Plated Brass Metric M90 2 66.6 79.4 2.62 3.13 24 0.94 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX050SNB1AA531 050S Nickel Plated Brass NPT 1/2" 8.9 14 0.35 0.55 19.9 0.78 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX050NB1AA531 050 Nickel Plated Brass NPT 1/2" 14 20 0.51 0.79 19.9 0.78 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX050NB1AA532 050 Nickel Plated Brass NPT 3/4" 14 20 0.51 0.79 20.2 0.8 36 39.6 1.42 1.56 2.059055118110236 0.6692913385826772
TMCX075NB1AA532 075 Nickel Plated Brass NPT 3/4" 17 26.3 0.67 1.04 20.2 0.8 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX050SNB1AA532 050S Nickel Plated Brass NPT 3/4" 8.9 14 0.35 0.55 20.2 0.8 30.5 33.6 1.2 1.32 1.830708661417323 0.5
TMCX075NB1AA533 075 Nickel Plated Brass NPT 1" 17 26.3 0.67 1.04 25 0.98 41 45.1 1.62 1.78 2.0905511811023625 0.7598425196850395 0.9212598425196851
TMCX100NB1AA533 100 Nickel Plated Brass NPT 1" 23.1 32.3 0.91 1.27 25 0.98 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX100NB1AA534 100 Nickel Plated Brass NPT 1-1/4" 23.1 32.3 0.91 1.27 25.6 1.01 50 55 1.97 2.17 2.2401574803149606 0.9685039370078741 1.1496062992125984
TMCX125NB1AA534 125 Nickel Plated Brass NPT 1-1/4" 29.5 38.2 1.16 1.5 25.6 1.01 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX125NB1AA535 125 Nickel Plated Brass NPT 1-1/2" 29.5 38.2 1.16 1.5 26.1 1.03 55 60.5 2.17 2.38 2.220472440944882 1.2283464566929134 1.389763779527559
TMCX150NB1AA535 150 Nickel Plated Brass NPT 1-1/2" 35.6 44.1 1.4 1.74 26.1 1.03 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX200SNB1AA536 200S Nickel Plated Brass NPT 2" 40.1 51 1.58 2.01 26.9 1.06 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX200NB1AA536 200 Nickel Plated Brass NPT 2" 47.2 56 1.86 2.2 26.9 1.06 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX150NB1AA536 150 Nickel Plated Brass NPT 2" 35.6 44.1 1.4 1.74 26.9 1.06 60 66 2.36 2.6 2.3110236220472444 1.4606299212598426 1.6181102362204727
TMCX250NB1AA537 250 Nickel Plated Brass NPT 2-1/2" 59.1 68 2.33 2.68 39.9 1.57 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX200NB1AA537 200 Nickel Plated Brass NPT 2-1/2" 47.2 56 1.86 2.2 39.9 1.57 75 82.5 2.96 3.25 2.488188976377953 1.9291338582677167 2.0905511811023625
TMCX250SNB1AA537 250S Nickel Plated Brass NPT 2-1/2" 52.8 62 2.08 2.44 39.9 1.57 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX200SNB1AA537 200S Nickel Plated Brass NPT 2-1/2" 40.1 51 1.58 2.01 39.9 1.57 70 77 2.76 3.03 2.5196850393700787 1.6811023622047245 1.8503937007874016
TMCX250NB1AA538 250 Nickel Plated Brass NPT 3" 59.1 68 2.33 2.68 41.5 1.63 85 93.5 3.35 3.68 2.838582677165354 2.409448818897638 2.5511811023622046
TMCX300NB1AA538 300 Nickel Plated Brass NPT 3" 66.6 79.4 2.62 3.13 41.5 1.63 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX250SNB1AA538 250S Nickel Plated Brass NPT 3" 52.8 62 2.08 2.44 41.5 1.63 85 93.5 3.35 3.68 2.7283464566929134 2.161417322834646 2.3188976377952755
TMCX350NB1AA539 350 Nickel Plated Brass NPT 3-1/2" 76 97.2 2.99 3.83 42.8 1.69 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX300NB1AA539 300 Nickel Plated Brass NPT 3-1/2" 66.6 79.4 2.62 3.13 42.8 1.69 110 121 4.33 4.77 3.8700787401574805 2.779527559055118 2.9685039370078745
TMCX350A1AA1010 350 Aluminium Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX400A1AA1310 400 Aluminium NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX350A1AA1310 350 Aluminium NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX350SS1AA4010 350 Stainless Steel Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX400SS1AA4310 400 Stainless Steel NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX350SS1AA4310 350 Stainless Steel NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX350NB1AA5010 350 Nickel Plated Brass Metric M100 2 76 97.2 2.99 3.83 24 0.94 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX350NB1AA5310 350 Nickel Plated Brass NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
TMCX400NB1AA5310 400 Nickel Plated Brass NPT 4" 76 97.2 2.99 3.83 44 1.73 133.4 146.7 5.26 5.78 4.519685039370079 3.2913385826771653 3.4881889763779528
