TSA Cable Gland

TRUSEAL TSA INDUSTRIAL METALLIC CABLE GLAND

Description

FOR ALL TYPES OF UNARMOURED AND BRAIDED/SCREENED CABLES

Features

  • Certified to UL514B
  • Suitable for use with all tray cable, including oil resistant and sunlight resistant
  • Robust design, manufactured with high quality materials
  • Available in Aluminium, Nickel Plated Brass, Stainless Steel and Zinc Plated Mild Steel
  • Certified to UL50E for NEMA 6P protection
  • Complete with Entry Thread Seal and Locknut as standard
  • Optional thread sizes available

Additional Information

Certification
UL Certificate Number E******
UL Compliance Standards UL514B, UL50E, CSA C22.2 No 18.3-12, CSA C22.2 No 94.2
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
Technical Specification
Application IND
Cable Gland Kits Available Available in kits of 2
Included Accessories Entry Thread Seal and Conduit Locknut as Standard
Seal Material CMP Thermoset Rubber
Seal Technique CMP Load Retention Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Brass, Nickel Plated Brass, Aluminium, Stainless Steel, Zinc Plated Steel

Downloads

Certificates

Product Selector

1

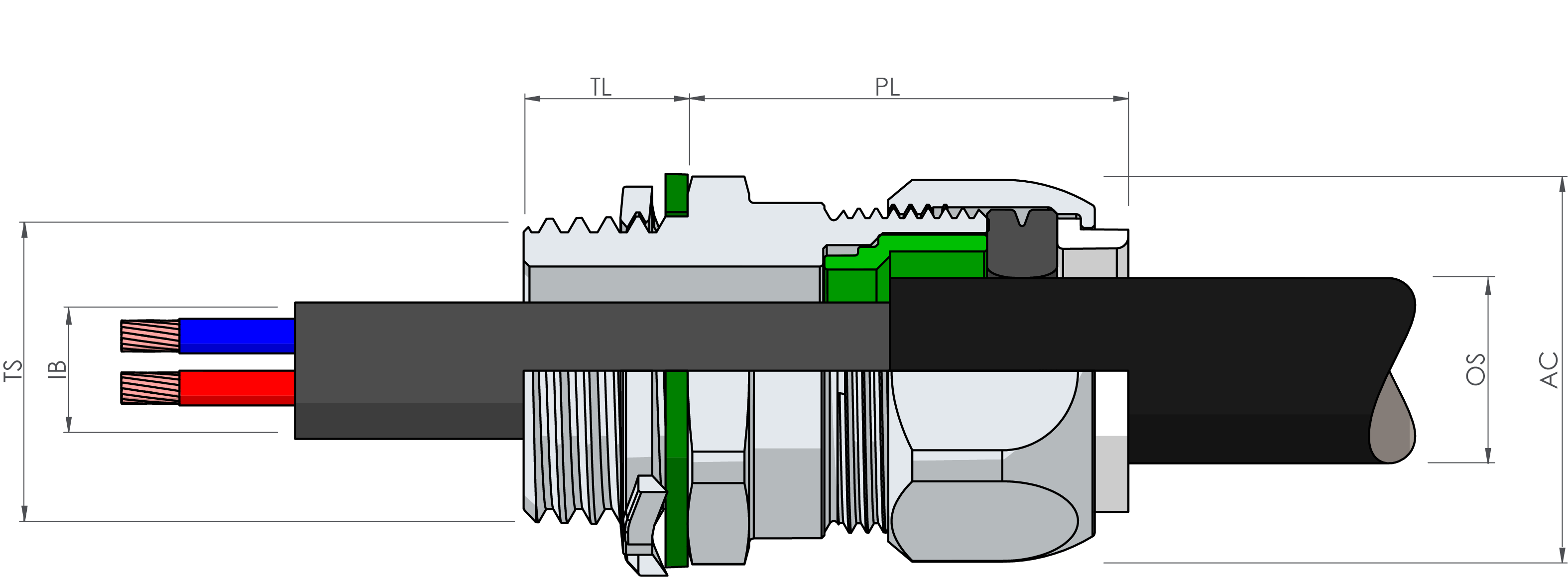

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Max Cable Bedding Ø IB (mm) Max Cable Bedding Ø IB (Imp)
TSA050A052 20s Aluminium NPT 1/2" 10.0 13.1 0.39 0.52 13.5 0.53 24.00 26.40 0.94 1.04 44.1 10.3 0.41
TSAM20A052 20s Aluminium Metric M20 1.5 10.0 13.1 0.39 0.52 10 0.39 24.00 26.40 0.94 1.04 44.1 10.3 0.41
TSA075A052 20s Aluminium NPT 3/4" 10.0 13.1 0.39 0.52 14 0.55 30.50 33.55 1.20 1.32 44.1 10.3 0.41
TSAM20A063 20 Aluminium Metric M20 1.5 10.0 16.0 0.39 0.63 10 0.39 24.00 26.40 0.94 1.04 45.1 15.9 0.63
TSA050A063 20 Aluminium NPT 1/2" 10.0 16.0 0.39 0.63 13.5 0.53 24.00 26.40 0.94 1.04 45.1 15.9 0.63
TSAM25A080 25 Aluminium Metric M25 1.5 14.8 20.2 0.58 0.80 10 0.39 30.50 33.55 1.20 1.32 49.1 17.4 0.69
TSA075A063 20 Aluminium NPT 3/4" 10.0 16.0 0.39 0.63 14 0.55 30.50 33.55 1.20 1.32 45.1 15.9 0.63
TSAM32A104 32 Aluminium Metric M32 1.5 15.8 26.3 0.62 1.04 10 0.39 37.50 41.25 1.48 1.62 49.1 23.3 0.92
TSA075A080 25 Aluminium NPT 3/4" 14.8 20.2 0.58 0.80 14 0.55 30.50 33.55 1.20 1.32 49.1 17.4 0.69
TSAM40A133 40 Aluminium Metric M40 1.5 24.6 33.9 0.97 1.33 10 0.39 46.00 50.60 1.81 1.99 54.4 31.2 1.23
TSA100A080 25 Aluminium NPT 1" 14.8 20.2 0.58 0.80 17.3 0.68 37.50 41.25 1.48 1.62 49.1 17.4 0.69
TSAM50A157 50 Aluminium Metric M50 1.5 27.0 40.0 1.06 1.57 10 0.39 55.00 60.50 2.17 2.38 61.1 36.4 1.43
TSA100A104 32 Aluminium NPT 1" 15.8 26.3 0.62 1.04 17.3 0.68 37.50 41.25 1.48 1.62 49.1 23.3 0.92
TSAM63A209 63 Aluminium Metric M63 1.5 39.6 53.1 1.56 2.09 10 0.39 70.00 77.00 2.76 3.03 65.6 44.9 1.77
TSA125A104 32 Aluminium NPT 1 1/4" 15.8 26.3 0.62 1.04 18 0.71 46.00 50.60 1.81 1.99 49.1 23.3 0.92
TSAM75A259 75 Aluminium Metric M75 1.5 51.5 65.8 2.03 2.59 10 0.39 80.00 88.00 3.15 3.46 65.6 56.5 2.22
TSA125A133 40 Aluminium NPT 1 1/4" 24.6 33.9 0.97 1.33 18 0.71 46.00 50.60 1.81 1.99 54.4 31.2 1.23
TSA150A133 40 Aluminium NPT 1 1/2" 24.6 33.9 0.97 1.33 18.3 0.72 55.00 60.50 2.17 2.38 54.4 31.2 1.23
TSA150A157 50 Aluminium NPT 1 1/2" 27.0 40.0 1.06 1.57 18.3 0.72 55.00 60.50 2.17 2.38 61.1 36.4 1.43
TSA200A157 50 Aluminium NPT 2" 27.0 40.0 1.06 1.57 19.3 0.76 70.00 77.00 2.76 3.03 61.1 36.4 1.43
TSA200A209 63 Aluminium NPT 2" 39.6 53.1 1.56 2.09 19.3 0.76 70.00 77.00 2.76 3.03 65.6 44.9 1.77
TSA250A209 63 Aluminium NPT 2 1/2" 39.6 53.1 1.56 2.09 29 1.14 80.00 88.00 3.15 3.46 65.6 44.9 1.77
TSA250A259 75 Aluminium NPT 2 1/2" 51.5 65.8 2.03 2.59 29 1.14 80.00 88.00 3.15 3.46 65.6 56.5 2.22
TSA300A259 75 Aluminium NPT 3" 51.5 65.8 2.03 2.59 41.5 1.63 100.00 110.00 3.94 4.33 65.6 56.5 2.22
