TSM Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The TSM range of cable glands are for use in medium / heavy duty applications in Industrial Areas (Safe Areas). Designed to provide superior cable retention and strain relief.

Features

Finger-locking seal provides superior cable retention and strain relief
Third party certified to IEC/EN 62444
Widest cable range take on the market
Easy to install
Robust design, high quality materials
O-ring interface seal included as standard
Transit disc or IP68, IP69 and IP69K rated IP plug options available
Product supplied in nickel-plated brass, or stainless steel on request
Nickel-plated brass locknut available (ordering suffix 2TN)

Additional Information

* Mechanical classifications applied as per IEC/EN 62444 ** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Certificates

Product Selector

Showing:

Refine by part number

Entry thread type
Entry thread size
Cable Diameter Minimum
Cable Diameter Maximum
Gland Material

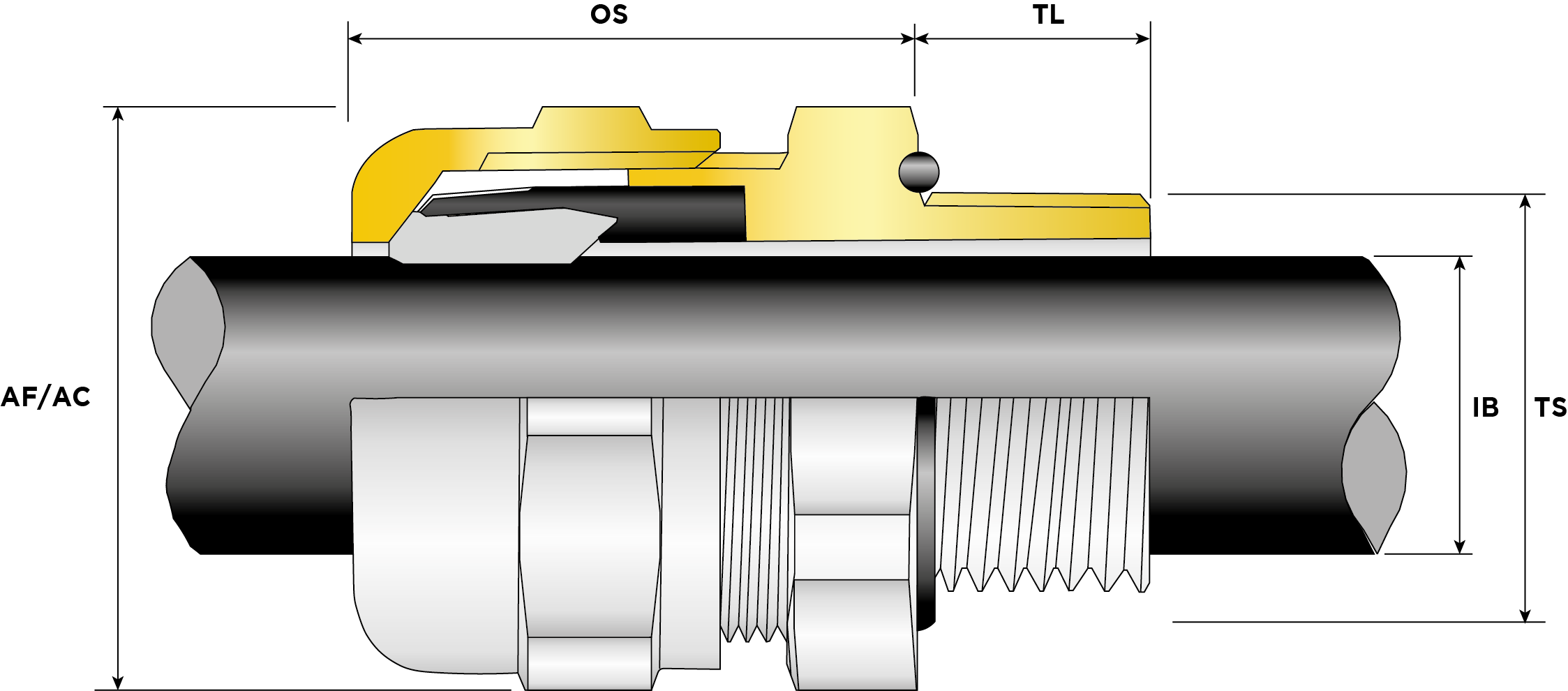

	Part Number	Size	Material	Entry Thread	Entry Thread Size TS	Entry Thread Pitch TP	Min Overall Cable Ø OS (mm)	Max Overall Cable Ø OS (mm)	Min Overall Cable Ø OS (Imp)	Max Overall Cable Ø OS (Imp)	Min Thread Length TL (mm)	Min Thread Length TL (Imp)	Max Across Flats AF (mm)	Max Across Corners AC (mm)	Max Across Flats AF (Imp)	Max Across Corners AC (Imp)	Max Protrusion Length PL (mm)
Select	12TSM1TA5L	12	Nickel Plated Brass	Metric	M12	1.5	3	6.5	0.12	0.26	12	0.47	16	17.6	0.63	0.69	22.3
Select	12TSM1TA5T	12	Nickel Plated Brass	NPT	1/4"		3	6.5	0.12	0.26	11	0.43	16	17.6	0.63	0.69	22.3
Select	12TSM2TN5L	12	Nickel Plated Brass	Metric	M12	1.5	3	6.5	0.12	0.26	12	0.47	16	17.6	0.63	0.69	22.3
Select	12TSM1TA4L	12	Stainless Steel	Metric	M12	1.5	3	6.5	0.12	0.26	12	0.47	16	17.6	0.63	0.69	22.3
Select	12TSM2TN4L	12	Stainless Steel	Metric	M12	1.5	3	6.5	0.12	0.26	12	0.47	16	17.6	0.63	0.69	22.3
Select	12TSM1TA4	12	Stainless Steel	Metric	M12	1.5	3	6.5	0.12	0.26	6	0.24	16	17.6	0.63	0.69	22.3
Select	12TSM1TA5	12	Nickel Plated Brass	Metric	M12	1.5	3	6.5	0.12	0.26	6	0.24	16	17.6	0.63	0.69	22.3
Select	16DTSM2TN5L	16D	Nickel Plated Brass	Metric	M16	1.5	3	10	0.12	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM2TN4L	16	Stainless Steel	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM2MSNK4L	16	Stainless Steel	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16MS2TSM2TN4L	16	Stainless Steel	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16TSM1TA5T	16	Nickel Plated Brass	NPT	3/8"		6	10	0.24	0.39	11	0.43	20	22	0.79	0.87	23.6
Select	16TSM2TN5L	16	Nickel Plated Brass	Metric	M16	1.5	6	10	0.24	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM1TA5L	16	Nickel Plated Brass	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16TSM1TA4L	16	Stainless Steel	Metric	M16	1.5	6	10	0.24	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16DTSM1TA4L	16D	Stainless Steel	Metric	M16	1.5	3	10	0.12	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS2TSM1TA5L	16	Nickel Plated Brass	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16MS2TSM2MSNK4L	16	Stainless Steel	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM2TN5L	16	Nickel Plated Brass	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM2MSNK5L	16	Nickel Plated Brass	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16DTSM1TA5T	16D	Nickel Plated Brass	NPT	3/8"		3	10	0.12	0.39	11	0.43	20	22	0.79	0.87	23.6
Select	16MS2TSM2TN5L	16	Nickel Plated Brass	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16DTSM2TN4L	16D	Stainless Steel	Metric	M16	1.5	3	10	0.12	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS2TSM2MSNK5L	16	Nickel Plated Brass	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16DTSM1TA5L	16D	Nickel Plated Brass	Metric	M16	1.5	3	10	0.12	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16TSM2TN4L	16	Stainless Steel	Metric	M16	1.5	6	10	0.24	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS1TSM1TA4L	16	Stainless Steel	Metric	M16	1.5	2 x 2mm	2 x 4mm			12	0.47	20	22	0.79	0.87	23.6
Select	16TSM1TA5L	16	Nickel Plated Brass	Metric	M16	1.5	6	10	0.24	0.39	12	0.47	20	22	0.79	0.87	23.6
Select	16MS2TSM1TA4L	16	Stainless Steel	Metric	M16	1.5	3 x 1mm	3 x 2mm			12	0.47	20	22	0.79	0.87	23.6
Select	16DTSM1TA4T	16D	Stainless Steel	NPT	3/8"		3	10	0.12	0.39	11	0.43	20	22	0.79	0.87	23.6
Select	16DTSM1TA4	16D	Stainless Steel	Metric	M16	1.5	3	10	0.12	0.39	6	0.24	20	22	0.79	0.87	23.6
Select	16TSM1TA4	16	Stainless Steel	Metric	M16	1.5	6	10	0.24	0.39	6	0.24	20	22	0.79	0.87	23.6
Select	16DTSM1TA5	16D	Nickel Plated Brass	Metric	M16	1.5	3	10	0.12	0.39	6	0.24	20	22	0.79	0.87	23.6
Select	16TSM1TA5	16	Nickel Plated Brass	Metric	M16	1.5	6	10	0.24	0.39	6	0.24	20	22	0.79	0.87	23.6
Select	20DTSM1TA4L	20D	Stainless Steel	Metric	M20	1.5	5	14	0.2	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM1TA5L	20	Nickel Plated Brass	Metric	M20	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20TSM1TA4L	20	Stainless Steel	Metric	M20	1.5	9	14	0.35	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM2TN4L	20	Stainless Steel	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS2TSM1TA5L	20	Nickel Plated Brass	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS2TSM2MSNK4L	20	Stainless Steel	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM2TN5L	20	Nickel Plated Brass	Metric	M20	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM2MSNK5L	20	Nickel Plated Brass	Metric	M20	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM1TA5L	20	Nickel Plated Brass	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20DTSM1TA5T	20D	Nickel Plated Brass	NPT	1/2"		5	14	0.2	0.55	14	0.55	24	26.4	0.95	1.04	26.7
Select	20MS2TSM2TN5L	20	Nickel Plated Brass	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM2MSNK4L	20	Stainless Steel	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20DTSM2TN4L	20D	Stainless Steel	Metric	M20	1.5	5	14	0.2	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS2TSM2MSNK5L	20	Nickel Plated Brass	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20DTSM1TA5L	20D	Nickel Plated Brass	Metric	M20	1.5	5	14	0.2	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20TSM2TN4L	20	Stainless Steel	Metric	M20	1.5	9	14	0.35	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM1TA4L	20	Stainless Steel	Metric	M10	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20TSM1TA5L	20	Nickel Plated Brass	Metric	M20	1.5	9	14	0.35	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM2TN5L	20	Nickel Plated Brass	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM2MSNK5L	20	Nickel Plated Brass	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS2TSM1TA4L	20	Stainless Steel	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20DTSM1TA4T	20D	Stainless Steel	NPT	1/2"		5	14	0.2	0.55	14	0.55	24	26.4	0.95	1.04	26.7
Select	20DTSM2TN5L	20D	Nickel Plated Brass	Metric	M20	1.5	5	14	0.2	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM2TN4L	20	Stainless Steel	Metric	M20	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS1TSM2MSNK4L	20	Stainless Steel	Metric	M20	1.5	2 x 3mm	2 x 5mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20TSM2TN5L	20	Nickel Plated Brass	Metric	M20	1.5	9	14	0.35	0.55	12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS3TSM1TA4L	20	Stainless Steel	Metric	M20	1.5	4 x 2mm	4 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20MS2TSM2TN4L	20	Stainless Steel	Metric	M20	1.5	3 x 2mm	3 x 4mm			12	0.47	24	26.4	0.95	1.04	26.7
Select	20DTSM1TA4	20D	Stainless Steel	Metric	M20	1.5	5	14	0.2	0.55	6.5	0.26	24	26.4	0.95	1.04	26.7
Select	20TSM1TA4	20	Stainless Steel	Metric	M20	1.5	9	14	0.35	0.55	6.5	0.26	24	26.4	0.95	1.04	26.7
Select	20TSM1TA5	20	Nickel Plated Brass	Metric	M20	1.5	9	14	0.35	0.55	6.5	0.26	24	26.4	0.95	1.04	26.7
Select	20DTSM1TA5	20D	Nickel Plated Brass	Metric	M20	1.5	5	14	0.2	0.55	6.5	0.26	24	26.4	0.95	1.04	26.7
Select	25MS10TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25MS2TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS2TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS10TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS8TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS10TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	12.5	18	0.49	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS10TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25DTSM1TA5T	25D	Nickel Plated Brass	NPT	3/4"		9	18	0.35	0.71	15	0.59	30	33	1.18	1.3	32
Select	25MS2TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25DTSM2TN4L	25D	Stainless Steel	Metric	M25	1.5	9	18	0.35	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS2TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25DTSM1TA5L	25D	Nickel Plated Brass	Metric	M25	1.5	9	18	0.35	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS8TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS8TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	12.5	18	0.49	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25MS2TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25DTSM2TN5L	25D	Nickel Plated Brass	Metric	M25	1.5	9	18	0.35	0.71	12	0.47	30	33	1.18	1.3	32
Select	25DTSM1TA4T	25D	Stainless Steel	NPT	3/4"		9	18	0.35	0.71	15	0.59	30	33	1.18	1.3	32
Select	25MS8TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS8TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS10TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS7TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	4 x 4mm	4 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25TSM2TN5L	25	Nickel Plated Brass	Metric	M25	1.5	12.5	18	0.49	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS5TSM2MSNK5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 5mm	3 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS3TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 8mm			12	0.47	30	33	1.18	1.3	32
Select	25MS2TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	2 x 5mm	2 x 7mm			12	0.47	30	33	1.18	1.3	32
Select	25MS10TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	4 x 5mm	4 x 6.5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM2MSNK4L	25	Stainless Steel	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25MS8TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	5 x 2mm	5 x 4mm			12	0.47	30	33	1.18	1.3	32
Select	25MS6TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	4 x 3mm	4 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25MS4TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	3 x 3mm	3 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25DTSM1TA4L	25D	Stainless Steel	Metric	M25	1.5	9	18	0.35	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS1TSM1TA5L	25	Nickel Plated Brass	Metric	M25	1.5	2 x 3mm	2 x 6mm			12	0.47	30	33	1.18	1.3	32
Select	25TSM1TA4L	25	Stainless Steel	Metric	M25	1.5	12.5	18	0.49	0.71	12	0.47	30	33	1.18	1.3	32
Select	25MS9TSM2TN4L	25	Stainless Steel	Metric	M25	1.5	5 x 3mm	5 x 5mm			12	0.47	30	33	1.18	1.3	32
Select	25TSM1TA4	25	Stainless Steel	Metric	M25	1.5	12.5	18	0.49	0.71	7	0.28	30	33	1.18	1.3	32
Select	25DTSM1TA4	25D	Stainless Steel	Metric	M25	1.5	9	18	0.35	0.71	7	0.28	30	33	1.18	1.3	32
Select	25TSM1TA5	25	Nickel Plated Brass	Metric	M25	1.5	12.5	18	0.49	0.71	7	0.28	30	33	1.18	1.3	32
Select	25DTSM1TA5	25D	Nickel Plated Brass	Metric	M25	1.5	9	18	0.35	0.71	7	0.28	30	33	1.18	1.3	32
Select	32MS1TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS1TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA5L	32D	Nickel Plated Brass	Metric	M32	1.5	12.5	25	0.49	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	17	25	0.67	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA5T	32D	Nickel Plated Brass	NPT	1"		12.5	25	0.49	0.98	18	0.71	39	42.9	1.54	1.69	37.8
Select	32MS2TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM2TN4L	32D	Stainless Steel	Metric	M32	1.5	12.5	25	0.49	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS2TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS4TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	17	25	0.67	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS1TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS2TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM2TN5L	32D	Nickel Plated Brass	Metric	M32	1.5	12.5	25	0.49	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA4T	32D	Stainless Steel	NPT	1"		12.5	25	0.49	0.98	18	0.71	39	42.9	1.54	1.69	37.8
Select	32MS4TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS1TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	17	25	0.67	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS2TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS4TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS4TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA4L	32D	Stainless Steel	Metric	M32	1.5	12.5	25	0.49	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS1TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	17	25	0.67	0.98	12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS1TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	3 x 6mm	3 x 10.2mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS2TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS7TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 3mm	8 x 5mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS5TSM1TA4L	32	Stainless Steel	Metric	M32	1.5	6 x 4mm	6 x 6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS3TSM2TN4L	32	Stainless Steel	Metric	M32	1.5	2 x 9mm 1 x 5mm	2 x 11.7mm 1 x 7.6mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS2TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	2 x 7mm 1 x 4mm	2 x 10.2mm 1 x 6.8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM2MSNK4L	32	Stainless Steel	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS4TSM2TN5L	32	Nickel Plated Brass	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS4TSM2MSNK5L	32	Nickel Plated Brass	Metric	M32	1.5	4 x 5mm	4 x 8mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32MS6TSM1TA5L	32	Nickel Plated Brass	Metric	M32	1.5	8 x 2mm	8 x 4mm			12	0.47	39	42.9	1.54	1.69	37.8
Select	32TSM1TA4	32	Stainless Steel	Metric	M32	1.5	17	25	0.67	0.98	8	0.31	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA4	32D	Stainless Steel	Metric	M32	1.5	12.5	25	0.49	0.98	8	0.31	39	42.9	1.54	1.69	37.8
Select	32TSM1TA5	32	Nickel Plated Brass	Metric	M32	1.5	17	25	0.67	0.98	8	0.31	39	42.9	1.54	1.69	37.8
Select	32DTSM1TA5	32D	Nickel Plated Brass	Metric	M32	1.5	12.5	25	0.49	0.98	8	0.31	39	42.9	1.54	1.69	37.8
Select	40TSM1TA5L	40	Nickel Plated Brass	Metric	M40	1.5	24	32	0.94	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40MS1TSM1TA4L	40	Stainless Steel	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM1TA4L	40	Stainless Steel	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM2TN5L	40D	Nickel Plated Brass	Metric	M40	1.5	19	32	0.75	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM1TA4T	40D	Stainless Steel	NPT	1-1/4"		19	32	0.75	1.26	18	0.71	50	55	1.97	2.17	44.7
Select	40MS1TSM2TN4L	40	Stainless Steel	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM2TN4L	40	Stainless Steel	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40TSM2TN5L	40	Nickel Plated Brass	Metric	M40	1.5	24	32	0.94	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40TSM1TA4L	40	Stainless Steel	Metric	M40	1.5	24	32	0.94	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40MS1TSM2MSNK4L	40	Stainless Steel	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM1TA4L	40D	Stainless Steel	Metric	M40	1.5	19	32	0.75	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40MS1TSM1TA5L	40	Nickel Plated Brass	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM2MSNK4L	40	Stainless Steel	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM1TA5L	40	Nickel Plated Brass	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS1TSM2TN5L	40	Nickel Plated Brass	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS1TSM2MSNK5L	40	Nickel Plated Brass	Metric	M40	1.5	2 x 8mm 1 x 7mm	2 x 11.7mm 1 x 10.2mm			15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM2TN5L	40	Nickel Plated Brass	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM2TN4L	40D	Stainless Steel	Metric	M40	1.5	19	32	0.75	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40MS2TSM2MSNK5L	40	Nickel Plated Brass	Metric	M40	1.5	4 x 7mm	4 x 10mm			15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM1TA5L	40D	Nickel Plated Brass	Metric	M40	1.5	19	32	0.75	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40TSM2TN4L	40	Stainless Steel	Metric	M40	1.5	24	32	0.94	1.26	15	0.59	50	55	1.97	2.17	44.7
Select	40DTSM1TA5T	40D	Nickel Plated Brass	NPT	1-1/4"		19	32	0.75	1.26	18	0.71	50	55	1.97	2.17	44.7
Select	40TSM1TA4	40	Stainless Steel	Metric	M40	1.5	24	32	0.94	1.26	8	0.31	50	55	1.97	2.17	44.7
Select	40DTSM1TA4	40D	Stainless Steel	Metric	M40	1.5	19	32	0.75	1.26	8	0.31	50	55	1.97	2.17	44.7
Select	40DTSM1TA5	40D	Nickel Plated Brass	Metric	M40	1.5	19	32	0.75	1.26	8	0.31	50	55	1.97	2.17	44.7
Select	40TSM1TA5	40	Nickel Plated Brass	Metric	M40	1.5	24	32	0.94	1.26	8	0.31	50	55	1.97	2.17	44.7
Select	50DTSM1TA4T	50D	Stainless Steel	NPT	1-1/2"		22	38	0.87	1.5	19	0.75	57	62.7	2.25	2.47	48.7
Select	50DTSM2TN5L	50D	Nickel Plated Brass	Metric	M50	1.5	22	38	0.87	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50TSM2TN5L	50	Nickel Plated Brass	Metric	M50	1.5	28	38	1.1	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50TSM1TA4L	50	Stainless Steel	Metric	M50	1.5	28	38	1.1	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50DTSM1TA4L	50D	Stainless Steel	Metric	M50	1.5	22	38	0.87	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50DTSM1TA5T	50D	Nickel Plated Brass	NPT	1-1/2"		22	38	0.87	1.5	19	0.75	57	62.7	2.25	2.47	48.7
Select	50DTSM2TN4L	50D	Stainless Steel	Metric	M50	1.5	22	38	0.87	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50DTSM1TA5L	50D	Nickel Plated Brass	Metric	M50	1.5	22	38	0.87	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50TSM2TN4L	50	Stainless Steel	Metric	M50	1.5	28	38	1.1	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50TSM1TA5L	50	Nickel Plated Brass	Metric	M50	1.5	28	38	1.1	1.5	15	0.59	57	62.7	2.25	2.47	48.7
Select	50DTSM1TA4	50D	Stainless Steel	Metric	M50	1.5	22	38	0.87	1.5	9	0.35	57	62.7	2.25	2.47	48.7
Select	50TSM1TA4	50	Stainless Steel	Metric	M50	1.5	28	38	1.1	1.5	9	0.35	57	62.7	2.25	2.47	48.7
Select	50DTSM1TA5	50D	Nickel Plated Brass	Metric	M50	1.5	22	38	0.87	1.5	9	0.35	57	62.7	2.25	2.47	48.7
Select	50TSM1TA5	50	Nickel Plated Brass	Metric	M50	1.5	28	38	1.1	1.5	9	0.35	57	62.7	2.25	2.47	48.7
Select	63TSM2TN5L	63	Nickel Plated Brass	Metric	M63	1.5	37	48	1.46	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA4L	63D	Stainless Steel	Metric	M63	1.5	28	48	1.1	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63TSM1TA4L	63	Stainless Steel	Metric	M63	1.5	37	48	1.46	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA5T	63D	Nickel Plated Brass	NPT	2"		28	48	1.1	1.89	20	0.79	68	74.8	2.68	2.95	52.2
Select	63DTSM2TN4L	63D	Stainless Steel	Metric	M63	1.5	28	48	1.1	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA5L	63D	Nickel Plated Brass	Metric	M63	1.5	28	48	1.1	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63TSM2TN4L	63	Stainless Steel	Metric	M63	1.5	37	48	1.46	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63TSM1TA5L	63	Nickel Plated Brass	Metric	M63	1.5	37	48	1.46	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63DTSM2TN5L	63D	Nickel Plated Brass	Metric	M63	1.5	28	48	1.1	1.89	15	0.59	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA4T	63D	Stainless Steel	NPT	2"		28	48	1.1	1.89	20	0.79	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA4	63D	Stainless Steel	Metric	M63	1.5	28	48	1.1	1.89	10	0.39	68	74.8	2.68	2.95	52.2
Select	63TSM1TA4	63	Stainless Steel	Metric	M63	1.5	37	48	1.46	1.89	10	0.39	68	74.8	2.68	2.95	52.2
Select	63TSM1TA5	63	Nickel Plated Brass	Metric	M63	1.5	37	48	1.46	1.89	10	0.39	68	74.8	2.68	2.95	52.2
Select	63DTSM1TA5	63D	Nickel Plated Brass	Metric	M63	1.5	28	48	1.1	1.89	10	0.39	68	74.8	2.68	2.95	52.2

No results

0 of 250 Selected

Showing:

"*" indicates required fields

We'd like to keep in touch

We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

Email Address*

Country*

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Registered office

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

Features

Additional Information

Downloads

Certificates

Product Selector

Your Shortlist

Your Selection

We'd like to keep in touch

Registered office
