TSMe Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The TSMe range of cable glands are for use in medium / heavy duty applications in Explosive Atmospheres. Designed to provide superior cable retention and strain relief.

Features

  • Finger-locking seal provides superior cable retention and strain relief
  • Approved to the latest editions of IEC/EN 60079
  • Internationally marked IECEx, ATEX and UKEX
  • Suitable for intrinsically safe (Ex i) circuits
  • Third party certified to IEC/EN 62444
  • Widest cable range take on the market
  • Easy to install
  • Robust design, high quality materials
  • O-ring interface seal included as standard
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Product supplied in nickel-plated brass, or stainless steel on request
  • Nickel-plated brass locknut available (ordering suffix 2TN)

Additional Information

Certification
ATEX Certificate Number CML 19ATEX3185X
ATEX Certificate Number 2 CML 19ATEX4186X
ATEX Code of Protection ^ II 2G 3G 1D Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 19.0062X
IECEx Code of Protection Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX3264X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02516/20
EAC Code of Protection { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003450
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
SANS Certificate Number S-XPL/21.0014 X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Seal Technique CMP Unique finger-locking type seal
Seal Area(s) Cable Outer Sheath
Type Material Options Nickel Plated Brass, Stainless Steel
Seal Types Array
Accessory Types Array
Thread Types 2 Array

* Mechanical classifications applied as per IEC/EN 62444 ** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1

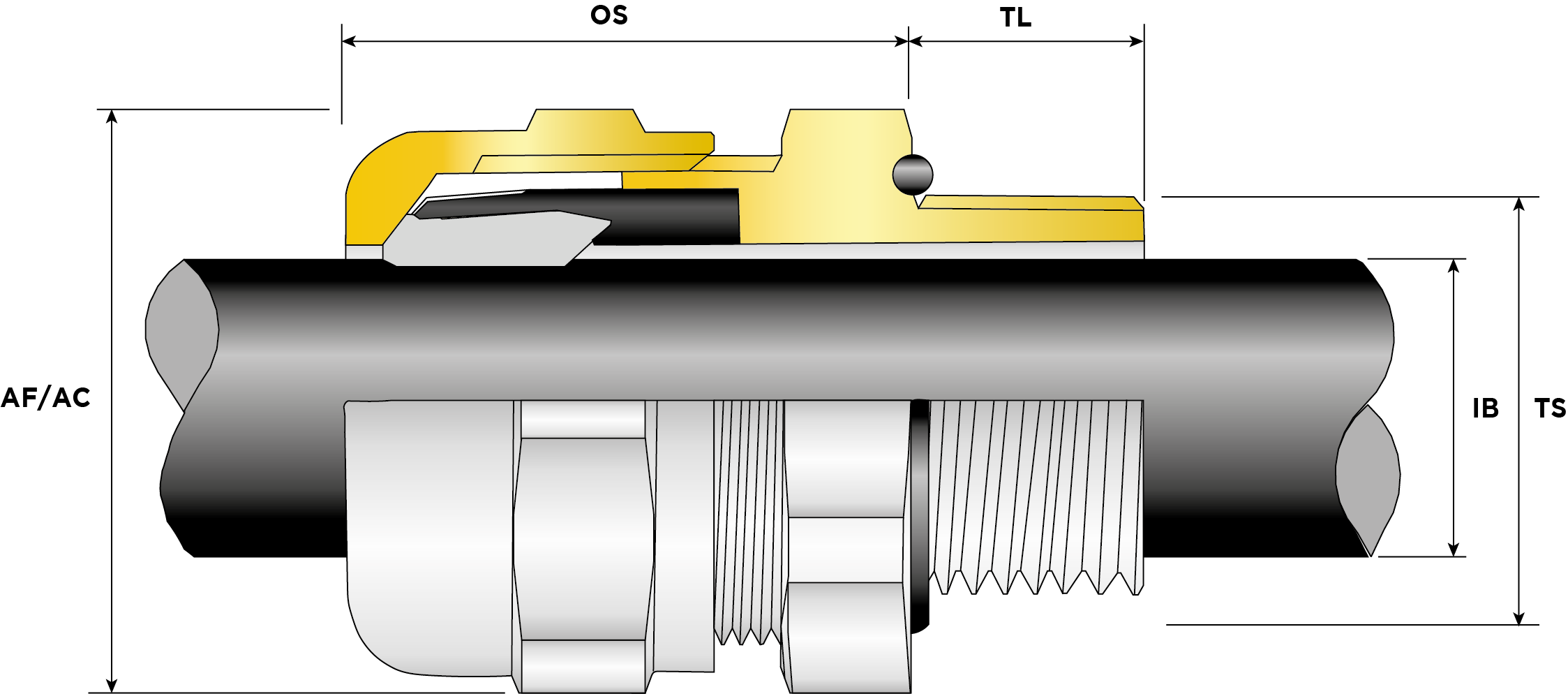

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm)
12TSME1TD5L 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSME1TD4L 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSME2TDN5L 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSME2TDN4L 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSME2MSNK5L 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSME2MSNK4L 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
16DTSME2TDN5L 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME1TD5L 16 Nickel Plated Brass Metric M16 1.5 2 x 2mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME2TDN5L 16 Nickel Plated Brass Metric M16 1.5 2 x 2mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME2TDN4L 16 Stainless Steel Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME2MSNK4L 16 Stainless Steel Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME1TD5L 16 Nickel Plated Brass Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME2TDN5L 16 Nickel Plated Brass Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16TSME1TD4L 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16DTSME2TDN4L 16D Stainless Steel Metric M16 1.5 3 10 0.12 0.39 12 0.47 20 22 0.79 0.87 23.6
16TSME2TDN5L 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME2MSNK5L 16 Nickel Plated Brass Metric M16 1.5 2 x 3mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16TSME2TDN4L 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16FF1TSME2TDN4L 16 Stainless Steel Metric M16 1.5 7mm x 4mm 8.2mm x 5.0mm 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME2MSNK4L 16 Stainless Steel Metric M16 1.5 2 x 3mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16FF1TSME2TDN5L 16 Nickel Plated Brass Metric M16 1.5 7mm x 4mm 8.2mm x 5.0mm 12 0.47 20 22 0.79 0.87 23.6
16FF2TSME2TDN4L 16 Stainless Steel Metric M16 1.5 8mm x 4mm 10mm x 6.0mm 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME1TD4L 16 Stainless Steel Metric M16 1.5 2 x 2mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16MS1TSME2TDN4L 16 Stainless Steel Metric M16 1.5 2 x 2mm 2 x 4mm 12 0.47 20 22 0.79 0.87 23.6
16TSME2MSNK5L 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16FF2TSME2TDN5L 16 Nickel Plated Brass Metric M16 1.5 8mm x 4mm 10mm x 6.0mm 12 0.47 20 22 0.79 0.87 23.6
16DTSME1TD5L 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME1TD4L 16 Stainless Steel Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16TSME2MSNK4L 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16DTSME1TD4L 16D Stainless Steel Metric M16 1.5 3 10 0.12 0.39 12 0.47 20 22 0.79 0.87 23.6
16MS2TSME2MSNK5L 16 Nickel Plated Brass Metric M16 1.5 3 x 1mm 3 x 2mm 12 0.47 20 22 0.79 0.87 23.6
16TSME1TD5L 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
20MS2TSME2MSNK4L 20 Stainless Steel Metric M20 1.5 3 x 3mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20FF3TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 10mm x 4mm 11.9mm x 6.25mm 12 0.47 24 26.4 0.95 1.04 26.7
20DTSME2TDN4L 20D Stainless Steel Metric M20 1.5 5 14 0.2 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20FF3TSME2TDN4L 20 Stainless Steel Metric M20 1.5 10mm x 4mm 11.9mm x 6.25mm 12 0.47 24 26.4 0.95 1.04 26.7
20TSME2MSNK5L 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME2TDN4L 20 Stainless Steel Metric M20 1.5 4 x 2mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME2MSNK5L 20 Nickel Plated Brass Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME1TD5L 20 Nickel Plated Brass Metric M20 1.5 4 x 2mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 4 x 2mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20TSME2MSNK4L 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20FF1TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 7mm x 4mm 8.2mm x 5.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20TSME2TDN4L 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20FF1TSME2TDN4L 20 Stainless Steel Metric M20 1.5 7mm x 4mm 8.2mm x 5.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20FF2TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 8mm x 4mm 10.3mm x 6.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20FF2TSME2TDN4L 20 Stainless Steel Metric M20 1.5 8mm x 4mm 10.3mm x 6.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME1TD4L 20 Stainless Steel Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME2TDN4L 20 Stainless Steel Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME2MSNK4L 20 Stainless Steel Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20DTSME1TD5L 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS2TSME1TD4L 20 Stainless Steel Metric M20 1.5 3 x 2mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME2MSNK5L 20 Nickel Plated Brass Metric M20 1.5 4 x 3mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20FF4TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 11mm x 4mm 13.5mm x 7.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20FF4TSME2TDN4L 20 Stainless Steel Metric M20 1.5 11mm x 4mm 13.5mm x 7.0mm 12 0.47 24 26.4 0.95 1.04 26.7
20DTSME1TD4L 20D Stainless Steel Metric M20 1.5 5 14 0.2 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME2MSNK4L 20 Stainless Steel Metric M20 1.5 4 x 3mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS3TSME1TD4L 20 Stainless Steel Metric M20 1.5 4 x 2mm 4 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20TSME1TD5L 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS2TSME2MSNK5L 20 Nickel Plated Brass Metric M20 1.5 3 x 3mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20DTSME2TDN5L 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS2TSME2TDN4L 20 Stainless Steel Metric M20 1.5 3 x 2mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME1TD5L 20 Nickel Plated Brass Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS1TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 2 x 3mm 2 x 5mm 12 0.47 24 26.4 0.95 1.04 26.7
20TSME1TD4L 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20MS2TSME1TD5L 20 Nickel Plated Brass Metric M20 1.5 3 x 2mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
20MS2TSME2TDN5L 20 Nickel Plated Brass Metric M20 1.5 3 x 2mm 3 x 4mm 12 0.47 24 26.4 0.95 1.04 26.7
25MS4TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 3 x 4mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS7TSME1TD4L 25 Stainless Steel Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 2 x 5mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 2 x 5mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25FF6TSME2TDN4L 25 Stainless Steel Metric M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME2TDN4L 25 Stainless Steel Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25FF6TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 2 x 4mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS4TSME1TD4L 25 Stainless Steel Metric M25 1.5 3 x 3mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25FF1TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 8mm x 4mm 10.3mm x 6.0mm 12 0.47 30 33 1.18 1.3 32
25MS9TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
25TSME2TDN4L 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25FF1TSME2TDN4L 25 Stainless Steel Metric M25 1.5 8mm x 4mm 10.3mm x 6.0mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS5TSME2TDN4L 25 Stainless Steel Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME2TDN4L 25 Stainless Steel Metric M25 1.5 2 x 3mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 2 x 6mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25FF2TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 12 0.47 30 33 1.18 1.3 32
25FF2TSME2TDN4L 25 Stainless Steel Metric M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME1TD4L 25 Stainless Steel Metric M25 1.5 2 x 3mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS2TSME1TD4L 25 Stainless Steel Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS10TSME1TD4L 25 Stainless Steel Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25FF5TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 12 0.47 30 33 1.18 1.3 32
25MS5TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25DTSME1TD5L 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 12 0.47 30 33 1.18 1.3 32
25MS5TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25FF5TSME2TDN4L 25 Stainless Steel Metric M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS10TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME1TD4L 25 Stainless Steel Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 2 x 6mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25MS9TSME1TD4L 25 Stainless Steel Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
25FF4TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 12 0.47 30 33 1.18 1.3 32
25FF4TSME2TDN4L 25 Stainless Steel Metric M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 12 0.47 30 33 1.18 1.3 32
25DTSME1TD4L 25D Stainless Steel Metric M25 1.5 9 18 0.35 0.71 12 0.47 30 33 1.18 1.3 32
25MS7TSME2TDN4L 25 Stainless Steel Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS5TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS7TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS7TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS10TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME1TD4L 25 Stainless Steel Metric M25 1.5 2 x 5mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25MS4TSME2TDN4L 25 Stainless Steel Metric M25 1.5 3 x 3mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS2TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25DTSME2TDN5L 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 12 0.47 30 33 1.18 1.3 32
25MS4TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 3 x 3mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS4TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 3 x 3mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS5TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS8TSME1TD4L 25 Stainless Steel Metric M25 1.5 5 x 2mm 5 x 4mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 2 x 3mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25FF8TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 12 0.47 30 33 1.18 1.3 32
25MS2TSME2TDN4L 25 Stainless Steel Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25FF8TSME2TDN4L 25 Stainless Steel Metric M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 12 0.47 30 33 1.18 1.3 32
25MS10TSME2TDN4L 25 Stainless Steel Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25MS7TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 2 x 3mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25MS2TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS10TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25TSME1TD4L 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25MS10TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 4 x 5mm 4 x 6.5mm 12 0.47 30 33 1.18 1.3 32
25MS2TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25MS5TSME1TD4L 25 Stainless Steel Metric M25 1.5 3 x 5mm 3 x 7mm 12 0.47 30 33 1.18 1.3 32
25TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25MS2TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 2 x 5mm 2 x 7mm 12 0.47 30 33 1.18 1.3 32
25DTSME2TDN4L 25D Stainless Steel Metric M25 1.5 9 18 0.35 0.71 12 0.47 30 33 1.18 1.3 32
25FF3TSME2TDN4L 25 Stainless Steel Metric M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME2TDN4L 25 Stainless Steel Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS4TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 3 x 4mm 3 x 6mm 12 0.47 30 33 1.18 1.3 32
25FF3TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS6TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 4 x 3mm 4 x 5mm 12 0.47 30 33 1.18 1.3 32
25FF7TSME2TDN4L 25 Stainless Steel Metric M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 12 0.47 30 33 1.18 1.3 32
25MS9TSME2TDN4L 25 Stainless Steel Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS7TSME2MSNK4L 25 Stainless Steel Metric M25 1.5 4 x 4mm 4 x 6mm 12 0.47 30 33 1.18 1.3 32
25FF7TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 12 0.47 30 33 1.18 1.3 32
25MS9TSME1TD5L 25 Nickel Plated Brass Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS3TSME2TDN4L 25 Stainless Steel Metric M25 1.5 2 x 5mm 2 x 8mm 12 0.47 30 33 1.18 1.3 32
25MS9TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
25MS1TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 2 x 4mm 2 x 6mm 12 0.47 30 33 1.18 1.3 32
25TSME2TDN5L 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25MS9TSME2MSNK5L 25 Nickel Plated Brass Metric M25 1.5 5 x 3mm 5 x 5mm 12 0.47 30 33 1.18 1.3 32
32MS1TSME1TD4L 32 Stainless Steel Metric M32 1.5 3 x 6mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME2TDN4L 32 Stainless Steel Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS1TSME2TDN4L 32 Stainless Steel Metric M32 1.5 3 x 6mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME1TD4L 32 Stainless Steel Metric M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32DTSME1TD5L 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 1 x 5mm 2 x 8mm 1 x 6.8 2 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 8 x 4mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME1TD4L 32 Stainless Steel Metric M32 1.5 8 x 2mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS1TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 3 x 8mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32DTSME1TD4L 32D Stainless Steel Metric M32 1.5 12.5 25 0.49 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME2TDN4L 32 Stainless Steel Metric M32 1.5 8 x 3mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 1 x 5mm 2 x 8mm 1 x 6.8 2 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME1TD4L 32 Stainless Steel Metric M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 8 x 3mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 4 x 6mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 8 x 3mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS1TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 3 x 8mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME2TDN4L 32 Stainless Steel Metric M32 1.5 4 x 5mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 8 x 4mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32DTSME2TDN5L 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 4 x 5mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 4 x 5mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS1TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 3 x 6mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS1TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 3 x 6mm 3 x 10.2mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME2TDN4L 32 Stainless Steel Metric M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 4 x 6mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS2TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME1TD4L 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 8 x 3mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME1TD4L 32 Stainless Steel Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32DTSME2TDN4L 32D Stainless Steel Metric M32 1.5 12.5 25 0.49 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME2TDN4L 32 Stainless Steel Metric M32 1.5 8 x 2mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 8 x 2mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 1 x 6mm 2 x 10mm 1 x 7.6 2 x 11.7mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 8 x 2mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME2TDN4L 32 Stainless Steel Metric M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS6TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 8 x 3mm 8 x 4mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME1TD5L 32 Nickel Plated Brass Metric M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME2MSNK5L 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32MS7TSME1TD4L 32 Stainless Steel Metric M32 1.5 8 x 3mm 8 x 5mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS3TSME2MSNK4L 32 Stainless Steel Metric M32 1.5 1 x 6mm 2 x 10mm 1 x 7.6 2 x 11.7mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS5TSME2MSNK5L NK Nickel Plated Brass Metric M32 1.5 6 x 4mm 6 x 6mm 12 0.47 39 42.9 1.54 1.69 37.8
32MS4TSME1TD4L 32 Stainless Steel Metric M32 1.5 4 x 5mm 4 x 8mm 12 0.47 39 42.9 1.54 1.69 37.8
32FF1TSME2TDN5L 32 Nickel Plated Brass Metric M32 1.5 14mm x 5mm 17.1mm x 10.0mm 12 0.47 39 42.9 1.54 1.69 37.8
32TSME2TDN4L 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32FF1TSME2TDN4L 32 Stainless Steel Metric M32 1.5 14mm x 5mm 17.1mm x 10.0mm 12 0.47 39 42.9 1.54 1.69 37.8
40DTSME1TD4L 40D Stainless Steel Metric M40 1.5 19 32 0.75 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME2MSNK5L 40 Nickel Plated Brass Metric M40 1.5 4 x 8mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40TSME1TD5L 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME2MSNK4L 40 Stainless Steel Metric M40 1.5 4 x 8mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40DTSME2TDN5L 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME2TDN4L 40 Stainless Steel Metric M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME1TD5L 40 Nickel Plated Brass Metric M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME2TDN5L 40 Nickel Plated Brass Metric M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME2TDN4L 40 Stainless Steel Metric M40 1.5 4 x 7mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME1TD5L 40 Nickel Plated Brass Metric M40 1.5 4 x 7mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME2TDN5L 40 Nickel Plated Brass Metric M40 1.5 4 x 7mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40TSME1TD4L 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40DTSME2TDN4L 40D Stainless Steel Metric M40 1.5 19 32 0.75 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME2MSNK5L 40 Nickel Plated Brass Metric M40 1.5 1 x 8mm 2 x 10mm 1 x 10.2mm 2 x 11.7mm 15 0.59 50 55 1.97 2.17 44.7
40TSME2TDN5L 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME2MSNK4L 40 Stainless Steel Metric M40 1.5 1 x 8mm 2 x 10mm 1 x 10.2mm 2 x 11.7mm 15 0.59 50 55 1.97 2.17 44.7
40TSME2MSNK5L 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40TSME2TDN4L 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40FF1TSME2TDN4L 40 Stainless Steel Metric M40 1.5 15mm x 6mm 19.4mm x 10.0mm 15 0.59 50 55 1.97 2.17 44.7
40FF1TSME2TDN5L 40 Nickel Plated Brass Metric M40 1.5 15mm x 6mm 19.4mm x 10.0mm 15 0.59 50 55 1.97 2.17 44.7
40MS1TSME1TD4L 40 Stainless Steel Metric M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 15 0.59 50 55 1.97 2.17 44.7
40DTSME1TD5L 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 15 0.59 50 55 1.97 2.17 44.7
40MS2TSME1TD4L 40 Stainless Steel Metric M40 1.5 4 x 7mm 4 x 10mm 15 0.59 50 55 1.97 2.17 44.7
40TSME2MSNK4L 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
50TSME1TD5L 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50DTSME2TDN5L 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50TSME1TD4L 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50DTSME2TDN4L 50D Stainless Steel Metric M50 1.5 22 38 0.87 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50TSME2TDN5L 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50TSME2MSNK4L 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50TSME2TDN4L 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50DTSME1TD5L 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50DTSME1TD4L 50D Stainless Steel Metric M50 1.5 22 38 0.87 1.5 15 0.59 57 62.7 2.25 2.47 48.7
63TSME1TD4L 63 Stainless Steel Metric M63 1.5 37 48 1.46 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63DTSME2TDN4L 63D Stainless Steel Metric M63 1.5 28 48 1.1 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63TSME2TDN5L 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63TSME2TDN4L 63 Stainless Steel Metric M63 1.5 37 48 1.46 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63DTSME1TD5L 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63DTSME1TD4L 63D Stainless Steel Metric M63 1.5 28 48 1.1 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63TSME1TD5L 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63DTSME2TDN5L 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 15 0.59 68 74.8 2.68 2.95 52.2
1
No results

0 of 249 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
