TSPe Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The TSPe Ex i range of cable glands are for use in light / medium duty applications in Explosive Atmospheres. Designed to provide superior cable retention and strain relief.

Features

  • Halogen and phosphorus-free
  • Finger-locking seal provides superior cable retention and strain relief
  • Approved to the latest editions of IEC/EN 60079
  • Internationally marked IECEx, ATEX and UKEX
  • Intrinsically safe (Ex i) blue nut version available
  • Third party certified to IEC/EN 62444
  • Widest cable range take for any comparable cable gland
  • Low weight with high stiffness and strength
  • Anti-vibration technology prevents seal loosening in operation
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Approved entry thread sealing washer included
  • For clearance holes the TSPe must be installed using a CMP metallic locknut
  • (available with the cable gland using ordering suffix 2TN)

Additional Information

Certification
ATEX Certificate Number CML 19ATEX3185X
ATEX Certificate Number 2 CML 19ATEX4186X
ATEX Code of Protection ^ II 2G 3G 1D Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 19.0062X
IECEx Code of Protection Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX3264X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02516/20
EAC Code of Protection { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003450
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
SANS Certificate Number S-XPL/21.0014 X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Seal Technique CMP Unique finger-locking type seal
Seal Area(s) Cable Outer Sheath
Type Material Options Halogen Free Polyamide
Seal Types Array
Accessory Types Array
Colours Array
Thread Types 2 Array

* Mechanical classifications applied as per IEC/EN 62444 ** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1

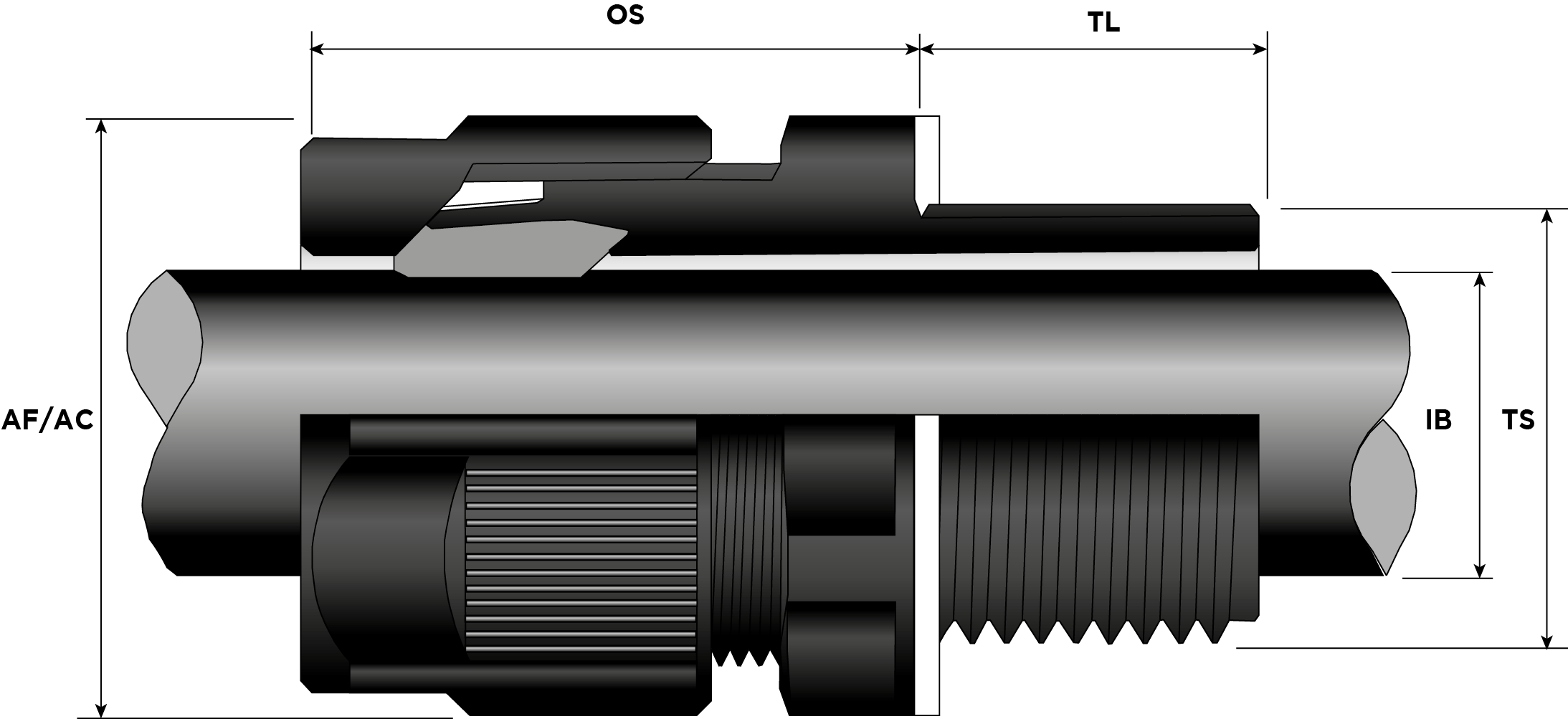

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm)
12TSPE1TAT 12 Halogen Free Polyamide NPT 1/4" 3 6.5 0.12 0.26 11 0.43 15 16.4 0.59 0.65 27
12TSPE2TDN44L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPE1TA 12 Halogen Free Polyamide Metric M12 1.5 3 6.5 0.12 0.26 11 0.43 15 16.4 0.59 0.65 27
12TSPE1TD44L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPE2TDNL 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPE1TDL 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPE1TD44 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 9 0.35 15 16.4 0.59 0.65 27
12TSPE2TDN44 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 9 0.35 15 16.4 0.59 0.65 27
16TSPE1TA 16 Halogen Free Polyamide Metric M16 1.5 6 10 0.24 0.39 11 0.43 19 20.9 0.75 0.82 27
16STSPE1TAT 16S Halogen Free Polyamide NPT 3/8" 3 7 0.12 0.28 11 0.43 19 20.9 0.75 0.82 27
16TSPE1TD44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPE2TDN44L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPE2TDNL 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16STSPE1TA 16S Halogen Free Polyamide Metric M16 1.5 3 7 0.12 0.28 11 0.43 19 20.9 0.75 0.82 27
16DTSPE1TD44L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPE1TDL 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16FF1TSPE2TDN44T 16 Halogen Free Polyamide NPT 3/8" 7mm x 4mm 8.2mm x 5.0mm 11 0.43 19 20.9 0.75 0.82 27
16TSPE2TDNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27

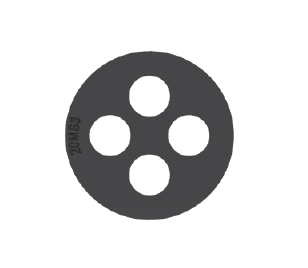

16MS2TSPE2MSNK44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16FF2TSPE2TDN44T 16 Halogen Free Polyamide NPT 3/8" 8mm x 4mm 10mm x 6.0mm 11 0.43 19 20.9 0.75 0.82 27
16FF1TSPE2TDN44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 19 20.9 0.75 0.82 27
16TSPE1TDL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPE2MSNK44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPE1TAT 16D Halogen Free Polyamide NPT 3/8" 3.2 10 0.13 0.39 11 0.43 19 20.9 0.75 0.82 27
16FF2TSPE2TDN44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 8mm x 4mm 10mm x 6.0mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPE1TA 16D Halogen Free Polyamide Metric M16 1.5 3.2 10 0.13 0.39 11 0.43 19 20.9 0.75 0.82 27
16MS2TSPE2MSNKL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16TSPE1TAT 16 Halogen Free Polyamide NPT 3/8" 6 10 0.24 0.39 11 0.43 19 20.9 0.75 0.82 27
16TSPE2TDN44L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPE2MSNKL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16TSPE1TD44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 9 0.35 19 20.9 0.75 0.82 27
16DTSPE1TD44 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 9 0.35 19 20.9 0.75 0.82 27
16MS2TSPE2MSNK44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 9 0.35 19 20.9 0.75 0.82 27
16FF1TSPE2TDN44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 7mm x 4mm 8.2mm x 5.0mm 9 0.35 19 20.9 0.75 0.82 27
16MS1TSPE2MSNK44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 3mm 2 x 4mm 9 0.35 19 20.9 0.75 0.82 27
16FF2TSPE2TDN44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 8mm x 4mm 10mm x 6.0mm 9 0.35 19 20.9 0.75 0.82 27
16TSPE2TDN44 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 9 0.35 19 20.9 0.75 0.82 27
16DTSPE2TDN44 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 9 0.35 19 20.9 0.75 0.82 27
20DTSPE2TDNL 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS2TSPE2MSNK44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF3TSPE2TDN44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 10mm x 4mm 11.9mm x 6.25mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPE2TDNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPE2MSNK44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF1TSPE2TDN44T 20 Halogen Free Polyamide NPT 1/2" 7mm x 4mm 8.2mm x 5.0mm 14 0.55 24 26.2 0.95 1.03 30.5
20DTSPE1TDL 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPE1TDL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20FF2TSPE2TDN44T 20 Halogen Free Polyamide NPT 1/2" 8mm x 4mm 10.3mm x 6.0mm 14 0.55 24 26.2 0.95 1.03 30.5
20FF1TSPE2TDN44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPE1TAT 20D Halogen Free Polyamide NPT 1/2" 5.5 14 0.22 0.55 11 0.43 24 26.2 0.95 1.03 30.5
20FF2TSPE2TDN44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPE2MSNKL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPE1TAT 20 Halogen Free Polyamide NPT 1/2" 9 14 0.35 0.55 11 0.43 24 26.2 0.95 1.03 30.5
20FF4TSPE2TDN44T 20 Halogen Free Polyamide NPT 1/2" 11mm x 4mm 13.5mm x 7.0mm 14 0.55 24 26.2 0.95 1.03 30.5
20DTSPE1TA 20D Halogen Free Polyamide Metric M20 1.5 5.5 14 0.22 0.55 11 0.43 24 26.2 0.95 1.03 30.5
20TSPE2TDN44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPE1TA 20 Halogen Free Polyamide Metric M20 1.5 9 14 0.35 0.55 11 0.43 24 26.2 0.95 1.03 30.5
20MS2TSPE2MSNKL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF4TSPE2TDN44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 11mm x 4mm 13.5mm x 7.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20STSPE1TAT 20S Halogen Free Polyamide NPT 1/2" 5 10 0.2 0.39 11 0.43 24 26.2 0.95 1.03 30.5
20DTSPE2TDN44L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPE1TD44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20STSPE1TA 20S Halogen Free Polyamide Metric M20 1.5 5 10 0.2 0.39 11 0.43 24 26.2 0.95 1.03 30.5
20MS1TSPE2MSNKL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPE2MSNK44L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF3TSPE2TDN44T 20 Halogen Free Polyamide NPT 1/2" 10mm x 4mm 11.9mm x 6.25mm 14 0.55 24 26.2 0.95 1.03 30.5
20DTSPE1TD44L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPE2MSNK44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 10 0.39 24 26.2 0.95 1.03 30.5
20TSPE2TDN44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 10 0.39 24 26.2 0.95 1.03 30.5
20FF1TSPE2TDN44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 7mm x 4mm 8.2mm x 5.0mm 10 0.39 24 26.2 0.95 1.03 30.5
20FF2TSPE2TDN44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 8mm x 4mm 10.3mm x 6.0mm 10 0.39 24 26.2 0.95 1.03 30.5
20DTSPE2TDN44 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 10 0.39 24 26.2 0.95 1.03 30.5
20FF4TSPE2TDN44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 11mm x 4mm 13.5mm x 7.0mm 10 0.39 24 26.2 0.95 1.03 30.5
20TSPE1TD44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 10 0.39 24 26.2 0.95 1.03 30.5
20MS3TSPE2MSNK44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 3mm 4 x 4mm 10 0.39 24 26.2 0.95 1.03 30.5
20DTSPE1TD44 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 10 0.39 24 26.2 0.95 1.03 30.5
20MS2TSPE2MSNK44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 3mm 3 x 4mm 10 0.39 24 26.2 0.95 1.03 30.5
20FF3TSPE2TDN44 20 Halogen Free Polyamide Metric (Tru) M20 1.5 10mm x 4mm 11.9mm x 6.25mm 10 0.39 24 26.2 0.95 1.03 30.5
25FF1TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25FF6TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 15 0.59 30 32.7 1.18 1.29 36
25FF2TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25FF1TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25TSPE1TAT 25 Halogen Free Polyamide NPT 3/4" 12.5 18 0.49 0.71 11 0.43 30 32.7 1.18 1.29 36
25FF5TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPE1TAT 25D Halogen Free Polyamide NPT 3/4" 9 18 0.35 0.71 11 0.43 30 32.7 1.18 1.29 36
25FF2TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25FF5TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 32.7 1.18 1.29 36
25TSPE1TA 25 Halogen Free Polyamide Metric M25 1.5 12.5 18 0.49 0.71 11 0.43 30 32.7 1.18 1.29 36
25MS1TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25STSPE1TAT 25S Halogen Free Polyamide NPT 3/4" 9 15.5 0.35 0.61 11 0.43 30 32.7 1.18 1.29 36
25FF4TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPE1TA 25D Halogen Free Polyamide Metric M25 1.5 9 18 0.35 0.71 11 0.43 30 32.7 1.18 1.29 36
25MS6TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25TSPE1TD44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25DTSPE2TDN44L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF4TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 32.7 1.18 1.29 36
25STSPE1TA 25S Halogen Free Polyamide Metric M25 1.5 9 15.5 0.35 0.61 11 0.43 30 32.7 1.18 1.29 36
25MS1TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25MS6TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPE1TD44L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF8TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 7mm x 2.2mm 10.0mm x 4.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25TSPE1TDL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25TSPE2TDNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25DTSPE2TDNL 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25FF8TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 15 0.59 30 32.7 1.18 1.29 36
25FF3TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 32.7 1.18 1.29 36
25FF7TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 12.9mm x 5.9mm 15.9mm x 7.7mm 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25FF3TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPE1TDL 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25FF7TSPE2TDN44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPE2MSNKL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPE2MSNK44L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25FF6TSPE2TDN44T 25 Halogen Free Polyamide NPT 3/4" 12mm x 3.2mm 15.0mm x 5.0mm 15 0.59 30 32.7 1.18 1.29 36
25FF1TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 8mm x 4mm 10.3mm x 6.0mm 10 0.39 30 32.7 1.18 1.29 36
25MS8TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 10 0.39 30 32.7 1.18 1.29 36
25DTSPE2TDN44 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 10 0.39 30 32.7 1.18 1.29 36
25FF2TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 10 0.39 30 32.7 1.18 1.29 36
25FF5TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 10 0.39 30 32.7 1.18 1.29 36
25MS2TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 10 0.39 30 32.7 1.18 1.29 36
25MS7TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 10 0.39 30 32.7 1.18 1.29 36
25TSPE1TD44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 10 0.39 30 32.7 1.18 1.29 36
25FF4TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 10 0.39 30 32.7 1.18 1.29 36
25MS1TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 4mm 2 x 6mm 10 0.39 30 32.7 1.18 1.29 36
25MS6TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 10 0.39 30 32.7 1.18 1.29 36
25DTSPE1TD44 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 10 0.39 30 32.7 1.18 1.29 36
25MS10TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 10 0.39 30 32.7 1.18 1.29 36
25MS5TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 10 0.39 30 32.7 1.18 1.29 36
25FF8TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 10 0.39 30 32.7 1.18 1.29 36
25FF3TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 10 0.39 30 32.7 1.18 1.29 36
25MS4TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 4mm 3 x 6mm 10 0.39 30 32.7 1.18 1.29 36
25FF7TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 10 0.39 30 32.7 1.18 1.29 36
25MS9TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 10 0.39 30 32.7 1.18 1.29 36
25TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 10 0.39 30 32.7 1.18 1.29 36
25MS3TSPE2MSNK44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 6mm 2 x 8mm 10 0.39 30 32.7 1.18 1.29 36
25FF6TSPE2TDN44 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 10 0.39 30 32.7 1.18 1.29 36
32DTSPE2TDN44L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS7TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPE1TAT 32D Halogen Free Polyamide NPT 1" 12.5 25 0.49 0.98 11 0.43 40 43.6 1.58 1.72 41
32MS5TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32TSPE1TD44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32STSPE1TA 32S Halogen Free Polyamide Metric M32 1.5 12.5 19 0.49 0.75 11 0.43 40 43.6 1.58 1.72 41
32DTSPE1TA 32D Halogen Free Polyamide Metric M32 1.5 12.5 25 0.49 0.98 11 0.43 40 43.6 1.58 1.72 41
32MS1TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPE1TD44L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS6TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPE2TDNL 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS5TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPE1TDL 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32MS2TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32TSPE2TDNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS7TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS1TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
32TSPE1TAT 32 Halogen Free Polyamide NPT 1" 17 25 0.67 0.98 11 0.43 40 43.6 1.58 1.72 41
32TSPE2TDN44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPE1TDL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32FF1TSPE2TDN44T 32 Halogen Free Polyamide NPT 1" 14mm x 5mm 17.1mm x 10.0mm 18 0.71 40 43.6 1.58 1.72 41
32MS6TSPE2MSNK44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32TSPE1TA 32 Halogen Free Polyamide Metric M32 1.5 17 25 0.67 0.98 11 0.43 40 43.6 1.58 1.72 41
32MS2TSPE2MSNKL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32FF1TSPE2TDN44L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 14mm x 5mm 17.1mm x 10.0mm 15 0.59 40 43.6 1.58 1.72 41
32STSPE1TAT 32S Halogen Free Polyamide NPT 1" 12.5 19 0.49 0.75 11 0.43 40 43.6 1.58 1.72 41
32MS4TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 6mm 4 x 8mm 12 0.47 40 43.6 1.58 1.72 41
32DTSPE1TD44 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 12 0.47 40 43.6 1.58 1.72 41
32MS3TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 1 x 6mm 2 x 10mm 1 x 7.6 2 x 11.7mm 12 0.47 40 43.6 1.58 1.72 41
32MS2TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 1 x 5mm 2 x 8mm 1 x 6.8 2 x 10.2mm 12 0.47 40 43.6 1.58 1.72 41
32MS7TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 4mm 8 x 5mm 12 0.47 40 43.6 1.58 1.72 41
32MS1TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 8mm 3 x 10.2mm 12 0.47 40 43.6 1.58 1.72 41
32DTSPE2TDN44 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 12 0.47 40 43.6 1.58 1.72 41
32TSPE2TDN44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 12 0.47 40 43.6 1.58 1.72 41
32MS6TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 4mm 12 0.47 40 43.6 1.58 1.72 41
32FF1TSPE2TDN44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 14mm x 5mm 17.1mm x 10.0mm 12 0.47 40 43.6 1.58 1.72 41
32TSPE1TD44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 12 0.47 40 43.6 1.58 1.72 41
32MS5TSPE2MSNK44 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 12 0.47 40 43.6 1.58 1.72 41
40MS1TSPE2MSNKL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPE2TDNL 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPE1TAT 40 Halogen Free Polyamide NPT 1-1/4" 24 32 0.94 1.26 11 0.43 50 54.5 1.97 2.15 49
40TSPE2TDN44L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPE1TDL 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40MS2TSPE2MSNK44L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40TSPE1TA 40 Halogen Free Polyamide Metric M40 1.5 24 32 0.94 1.26 11 0.43 50 54.5 1.97 2.15 49
40TSPE2TDNL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40STSPE1TAT 40S Halogen Free Polyamide NPT 1-1/4" 19 27 0.75 1.06 11 0.43 50 54.5 1.97 2.15 49
40TSPE1TD44L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPE2TDN44L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40FF1TSPE2TDN44T 40 Halogen Free Polyamide NPT 1-1/4" 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 54.5 1.97 2.15 49
40MS1TSPE2MSNK44L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40STSPE1TA 40S Halogen Free Polyamide Metric M40 1.5 19 27 0.75 1.06 11 0.43 50 54.5 1.97 2.15 49
40TSPE1TDL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40FF1TSPE2TDN44L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPE1TD44L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPE1TAT 40D Halogen Free Polyamide NPT 1-1/4" 19 32 0.75 1.26 11 0.43 50 54.5 1.97 2.15 49
40MS2TSPE2MSNKL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPE1TA 40D Halogen Free Polyamide Metric M40 1.5 19 32 0.75 1.26 11 0.43 50 54.5 1.97 2.15 49
40MS2TSPE2MSNK44 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 8mm 4 x 10mm 12 0.47 50 54.5 1.97 2.15 49
40MS1TSPE2MSNK44 40 Halogen Free Polyamide Metric (Tru) M40 1.5 1 x 8mm 2 x 10mm 1 x 10.2mm 2 x 11.7mm 12 0.47 50 54.5 1.97 2.15 49
40TSPE2TDN44 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 12 0.47 50 54.5 1.97 2.15 49
40DTSPE2TDN44 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 12 0.47 50 54.5 1.97 2.15 49
40TSPE1TD44 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 12 0.47 50 54.5 1.97 2.15 49
40FF1TSPE2TDN44 40 Halogen Free Polyamide Metric (Tru) M40 1.5 15mm x 6mm 19.4mm x 10.0mm 12 0.47 50 54.5 1.97 2.15 49
40DTSPE1TD44 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 12 0.47 50 54.5 1.97 2.15 49
50TSPE1TAT 50 Halogen Free Polyamide NPT 1-1/2" 28 38 1.1 1.5 11 0.43 58 63.2 2.29 2.49 59
50TSPE2TDN44L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPE1TA 50 Halogen Free Polyamide Metric M50 1.5 28 38 1.1 1.5 11 0.43 58 63.2 2.29 2.49 59
50DTSPE2TDNL 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50STSPE1TAT 50S Halogen Free Polyamide NPT 1-1/2" 22 32 0.87 1.26 11 0.43 58 63.2 2.29 2.49 59
50TSPE1TD44L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPE2TDN44L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50STSPE1TA 50S Halogen Free Polyamide Metric M50 1.5 22 32 0.87 1.26 11 0.43 58 63.2 2.29 2.49 59
50DTSPE1TDL 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPE1TD44L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPE1TAT 50D Halogen Free Polyamide NPT 1-1/2" 22 38 0.87 1.5 11 0.43 58 63.2 2.29 2.49 59
50DTSPE1TA 50D Halogen Free Polyamide Metric M50 1.5 22 38 0.87 1.5 11 0.43 58 63.2 2.29 2.49 59
50TSPE2TDNL 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPE1TDL 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPE2TDN44 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 12 0.47 58 63.2 2.29 2.49 59
50TSPE1TD44 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 12 0.47 58 63.2 2.29 2.49 59
50DTSPE1TD44 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 12 0.47 58 63.2 2.29 2.49 59
50TSPE2TDN44 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 12 0.47 58 63.2 2.29 2.49 59
63DTSPE1TD44L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPE1TAT 63D Halogen Free Polyamide NPT 2" 28 48 1.1 1.89 11 0.43 68 74.1 2.68 2.92 64
63DTSPE1TA 63D Halogen Free Polyamide Metric M63 1.5 28 48 1.1 1.89 11 0.43 68 74.1 2.68 2.92 64
63TSPE1TAT 63 Halogen Free Polyamide NPT 2" 37 48 1.46 1.89 11 0.43 68 74.1 2.68 2.92 64
63TSPE2TDN44L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPE1TA 63 Halogen Free Polyamide Metric M63 1.5 37 48 1.46 1.89 11 0.43 68 74.1 2.68 2.92 64
63STSPE1TAT 63S Halogen Free Polyamide NPT 2" 28 39 1.1 1.54 11 0.43 68 74.1 2.68 2.92 64
63TSPE1TD44L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPE2TDN44L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63STSPE1TA 63S Halogen Free Polyamide Metric M63 1.5 28 39 1.1 1.54 11 0.43 68 74.1 2.68 2.92 64
63TSPE2TDN44 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 15 0.59 68 74.1 2.68 2.92 64
63DTSPE2TDN44 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 15 0.59 68 74.1 2.68 2.92 64
63TSPE1TD44 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 15 0.59 68 74.1 2.68 2.92 64
63DTSPE1TD44 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 15 0.59 68 74.1 2.68 2.92 64
1
No results

0 of 250 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
