TSPV0 Cable Gland

ETIM Classification

EC000441

For Unarmoured or Braided / Screened cables (when the Braid is terminated inside the enclosure).

Description

The TSPV0 range of cable glands are for use in light / medium duty applications in Industrial Areas (Safe Areas). Designed for use in public spaces where flame retardant halogen-free cables are typically required.

Features

  • Halogen and phosphorus-free
  • Extremely flame retardant and self-extinguishing according to UL94 V-0
  • Incorporates CMP’s trusted SOLO technology
  • Third party certified to IEC/EN 62444
  • Finger-locking seal provides superior cable retention and strain relief
  • Low weight with high stiffness and strength
  • Widest cable range take for any comparable cable gland
  • Available in a variety of colours (see table below)
  • Approved entry thread sealing washer included
  • Polyamide metric locknut available (ordering suffix 2TN) - delivered assembled*

Additional Information

Certification
Industrial Certificate Number CML 20CA12915
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/4ea16919/64e74da5f9e88500180b83ec/lrlogo.jpg
CE Logo Filename CE.jpg
CE Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/e6cd9bc2/64e74da5f9e88500180b83ee/CE.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/42a8fb95/64e74da5f9e88500180b83ea/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
Technical Specification
Application IND
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Seal Technique CMP Unique finger-locking type seal
Seal Area(s) Cable Outer Sheath
Type Material Options Halogen Free Polyamide
Seal Types Array
Accessory Types Array
Colours Array
Thread Types 2 Array

* Mechanical classifications applied as per IEC/EN 62444 ** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1

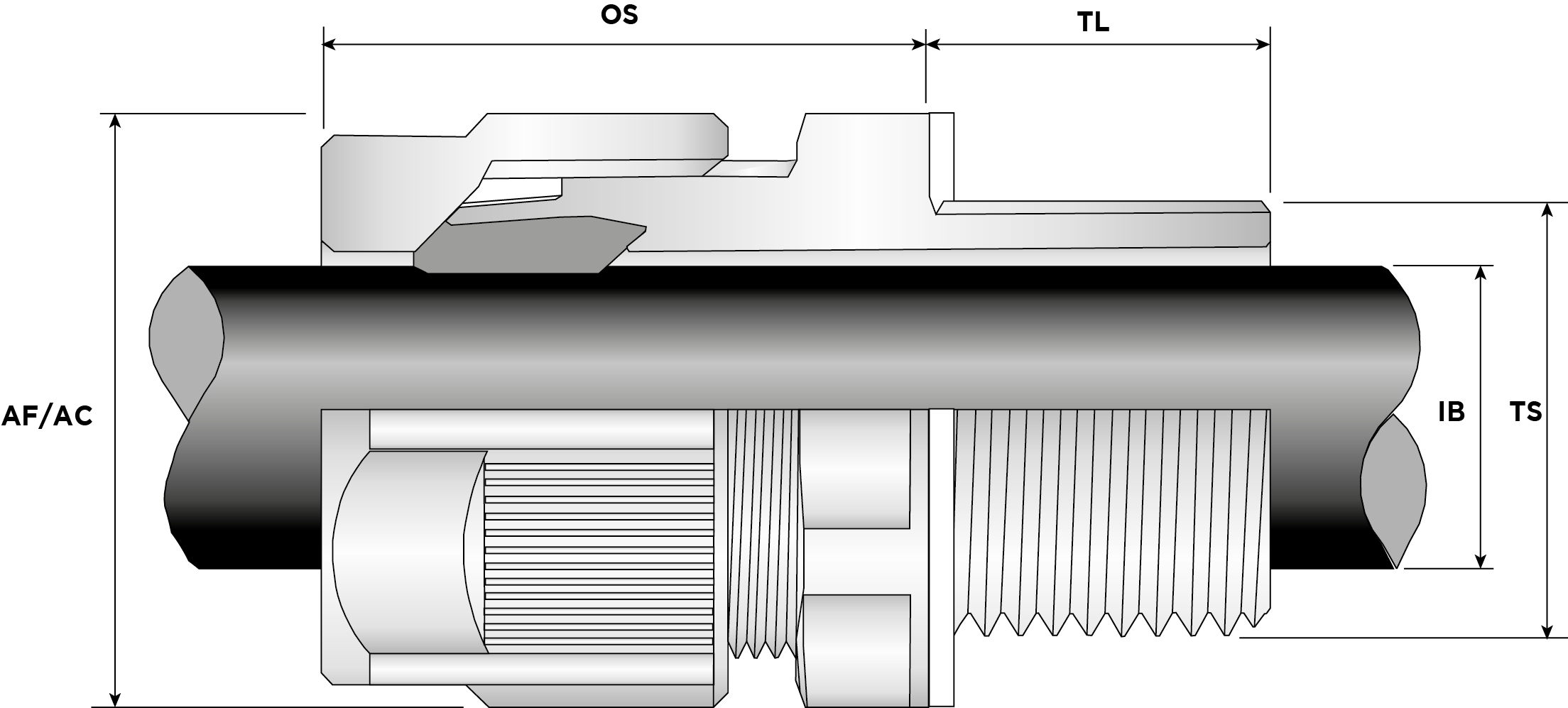

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm)
12TSPV02TN1L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV02TN5L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV01TA5L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV01TAL 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV01TA3L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV02TNL 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV02TN3L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
12TSPV01TA1L 12 Halogen Free Polyamide Metric (Tru) M12 1.5 3 6.5 0.12 0.26 15 0.59 15 16.4 0.59 0.65 27
16MS1TSPV02MSNKL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPV01TA1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16FF1TSPV02TN1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 19 20.9 0.75 0.82 27
16MS2TSPV01TA1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16FF2TSPV02TN1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 8mm x 4mm 10mm x 6.0mm 15 0.59 19 20.9 0.75 0.82 27
16TSPV01TAL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16TSPV01TA3L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPV02TN1L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPV02TN1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPV01TA1L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16TSPV02TN3L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS2TSPV02TN1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16TSPV02TNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPV01TAL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPV02TNL 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPV01TAL 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS2TSPV01TAL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPV01TA5L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16TSPV01TA1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS1TSPV02TNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 2 x 2mm 2 x 4mm 15 0.59 19 20.9 0.75 0.82 27
16FF1TSPV02TNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 19 20.9 0.75 0.82 27
16DTSPV02TN5L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16TSPV01TA5L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16MS2TSPV02TNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 3 x 1mm 3 x 2mm 15 0.59 19 20.9 0.75 0.82 27
16TSPV02TN1L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16FF2TSPV02TNL 16 Halogen Free Polyamide Metric (Tru) M16 1.5 8mm x 4mm 10mm x 6.0mm 15 0.59 19 20.9 0.75 0.82 27
16TSPV02TN5L 16 Halogen Free Polyamide Metric (Tru) M16 1.5 6 10 0.24 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPV02TN3L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
16DTSPV01TA3L 16D Halogen Free Polyamide Metric (Tru) M16 1.5 3 10 0.12 0.39 15 0.59 19 20.9 0.75 0.82 27
20DTSPV02TN1L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV01TA1L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV02TN3L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS2TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF4TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 11mm x 4mm 13.5mm x 7.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20FF3TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 10mm x 4mm 11.9mm x 6.25mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPV01TAL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV02TNL 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV01TAL 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPV01TA1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS2TSPV01TAL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV01TA1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV01TA5L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20FF3TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 10mm x 4mm 11.9mm x 6.25mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF1TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV02TN5L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV01TA5L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPV01TAL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS2TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20FF2TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV02TN5L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV02TN3L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20DTSPV01TA3L 20D Halogen Free Polyamide Metric (Tru) M20 1.5 5 14 0.2 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPV02MSNKL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS1TSPV01TA1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 2 x 3mm 2 x 5mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF1TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 7mm x 4mm 8.2mm x 5.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF2TSPV02TN1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS3TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 4 x 2mm 4 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20FF4TSPV02TNL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 11mm x 4mm 13.5mm x 7.0mm 15 0.59 24 26.2 0.95 1.03 30.5
20MS2TSPV01TA1L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 3 x 2mm 3 x 4mm 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV01TAL 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
20TSPV01TA3L 20 Halogen Free Polyamide Metric (Tru) M20 1.5 9 14 0.35 0.55 15 0.59 24 26.2 0.95 1.03 30.5
25FF3TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 32.7 1.18 1.29 36
25MS6TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25MS6TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS1TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV02TNL 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV01TAL 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25FF8TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25FF8TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 7mm x 2.2mm 10.0mm x 4.0mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25DTSPV01TA5L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25FF3TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25MS6TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25FF7TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 15 0.59 30 32.7 1.18 1.29 36
25MS1TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25FF7TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.9mm x 5.9mm 15.9mm x 7.7mm 15 0.59 30 32.7 1.18 1.29 36
25FF1TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV02TN5L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV02TN5L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25TSPV01TA5L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF2TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV02TN3L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF5TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 32.7 1.18 1.29 36
25FF6TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV01TA3L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF6TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12mm x 3.2mm 15.0mm x 5.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25MS6TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 3mm 4 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25FF1TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 32.7 1.18 1.29 36
25MS1TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS9TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 3mm 5 x 5mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25FF2TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25MS3TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 8mm 15 0.59 30 32.7 1.18 1.29 36
25FF4TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV01TA3L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25FF5TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV02TN1L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS8TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 5 x 2mm 5 x 4mm 15 0.59 30 32.7 1.18 1.29 36
25MS4TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 3mm 3 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25DTSPV01TA1L 25D Halogen Free Polyamide Metric (Tru) M25 1.5 9 18 0.35 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS1TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 3mm 2 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPV01TA1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25FF4TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS10TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 5mm 4 x 6.5mm 15 0.59 30 32.7 1.18 1.29 36
25MS7TSPV01TAL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 4 x 4mm 4 x 6mm 15 0.59 30 32.7 1.18 1.29 36
25MS5TSPV02TNL 25 Halogen Free Polyamide Metric (Tru) M25 1.5 3 x 5mm 3 x 7mm 15 0.59 30 32.7 1.18 1.29 36
25TSPV02TN3L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 12.5 18 0.49 0.71 15 0.59 30 32.7 1.18 1.29 36
25MS2TSPV02TN1L 25 Halogen Free Polyamide Metric (Tru) M25 1.5 2 x 5mm 2 x 7mm 15 0.59 30 32.7 1.18 1.29 36
32MS7TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV01TAL 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS2TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV01TA5L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32MS6TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32FF1TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 14mm x 5mm 17.1mm x 10.0mm 15 0.59 40 43.6 1.58 1.72 41
32MS1TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
32TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPV02TN5L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS5TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV02TN5L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPV01TA5L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS5TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS2TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32MS6TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV01TA3L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32FF1TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 14mm x 5mm 17.1mm x 10.0mm 15 0.59 40 43.6 1.58 1.72 41
32MS1TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
32MS7TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32MS7TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32MS5TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32MS3TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 9mm 1 x 5mm 2 x 11.7mm 1 x 7.6mm 15 0.59 40 43.6 1.58 1.72 41
32MS2TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV02TN3L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPV01TA3L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV02TN1L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32DTSPV01TA1L 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS1TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
32MS2TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 2 x 7mm 1 x 4mm 2 x 10.2mm 1 x 6.8mm 15 0.59 40 43.6 1.58 1.72 41
32TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS7TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 3mm 8 x 5mm 15 0.59 40 43.6 1.58 1.72 41
32MS5TSPV02TNL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 6 x 4mm 6 x 6mm 15 0.59 40 43.6 1.58 1.72 41
32TSPV02TN3L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 17 25 0.67 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS6TSPV01TA1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32MS6TSPV02TN1L 32 Halogen Free Polyamide Metric (Tru) M32 1.5 8 x 2mm 8 x 4mm 15 0.59 40 43.6 1.58 1.72 41
32MS4TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 4 x 5mm 4 x 8mm 15 0.59 40 43.6 1.58 1.72 41
32DTSPV02TNL 32D Halogen Free Polyamide Metric (Tru) M32 1.5 12.5 25 0.49 0.98 15 0.59 40 43.6 1.58 1.72 41
32MS1TSPV01TAL 32 Halogen Free Polyamide Metric (Tru) M32 1.5 3 x 6mm 3 x 10.2mm 15 0.59 40 43.6 1.58 1.72 41
40MS1TSPV02TNL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40FF1TSPV02TNL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 54.5 1.97 2.15 49
40MS2TSPV02TNL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40TSPV02TN1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPV02TN5L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPV02TN5L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPV01TA5L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPV01TA3L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40MS1TSPV01TA1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40FF1TSPV02TN1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 54.5 1.97 2.15 49
40TSPV01TAL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPV02TN3L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPV02TN1L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40MS1TSPV02TN1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPV01TA1L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40MS2TSPV01TA1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40MS2TSPV02TN1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40TSPV02TNL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPV02TN3L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPV01TA3L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 49
40MS1TSPV01TAL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 2 x 8mm 1 x 7mm 2 x 11.7mm 1 x 10.2mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPV02TNL 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40MS2TSPV01TAL 40 Halogen Free Polyamide Metric (Tru) M40 1.5 4 x 7mm 4 x 10mm 18 0.71 50 54.5 1.97 2.15 49
40DTSPV01TAL 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40DTSPV01TA5L 40D Halogen Free Polyamide Metric (Tru) M40 1.5 19 32 0.75 1.26 18 0.71 50 54.5 1.97 2.15 49
40TSPV01TA1L 40 Halogen Free Polyamide Metric (Tru) M40 1.5 24 32 0.94 1.26 18 0.71 50 54.5 1.97 2.15 49
50DTSPV01TA3L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV01TAL 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV02TN3L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV02TN1L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV01TA1L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV02TN3L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV01TA3L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV02TNL 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV02TNL 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV01TAL 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV01TA5L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV01TA1L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50DTSPV02TN5L 50D Halogen Free Polyamide Metric (Tru) M50 1.5 22 38 0.87 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV01TA5L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV02TN1L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
50TSPV02TN5L 50 Halogen Free Polyamide Metric (Tru) M50 1.5 28 38 1.1 1.5 18 0.71 58 63.2 2.29 2.49 59
63TSPV01TAL 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV02TN3L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV02TN1L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV01TA1L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV02TN3L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV01TA3L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV02TNL 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV02TNL 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV01TAL 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV01TA1L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV01TA5L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV02TN5L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV01TA5L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV02TN1L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63TSPV02TN5L 63 Halogen Free Polyamide Metric (Tru) M63 1.5 37 48 1.46 1.89 18 0.71 68 74.1 2.68 2.92 64
63DTSPV01TA3L 63D Halogen Free Polyamide Metric (Tru) M63 1.5 28 48 1.1 1.89 18 0.71 68 74.1 2.68 2.92 64
1
No results

0 of 250 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
