TSVB Cable Gland

TSV INDUSTRIAL METALLIC CABLE GLAND

Description

For All Types of Braided/Screened VFD Cable

Features

  • Designed for use with VFD cables offering superior EMC performance
  • 360° contact around screen circumference
  • Suitable for use with all shielded tray cable, including oil resistant and sunlight resistant
  • Robust design, high quality materials
  • Certified to UL50E for NEMA 6P protection
  • Complete with Entry Thread Seal and Locknut as standard.
  • Additional thread sizes available upon request

Additional Information

Certification
UL Certificate Number E******
UL Compliance Standards UL514B, UL50E, CSA C22.2 No.18.3-12, CSA C22.2 No.94.2-15
UL Logo Filename culuslogo.jpg
UL Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/b0f3994e/644a933af631056650000002/culuslogo.jpg
Technical Specification
Application IND
Included Accessories Entry Thread Seal and Conduit Lock Nut as Standard
Seal Material CMP Thermoset Elastomer
Seal Technique CMP Load Retention Seal
Seal Area(s) Cable Outer Sheath
Type Material Options Aluminium

Alternate Thread Sizes Available Upon Request

Downloads

Certificates

Product Selector

1

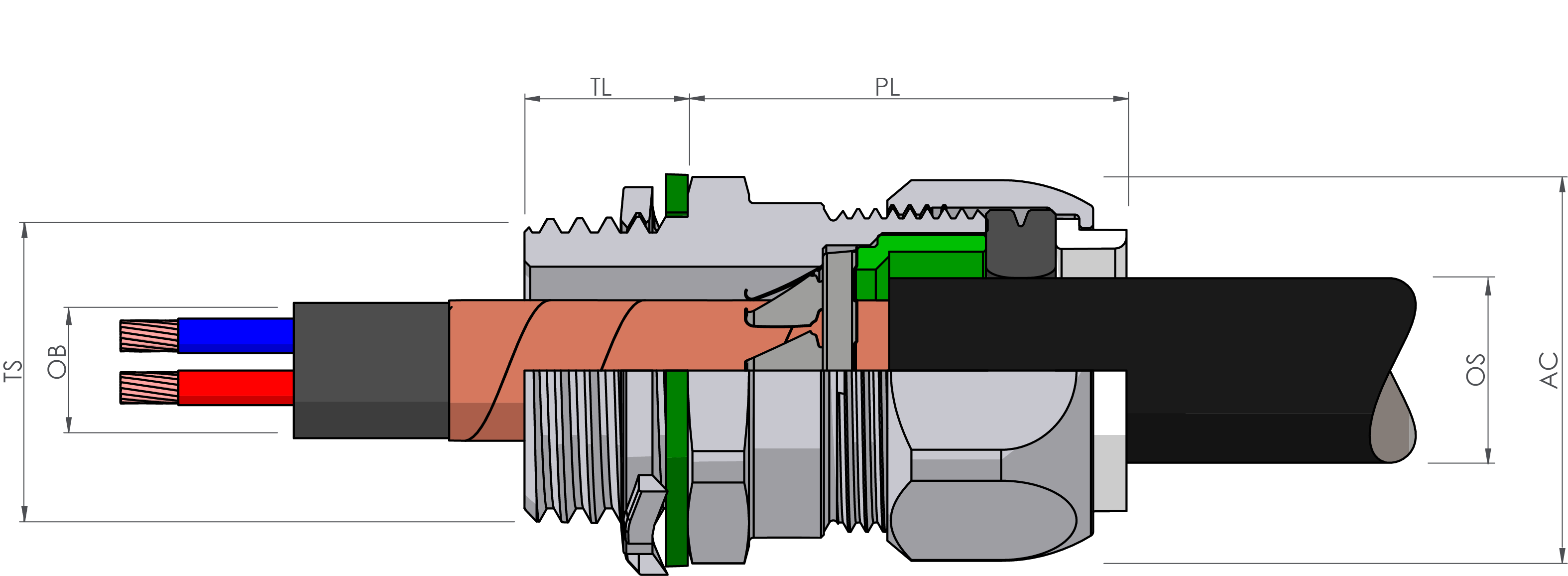

Part Number Size Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm) Min Over Shielding Ø OB (mm) Min Over Shielding Ø OB (Imp) Max Over Shielding Ø OB (mm) Max Over Shielding Ø OB (Imp)
TSV050A052B 20s NPT 1/2" 10.0 13.1 0.39 0.52 13.5 0.53 24.0 26.4 0.94 1.04 44.1 4 0.16 10.3 0.41
TSVM20A052B 20s Metric M20 1.5 10.0 13.1 0.39 0.52 10 0.39 24.0 26.4 0.94 1.04 44.1 4 0.16 10.3 0.41
TSV075A052B 20s NPT 3/4" 10.0 13.1 0.39 0.52 14 0.55 30.5 33.6 1.2 1.32 44.1 4 0.16 10.3 0.41
TSVM20A063B 20 Metric M20 1.5 10.0 16.0 0.39 0.63 10 0.39 24.0 26.4 0.94 1.04 45.1 4 0.16 15.9 0.63
TSVM25A080B 25 Metric M25 1.5 14.8 20.2 0.58 0.80 10 0.39 30.5 33.6 1.2 1.32 49.1 7 0.28 17.4 0.69
TSV050A063B 20 NPT 1/2" 10.0 16.0 0.39 0.63 13.5 0.53 24.0 26.4 0.94 1.04 45.1 4 0.16 15.9 0.63
TSV075A063B 20 NPT 3/4" 10.0 16.0 0.39 0.63 14 0.55 30.5 33.6 1.2 1.32 45.1 4 0.16 15.9 0.63
TSVM32A104B 32 Metric M32 1.5 15.8 26.3 0.62 1.04 10 0.39 37.5 41.3 1.48 1.62 49.1 10.5 0.41 23.3 0.92
TSVM40A133B 40 Metric M40 1.5 24.6 33.9 0.97 1.33 10 0.39 46.0 50.6 1.81 1.99 54.4 17 0.67 31.2 1.23
TSV075A080B 25 NPT 3/4" 14.8 20.2 0.58 0.80 14 0.55 30.5 33.6 1.2 1.32 49.1 7 0.28 17.4 0.69
TSVM50A157B 50 Metric M50 1.5 27.0 40.0 1.06 1.57 10 0.39 55.0 60.5 2.17 2.38 61.1 20 0.79 36.4 1.43
TSV100A080B 25 NPT 1" 14.8 20.2 0.58 0.80 17.3 0.68 37.5 41.3 1.48 1.62 49.1 7 0.28 17.4 0.69
TSVM63A209B 63 Metric M63 1.5 39.6 53.1 1.56 2.09 10 0.39 70.0 77.0 2.76 3.03 65.6 30 1.18 44.9 1.77
TSV100A104B 32 NPT 1" 15.8 26.3 0.62 1.04 17.3 0.68 37.5 41.3 1.48 1.62 49.1 10.5 0.41 23.3 0.92
TSV125A104B 32 NPT 1 1/4" 15.8 26.3 0.62 1.04 18 0.71 46.0 50.6 1.81 1.99 49.1 10.5 0.41 23.3 0.92
TSVM75A259B 75 Metric M75 1.5 51.5 65.8 2.03 2.59 10 0.39 80.0 88.0 3.15 3.46 65.6 35.5 1.40 56.5 2.22
TSV125A133B 40 NPT 1 1/4" 24.6 33.9 0.97 1.33 18 0.71 46.0 50.6 1.81 1.99 54.4 17 0.67 31.2 1.23
TSV150A133B 40 NPT 1 1/2" 24.6 33.9 0.97 1.33 18.3 0.72 55.0 60.5 2.17 2.38 54.4 17 0.67 31.2 1.23
TSV150A157B 50 NPT 1 1/2" 27.0 40.0 1.06 1.57 18.3 0.72 55.0 60.5 2.17 2.38 61.1 20 0.79 36.4 1.43
TSV200A157B 50 NPT 2" 27.0 40.0 1.06 1.57 19.3 0.76 70.0 77.0 2.76 3.03 61.1 20 0.79 36.4 1.43
TSV200A209B 63 NPT 2" 39.6 53.1 1.56 2.09 19.3 0.76 70.0 77.0 2.76 3.03 65.6 30 1.18 44.9 1.77
TSV250A209B 63 NPT 2 1/2" 39.6 53.1 1.56 2.09 29 1.14 80.0 88.0 3.15 3.46 65.6 30 1.18 44.9 1.77
TSV250A259B 75 NPT 2 1/2" 51.5 65.8 2.03 2.59 29 1.14 80.0 88.0 3.15 3.46 65.6 35.5 1.40 56.5 2.22
TSV300A259B 75 NPT 3" 51.5 65.8 2.03 2.59 41.5 1.63 100.0 110.0 3.94 4.33 65.6 35.5 1.40 56.5 2.22
