TSZe Cable Gland

ETIM Classification

EC000441

For Screened Flexible (EMC) Braided cables.

Description

The TSZe range of cable glands are for use in medium / heavy duty applications in Explosive Atmospheres. Designed to provide superior EMC performance, this range also provides superior cable retention and strain relief.

Features

  • Designed for superior EMC performance
  • 360° contact around screen circumference
  • Third party EMC performance tested to EN 55032
  • Approved to the latest editions of IEC/EN 60079
  • Internationally marked IECEx, ATEX and UKEX
  • Suitable for intrinsically safe (Ex i) circuits
  • Finger-locking seal provides superior cable retention and strain relief
  • Third party certified to IEC/EN 62444
  • Widest cable range take on the market
  • O-ring interface seal included as standard
  • Transit disc or IP68, IP69 and IP69K rated IP plug options available
  • Product supplied in nickel-plated brass, or stainless steel on request

Additional Information

Certification
ATEX Certificate Number CML 19ATEX3185X
ATEX Certificate Number 2 CML 19ATEX4186X
ATEX Code of Protection ^ II 2G 3G 1D Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
ATEX Compliance Standards EN 60079-0, -7, -15, -31
ATEX Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000002/atexlogo.jpg
IECEx Certificate Number IECEx CML 19.0062X
IECEx Code of Protection Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da
IECEx Compliance Standards IEC 60079-0, -7, -15, -31
IECEx Logo Filename iecexlogo.jpg
IECEx Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/990ba9ce/6447a914b902aa64e3000252/iecexlogo.jpg
UKEX Certificate Number CML 21UKEX3264X
EAC Certificate Number EAЭC RU C-GB.AꙢ07.B.02516/20
EAC Code of Protection { 1Ex e IIC Gb X, { 2Ex nR IIC Gc X, { Ex ta IIIC Da
EAC Logo Filename eaclogo.jpg
EAC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000001/eaclogo.jpg
CCC Certificate Number 2020322313003450
CCC Logo Filename ccclogo.jpg
CCC Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/cf29f9f6/644a38e4f631055a56000001/ccclogo.jpg
PESO Certificate Number P533772
PESO Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000a/pesologo.jpg
SANS Certificate Number S-XPL/21.0014 X
UKCA Logo Filename ukcalogo.jpg
UKCA Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/04240f8d/644a532df631055fb7000002/ukcalogo.jpg
LR Certificate Number LR22320739TA
LR Logo Filename lrlogo.jpg
LR Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000008/lrlogo.jpg
BV Certificate Number 43180/B0 BV
BV Logo Filename bvlogo.jpg
BV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f000000e/bvlogo.jpg
DNV Logo Filename dnvlogo.jpg
DNV Logo https://cdn.pimber.ly/public/asset/raw/62c2cfa03a6b3a001b063277/0802384c/64425917f6310520f0000013/dnvlogo.jpg
DNV-GL Certificate Number TAE000000Y
Technical Specification
Application EXAT
Seal Material CMP SOLO LSF Halogen-free Thermoset Elastomer
Seal Technique CMP Unique finger-locking type seal
Seal Area(s) Cable Outer Sheath
Type Material Options Nickel Plated Brass, Stainless Steel
Seal Types Array
Accessory Types Array
Thread Types 2 Array

* Mechanical classifications applied as per IEC/EN 62444 ** IP68 tested to 300 kPa for 16 hours (equivalent to 30 metres water depth)

Downloads

Certificates

Product Selector

1

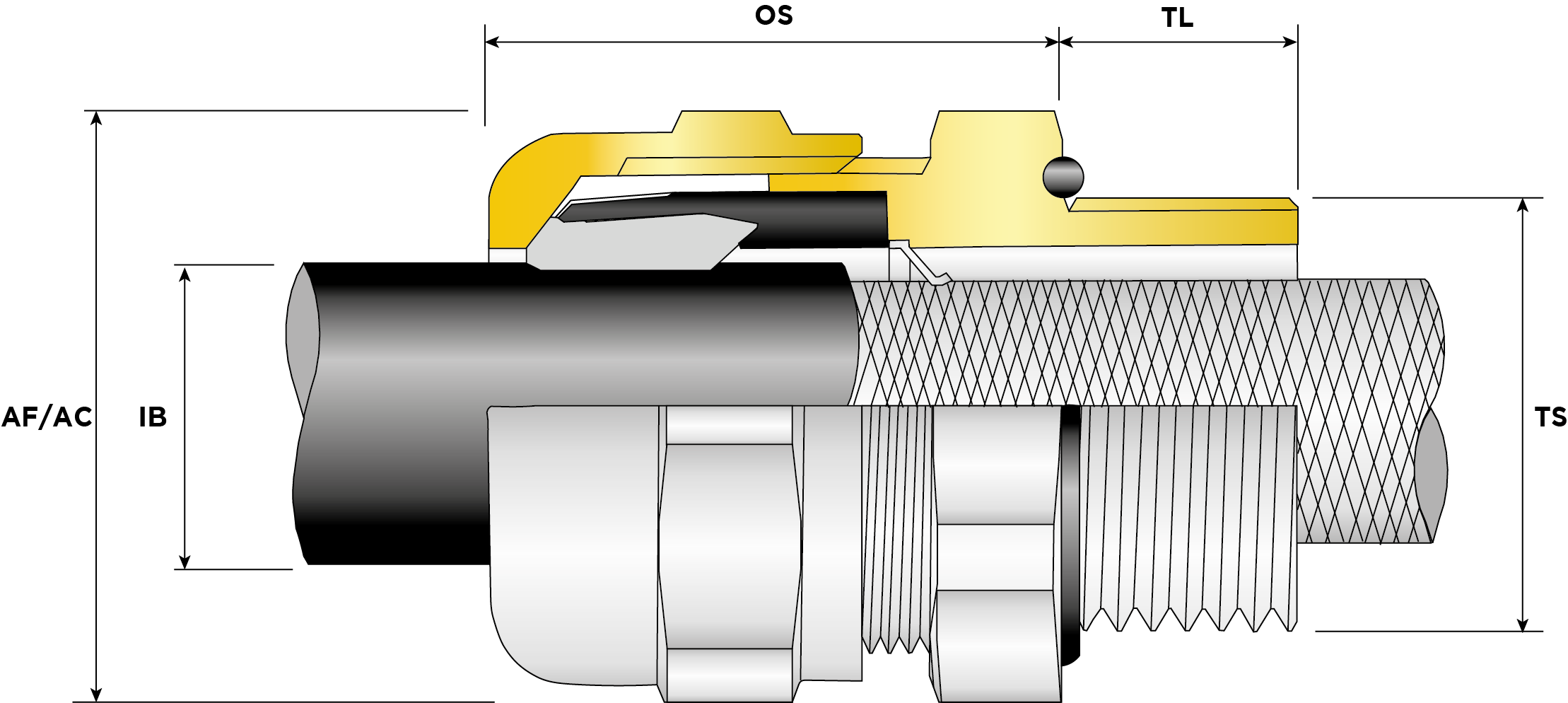

Part Number Size Material Entry Thread Entry Thread Size TS Entry Thread Pitch TP Min Overall Cable Ø OS (mm) Max Overall Cable Ø OS (mm) Min Overall Cable Ø OS (Imp) Max Overall Cable Ø OS (Imp) Min Thread Length TL (mm) Min Thread Length TL (Imp) Max Across Flats AF (mm) Max Across Corners AC (mm) Max Across Flats AF (Imp) Max Across Corners AC (Imp) Max Protrusion Length PL (mm)
12TSZE2TDN5T 12 Nickel Plated Brass NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE1TD5L 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSZE1TD4T 12 Stainless Steel NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE2TPN4T 12 Stainless Steel NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE2TDN5L 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 12 0.47 16 17.6 0.63 0.69 22.3
12TSZE2TDN4T 12 Stainless Steel NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE1TD5T 12 Nickel Plated Brass NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE2TPN5T 12 Nickel Plated Brass NPT 1/4" 3 6.5 0.12 0.26 11 0.43 16 17.6 0.63 0.69 22.3
12TSZE1TD4 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
12TSZE2TPN4 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
12TSZE2TDN4 12 Stainless Steel Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
12TSZE2TPN5 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
12TSZE2TDN5 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
12TSZE1TD5 12 Nickel Plated Brass Metric M12 1.5 3 6.5 0.12 0.26 6 0.24 16 17.6 0.63 0.69 22.3
16TSZE1TD4T 16 Stainless Steel NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16DTSZE2TDN5T 16D Nickel Plated Brass NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16DTSZE1TD5T 16D Nickel Plated Brass NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16TSZE2TDN5L 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16TSZE2TPN4T 16 Stainless Steel NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16DTSZE2TPN5T 16D Nickel Plated Brass NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16TSZE2TDN4T 16 Stainless Steel NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16FF1TSZE2TDN4T 16 Stainless Steel NPT 3/8" 7mm x 4mm 8.2mm x 5.0mm 11 0.43 20 22 0.79 0.87 23.6
16FF2TSZE2TDN4T 16 Stainless Steel NPT 3/8" 8mm x 4mm 10mm x 6.0mm 11 0.43 20 22 0.79 0.87 23.6
16TSZE1TD5T 16 Nickel Plated Brass NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16DTSZE2TPN4T 16D Stainless Steel NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16FF1TSZE2TDN5T 16 Nickel Plated Brass NPT 3/8" 7mm x 4mm 8.2mm x 5.0mm 11 0.43 20 22 0.79 0.87 23.6
16DTSZE1TD5L 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 12 0.47 20 22 0.79 0.87 23.6
16TSZE2TPN5T 16 Nickel Plated Brass NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16FF2TSZE2TDN5T 16 Nickel Plated Brass NPT 3/8" 8mm x 4mm 10mm x 6.0mm 11 0.43 20 22 0.79 0.87 23.6
16DTSZE2TDN4T 16D Stainless Steel NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16DTSZE1TD4T 16D Stainless Steel NPT 3/8" 3 10 0.12 0.39 11 0.43 20 22 0.79 0.87 23.6
16TSZE2TDN5T 16 Nickel Plated Brass NPT 3/8" 6 10 0.24 0.39 11 0.43 20 22 0.79 0.87 23.6
16TSZE1TD5L 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 12 0.47 20 22 0.79 0.87 23.6
16TSZE1TD4 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16FF1TSZE2TDN4 16 Stainless Steel Metric M16 1.5 7mm x 4mm 8.2mm x 5.0mm 6 0.24 20 22 0.79 0.87 23.6
16FF2TSZE2TDN4 16 Stainless Steel Metric M16 1.5 8mm x 4mm 10mm x 6.0mm 6 0.24 20 22 0.79 0.87 23.6
16DTSZE1TD4 16D Stainless Steel Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
16DTSZE2TDN4 16D Stainless Steel Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
16TSZE2TPN4 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16TSZE2TDN4 16 Stainless Steel Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16DTSZE2TPN4 16D Stainless Steel Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
16TSZE2TDN5 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16TSZE2TPN5 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16FF1TSZE2TDN5 16 Nickel Plated Brass Metric M16 1.5 7mm x 4mm 8.2mm x 5.0mm 6 0.24 20 22 0.79 0.87 23.6
16TSZE1TD5 16 Nickel Plated Brass Metric M16 1.5 6 10 0.24 0.39 6 0.24 20 22 0.79 0.87 23.6
16FF2TSZE2TDN5 16 Nickel Plated Brass Metric M16 1.5 8mm x 4mm 10mm x 6.0mm 6 0.24 20 22 0.79 0.87 23.6
16DTSZE2TPN5 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
16DTSZE2TDN5 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
16DTSZE1TD5 16D Nickel Plated Brass Metric M16 1.5 3 10 0.12 0.39 6 0.24 20 22 0.79 0.87 23.6
20DTSZE2TPN5T 20D Nickel Plated Brass NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE2TDN4T 20 Stainless Steel NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF1TSZE2TDN4T 20 Stainless Steel NPT 1/2" 7mm x 4mm 8.2mm x 5.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20FF2TSZE2TDN4T 20 Stainless Steel NPT 1/2" 8mm x 4mm 10.3mm x 6.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE2TPN4T 20D Stainless Steel NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF3TSZE2TDN5T 20 Nickel Plated Brass NPT 1/2" 10mm x 4mm 11.9mm x 6.25mm 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE1TD5T 20 Nickel Plated Brass NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF1TSZE2TDN5T 20 Nickel Plated Brass NPT 1/2" 7mm x 4mm 8.2mm x 5.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE1TD5L 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20TSZE2TPN5T 20 Nickel Plated Brass NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF4TSZE2TDN4T 20 Stainless Steel NPT 1/2" 11mm x 4mm 13.5mm x 7.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE2TDN4T 20D Stainless Steel NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE1TD4T 20D Stainless Steel NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF2TSZE2TDN5T 20 Nickel Plated Brass NPT 1/2" 8mm x 4mm 10.3mm x 6.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE2TDN5T 20 Nickel Plated Brass NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE1TD5L 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20TSZE1TD4T 20 Stainless Steel NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE1TD5T 20D Nickel Plated Brass NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF3TSZE2TDN4T 20 Stainless Steel NPT 1/2" 10mm x 4mm 11.9mm x 6.25mm 14 0.55 24 26.4 0.95 1.04 26.7
20DTSZE2TDN5T 20D Nickel Plated Brass NPT 1/2" 5 14 0.2 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20FF4TSZE2TDN5T 20 Nickel Plated Brass NPT 1/2" 11mm x 4mm 13.5mm x 7.0mm 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE2TPN4T 20 Stainless Steel NPT 1/2" 9 14 0.35 0.55 14 0.55 24 26.4 0.95 1.04 26.7
20TSZE2TDN5L 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 12 0.47 24 26.4 0.95 1.04 26.7
20FF4TSZE2TDN4 20 Stainless Steel Metric M20 1.5 11mm x 4mm 13.5mm x 7.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE1TD4 20D Stainless Steel Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE2TDN4 20D Stainless Steel Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF3TSZE2TDN4 20 Stainless Steel Metric M20 1.5 10mm x 4mm 11.9mm x 6.25mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE2TPN4 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE2TDN4 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE2TPN4 20D Stainless Steel Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE1TD4 20 Stainless Steel Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF1TSZE2TDN4 20 Stainless Steel Metric M20 1.5 7mm x 4mm 8.2mm x 5.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF2TSZE2TDN4 20 Stainless Steel Metric M20 1.5 8mm x 4mm 10.3mm x 6.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE2TDN5 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE2TPN5 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF1TSZE2TDN5 20 Nickel Plated Brass Metric M20 1.5 7mm x 4mm 8.2mm x 5.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20TSZE1TD5 20 Nickel Plated Brass Metric M20 1.5 9 14 0.35 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF2TSZE2TDN5 20 Nickel Plated Brass Metric M20 1.5 8mm x 4mm 10.3mm x 6.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE2TPN5 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE1TD5 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20DTSZE2TDN5 20D Nickel Plated Brass Metric M20 1.5 5 14 0.2 0.55 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF4TSZE2TDN5 20 Nickel Plated Brass Metric M20 1.5 11mm x 4mm 13.5mm x 7.0mm 6.5 0.26 24 26.4 0.95 1.04 26.7
20FF3TSZE2TDN5 20 Nickel Plated Brass Metric M20 1.5 10mm x 4mm 11.9mm x 6.25mm 6.5 0.26 24 26.4 0.95 1.04 26.7
25FF1TSZE2TDN4T 25 Stainless Steel NPT 3/4" 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 33 1.18 1.3 32
25TSZE2TDN4T 25 Stainless Steel NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25FF2TSZE2TDN4T 25 Stainless Steel NPT 3/4" 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 33 1.18 1.3 32
25TSZE1TD5T 25 Nickel Plated Brass NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25FF5TSZE2TDN4T 25 Stainless Steel NPT 3/4" 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 33 1.18 1.3 32
25DTSZE2TPN4T 25D Stainless Steel NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25FF3TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 33 1.18 1.3 32
25FF1TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 8mm x 4mm 10.3mm x 6.0mm 15 0.59 30 33 1.18 1.3 32
25DTSZE1TD5L 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 12 0.47 30 33 1.18 1.3 32
25FF4TSZE2TDN4T 25 Stainless Steel NPT 3/4" 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 33 1.18 1.3 32
25DTSZE2TDN4T 25D Stainless Steel NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25DTSZE1TD4T 25D Stainless Steel NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25FF2TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 9.4mm x 4.7mm 12.4mm x 6.5mm 15 0.59 30 33 1.18 1.3 32
25TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25FF5TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 10.8mm x 5.4mm 13.8mm x 7.2mm 15 0.59 30 33 1.18 1.3 32
25TSZE1TD5L 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 12 0.47 30 33 1.18 1.3 32
25TSZE1TD4T 25 Stainless Steel NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25DTSZE1TD5T 25D Nickel Plated Brass NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25FF3TSZE2TDN4T 25 Stainless Steel NPT 3/4" 9.7mm x 7mm 12.4mm x 8.8mm 15 0.59 30 33 1.18 1.3 32
25DTSZE2TDN5T 25D Nickel Plated Brass NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25FF4TSZE2TDN5T 25 Nickel Plated Brass NPT 3/4" 10.2mm x 3.4mm 13.2mm x 5.2mm 15 0.59 30 33 1.18 1.3 32
25TSZE2TPN4T 25 Stainless Steel NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25TSZE2TPN5T 25 Nickel Plated Brass NPT 3/4" 12.5 18 0.49 0.71 15 0.59 30 33 1.18 1.3 32
25DTSZE2TPN5T 25D Nickel Plated Brass NPT 3/4" 9 18 0.35 0.71 15 0.59 30 33 1.18 1.3 32
25DTSZE2TDN4 25D Stainless Steel Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25DTSZE1TD4 25D Stainless Steel Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25FF3TSZE2TDN4 25 Stainless Steel Metric M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 7 0.28 30 33 1.18 1.3 32
25TSZE2TPN4 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
25TSZE2TDN4 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
25DTSZE2TPN4 25D Stainless Steel Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25TSZE1TD4 25 Stainless Steel Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
25FF1TSZE2TDN4 25 Stainless Steel Metric M25 1.5 8mm x 4mm 10.3mm x 6.0mm 7 0.28 30 33 1.18 1.3 32
25FF2TSZE2TDN4 25 Stainless Steel Metric M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 7 0.28 30 33 1.18 1.3 32
25FF5TSZE2TDN4 25 Stainless Steel Metric M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 7 0.28 30 33 1.18 1.3 32
25FF4TSZE2TDN4 25 Stainless Steel Metric M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 7 0.28 30 33 1.18 1.3 32
25FF1TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 8mm x 4mm 10.3mm x 6.0mm 7 0.28 30 33 1.18 1.3 32
25TSZE1TD5 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
25FF2TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 9.4mm x 4.7mm 12.4mm x 6.5mm 7 0.28 30 33 1.18 1.3 32
25FF5TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 10.8mm x 5.4mm 13.8mm x 7.2mm 7 0.28 30 33 1.18 1.3 32
25DTSZE2TPN5 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25DTSZE1TD5 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25DTSZE2TDN5 25D Nickel Plated Brass Metric M25 1.5 9 18 0.35 0.71 7 0.28 30 33 1.18 1.3 32
25FF4TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 10.2mm x 3.4mm 13.2mm x 5.2mm 7 0.28 30 33 1.18 1.3 32
25FF3TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 9.7mm x 7mm 12.4mm x 8.8mm 7 0.28 30 33 1.18 1.3 32
25TSZE2TDN5 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
25TSZE2TPN5 25 Nickel Plated Brass Metric M25 1.5 12.5 18 0.49 0.71 7 0.28 30 33 1.18 1.3 32
32FF1TSZE2TDN5T 32 Nickel Plated Brass NPT 1" 14mm x 5mm 17.1mm x 10.0mm 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE1TD5L 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32DTSZE2TDN4T 32D Stainless Steel NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE1TD4T 32D Stainless Steel NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE2TPN5T 32 Nickel Plated Brass NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE2TDN5T 32 Nickel Plated Brass NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE1TD5L 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 12 0.47 39 42.9 1.54 1.69 37.8
32TSZE1TD4T 32 Stainless Steel NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE2TDN5T 32D Nickel Plated Brass NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE1TD5T 32D Nickel Plated Brass NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE2TPN4T 32 Stainless Steel NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE2TPN5T 32D Nickel Plated Brass NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32FF1TSZE2TDN4T 32 Stainless Steel NPT 1" 14mm x 5mm 17.1mm x 10.0mm 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE2TDN4T 32 Stainless Steel NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE1TD5T 32 Nickel Plated Brass NPT 1" 17 25 0.67 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32DTSZE2TPN4T 32D Stainless Steel NPT 1" 12.5 25 0.49 0.98 18 0.71 39 42.9 1.54 1.69 37.8
32TSZE2TPN4 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32TSZE2TDN4 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE2TPN4 32D Stainless Steel Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32TSZE1TD4 32 Stainless Steel Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32FF1TSZE2TDN4 32 Stainless Steel Metric M32 1.5 14mm x 5mm 17.1mm x 10.0mm 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE1TD4 32D Stainless Steel Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE2TDN4 32D Stainless Steel Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE2TPN5 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE1TD5 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32DTSZE2TDN5 32D Nickel Plated Brass Metric M32 1.5 12.5 25 0.49 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32TSZE2TDN5 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32TSZE2TPN5 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
32FF1TSZE2TDN5 32 Nickel Plated Brass Metric M32 1.5 14mm x 5mm 17.1mm x 10.0mm 8 0.31 39 42.9 1.54 1.69 37.8
32TSZE1TD5 32 Nickel Plated Brass Metric M32 1.5 17 25 0.67 0.98 8 0.31 39 42.9 1.54 1.69 37.8
40DTSZE1TD4T 40D Stainless Steel NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40DTSZE2TDN4T 40D Stainless Steel NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40TSZE2TPN5T 40 Nickel Plated Brass NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40TSZE2TDN5T 40 Nickel Plated Brass NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40TSZE1TD5L 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 15 0.59 50 55 1.97 2.17 44.7
40TSZE1TD4T 40 Stainless Steel NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40DTSZE2TDN5T 40D Nickel Plated Brass NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40DTSZE1TD5T 40D Nickel Plated Brass NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40TSZE2TPN4T 40 Stainless Steel NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40FF1TSZE2TDN4T 40 Stainless Steel NPT 1-1/4" 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 55 1.97 2.17 44.7
40TSZE2TDN4T 40 Stainless Steel NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40DTSZE2TPN5T 40D Nickel Plated Brass NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40TSZE1TD5T 40 Nickel Plated Brass NPT 1-1/4" 24 32 0.94 1.26 18 0.71 50 55 1.97 2.17 44.7
40DTSZE2TPN4T 40D Stainless Steel NPT 1-1/4" 19 32 0.75 1.26 18 0.71 50 55 1.97 2.17 44.7
40FF1TSZE2TDN5T 40 Nickel Plated Brass NPT 1-1/4" 15mm x 6mm 19.4mm x 10.0mm 18 0.71 50 55 1.97 2.17 44.7
40DTSZE1TD5L 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 15 0.59 50 55 1.97 2.17 44.7
40TSZE2TPN4 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40TSZE2TDN4 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE2TPN4 40D Stainless Steel Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
40FF1TSZE2TDN4 40 Stainless Steel Metric M40 1.5 15mm x 6mm 19.4mm x 10.0mm 8 0.31 50 55 1.97 2.17 44.7
40TSZE1TD4 40 Stainless Steel Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE1TD4 40D Stainless Steel Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE2TDN4 40D Stainless Steel Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
40TSZE2TPN5 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40TSZE2TDN5 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40FF1TSZE2TDN5 40 Nickel Plated Brass Metric M40 1.5 15mm x 6mm 19.4mm x 10.0mm 8 0.31 50 55 1.97 2.17 44.7
40TSZE1TD5 40 Nickel Plated Brass Metric M40 1.5 24 32 0.94 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE2TPN5 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE2TDN5 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
40DTSZE1TD5 40D Nickel Plated Brass Metric M40 1.5 19 32 0.75 1.26 8 0.31 50 55 1.97 2.17 44.7
50TSZE1TD5L 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50TSZE1TD4T 50 Stainless Steel NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE2TDN5T 50D Nickel Plated Brass NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE1TD5T 50D Nickel Plated Brass NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50TSZE2TPN4T 50 Stainless Steel NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50TSZE2TDN4T 50 Stainless Steel NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE2TPN5T 50D Nickel Plated Brass NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50TSZE1TD5T 50 Nickel Plated Brass NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE2TPN4T 50D Stainless Steel NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE1TD5L 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 15 0.59 57 62.7 2.25 2.47 48.7
50DTSZE2TDN4T 50D Stainless Steel NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE1TD4T 50D Stainless Steel NPT 1-1/2" 22 38 0.87 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50TSZE2TPN5T 50 Nickel Plated Brass NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50TSZE2TDN5T 50 Nickel Plated Brass NPT 1-1/2" 28 38 1.1 1.5 19 0.75 57 62.7 2.25 2.47 48.7
50DTSZE2TPN4 50D Stainless Steel Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE1TD4 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50DTSZE1TD4 50D Stainless Steel Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50DTSZE2TDN4 50D Stainless Steel Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE2TPN4 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE2TDN4 50 Stainless Steel Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE2TDN5 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE2TPN5 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50TSZE1TD5 50 Nickel Plated Brass Metric M50 1.5 28 38 1.1 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50DTSZE2TPN5 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50DTSZE2TDN5 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
50DTSZE1TD5 50D Nickel Plated Brass Metric M50 1.5 22 38 0.87 1.5 9 0.35 57 62.7 2.25 2.47 48.7
63TSZE2TPN4T 63 Stainless Steel NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63TSZE2TDN4T 63 Stainless Steel NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE2TPN5T 63D Nickel Plated Brass NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63TSZE1TD5T 63 Nickel Plated Brass NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE2TPN4T 63D Stainless Steel NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE1TD5L 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63DTSZE2TDN4T 63D Stainless Steel NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE1TD4T 63D Stainless Steel NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63TSZE2TPN5T 63 Nickel Plated Brass NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63TSZE2TDN5T 63 Nickel Plated Brass NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63TSZE1TD5L 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 15 0.59 68 74.8 2.68 2.95 52.2
63TSZE1TD4T 63 Stainless Steel NPT 2" 37 48 1.46 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE1TD5T 63D Nickel Plated Brass NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE2TDN5T 63D Nickel Plated Brass NPT 2" 28 48 1.1 1.89 20 0.79 68 74.8 2.68 2.95 52.2
63DTSZE1TD4 63D Stainless Steel Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63DTSZE2TDN4 63D Stainless Steel Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE2TPN4 63 Stainless Steel Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE2TDN4 63 Stainless Steel Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63DTSZE2TPN4 63D Stainless Steel Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE1TD4 63 Stainless Steel Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE2TDN5 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE2TPN5 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63TSZE1TD5 63 Nickel Plated Brass Metric M63 1.5 37 48 1.46 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63DTSZE2TPN5 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63DTSZE1TD5 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
63DTSZE2TDN5 63D Nickel Plated Brass Metric M63 1.5 28 48 1.1 1.89 10 0.39 68 74.8 2.68 2.95 52.2
1
No results

0 of 250 Selected

Your Shortlist

    Your Selection

      "*" indicates required fields

      We'd like to keep in touch

      We have some exciting things in the pipeline - if you'd like to be the first to know please enter your email address below.

      No thanks, I'd just like to Download the datasheets
