These products have been designed and third party certified to UL 486A-486B and CSA C22.2 No. 65, for high quality and reliable crimping.
Narrow palm cable lugs have a contained palm width to ensure a connection can be made in space constrained installations.
Manufactured from high purity, oxygen-free, seamless copper tube (C110/CW009A), these cable lugs are precisely dimensioned to achieve optimal crimping with suitable conductors.
The lugs are annealed to enhance durability, minimising risk of fracture between the palm and barrel. The tin coating ensures corrosion and oxidation resistance, ensuring maximum efficiency of the connection.
There is a large inspection window to visually inspect conductor insertion.

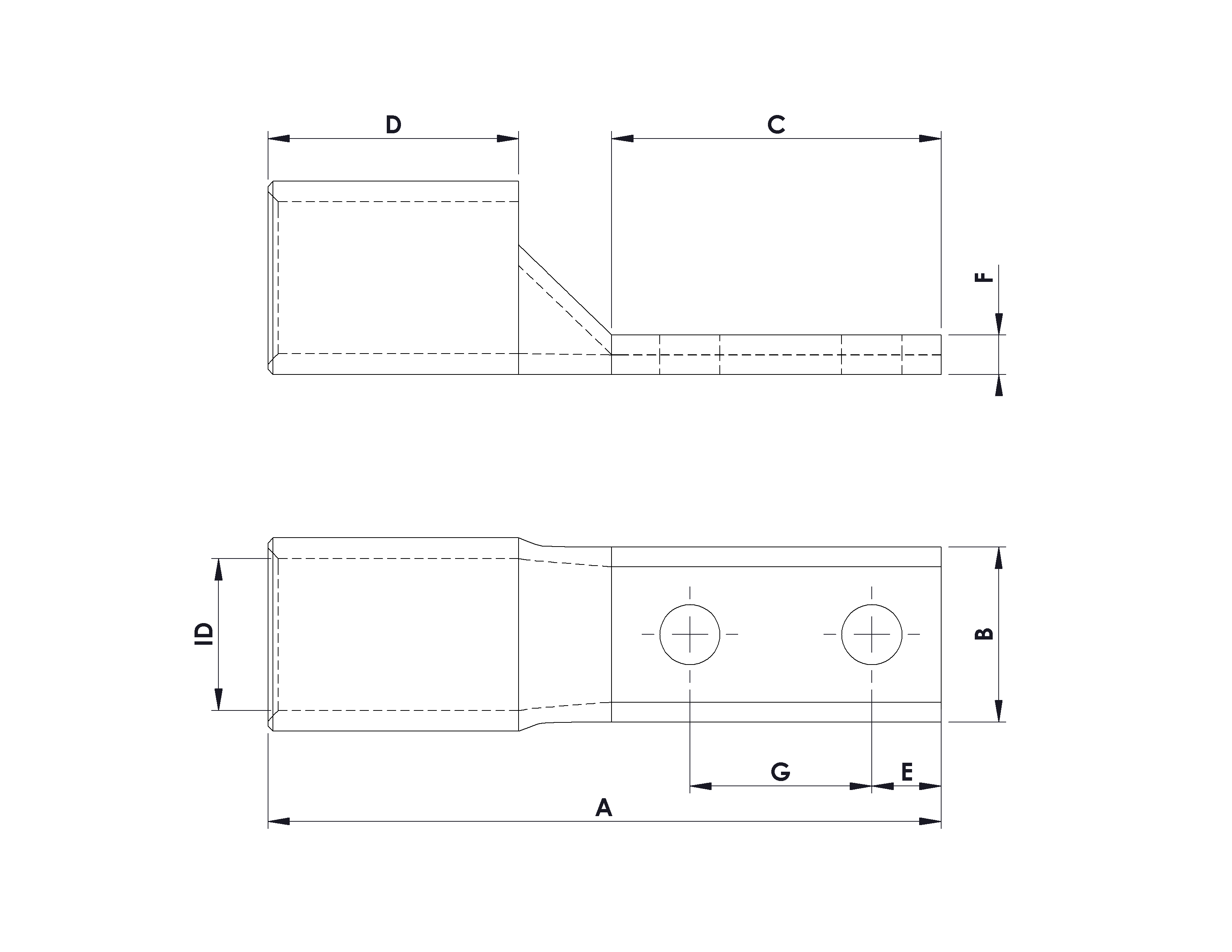

The centres of the two stud holes are detailed in the dimensional table. Custom stud hole dimensions are available on request.
Features
Sizes to suit cables 2 AWG up to 1,000 kcmil
Contained palm width for space constrained connection
Stud hole centre dimensions standardised at 1 3/4"; contact CMP for special dimensions
Manufactured from high purity (99.9%) copper seamless tube (BSEN 13600)
Annealed and electrolytically tin plated for reliable crimping with oxidisation and corrosion resistance
Large inspection window permits visual inspection of conductor insertion
Clearly marked and colour coded for easy die selection
CMP crimping die available for optimal crimping
Certification testing carried out using Burndy, Panduit and Greenlee crimping tools
Bevelled entry to aid conductor insertion
Sold in bags; product must be ordered in bag multiples. See table on following page for bag quantities
Crimping die part numbers match CSA or wire size; refer to CMP compatible die chart for more information
